Genexis FiberTwist Series Bedienungsanleitung
P3420
FiberTwist–Series
Installation Guide

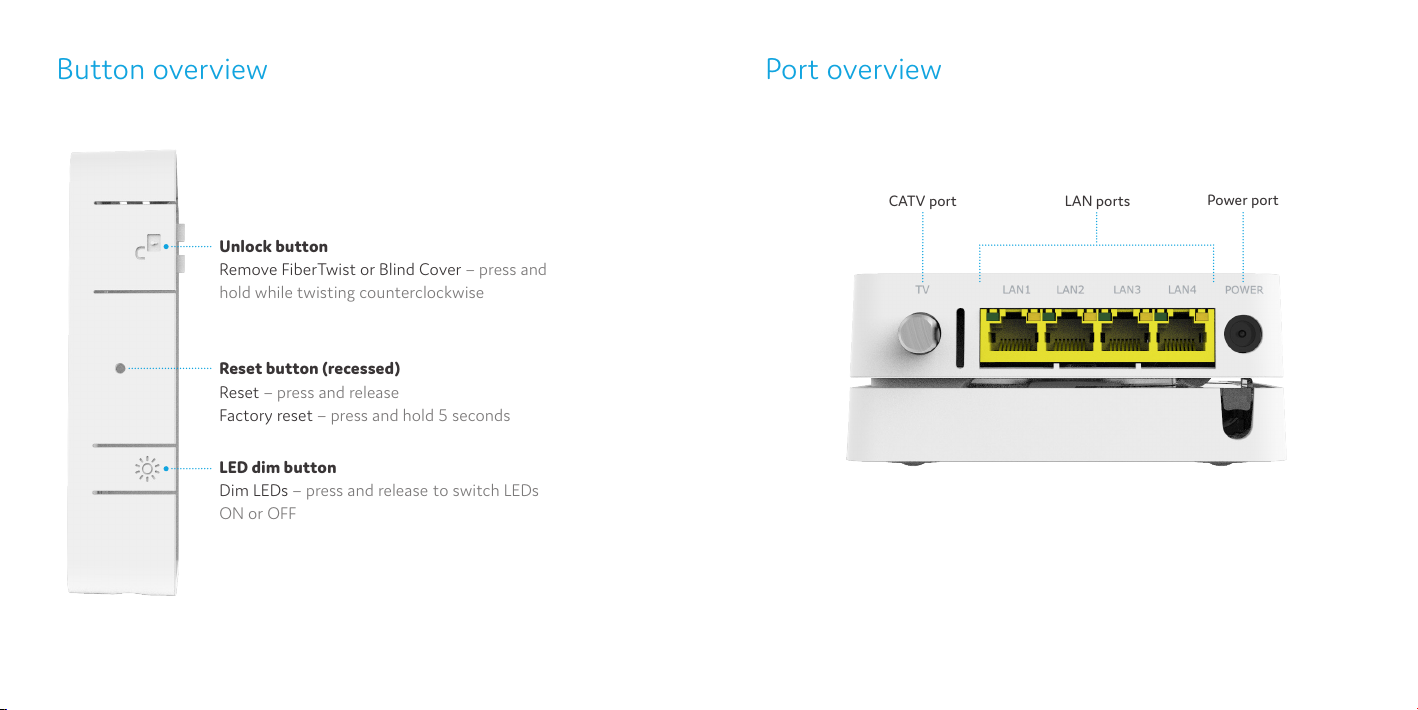

Button overview Port overview
Power port
LAN ports
Unlock button
Remove FiberTwist or Blind Cover – press and
hold while twisting counterclockwise
Reset button (recessed)
Reset – press and release
Factory reset – press and hold 5seconds
LED dim button
Dim LEDs – press and release to switch LEDs
ON or OFF
CATV port
System
Green – system ok
Green (blinking) – booting
Red – system error
Red (blinking) – insuicient optical signal
O– power o
Uplink
Green – link ok
Green (blinking) – link ok, no remote management
O– no link

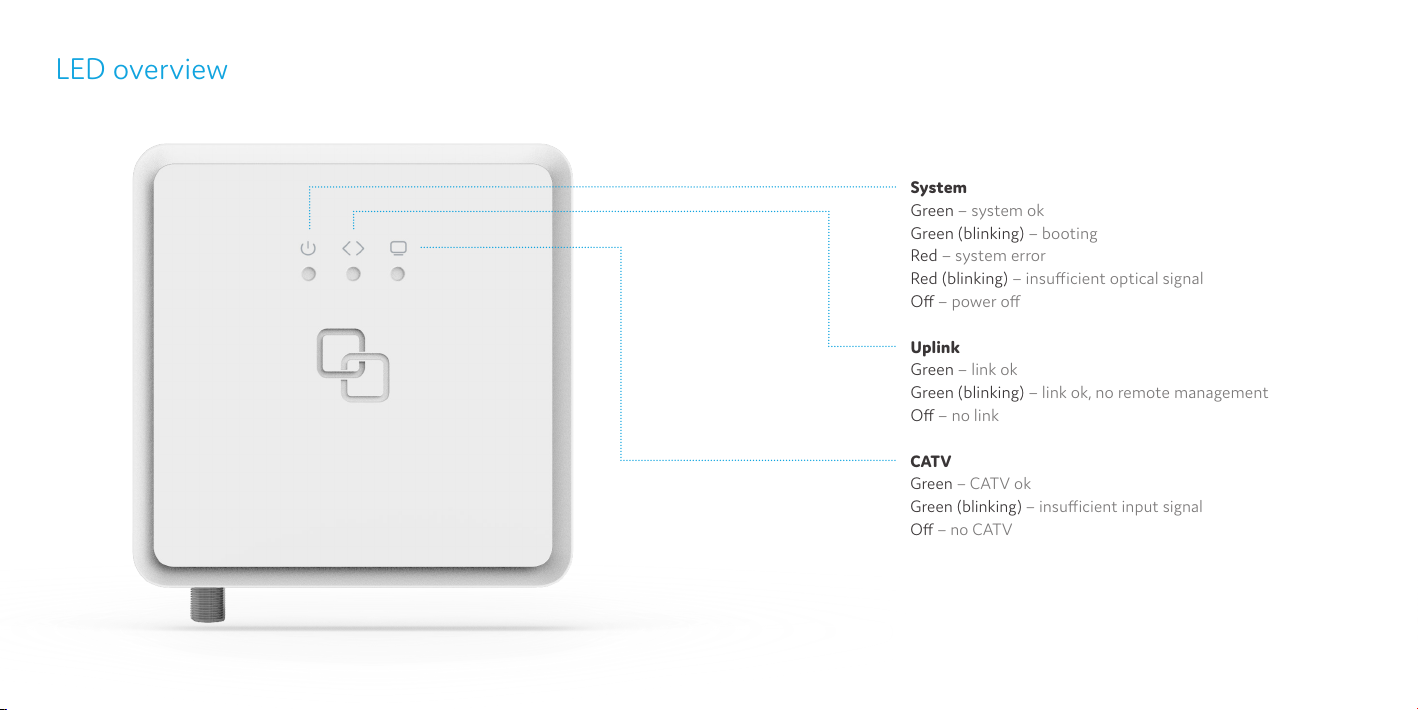

LED overview
CATV
Green – CATV ok
Green (blinking) – insuicient input signal
O– no CATV
Box contents
• Genexis FiberTwist (active device)
• Power adapter
• Label (self-adhesive)
• Installation Guide (this document)
Preparation
Ensure there is a power socket
within reach of where the device
is being installed.
Important: These instructions
need to be followed precisely and
uninterrupted. This minimizes
the risk of damage to the fiber
optic connectors, causing a severe
degradation of signal quality.
Multiple languages of this document and additional product information are
availableon https://genexis.eu/download-portal/#fibertwist
Installation guide
Remove Blind Cover (if present)
• Press and hold the unlock button (see button overview).
• Rotate the Blind Cover counterclockwise till it blocks.
• Remove the Blind Cover from the baseplate (FTU) by pulling
it towards yourself.
• Store the Blind Cover in a safe place.

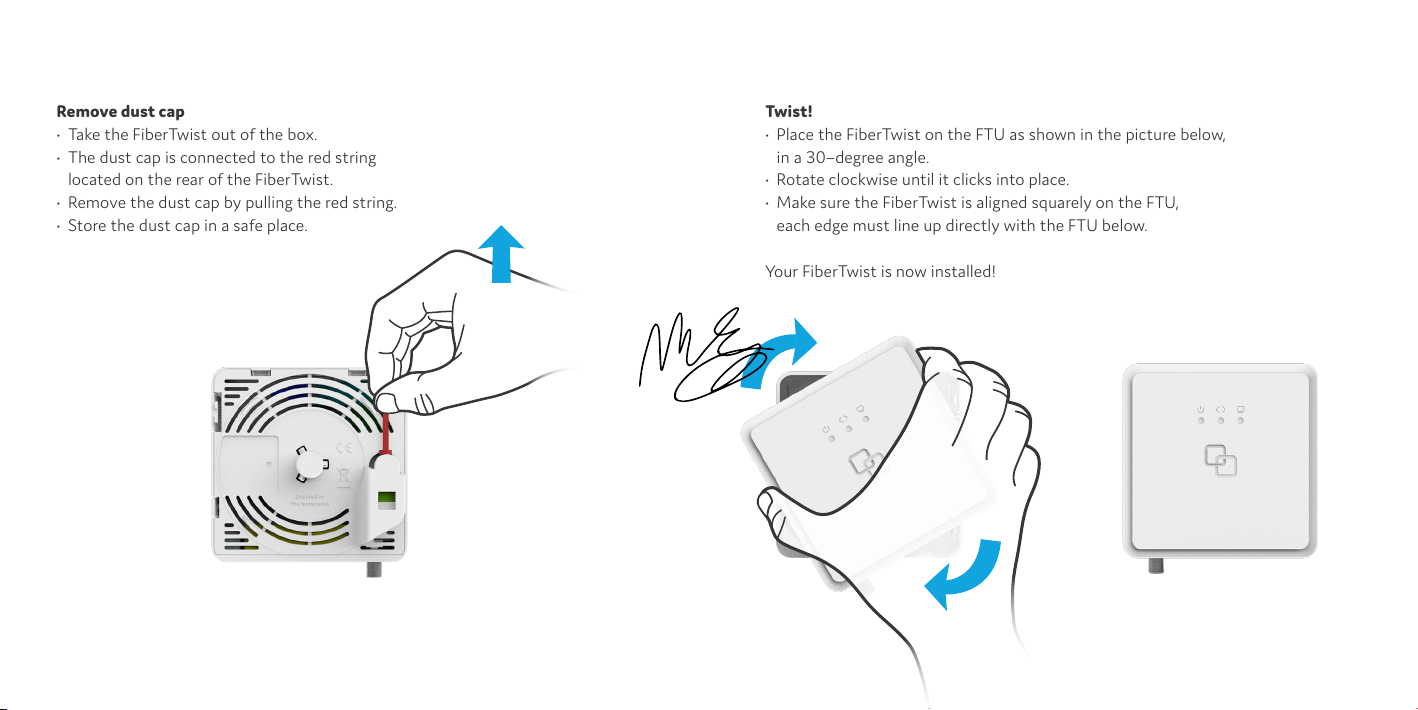

Remove dust cap
• Take the FiberTwist out of the box.
• The dust cap is connected to the red string
located on the rear of the FiberTwist.
• Remove the dust cap by pulling the red string.
• Store the dust cap in a safe place.
Twist!
• Place the FiberTwist on the FTU as shown in the picture below,
in a 30–degree angle.
• Rotate clockwise until it clicks into place.
• Make sure the FiberTwist is aligned squarely on the FTU,
each edge must line up directly with the FTU below.
Your FiberTwist is now installed!
Company Name
Genexis B.V.
Company Address
Lodewijkstraat 1a
5652 AC Eindhoven
The Netherlands
Name and title of authorized person
Maarten Egmond, CTO
Signature of authorized person
Place of issue Date of issue
Eindhoven 2020-01-17
The Netherlands
Hereby, Genexis B.V. declares that the product FiberTwist-P3420 is in compliance
with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU and Delegated Directive
2015/863.
The full texts of the EU declaration of conformity are available at the following
internet addresses respectively: https://genexis.eu/red/ft-P3420,
EU Declaration of Conformity
Connecting the FiberTwist
• Connect CATV and LAN cable(s) as required.
• Connect the supplied power adapter to the FiberTwist and plug the adapter into
a power socket.
Warning: The FiberTwist is a Class 1laser product.
If at some point in the future it becomes necessary to uninstall the FiberTwist,
please place the Blind Cover back on the FTU immediately and put the dust cap
back on the FiberTwist.
Revision 1.0January 2020, Copyright © 2020 Genexis B.V. All rights reserved.
Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves
the right to change, modify, transfer, or otherwise revise this publication without notice.
