work.
Fuse burnt
Cut off power source and change the same type
fuse. If fuse was burnt on end, it may be the problem
of connection; Find qualified professors to repair.
False or incomplete data
connection

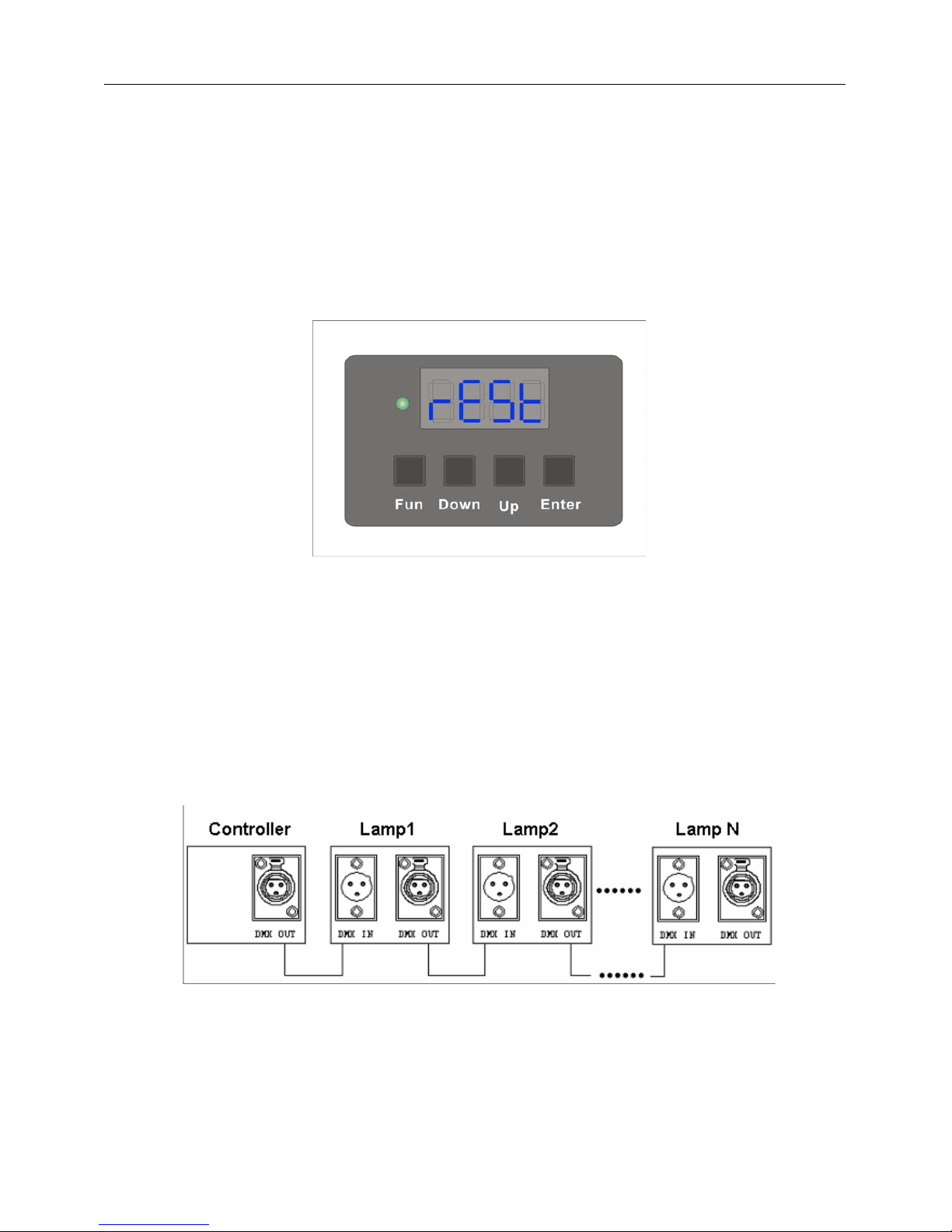

Check, repair or change the data line. Ensure
connection is well and the first lamp’s single input is
connected with the controller output.
False address setting Check DMX address.
Problem of signal
connector of some fixtures
Pull out the signal output and input of one fixture.
Then connect both directly. If it works well, this
fixture is proved to be the failed one. Handle the rest
fixtures alike to check which fixture has problems. If
any problem, please connect the technician.
Reset normally, but
console
Abnormally or no
response.
Signal output does not
match with the pin(pins2
and pins3 has a wrong
sequence)
Toggle the PHASE button on the controller to
reverse the polarity.
2. CLEANING
Though increasing reliability by designing well and we never stop to improve quality to lengthen lamp’s
lifespan. It is still indispensable to maintain it well by certain time in order to ensure best performance
First, clean fan and vent.
Favorable heat-dissipation and ventilation is vital to lamp’s normal work. So clean the fan and vent during a
certain time to guarantee smooth of wind path. Otherwise dust will barrier vent, which will affect the
performance because of over heat after working for some time.
Second, lens cleaning and maintenance
To ensure the best effect of lamp, please clean every lean or reflective setting. Use the soft cotton with some
lotion to clean it, but do not damage lens.
Third, check line during a certain time.
Check connecting line, wiring and ground line to ensure safety of using lamp during a certain time.
Forth, mechanical transmission part maintenance.
Check mechanical transmission part if it has any loose part during a certain time, such as a strap. Abrasion of
mechanical transmission part will affect stability of lamp work. If strap is loose, you should change it if
needed.
