George Foreman GFKTBBQ1801B Bedienungsanleitung

KETTLE BBQ -GFKTBBQ1801B

WARNING: CARBON MONOXIDE HAZARD

Burning charcoal inside can kill you. It gives off carbon

monoxide which has no odour. NEVER burn charcoal in

enclosed spaces e.g. homes, vehicles or tents

PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

For Customer Services & Spare Parts please call 0345 209 7461

Or visit us at https://www.georgeforeman.co.uk/

CONTENTS

Page(s)

Safety instructions

BBQ

Feature Diagram 4

BBQ Parts List

5-6

BBQ Assembly

7-11

Lighting

your BBQ 12

Food

Safety 13

Cleaning and care

Guarantee and customer services

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Carbon Monoxide

Poisoning Hazard Do not use in

Motor Homes Do Not Use

Indoors Do Not Use in

Tents Use in open

Spaces

WARNING! Do not use the barbecue in a confined

and/or habitable space e.g. houses, tents, caravans,

motor homes, boats. Danger of carbon monoxide

poisoning fatality.

WARNING:

•The Barbeque must be installed on a secure level base

prior to use.

•The Barbeque shall be heated up for at least 30 minutes

prior to the first cooking on the barbeque.

•Ensure that the coals placed do not exceed half the

height between the cooking grill and the coal area.

•WARNING! This barbecue will become very hot, do not

move it during operation.

•Do not use indoors!

•WARNING! Do not use spirit or petrol for lighting or re-

lighting! Use only firelighters complying to EN 1860-3!

•WARNING! Keep children and pets away.

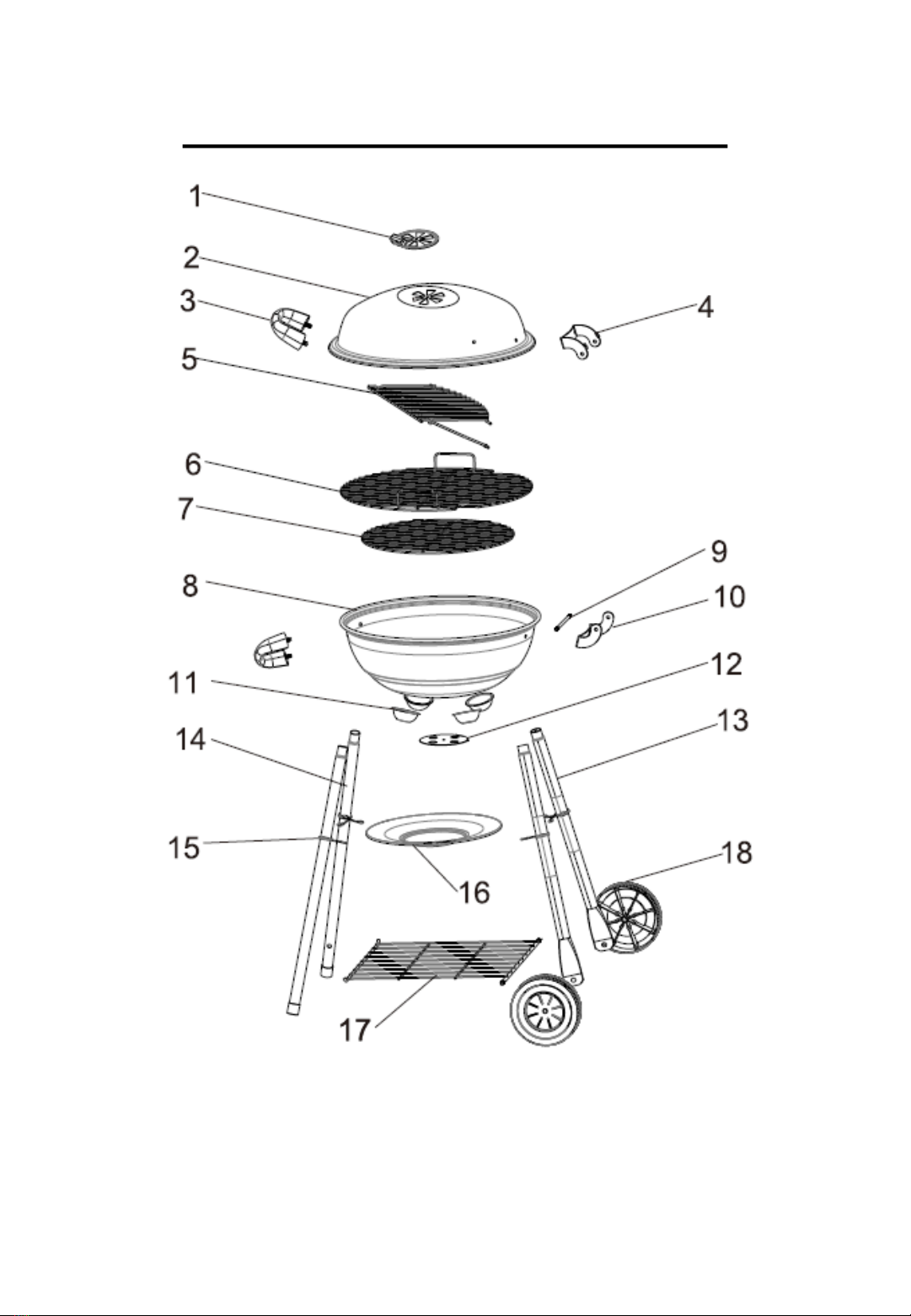

BBQ FEATURE DIAGRAM

You will need…

•Cross Head Screwdriver

•Adjustable Spanner

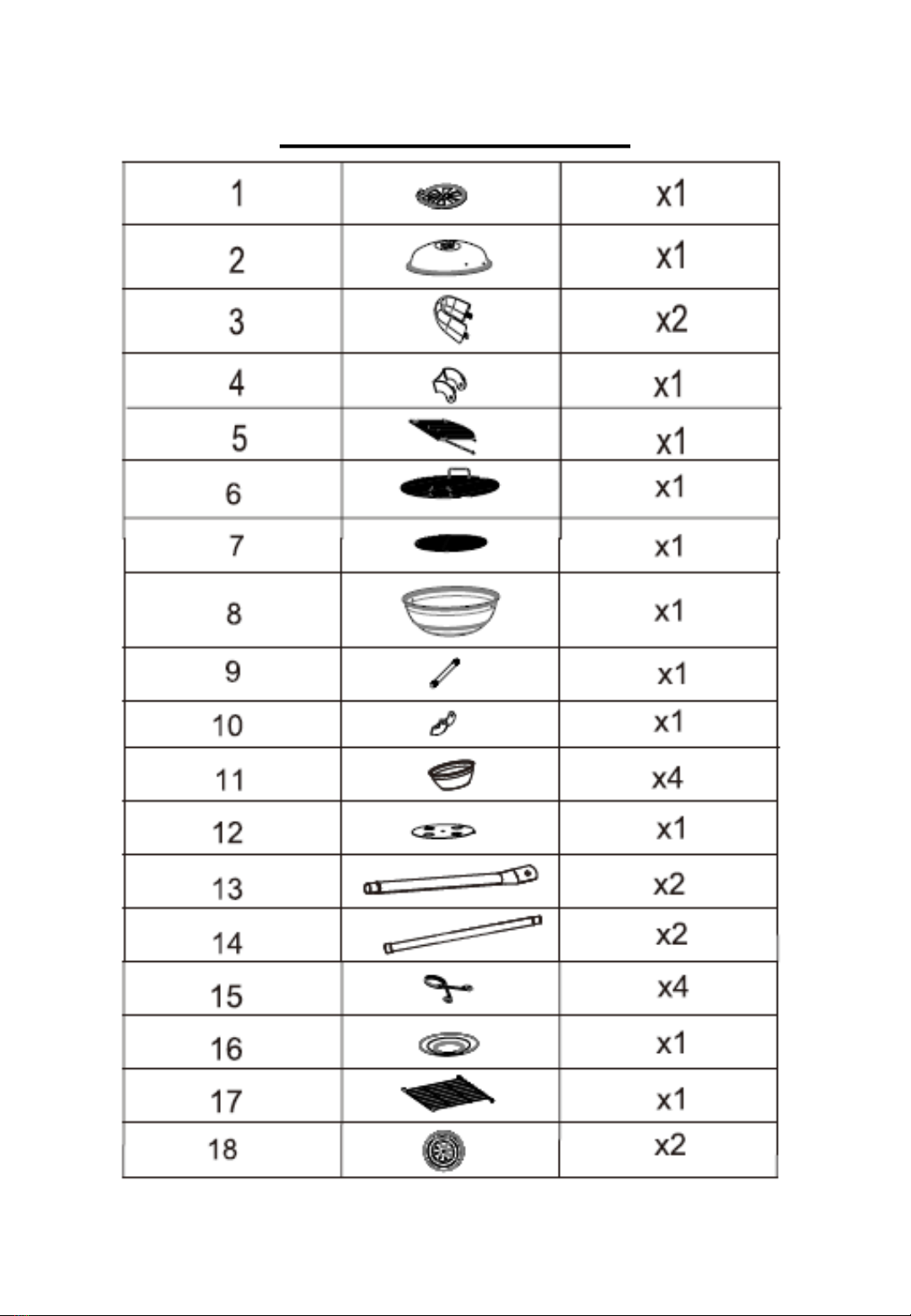

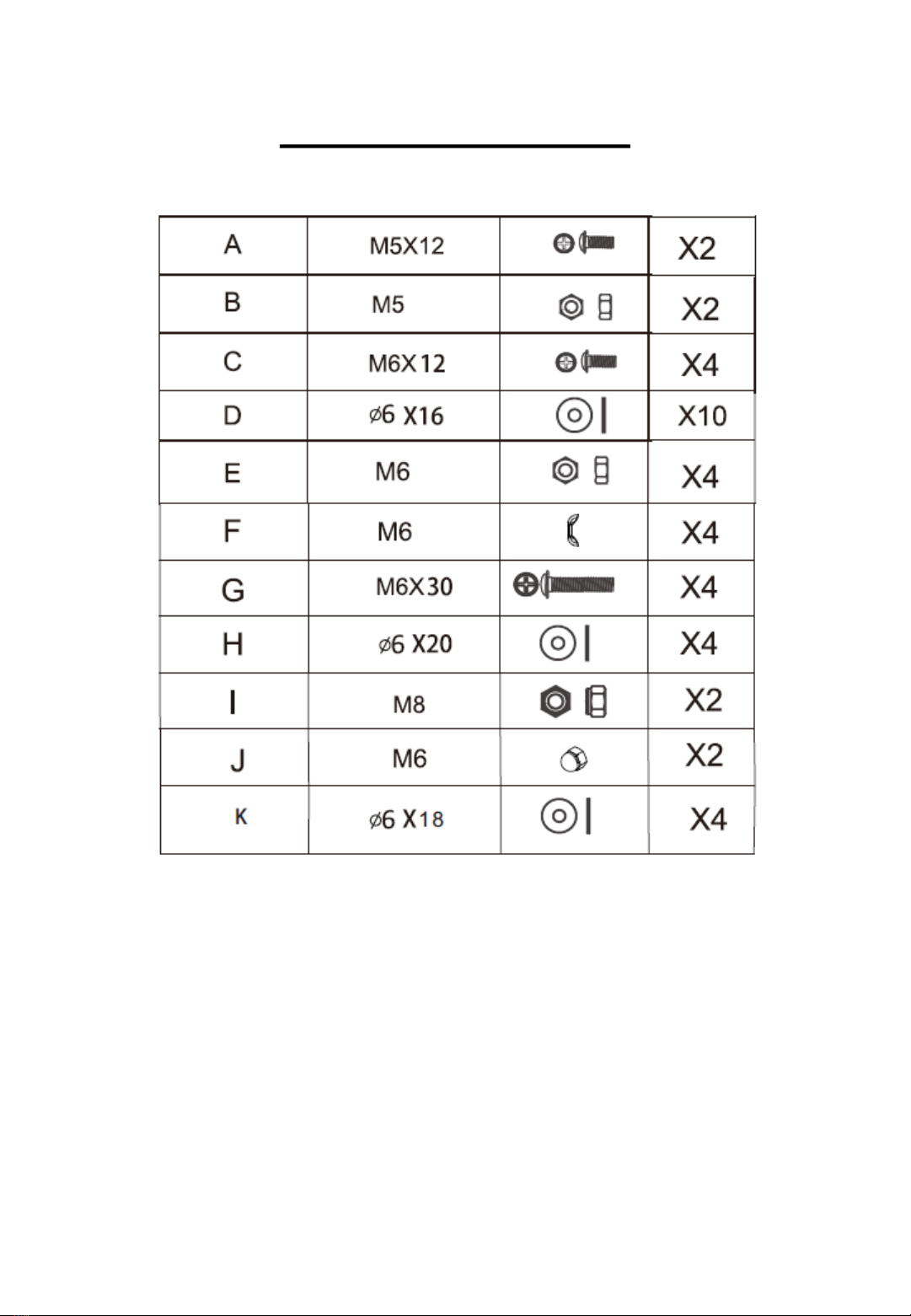

BBQ PARTS LIST

Note:

Part G & H are pre- assembled on the leg (13) & (14).

BBQ ASSEMBLY

Assembling the Lid

1. Attach one of the handles (3) onto the

fire bowl (8) using the “D” Washers

and Wing Nuts.

Ensure the fibre washers are placed on

the outside of the fire bowl and the

metal washers and wing nuts are

placed on the inside of the fire bowl.

2. Attach the ash lid (12) to the bottom

of the fire bowl using the “A” Bolts,

Washers and Nuts.

Ensure the bolts are placed on the

outside of the fire bowl and the

washers and nuts are placed on the

inside of the fire bowl.

1. Attach one of the handles (3) and the lid

support (4) onto the lid (2) using the “D”

Washers and Wing Nuts.

The lid support should be placed on the

outside of the lid.

Ensure the fibre washers are placed on the

outside of the lid and the metal washers and

wing nuts are placed on the inside of the lid.

2. Attach the lid air vent (1) onto the lid (2)

using the “A” Bolts, Washers and Nuts.

Ensure the bolt is placed on the outside of

the fire bowl and the washer and nut are

placed on the inside of the fire bowl.

Assembling the Fire Bowl

BBQ ASSEMBLY

Assembling the Legs

1. Remove the “G” Bolts and Washers

that have been preassembled onto the

legs (13 & 14).

2. Attach the leg cups (11), long legs (14)

and wheel legs (13) to the fire bowl

(8) using the “G” Bolts and Washers.

IMPORTANT: Ensure the long legs (14)

are attached to the handle side of the

body.

Adding the Shelf

1. Attach the shelf (17) to the legs

2. Attach the wheels (18), the shelf (17)

and legs (13) together by using 2 of the

‘’I’’ nuts.

BBQ ASSEMBLY

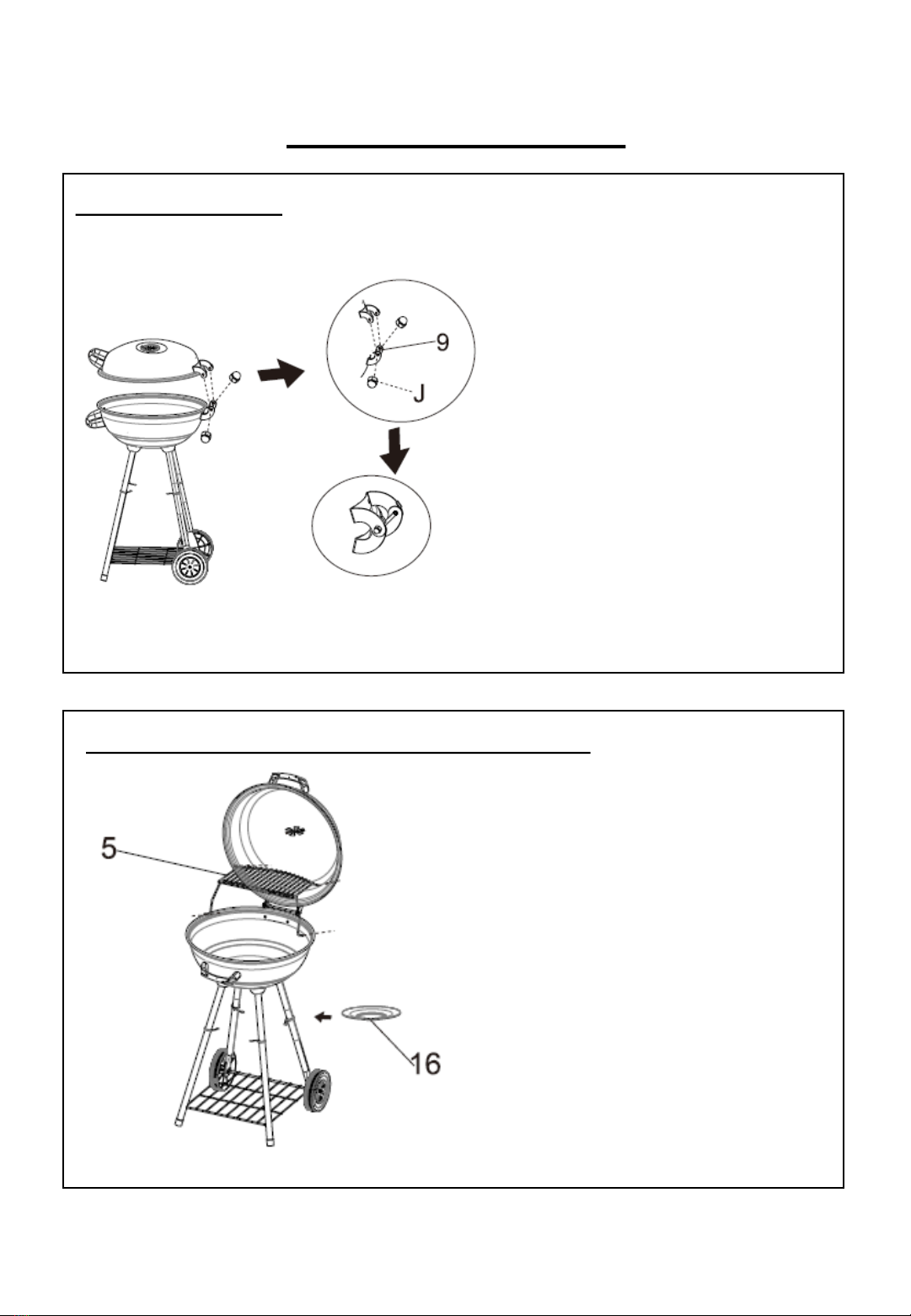

Adding the Warming Rack and Ash plate

1. Attach the warming rack (5) to the Lid

and the fire bowl.

2. Attach the ash plate (16) to the legs.

Attaching the lid

1. Attach the lid onto the firebowl using

2 of the “J” wing nuts and axel ‘’9’’.

BBQ ASSEMBLY

Attaching the Grill Plates

1. Attach the cooking grill (6) and

charcoal grill (7) in the fire bowl.
