Quick Start Guide

GV-IP Decoder Box and GV-Pad

V1.02

Thank you for purchasing GV-IP Decoder Box and GV-Pad. This guide is designed to

assist the new user in getting immediate results from the GV-IP Decoder Box and

GV-Pad. For advanced information on how to use the GV-IP Decoder Box and GV-Pad,

please refer to GV-IP Decoder Box and GV-Pad User's Manual on software DVD.

Note: no SD/SDHC card slot or local storage function in Argentina

1Introduction

Welcome to the GV-IP Decoder Box / GV-Pad Quick Start Guide. In the

following sections, you will learn about the basic configuration and features

of the GV-IP Decoder Box / GV-Pad. For a detailed user’s manual, see

GV-IP Decoder Box and GV-Pad User’s Manual on software DVD.

2012/05

English

DBV102-QG-A

GV-IP Decoder Box

The GV-IP Decoder Box / GV-Pad is compatible with:

1. Most GeoVision IP devices (of the indicated firmware versions) using

H.264 codec

2. GV-SD200 using H.264 codec through ONVIF

3. Third-party IP devices that support H.264 and adhere to RTSP, ONVIF

or PSIA.

To decode and display non-H.264 IP channels or analog channels,

connect the devices to GV-System and access them through GV-Mobile

Server. The supported devices are listed below.

Supported Devices Connected to GV-System

Analog cameras

All models of GeoVision IP cameras, GV-Video Server, GV-Compact DVR,

GV-IP Speed Dome, GV-Smart Box and GV-DSP LPR

11 brands of third-party IP cameras. For detail, see

http://www.geovision.com.tw/english/4_21.asp

Supported GeoVision IP Devices

Device Type

Box Camera

Bullet Camera

Cube Camera

Fixed Dome

Vandal Proof IP Dome

Mini Fixed Dome

PT Camera

PTZ Camera

Speed Dome

IMPORTANT: The connected GeoVision and third-party channels must be set with

H.264 codec to be compatible.

●GV-IP Decoder Box × 1

●AC/DC adapter × 1 (12 V, 3 A, 36 W)

●Software DVD x 1

Compatible Devices

GV-IP Decoder Box

●GV-Pad × 1

●Magnetic hinge x 1

●AC/DC adapter × 1 (12 V, 3 A, 36 W)

●Software DVD x 1

●IR remote control × 1

●Power cord x 1

●GV-IP Decoder Box / GV-Pad

Quick Start Guide

●IR remote control × 1

●Screw x 4

●Power cord x 1

●GV-IP Decoder Box / GV-Pad

Quick Start Guide

GV-Pad

Packing List

Models

GV-BX110D

All models (except GV-BX110D)

GV-BL110D

All models (except GV-BL110D)

All models

GV-MFD110

All models (except GV-MFD110)

GV-PT110D

GV-PTZ010D

GV-SD010

GV-SD200

Firmware Versions

V1.08 or later

V1.06 or later

V1.08 or later

V1.06 or later

V1.08 or later

V1.06 or later

V1.08 or later

V1.02 or later

V1.0 or later

Supported GeoVision IP Devices

Device Type

Video Server

Compact DVR

Models

GV-VS04H

GV-VS11

GV-VS12

GV-Compact DVR V3 series only

Firmware Versions

V1.04 or later

V1.0 or later

V1.05 or later

V1.0 or later

2Overview

Front View

GV-IP Decoder Box

Optional accessories can expand the capabilities and versatility of your

GV-IP Decoder Box / GV-Pad. Contact your dealer for more information.

Description

For GV-IP Decoder Box only.

Used to mount GV-IP Decoder Box on

wall.

For GV-IP Decoder Box only.

Used to mount GV-IP Decoder Box on

the back of a VESA monitor.

The GV-Joystick facilitates focusing,

zooming, panning, tilting of GeoVision

and third-party PT, PTZ and Speed

Dome cameras on GV-IP Decoder

Box / GV-Pad.

The GV-WiFi USB adapter is a

plug-and-play device that provides

wireless connectivity to GeoVision IP

devices. The GV-WiFi USB Adapter

complies with IEEE802.11 b/g/n (Draft

3.0) standards for wireless networking.

Device

Wall Mount Kit

VESA monitor

mount kit

GV-Joystick

GV-WiFi USB

Adapter

Options

1 2 3 4 5

Name

LED Indicators

USB

Default

SD Card Slot

No.

Function

The green LED indicates the system is ready

for use.

The red LED indicates the power is supplied.

Connect to a GV-Joystick, a USB storage device

or a GV-WiFi USB adapter.

Built-in IR receiver to receive the IR signals from

the IR remote control.

Reset the GV-IP Decoder Box to the default

factory settings. Use a pin to press the button

until the green LED fades. This will take about

10 seconds. The system will then reset and

reboot itself shortly.

Connect to an SD card for local storage of

snapshot and firmware upgrade.

Back View

1 2 3 4 5

Name

Network

HDMI

VGA

Power OFF/ON

DC 12V

No.

Function

Connect to the network.

Connect to an HDMI supported display device.

Connect to a VGA monitor.

Switch the power on or off.

Connect to power by using the supplied power

adapter.

Note: The SPDIF and L/R ports are not functional.

Name

SD Card Slot

USB

LED Indicators

Network

No.

Function

Connect to an SD card for local storage of

snapshot and firmware upgrade.

Connect to a GV-Joystick, or to a USB storage

device or a GV-WiFi USB Adapter.

The green LED indicates the system is ready

for use.

The red LED indicates the power is supplied.

Built-in IR receiver to receive the IR signals from

the IR remote control.

Connect to the network.

Right Panel View

GV-Pad

Name

ENTER

DOWN

LEFT

RIGHT

STAND BY

Power OFF/ON

DC 12V

No.

Function

●Switch to the setup menu.

●Load default: Press for 10 seconds to load default

settings.

●Save settings in the Setup Menu.

●Display selected channels.

Move the cursor up.

Move the cursor down.

●Move the cursor left.

●Unselect a channel on the Device List.

●Move the cursor right.

●Select a channel on the Device List.

Press to enter the Standby mode. In the standby mode,

the screen turns off to minimize power consumption.

Press the key again to enter the ON mode.

Switch the power on or off.

Connect to power using the supplied power adapter.

Left Panel View

The IR Remote Control

Name

Power

Numeric /

Alphabetical /

Punctuation

Marks keys

Back

Arrow

REC

Loop Start /

Stop

No.

Function

Turn on or off the GV-IP Decoder Box / GV-Pad.

Enter numbers, alphabets or punctuation marks.

Back to the previous page in the Setup Menu.

●Move up, down, right and left in the Setup Menu.

●Right arrow key: select a channel on the Device List.

●Left arrow key: unselect a channel on the Device List.

Capture a snapshot.

●Start or stop sequential display.

●Display and fix at a channel: press the Loop Start /

Stop key, a numeric key and OK to display and fix at

the selected channel. Press 0and OK to return to the

last displayed channel.

Name

Shift

INFO

No.

Function

Switch to the setup menu.

●Save settings in the Setup Menu.

●Display selected channels.

Switch among the 8 resolutions.

1. Press the Shift key. The Green LED on the

front panel flashes.

2. Press No. 0 ~ 7 for the desired resolution

within 30 seconds.

0 : VGA_640 x 480

1 : VGA_1024 x 768

2 : VGA_1280 x 768

3 : VGA_1366 x 768

4 : HDMI_480p

5 : HDMI_720p

6 : HDMI_1080i

7 : HDMI_1080p

Note after the resolution is configured, the green

LED will fade and GV-IP Decoder Box / GV-Pad

will reboot automatically.

Shows the camera name and total number of

cameras under display.

Scan for available Access Points or wireless

stations when wireless network is selected.

POWER

123

456

BACK

PAGE

DOWN

PAGE

MUTE

CANCEL

REASE

CTRL

CH1 CH2 CH3 CH4

ABCD

REC

ZOOM

INFO

SHIFT

abc def

jklghi mno VOL

tuvpqrs

-/--:

wxyz

Note: The Shift key is only functional for GV-IP Decoder Box.

1. Connect a display device to VGA connector or HDMI connector for

video output.

2. Connect the device to LAN.

A. For wired network, connect to a standard network cable.

B. For wireless network, insert a Wi-Fi USB adapter.

3. Connect to power using the supplied power adapter.

4. Turn the Power switch to ON.

1. Connect the device to LAN.

A. For wired network, connect to a standard network cable.

B. For wireless network, insert a Wi-Fi USB adapter.

2. Connect to power using the supplied power adapter.

3. Turn the Power switch to ON.

Continued on the reverse

3Connection

GV-IP Decoder Box

GV-Pad

Note:

1. The GV-IP Decoder Box can only be connected to one display

device through the HDMI or VGA connector.

2. The default video output is set to VGA with 1024 x 768 resolutions.

If you use an HDMI monitor, be sure to configure the output type. To

change the default setting or configure the output type, see 3.5

Configurging the Accout, Storage and Output Type in the GV-IP

Decoder Box and GV-Pad User’s Manual on software DVD.

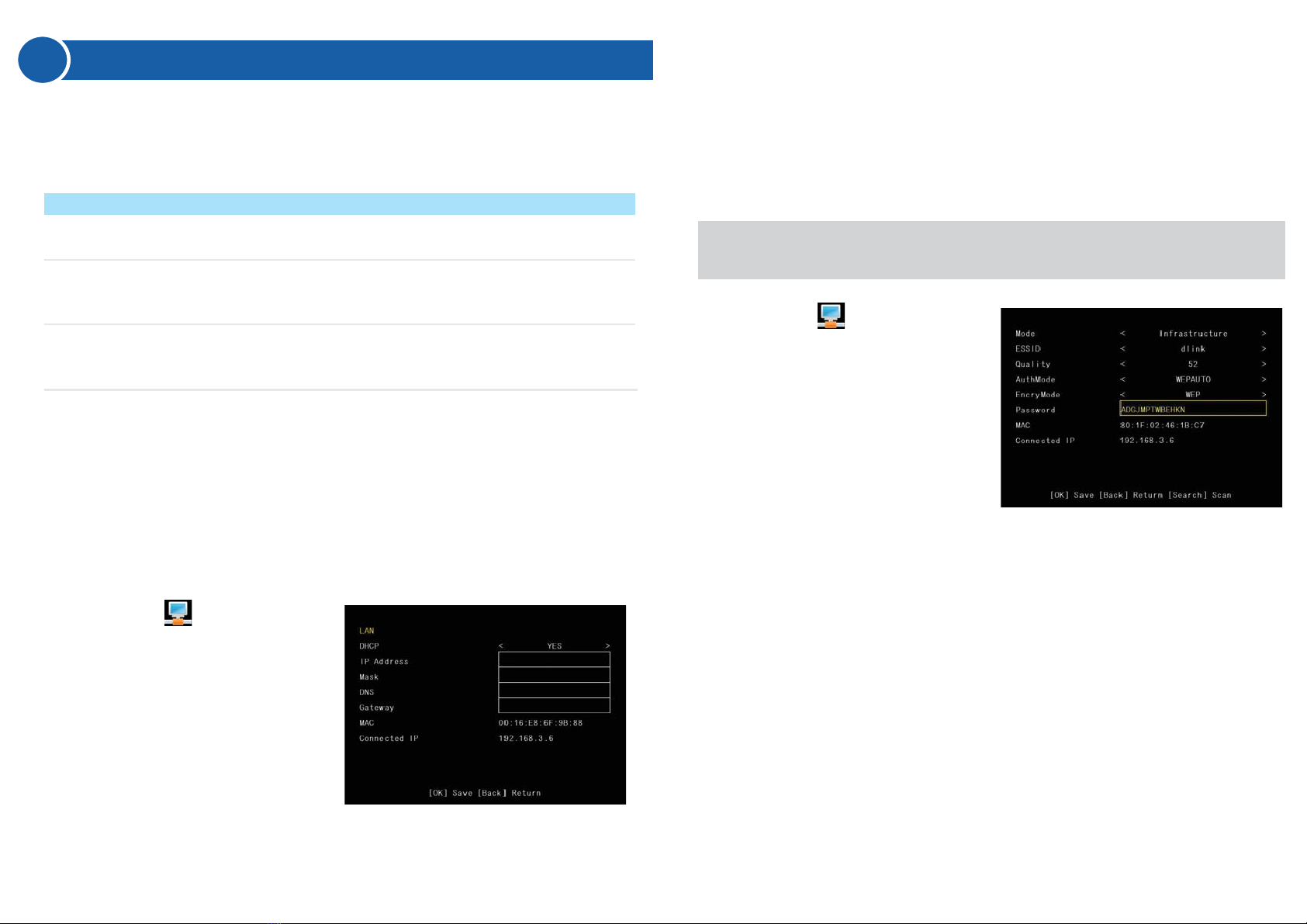

1. Select the icon, select LAN

Setting and press OK.

2. Select NO in the DHCP section

and enter a fixed IP address,

subnet mask and DNS and

gateway.

3. Press OK to save the settings.

When the device is connected to

the Internet, the IP address will

be shown in the Connected IP

field.

4Conguring the Basics

After you have installed and connected the necessary cables, you are ready

to configure the IP address, ID and password. The default IP address, ID

and password of GV-IP Decoder Box / GV-Pad are as below:

Wired Network Connection

If you have connected your device for a wired network connection, by

default, the device will be automatically assigned an IP address by the

DHCP server without further settings. To change the IP address to a fixed

one, follow the steps below.

Wireless Network Connection

A GV-WiFi USB Dongle is required to connect the device to wireless

network. Follow the steps below to establish a wireless network

connection.

Note: The GV-IP Decoder Box / GV-Pad only supports dynamic IP

address assignment (DHCP) in a wireless network.

1. Select the icon, select

WLAN Setting and press OK.

2. Press the Search button to scan

for available Access Points /

wireless stations.

3. Select an Access Point / wireless

station in the ESSID field and

complete the settings below.

4. Press OK to save the settings and connect to wireless LAN. When the

device is connected to the Internet, the IP address will be shown in

the Connected IP field.

●ESSID: Shows the name of the Access Point. Press the left and

right button to select an Access Point.

●Quality: Shows the connection quality on a scale of 1 to 100 with

100 being the highest quality.

●AuthMode: Select WEP Auto or WPAPSK according to the

encryption setting of the Access Point.

●EncryMode: Select the Encryption Mode according to the

encryption setting of the Access Point.

●Password: Type a password to match the Access Point. You can

type up to 26 characters.

Default Settings

IP Address

ID & Password

(for logging in GV-GV-IP Decoder Box

/ GV-Pad from GV-IP Device Utility)

ID & Password

(for connecting GV-IP Decoder Box /

GV-Padand GV IP devices)

Randomly assigned by the DHCP

server

admin / admin

Setting Up the Network

1. Be sure your GV IP devices:

2. Select the icon and press OK. The GV IP devices under the

same LAN will appear on the Device List.

●are under same LAN with the GV-IP Decoder Box / GV-Pad.

●have the same ID and password set on the GV-IP Decoder Box /

GV-Pad for IP channel connection. For detail, see Configuring the

ID and Password, 4. Configuring the Basics, in the Quick Start

Guide.

●have the same VSS port with the NVR port of the GV-IP Decoder

Box / GV-Pad. The defualt value is 10000.

For logging in GV-IP Decoder Box / GV-Pad

5Displaying Channels from GV IP Devices

Use the search feature on GV-IP Decoder Box / GV-Pad to display

channels of GV IP devices installed under the same LAN.

Note: The GV-IP Decoder Box / GV-Pad can decode a total of 64

channels from GeoVision and third-party IP devices.

1. On the main menu, select the icon and press OK. This window

appears.

For connecting GV IP devices

1. On the main menu, select the icon and press OK. This window

appears.

2. Type the ID and password and press OK to confirm. The maximum

number of characters is 15.

2. Type the ID and password and press OK to confirm. The maximum

number of characters is 14.

Configuring the ID and Password

3. To move the cursor (shown in yellow), press the up and down arrow

keys. To select a channel, press the right arrow key (shown in red).

4. Press the OK key, the selected channels will be displayed.

To add third-party IP channels, see 6. Displaying Channels Using GV IP

Device Utility in the Quick Start Guide.

To access the channels connected to GV-System, see 2.6 Displaying

Channels from GV-Mobile Server in GV-IP Decoder Box and GV-Pad

User’s Manual on software DVD.

Note:

1. When the system idles over 30 seconds or resumes after power

interruption, the GV-IP Decoder Box / GV-Pad will automatically

display channels based on the last successful settings.

2. Every time when the search function is performed, any

channels selected previously on the Device List will be unselected.

1. Make sure your GV IP devices, GV-System or third-party IP devices

are under same LAN with the GV-IP Decoder Box / GV-Pad.

2. Install the GV IP Device Utility in a computer under the same LAN

with GV-IP Decoder Box / GV-Pad. Run the GV IP Device Utility. It will

automatically search for all the channels from GV IP devices and from

GV-System under the same LAN.

3. Click on the IP address of your GV-IP Decoder Box / GV-Pad and

select Connect Setting. This dialog box appears.

4. Type the ID and password of your GV-IP Decoder Box / GV-Pad and

click OK. For detail, see Configuring the ID and Password, 4.

Configuring the Basics in the Quick Start Guide. The Video

Connection Setting window appears.

6Displaying Channels Using GV IP Device Utility

You may use the GV IP Device Utility to add channels from GV IP devices,

GV-Mobile Server and third-party IP devices that adhere to RTSP, ONVIF

or PSIA. The GV IP Device Utility is available on software DVD.

IMPORTANT: To connect to GV-Mobile Server channels, make sure

you have run and configured the GV-Mobile Server. For setup details,

see 2.6 Displaying Channels from GV-Mobile Server in GV-IP Decoder

Box / GV-Pad User’s Manual on Software DVD.

5. To connect to a GV IP device or device from GV-System, use the

right button to add the device to the Connection Information

column.

6. Right-click the added channel, select Edit and type the username and

password of the channel to log in. By default the login username and

password both are admin in all GV IP devices.

7. To add a third-party IP camera, follow the steps below.

A. Click Tool on the left corner of the Video Connection Setting

window, and select Add Camera. This dialog box appears.

B. Type the IP address, user name and password of the device.

C. Select Protocol for Brand and one of the following protocol for

Device Name. Type the RTSP command if required. Refer to your

third-party IP camera’s manual for this information.

▪ONVIF: Select this protocol if your camera adheres to ONVIF.

▪PSIA: Select this protocol if your camera adheres to PSIA.

▪RTSP over HTTP: The RTSP protocol uses an HTTP port for

data streaming from the IP camera.

▪RTSP over TCP: The RTSP protocol uses a TCP port for data

streaming from the IP camera.

▪RTSP over UDP: The RTSP protocol uses a UDP port for data

streaming from the IP camera.

Andere Handbücher für GV-IP Decoder Box

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GeoVision Sicherheitssystem Handbücher

GeoVision

GeoVision GV-Control Center System Bedienungsanleitung

GeoVision

GeoVision GV-HOT SWAP V3 Bedienungsanleitung

GeoVision

GeoVision GV-SDI-204 Bedienungsanleitung

GeoVision

GeoVision GV-Compact V3 Bedienungsanleitung

GeoVision

GeoVision GV-3D People Counter V2 Bedienungsanleitung

GeoVision

GeoVision GV-2004 Bedienungsanleitung

GeoVision

GeoVision GV-NVRH V5 Bedienungsanleitung

GeoVision

GeoVision GV-SNVR0411 Bedienungsanleitung

GeoVision

GeoVision GV-CMS Series Bedienungsanleitung

GeoVision

GeoVision GV-NAS SYSTEM Bedienungsanleitung

GeoVision

GeoVision GV-4008 Bedienungsanleitung

GeoVision

GeoVision GV-Mini Bedienungsanleitung

GeoVision

GeoVision GV-GF1911 Bedienungsanleitung

GeoVision

GeoVision Surveillance system Bedienungsanleitung

GeoVision

GeoVision GV-Hot Swap Surveillance System V5 Bedienungsanleitung

GeoVision

GeoVision UMV859-A Bedienungsanleitung

GeoVision

GeoVision Surveillance system Bedienungsanleitung

GeoVision

GeoVision Surveillance System V8.4 Bedienungsanleitung

GeoVision

GeoVision GV-NVR System Lite V2 Series Bedienungsanleitung

GeoVision

GeoVision IGV8550-A Bedienungsanleitung

GeoVision

GeoVision GV Series Administratorhandbuch

GeoVision

GeoVision GV-Hot Swap V5 Series Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
