Introduction
1
Chapter 1 Introduction
The GV-Video Server allows the conversion of any analog camera into a fully functional IP
camera. It can stream the real-time digital video over the Internet in the same way that
current IP cameras do. With the GV-Video Server attached to analog cameras, you can
see camera images through a web browser anytime and anywhere. And with the GV-
Video Server connected to the GV-System, your existing surveillance system can be
upgraded and networked into a new IP surveillance system.
1.1 Packing List
1. AC Power Cord x 1
2. DC Male-to-Male Connector x 1
3. Power Adaptor x 1
4. Wall Hook x 1
5. Conical Anchor x 4
6. Screw x 4
7. GV-Video Server Software CD x 1
8. GV-Video Server User’s Manual x 1
Note: Items 4 to 6 are not accompanied with GV-Video Server V1.0.
1
1.2 Physical Description
1.2.1 Front View
3 6
7
8
9
2451
Figure 1-1
No. Name Function
1 Video Input 2 plugs for video inputs.
2 Video Stream Switch
The switch is designed for 2 cameras mode in live view.
The switch is set in
VS01: dual streams of Video 1 are displayed.
VS02: Video 1 and Video 2 are displayed simultaneously.
3 Audio Input 2 plugs for audio inputs.
4 Speaker Output A plug for the speaker device.
5 Reset Button It reboots the GV-Video Server, and keeps all current
configurations.
6 Default Button
It resets all configurations to their factory settings.
To use this function, follow these steps:
(1) Press the Reset Button.
(2) Press and hold the Default Button until the 3 LED lights are on.
(3) Wait until the Disk LED is off and Ready LED is on. You
successfully return to the default settings.
7 Power LED This LED is on, indicating the power is supplied.
8 Ready LED This LED is on, indicating the GV-Video Server is ready for
connection.
9 Disk Full LED This LED is on, indicating the hard drive is full.
2
Introduction
1
1.2.2 Rear View
1235
4
Figure 1-2
No. Name Function
1 USB Port 2 USB ports for installing potable storage devices.
2 Ethernet Port A plug for inserting an Ethernet cable to build the network connection.
3 Terminal Block The connector for digital inputs, relay outputs, RS±485 and Wiegand
interface.
4 Power In A plug for power input.
5 Power Out A plug for power output.
3
Chapter 2 Getting Started
2.1 Installing on a Network
These instructions describe the basic connections to install the GV-Video Server on the
network.
12
34
Figure 2-1
1. Connect your camera’s video output to the BNC video input.
2. Connect your audio source to the RCA audio input.
3. Connect the hub or switch on the LAN to the unit’s 10/100 Mbps Ethernet port.
4. Connect the power supply.
Wait until the Power and Ready LED is on and then you can set the IP address for the unit.
2.2 Assigning an IP Address
The GV-Video Server is designed for use on an Ethernet network and must be assigned
an IP address to make it accessible.
Note: The GV-Video Server has a default address of 192.168.0.10. The computer used to
set the IP address must be under same IP and subnet sequence assigned to the unit.
4
Getting Started
2
1. Open your web browser, and type the default IP address http://192.168.0.10
2. In both Login and Password fields, type the default value admin. Click Apply.
3. In the left menu pane, select Network and then LAN to begin the network settings.

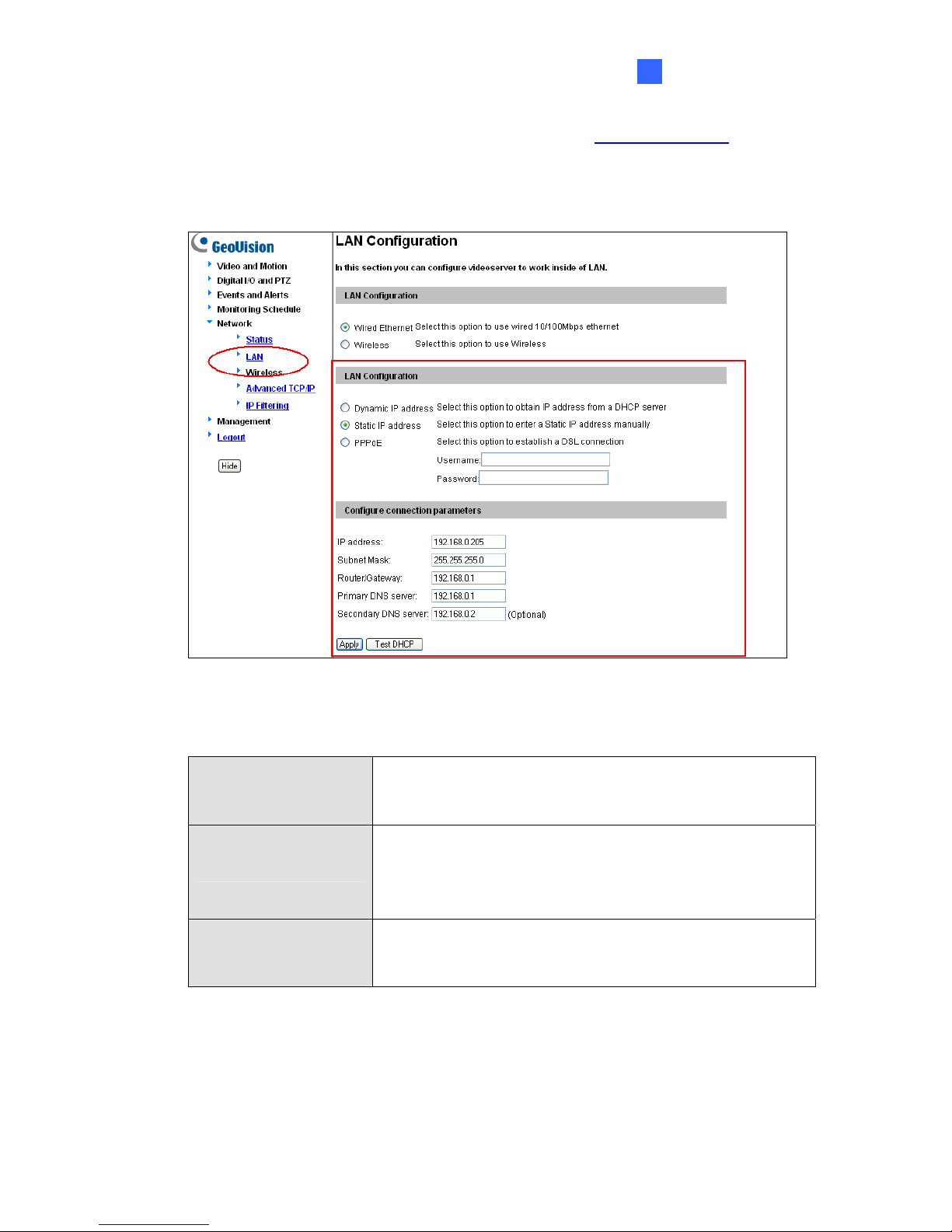

Figure 2-2
4. According to your network environment, choose one of the methods to set the IP
address:
Dynamic IP Address Allow automatic IP address assignment. A DHCP server on
the network is required.
Static IP Address
Manually specify the GV-Video Server’s IP Address, Subnet
Mask, Router/Gateway and DNS Server parameters in the
“Configure connection parameters” section.
PPPoE Used for xDSL broadband connections. You need to enter
PPPoE username and password from your ISP.
5
Important:
• Dynamic IP Address and PPPoE should only be enabled if you know which IP
address the GV-Video Server will get from the DHCP server or ISP. Or you must
use the Dynamic DNS service to obtain a domain name linked to the GV-Video
Server’s changing IP address first.
For Dynamic DNS Server settings, see 4.5.3 Advanced TCP/IP.
• If Dynamic IP Address and PPPoE is enabled and you cannot access the unit,
you may have to reset it to the factory default settings and then perform the
network settings again.
To restore the factory settings, see the Default button in 3.3.1 Front View.
6
Accessing the GV-Video Server
3
Chapter 3 Accessing the GV-Video Server
Two types of users are allowed to log in the GV-Video Server: Administrator and Guest.
The Administrator user is allowed to have a full access to all system configurations, while
the Guest user has the limited right to access live images only.
3.1 Accessing Your Surveillance Images
After the network configurations are complete, both Administrator and Guest users are
now ready to access the live images. In addition to managing live images, both types of
users can control the cameras and I/O devices as well.
3.2 Functions Featured on the Main Page
When both Administrator and Guest users log in, the functions in two categories are
available for use: Live View of Video and Motion and Status of Network.
▼Video and Motion
▼Live View
►Camera 1
►Camera 2
►2 Cameras
▼Network
►Status
Figure 3-1
7
3.2.1 Live View
In the Live View window, you can choose to view the current images from either of the
cameras or both of them at the same time.
To view one single camera:
In the left menu pane, click Live View, and select Camera 1 or Camera 2 to see the live
video.
To view two cameras simultaneously:
1. In the left menu pane, click Live View, and select 2 Cameras.
2. Find the Video Stream Switch (No.2, Figure 1-1) on the GV-Video Server, and switch
it to VS02.
Live View Configuration Window
In the left menu pane, click Live View, and then select Camera 1 or Camera 2 to see the
live video. This window appears.
9
1234568
7
11
12
10
Figure 3-2
8
