German Physiks Limited 11 Bedienungsanleitung

READ

THIS

NOW

Revision a

Released 1

February 2011

Limited 11 Unpacking Instructions

1. LIMITED 11 UNPACKING INSTRUCTIONS

NOTE: When lifting the loudspeakers out of the packing hold them

around the sides of the cabinet. Do not lift at the end of the

cabinet with the spikes, as you may damage the woofer

(figure 3).

Do not lift the loudspeakers by the DDD driver support

pillars (figure 4) as this may damage the driver.

Do not remove the spikes as the woofers may be damaged if

the loudspeaker is stood up without these fitted.

Each Limited 11 weighs approximately 29kg (64lbs) and

should not be lifted by one person alone. Always have help

when lifting a loudspeaker.

The DDD drivers may be protected with clear film or

cardboard covers. We recommend that these be left in place

until the loudspeakers have been placed in their final

location, so as to guard against accidental damage during

handling.

The Limited 11 is supplied with each loudspeaker packed separately in a double carton. This must be

kept horizontal as shown in figure 1. Before opening the cartons, please inspect them for damage. If

you see any damage, please contact the supplying audio dealer immediately and provide them with a full

description of the damage. Do not attempt to unpack the loudspeakers until you have spoken with the

dealer and have been advised how to proceed.

To unpack the loudspeakers please follow the instructions below:

NOTE: When cutting the sealing tape on the inner and outer cartons

make sure that the cutter blade does not penetrate more

than 1cm into the carton.

1. Place the carton upright as shown in figure 1 and carefully cut the sealing tape.

2. Open the flaps on the outer carton then carefully cut the sealing tape on the inner carton.

3. Open the flaps on the inner carton and remove the three foam packing pieces A and B in figure 2.

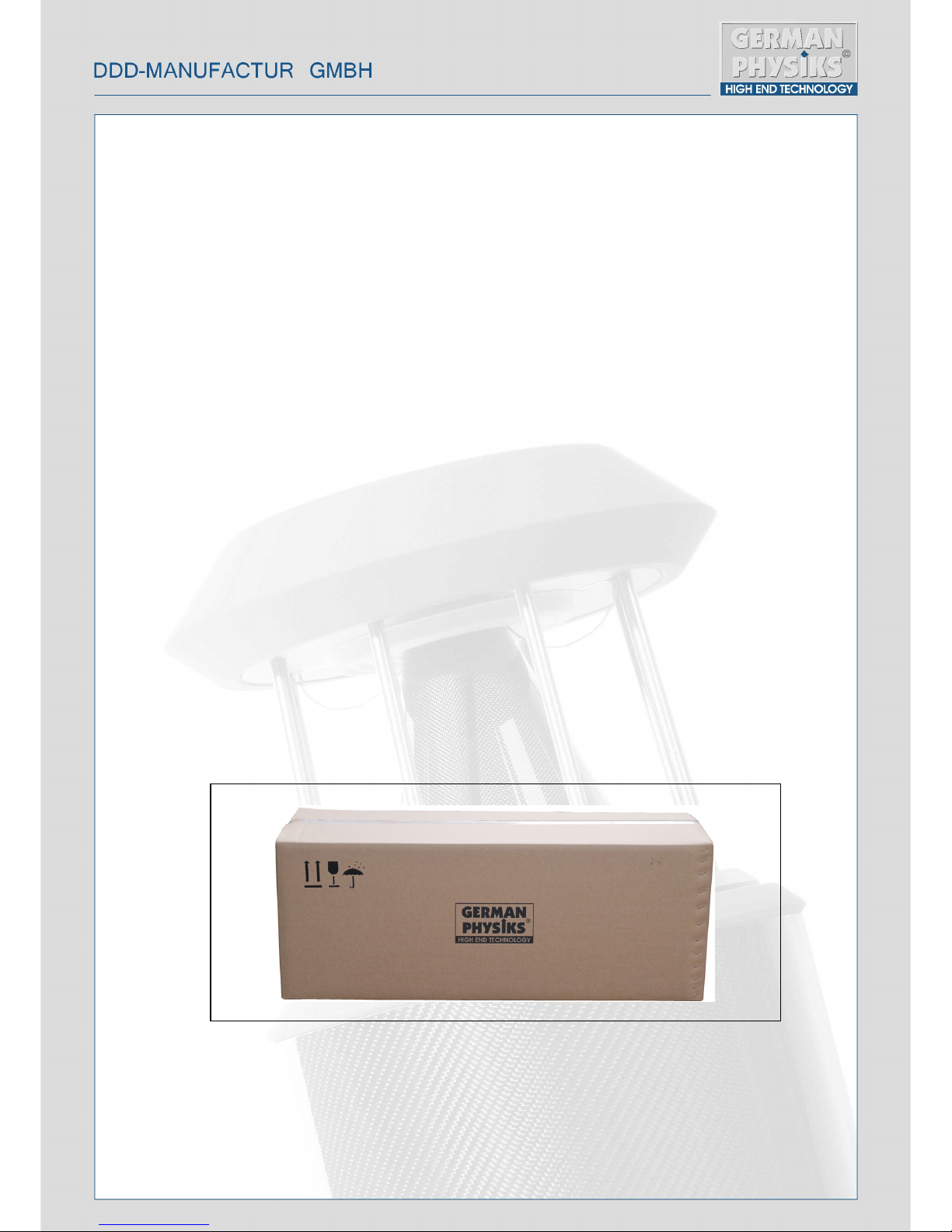

Figure 1. Limited 11 Shipping Carton

4. Lift the loudspeaker out of the box by supporting it under the sides of the cabinet and stand it on its

spikes. Do not lift by the DDD driver – see figure 4. When lifting the loudspeaker from the vertical is

necessary to place one hand under the base of the loudspeaker. To avoid damaging the woofer, ensure

that you only support the base of the loudspeaker by the underside of the cabinet - see figure 3.

Please confirm that the cartons contain the following items

Item Quantity Description

1 2 Limited 11 Loudspeakers

2 1 Limited 11 User Manual

3 2 Cleaning Cloths

4 8 Spike Support Feet

5 8 Self adhesive felt pads

If any items are missing, or show signs of damage, please contact the supplying dealer immediately.

Please retain all of the packing, as you will need this should it be necessary in the future to ship the

loudspeakers. The use of any other packing may result in the loudspeakers sustaining damage in

transit. Such damage is not covered by the warranty. Should you require replacement packing, please

contact your German Physiks dealer, the national distributor or the factory directly.

Figure 3. Limited 11 Woofer

Figure 2. Limited 11 Shipping Carton

2. THE PRINCIPLE FEATURES OF THE LIMITED 11

Figure 4. Principle Features of the Limited 11

DDD driver

Rear View

Front View

DDD driver

support pillars

Input terminals

Spikes
