TOS-723D

TOS-923D

台式抽油煙機

Wall-Mount Range Hood

P.2

Please register your warranty information now !

For Warranty Terms & Conditions,

please refer to the last page of these operating instructions.

有關保用條款細則，請看本說明書最後一頁。

請即進行保用登記﹗

P.3

目錄 Table of Contents

注意事項 Notice Before Use 04

產品結構 Product Structure 06

安裝說明 Installation Instructions 07

電路圖 Wiring Diagram 08

操作說明 Operating Instructions 09

常見故障及處理 Troubleshooting 10

清潔與保養 Care & Maintenance 11

更換慳電膽步驟 Fluorescent Lamp Replacement Procedures 13

技術規格 Technical Specications 14

保用條款 Warranty Terms & Conditions 15

Please register your warranty information now !

For Warranty Terms & Conditions,

please refer to the last page of these operating instructions.

有關保用條款細則，請看本說明書最後一頁。

請即進行保用登記﹗

P.4

重要說明

為安全起見，初次使用產品前請先細閱本說

明書，並保存說明書，以便作參考之用。

本產品只供家居使用。請必須依照本說明書

內的指示安裝及操作。

1.本產品並不適用於兒童、身體或心智殘障、

 缺乏經驗或知識的人士使用和玩樂，除非

 該人士得到負責保障其安全的人士的監管

 或指引。

2.請將產品遠離兒童。不要讓兒童單獨使用

 本產品。

3.為免發生危險，若發現電源線有任何損壞，

 必須停止使用產品，並立即聯絡本公司或

 合資格技術人員進行更換。

4.清潔、維修或拆除抽油煙機前應先切斷

 電源。

5.電源插座必須安裝接地線。

6.請接駁獨立排氣喉將油煙排往室外。

7.抽油煙機不可與燃氣或使用其他能源之

 器具共同使用同一排放管道。

8.抽油煙機安裝於氣體爐上方時，抽油煙

 機底部距離爐面700±50mm之間為宜。

9.切勿在抽油煙機下直接燃點明火。

注意事項 Notice Before Use

Important

For safety purpose, you should read the

instructions carefully before using the

appliance for the rst time. Save the

instructions for future reference.

The appliance is designed for domestic use

and may only be installed and operated in

accordance with these instructions for use.

1. The appliance is not intended for the use

of, and playing with, by persons (including

children) with reduced physical, sensory or

mental capabilities, or any individual lack of

experience and knowledge, unless they have

been given supervision or instruction.

2. Keep children away from the appliance

Do not let them use the appliance without

supervision.

3. If the power supply cord is damaged, do not

operate the appliance. Contact German Pool

or licensed technician for a replacement

immediately.

4. Disconnect the power supply before cleaning,

repairing or dismantling the range hood.

5. The range hood must be earthed.

6. Connect the range hood with an independent

air vent to exhaust lampblack.

7. The air must not be discharged into a venting

pipe that is used for exhausting fumes from

appliances burning gas or other fuels.

8. The appliance should be positioned

700±50mm above the cooking range.

9. Do not ambe under the range hood.

P.5

10.安裝、清潔、更換燈泡及拆除抽油煙機

 時請戴上安全手套，以免受傷。

11.請勿直接潑水噴淋機身，以免損壞電器

 機件。

12.德國寶抽油煙機抽吸力特強，大部分油

 煙在抽油煙機操作時已被抽出室外，故

 此集油器的油污量很少，請放心使用。

13.當使用抽油煙機時，如房間內同時使用

 燃氣或其他能源的器具，房間必須有足

 夠通風。

14.用戶必須遵照有關排放空氣的條例來安

 裝及使用本產品。

15.抽油煙機的風輪及易沾油污的部份之表

 面均須最少每星期進行清洗一次，避免

 油污因長時間積聚而引致火警危險。

注意事項 Notice Before Use

10. Please wear safety gloves for installation,

cleaning, light bulb changing and

dismantling, in order to prevent injuries.

11. To protect electrical parts, do not splash or

spray the range hood with water.

12. German Pool range hood has high venting

efciency. Most of the grease vapor will be

exhausted through the air vent when the

range hood is in operation. Only very little

amount of residual oil will be collected in the

Oil Collecting Tray.

13. There should be adequate ventilation in the

room when the range hood is used along

with appliances that burn gas or other fuels.

14. Regulations concerning the discharge of air

have to be fullled.

15. To prevent re hazard in case of oil build-up,

the Turbine Impellers and other easily-soiled

parts must be cleaned at least once a week.

P.6

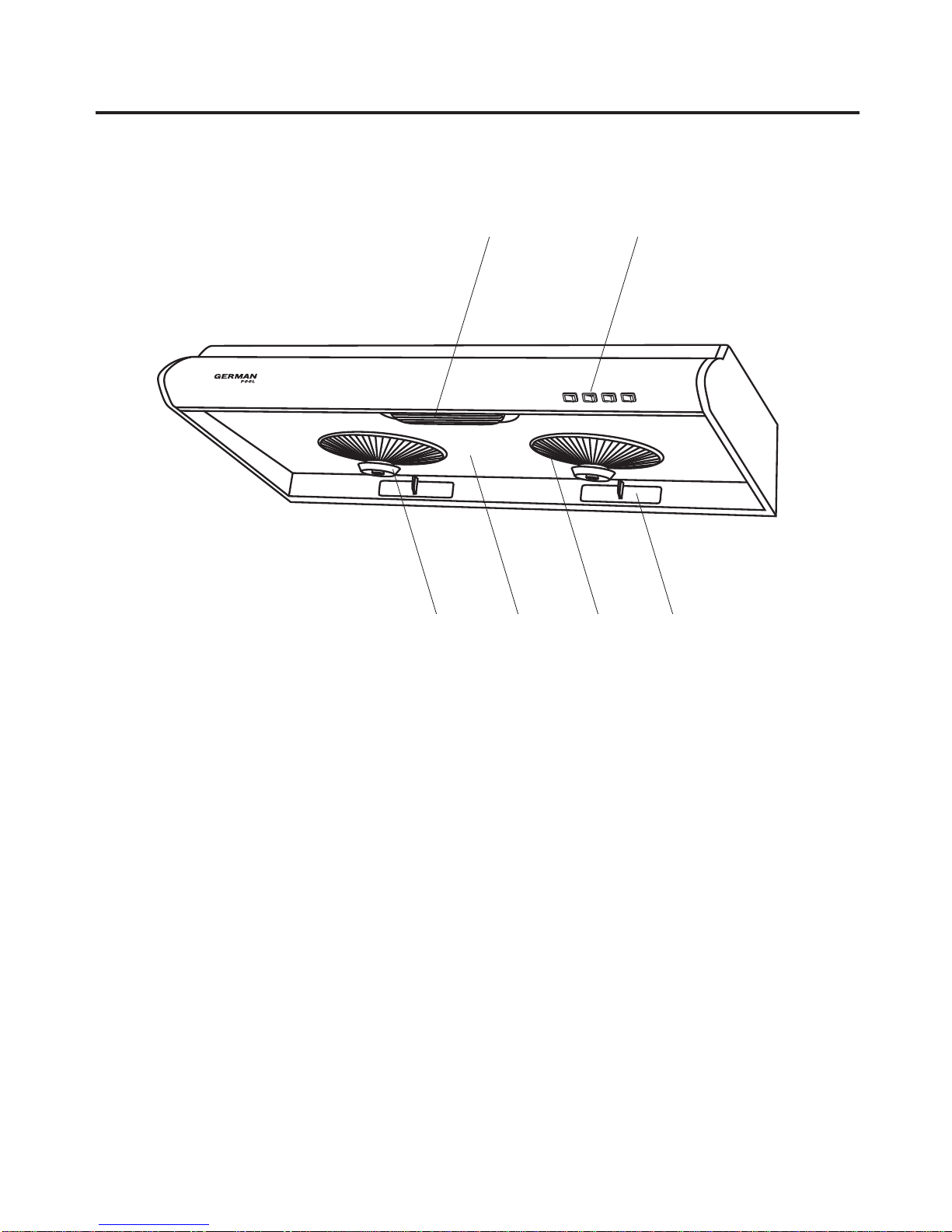

產品結構 Product Structure

1. 照明燈

2. 控制面板

3. 防漏油杯 (一對)

4. 底蓋

5. 風機 (一對)

6. 油杯 (一對)

1. Light Bulb

2. Control Panel

3. Oil Collector (Small) (1 pair)

4. Bottom Cover

5. Fan (1 pair)

6. Oil Collector (1 pair)

5 63 4

1 2

P.7

周圍環境

抽油煙機四周應避免門窗過多，而產生過大之

空間對流。如果油煙未上升至25cm有效吸力範

圍，抽油煙機則無法發揮正常效果。

安裝高度

抽油煙機底部距離爐面700±50mm之間為宜，

距離越接近700mm，抽油煙效果越佳

(如圖A)。

風管長度

風管長度之標準接法 (如圖B)。排風出口至機體

之距離，應儘量縮短，以免氣流擠壓於風管內，

影響其排風效果。

機體保持水平

確定安裝位置時，機體應保持前後左右水平，

若機體傾斜積油會漏出 (如圖C)。

Installation Environment

For efcient air extraction, avoid opening too many

windows surrounding range hood for this will cause

air convection which prevents cooking fumes from

rising to 25 cm (the effective suction / exhaust area).

Height of Installation

The appliance should be positioned 700 ± 50mm

above the cooking range. A distance that is near

700mm results in higher venting efciency (Fig A).

Length of Exhaust Pipe

The length of the exhaust pipe should be minimized

to avoid air turbulence inside the pipe (Fig B).

Keep the Hood Level

The installation of the hood should remain level,

in order to prevent oil from spilling over from oil

collectors (Fig C).

安裝說明 Installation Instructions

安裝前注意

必須由專業合資格技術人員安裝及維修抽油

煙機。

 安裝前先接上電源檢查照明與摩打開關是否

 正常操作。

Pre-installation Notice

The range hood must be installed and repaired by

authorized qualied technicians.

Before installation, plug in and check if all switches

are functional.

圖B Fig B圖A Fig A 圖C Fig C

700±50mm

Level

Tilted

P.8

電路圖 Wiring Diagram

TURBOSPEEDON / OFF

SAFETY

SWITCH

MotorMotor

CAPACITOR

YELLOW

BROWN

YELLOW

BROWN

WHITE

RED

BLUE

GREY

YELLOW

BROWN

WHITE

RED

BLUE

GREY

WHITE

BLACK

LIGHTBULB

BLUE

GREYGREY

BLUE

GREEN

BROWN

PLUG

BLACK

P.9

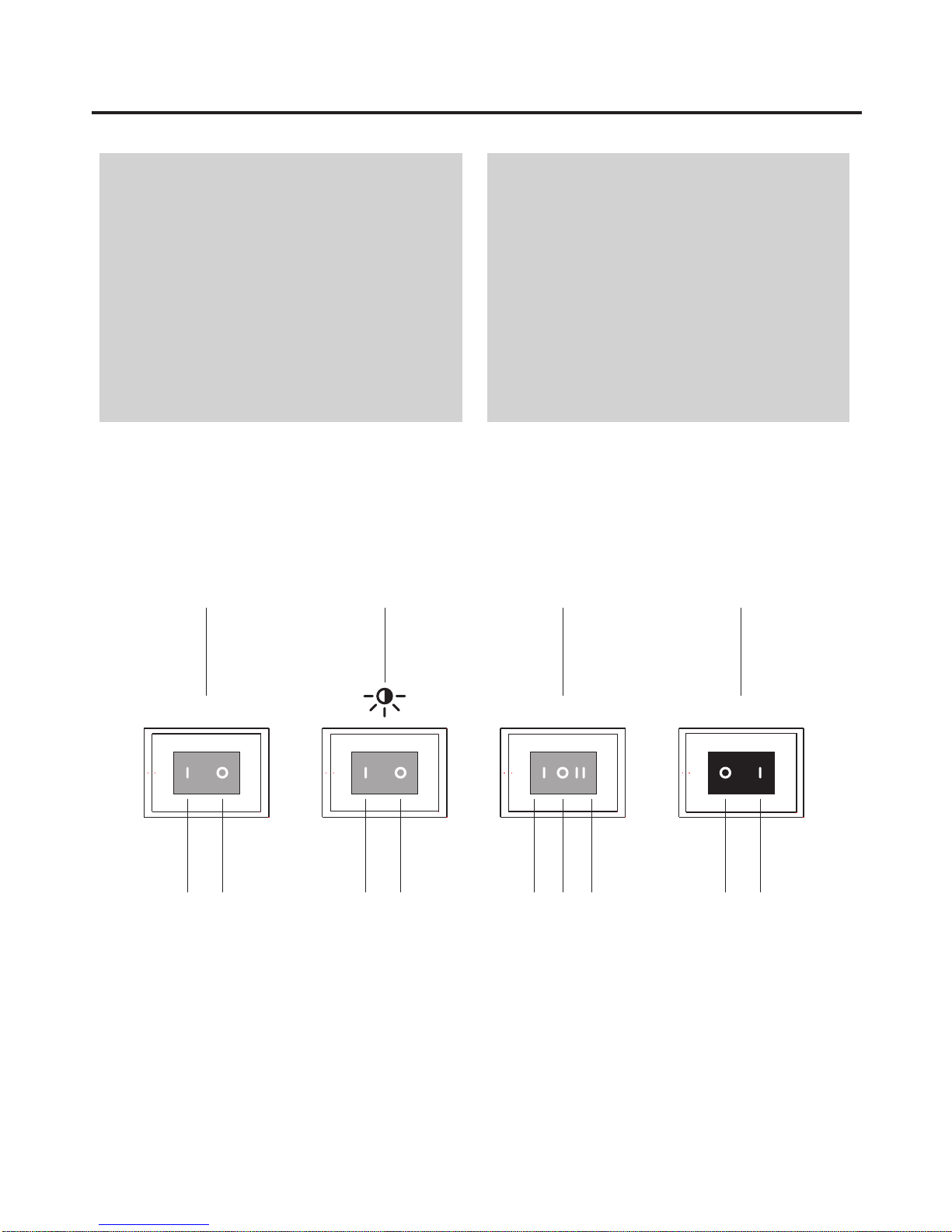

操作說明 Operating Instructions

重要事項

1. 抽油煙機風管必須連接於屋外，嚴禁直

接排進屋內。

2. 使用氣體爐或其他燃料烹飪時，室內必須

有足夠通風空間。

3. 抽油煙機之排氣管嚴禁與氣體管或其他燃

料排氣管相通。

Important

1. The exhaust duct must be exposed outdoors.

2. There should be adequate ventilation in the

room when a gas cooking range or other

fuels are in use for cooking.

3. The air from the range hood must not be

discharged into a venting pipe that is used

for exhausting fumes from appliances

burning gas or other fuels.

TURBOSPEEDON / OFF

開關鍵

On/Off Switch

開啟

關閉

Off

關閉

Off

關閉

Off

關閉

Off

低速

Low

高速

High

照明燈鍵

Light Switch

風速調校鍵

Fan Speed

極速鍵

Turbo Speed

P.10

常見故障及處理 Troubleshooting

故障現象 Phenomenon 原因分析Possible Cause 處理方法Solution

按下開關，抽油煙機

和照明燈不運作。

Press the power button,

but the hood and lighting

are not working.

-電源插頭未插好

-照明燈壞

-電源線脫落或接觸不良

- The plug is not inserted

to the socket properly

- The light is out of order

- Power cord comes off and

is not attached properly

-檢查插頭，應可靠地插

入插座

-更換照明燈

-維修或更換

- Check whether the plug

is properly plugged

to the socket

- Change the light bulb

- Repair or replace

照明燈運作，電機不運作。

Lighting is working, but the

machine is not working.

-葉輪被卡阻

-電容器接觸不良或損壞

-電機損壞

- Impeller gets stuck

- Capacitor is not well

connected or damaged

- Motor is damaged

-排除葉輪卡阻故障

-維修或更換

-維修或更換

- Clear impeller from

obstructions

- Repair or replace

機身震動。

The hood vibrates.

-機身懸掛不牢固

-電機安裝不牢固

-葉輪受損平衡被破壞

- Not rmly mounted

- Not installed securely

- Impeller is damaged and

becomes imbalanced

-緊固機身

-緊固電機

-維修或更換

- Secure the hood

- Secure the motor

- Repair or replace

風機一轉速能運作，

另一轉速不運作。

Fan works at one speed but

not at another.

-控制開關失靈

-轉換電路未接通

- Power switch malfunction

- Circuit is not connected well

-維修或更換

- Repair or replace

抽油煙效果不好。

Does not exhaust effectively.

-機身安裝過高

- The hood is mounted at a

rather high position

-降低安裝高度

- Lower the installation

position

如遇以下一般性故障，請按以下指示處理，

如仍處理不了或未發現故障原因時，請與本

公司維修服務中心聯繫。

注意：為安全著想，再次特別提醒，請勿自

行拆卸修理。

If you encounter the following common

troubles, please solve according to the following

instructions. If the problem cannot be solved or

a cause cannot be found, please contact our

customer services centre.

Note: For safety purpose, do not dismantle the

product for repair by yourself.
