Giant PreRunner Jog Stroller Bedienungsanleitung
Giant PreRunner Jog Stroller
Owner's Manual
Assembly and Maintenance
PLEASE READ THE FOLLOWING BEFORE BEGINNING ASSEMBLY:
Before assembling your GIANT PreRunner Jog Stroller all of us at
GIANT strongly encourage you to read this manual. In return for the
time spent reading this manual and learning about your new GIANT
PreRunner Jog Stroller you will be rewarded with many hours of safe
usage.
WARNING! WE RECOMMEND THE USE OF A SAFETY HELMET
APPROVED BY THE CONSUMER PRODUCT SAFETY COMMISSION
(CPSC) FOR ANY CHILD USING THIS RIDE-ON TOY.
WARNINGS!
Assembly
Avoid serious injury from falling or sliding out. Always secure
child in stroller using the safety harness as described.
Always wear an approved bicycle helmet.
Never leave a child unattended in this stroller.
Always use parking brake when the stroller is stationary.
A child may slip into the leg openings of the safety harness and
strangle unless they are properly secured. Never leave child in
this stroller unless they have been properly secured in the safety
harness.
Child must be old enough to sit upright unassisted.
Do not overload your stroller. Maximum load is 75lbs, including
passenger and cargo.
Make sure your child remains seated in the stroller at all times.
Use wrist safety straps all the times.
Be sure the stroller frame is completely unfolded with latching
mechanisms secure and wheels locked in the place, before
allowing children near the stroller.
Check that all buckles, snaps, straps and adjustments are secure
before each use.
Check and maintain tire air pressure as specified on the side of
tire.
Before assemble your Giant PreRunner Jog Stroller. Please check
that you have all the following parts:
MAINTENANCE:
Your GIANT PreRunner is a quality Jog Stroller. It has been
constructed utilizing quality components and fasteners. Contact
your local Authorized GIANT Retailer for replacement parts and
service. With periodic maintenance, common sense usage, and care
this Jog Stroller can provide many years of using enjoyment.
Periodically check all of the fasteners to insure that everything is
securely tightened. Check the handlebars to make sure that they
secure. Replace any broken or worn parts as necessary.
Do not use your stroller with roller skates or in-line skates. An
accident could occur resulting in serious injury or death.
Insure the stability of the stroller by always carrying heavier items
in the lower cargo basket and lighter objects in the seat back
pocket.
Do not hang objects from the stroller. This could destabilize the
stroller.
Avoid hitting obstacles with wheels.
Read and understand entire owner's manual prior to use.
Keep children away from plastic packaging.
Main Frame x 1
Foot Rest x 1
Front Wheel x 1
Bolts set for Footrest installation
Rear Wheels x 2
6mm hex key wrench
Handlebar & Stem x 1
STEP #1 - Install Rear Wheels
Firmly depress the gray button marked push.
Insert the rear wheel into rear axle tube on the rear frame stay.
Release button and test wheel is locked in place. If not, try again.
The wheel must be firmly locked in place.
Repeat the process for both rear wheels.
STEP #3 - Install the Handlebar & Stem Assembly
STEP #4 - Install the Footrest fender on the Frame
CAUTION: Avoid crushing the frame tubing DO NOT OVER TIGHTEN
BOLTS! Tighten only until hand snug.
Giant PreRunner Jog Stroller has bicycle style handlebar and
stem that allows the handlebar height to be adjusted to
accommodate a wide variety of users.
Loosen the handlebar binder bolts then remove the stem clamp
-(Fig. a), and keep the bolts on the stem.
Fit the stem and clamp-(Fig. a) on the plastic shim at the top of
the stroller frame then tighten the handlebar binder bolts so that
the stem will stay in place by itself, but is still easy to adjust.
Try to find the best position for the user and tighten the handlebar
and stem binder bolts.
Push down the handle bar to raise the front wheel to test that the
Be bolts were sufficiently tightened.
Firmly depress the gray button marked push.
Insert the front wheel into axle tube on the front fork.
Release button and test wheel is locked in place. If not, try again.
The wheel must be firmly locked in place
STEP #2 - Install Front Wheel
a. PreRunner LX, 20" Wheels
b. PreRunner, 16" Wheels
CAUTION: DO NOT operate stroller if wheels do not firmly lock in
place.
Assemble footrest fender as shown in the diagram.
Align the heads of the bolts to fit into the matching recesses in the
footrest fender.
Move quick release lever so that the word "OPEN" stamped on the
lever arm shows to the outside.
Insert the front wheel between the fork blades so that the axle
seats firmly at the top of slots, which are at the tips of fork
blades - the fork dropout.
Flip quick release lever so that the word "CLOSED" stamped on
the lever arm shows to the outside.
Closing quick release lever should get progressively firmer until it
is solidly fixed in the closed position.
If quick release lever cannot be fully closed, loosen thumbnut on
the opposite end of the skewer and try to close it again.
If the lever goes to the closed position too easily or feels loose in
the closed position, open the lever and tighten thumbnut, then try
closing again.
Quick release lever should be parallel to the front fork blade when
in final closed position.
STEP #7 - How to use the Giant PreRunner Jog Stroller braking
system
WARNING! Do not attempt to use the parking brake on a hill!
Do not leave a child unattended in the stroller even if the parking
brake is engaged!
Your Giant PreRunner stroller uses a braking system similar to a
bicycle. There is a brake lever at the handlebar that is connected
to a brake mechanism at the front wheel.
Squeeze the brake lever to make sure that it moves freely, but
does not bottom out against the handlebar.
Before using the stroller with a child test the brake and make sure
that you can cause the front wheel to seize using the brake lever.
If not, use the barrel adjusters at the brake lever and the brake
mechanism on the front wheel to adjust the cable tension until the
brake works to your satisfaction.
The brake lever can also function as a parking brake. To engage
the parking brake squeeze the brake lever and depress the button
on the brake lever body until it engages. To deactivate, squeeze
the brake lever until the parking brake button pops out.
You're should now be ready to use.
Copyright 2004 GIANT Bicycle Inc. all rights reserved 1/2004

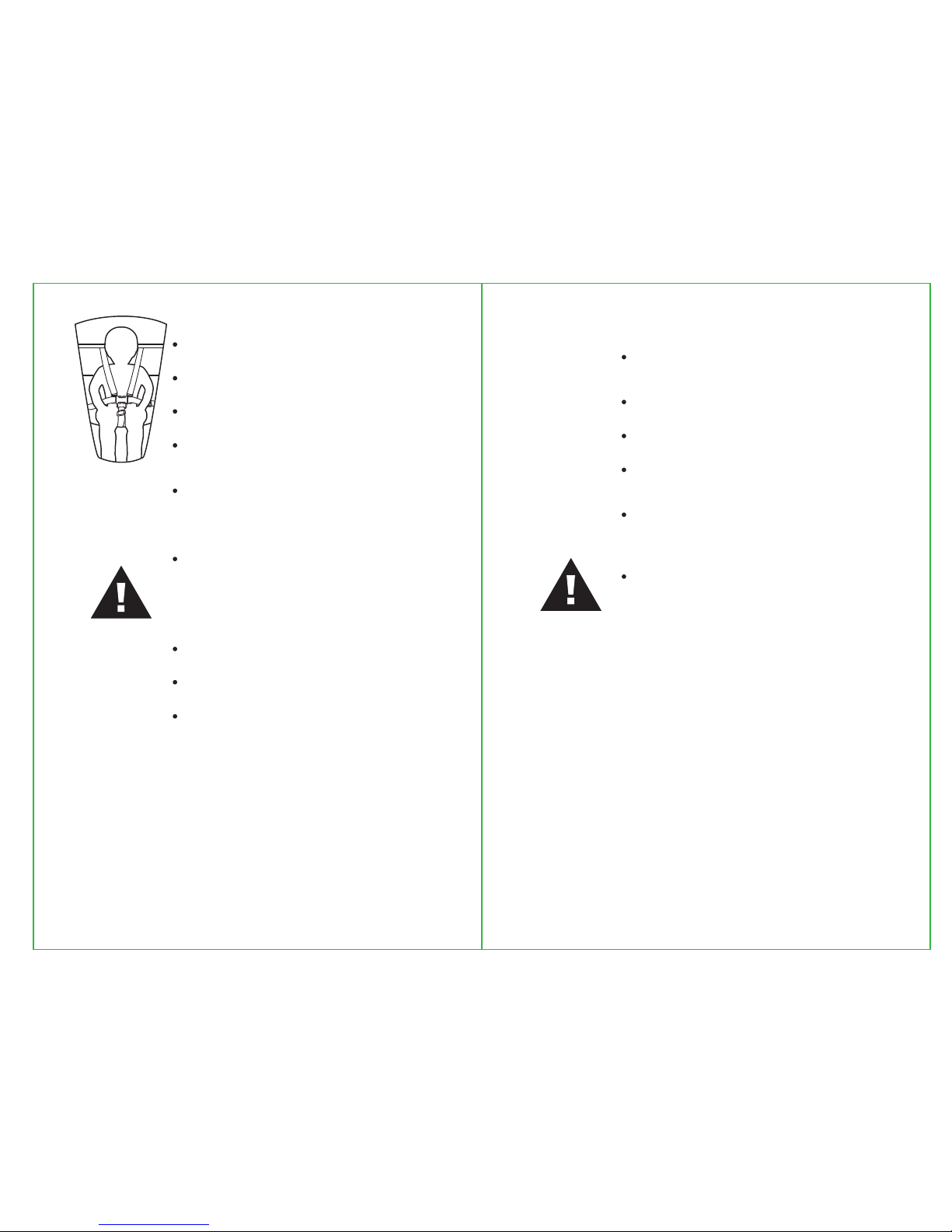

STEP #5 - Safety Harness Instructions
Caution: Make sure both shoulder straps are the same length.
Open the buckle by depressing the tabs on the top and bottom
simultaneously. Be sure to release both sides of the buckle.
Move the harness straps out of the way and place the child in the
stroller.
Put the child's arms through the loops formed by the shoulder/lap
straps so that harness lays over the child's shoulders.
Fasten the buckle by inserting the tabs from the shoulder/lap
strap into the buckle until you hear an audible click confirming
that the buckle is secured.
The tops of the shoulder straps should be parallel to or higher
than the shoulders of the child. If they are not, remove the
shoulder from the anchor strap and refasten to the anchor strap
that allows you to achieve the desired position of the shoulder
strap.
If the child is too large for the straps to be adjusted properly do
not use this stroller.
STEP #6 - How to fold the Giant PreRunner Jog Stroller
Push the safety button and pull the folding triggers on both sides
of frame then push down. The stroller can be to fold simply.
Use the fabric handle found between seat and footrest, which can
be used to carry the stroller for a short distance.
To unfold, lift the stroller by handlebar, and the stroller should
unfold automatically. Be sure the post inside the folding hinge is
locked into the frame tubing and the safety button on the folding
trigger is extended.
