GIGA-BYTE TECHNOLOGY B760M DS3H AX Bedienungsanleitung

B760M DS3H AX

B760M DS3H

B760M DS3H AX DDR4

B760M DS3H DDR4

User's Manual

Rev. 1101

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B760M-DS3H-AX-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760M-DS3H-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760M-DS3H-AX-DDR4-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

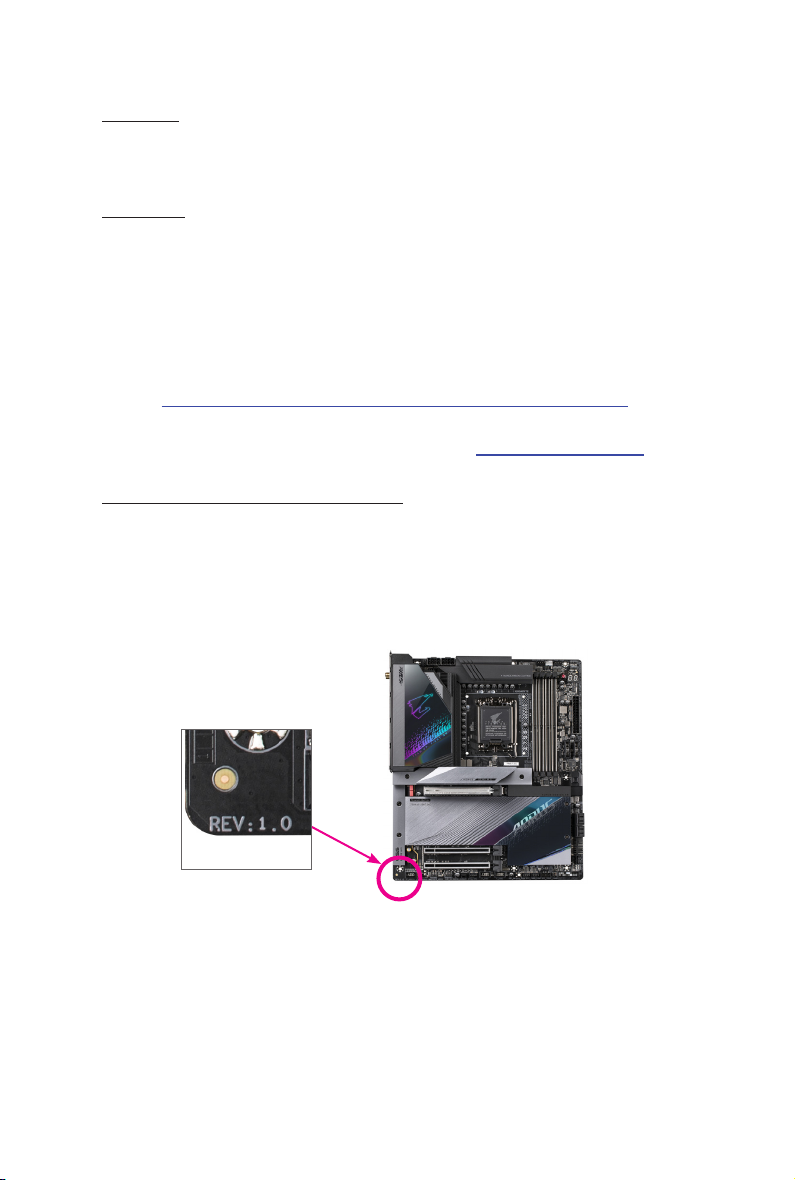

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 11

2-4 Installing the Memory..................................................................................... 14

2-5 Installing an Expansion Card ......................................................................... 15

2-6 Back Panel Connectors.................................................................................. 16

2-7 Onboard Buttons............................................................................................ 18

2-8 Internal Connectors........................................................................................ 19

Chapter 3 BIOS Setup ..................................................................................................30

Chapter 4 Installing the Operating System and Drivers................................................32

4-1 Operating System Installation ........................................................................ 32

4-2 Drivers Installation.......................................................................................... 33

Chapter 5 Appendix ......................................................................................................34

5-1 Conguring a RAID Set.................................................................................. 34

Regulatory Notices.................................................................................................... 35

Contact Us ................................................................................................................ 39

- 4 -

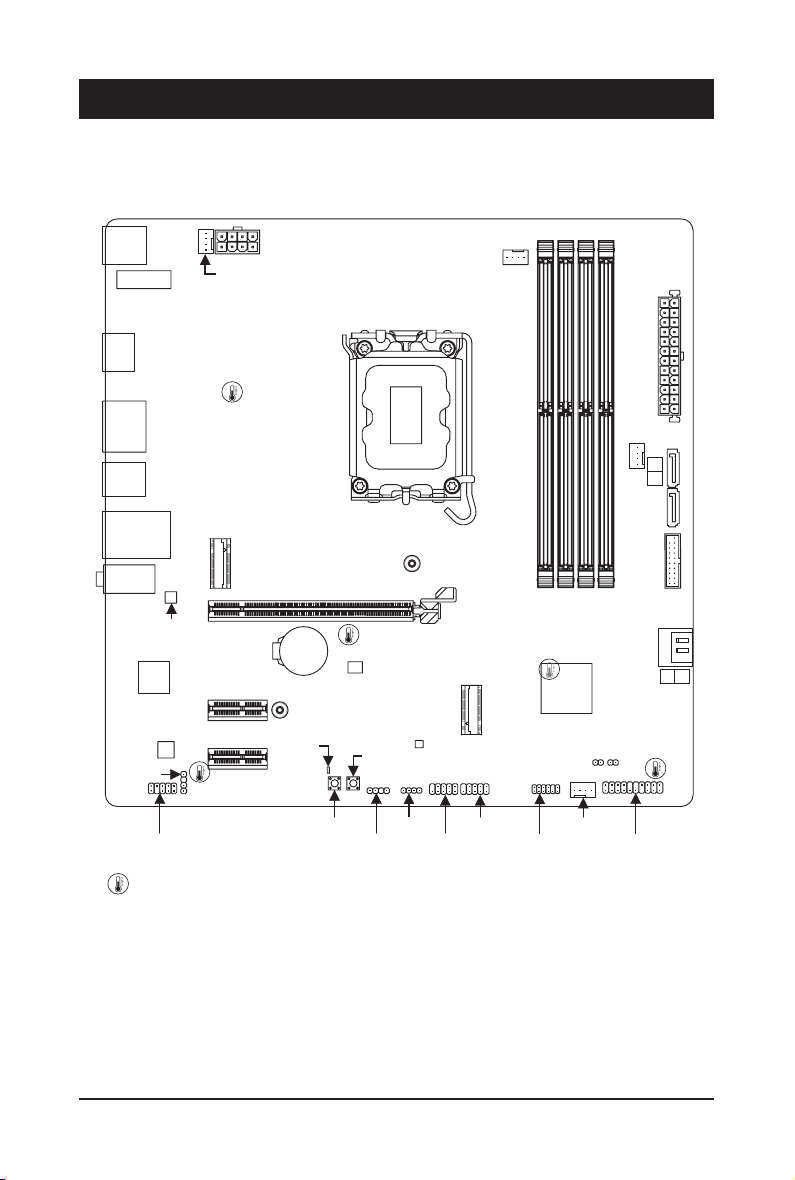

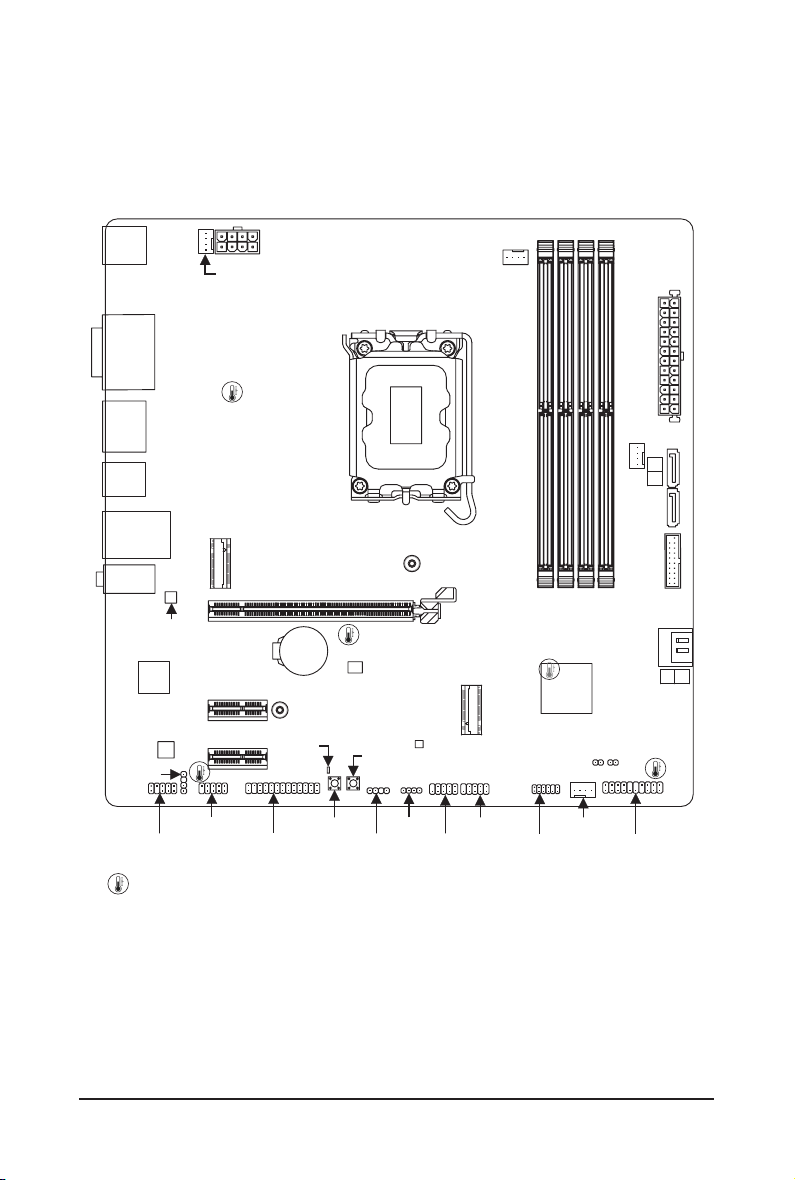

1-1 Motherboard Layout

Chapter 1 Product Introduction

MOnly for B760M DS3H AX.

OOnly for B760M DS3H AX DDR4.

KB_MS_USB

CPU_FAN

SYS_FAN1 ATX

B760M DS3H AX

B760M DS3H AX DDR4

F_ AUD IO

SPDIF_O

AUDIO

BAT

ATX_12V_2X4

CODEC

CLR_CMOS

RST

U32_LAN

PCIEX16

PCIEX1_1

iTE®

Super I/O

Realtek®

2.5GbE LAN

LED_C F_USB2 SYS_FAN3

SPI_TPM F_ PANEL

SATA3 5 4

SATA3 7

HDMI

M_BIOS

QFLASH_PLUS

RST_SW O

F_U32

U32G2C

U32

M2 P_ SB

M2A_CPU

DDR5 _ A1 M

DDR4_ A1 O

DDR5_A2 M

DDR4_A2 O

DDR5_B1 M

DDR4_B1 O

DDR5_B2 M

DDR4_B2 O

D_LED

M2_WIFI

SYS_FAN2

F_USB1

QFLED

PCIEX1_2

DUAL_DP

USB 2.0 Hub

LGA1700

Intel®

B760

(Note) The temperature sensor is on the back of the motherboard.

Temperature sensor

(Note)

- 5 -

NOnly for B760M DS3H.

POnly for B760M DS3H DDR4.

KB_MS_USB

CPU_FAN

SYS_FAN1 ATX

B760M DS3H

B760M DS3H DDR4

F_ AUD IO

SPDIF_O

AUDIO

BAT

ATX_12V_2X4

CODEC

CLR_CMOS

RST

U32_LAN

PCIEX16

PCIEX1_1

iTE®

Super I/O

Realtek®

2.5GbE LAN

LED_C F_USB2 SYS_FAN3

SPI_TPM F_ PANEL

SATA3 5 4

SATA3 7

VGA

HDMI

M_BIOS

LPT

QFLASH_PLUS

RST_SW P

F_U32

U32G2C

U32

M2 P_ SB

M2A_CPU

D_LED

SYS_FAN2

F_USB1

QFLED

PCIEX1_2

DUAL_DP

COM

USB 2.0 Hub

LGA1700

Intel®

B760

DDR5 _ A1 N

DDR4_ A1 P

DDR5_A2 N

DDR4_A2 P

DDR5_B1 N

DDR4_B1 P

DDR5_B2 N

DDR4_B2 P

(Note) The temperature sensor is on the back of the motherboard.

Temperature sensor

(Note)

- 6 -

1-2 Box Contents

5B760M DS3H AX, B760M DS3H, B760M DS3H AX DDR4, or

B760M DS3H DDR4 motherboard

5User's Manual

5I/O Shield

5Two SATA cables

5One antenna MO

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

MOnly for B760M DS3H AX.

OOnly for B760M DS3H AX DDR4.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel®Core™, Pentium®

Gold and Celeron®Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B760 Express Chipset

Memory Support for DDR5 4800/4000 MT/s memory modules MN

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules OP

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz NP

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

(Graphics specications may vary depending on CPU support.)

Support for up to triple-display at the same time MO

Support for up to quad-display at the same time NP

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

ModuleMO

AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHzcarrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 80MHzwireless standard and up to 1.2 Gbps data rate

Intel®Wi-Fi 6E AX210 (For PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHzcarrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHzwireless standard and up to 2.4 Gbps data rate

Intel®Wi-Fi 6E AX211 (For PCB rev. 1.2)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHzcarrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHzwireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

MOnly for B760M DS3H AX.

NOnly for B760M DS3H.

OOnly for B760M DS3H AX DDR4.

POnly for B760M DS3H DDR4.

- 9 -

Wireless

Communication

ModuleMO

Realtek®Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHzcarrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHzwireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

(M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

(M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2 support

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available

through the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header NP

1 x parallel port header NP

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset button OP

1 x reset jumper

1 x Clear CMOS jumper

MOnly for B760M DS3H AX.

NOnly for B760M DS3H.

OOnly for B760M DS3H AX DDR4.

POnly for B760M DS3H DDR4.

- 10 -

Back Panel

Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R) MO

1 x D-Sub port NP

1 x HDMI port

2 x DisplayPorts

3 x USB 3.2 Gen 1 ports

1 x USB Type-C®port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 128 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of each application may also vary depending on motherboard specications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B760M-DS3H-AX-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B760M-DS3H-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B760M-DS3H-AX-DDR4-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

MOnly for B760M DS3H AX.

NOnly for B760M DS3H.

OOnly for B760M DS3H AX DDR4.

POnly for B760M DS3H DDR4.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GIGA-BYTE TECHNOLOGY Hauptplatine Handbücher

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R181-2A0 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H510M S2H V2 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY A620M C Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M DS3H Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250M-HD3 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B150-HD3 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-A320-DS3 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-IMB4100TN Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110TN-M Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B150M-D3V Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A55M-S1 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B550M AORUS PRO Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GIGABYTE GS-W42G-P08R Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z690 UD AC Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z590M GAMING X Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z690 AERO G Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R182-Z90 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R270-R3C Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z590 AORUS ULTRA Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MZ01-CE0 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H97M-HD3 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY G1.Sniper M5 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z97-HD3 Bedienungsanleitung

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250-HD3P Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
