Gigabyte GA-8AENXP-D Bedienungsanleitung

GA-8AENXP-D

Intel®Pentium®4 LGA775 Processor Motherboard

User's Manual

Rev. 1004

12ME-8AENXPD-1004

Motherboard

GA-8AENXP-D

Nov. 10, 2004

Motherboard

GA-8AENXP-D

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

For quick installation, please refer to the "Hardware Installation Guide" included with the

product.

For detailed product information and specifications, please carefully read the

"Product User Manual".

For detailed information related to Gigabyte's unique features, please go to the

"Technology Guide" section on Gigabyte's website to read or download the information

you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

GA-8AENXP-D Motherboard Layout ............................................................................. 6

Block Diagram ................................................................................................................ 7

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and Heatsink .............................................................. 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the Heatsink .................................................................................. 13

1-4 Installing/Removing Cool-Plus (Northbridge Cooling Fan) .............................. 14

1-5 Installation of Memory .................................................................................... 14

1-6 Installation of Expansion Cards ...................................................................... 16

1-7 I/O Back Panel Introduction ........................................................................... 17

1-8 Connectors Introduction .................................................................................. 18

Chapter 2 BIOS Setup................................................................................................ 29

The Main Menu (For example: BIOS Ver. : F3d) ...................................................... 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features .............................................................................. 34

2-3 Integrated Peripherals ..................................................................................... 36

2-4 Power Management Setup ............................................................................. 40

2-5 PnP/PCI Configurations ................................................................................. 41

2-6 PC Health Status ........................................................................................... 42

2-7 MB Intelligent Tweaker(M.I.T.) ....................................................................... 44

2-8 SelectLanguage ............................................................................................. 46

2-9 Load Fail-Safe Defaults ................................................................................... 46

2-10 Load Optimized Defaults ................................................................................. 47

2-11 Set Supervisor/User Password ..................................................................... 47

2-12 Save & Exit Setup ......................................................................................... 48

2-13 Exit Without Saving ....................................................................................... 48

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 51

3-1 Install Chipset Drivers .................................................................................... 51

3-2 SoftwareApplications ..................................................................................... 52

3-3 Driver CD Information .................................................................................... 52

3-4 Hardware Information ..................................................................................... 53

3-5 Contact Us ..................................................................................................... 53

Chapter 4 Appendix ................................................................................................... 55

4-1 Unique Software Utilities ................................................................................ 55

4-1-1 EasyTune 5 Introduction ..................................................................................... 56

4-1-2 Xpress Recovery Introduction ........................................................................... 57

4-1-3 Flash BIOS Method Introduction ........................................................................ 60

4-1-4 Serial ATA BIOS Setting Utility Introduction ...................................................... 71

4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 78

4-2 Troubleshooting ............................................................................................... 83

- 6 -

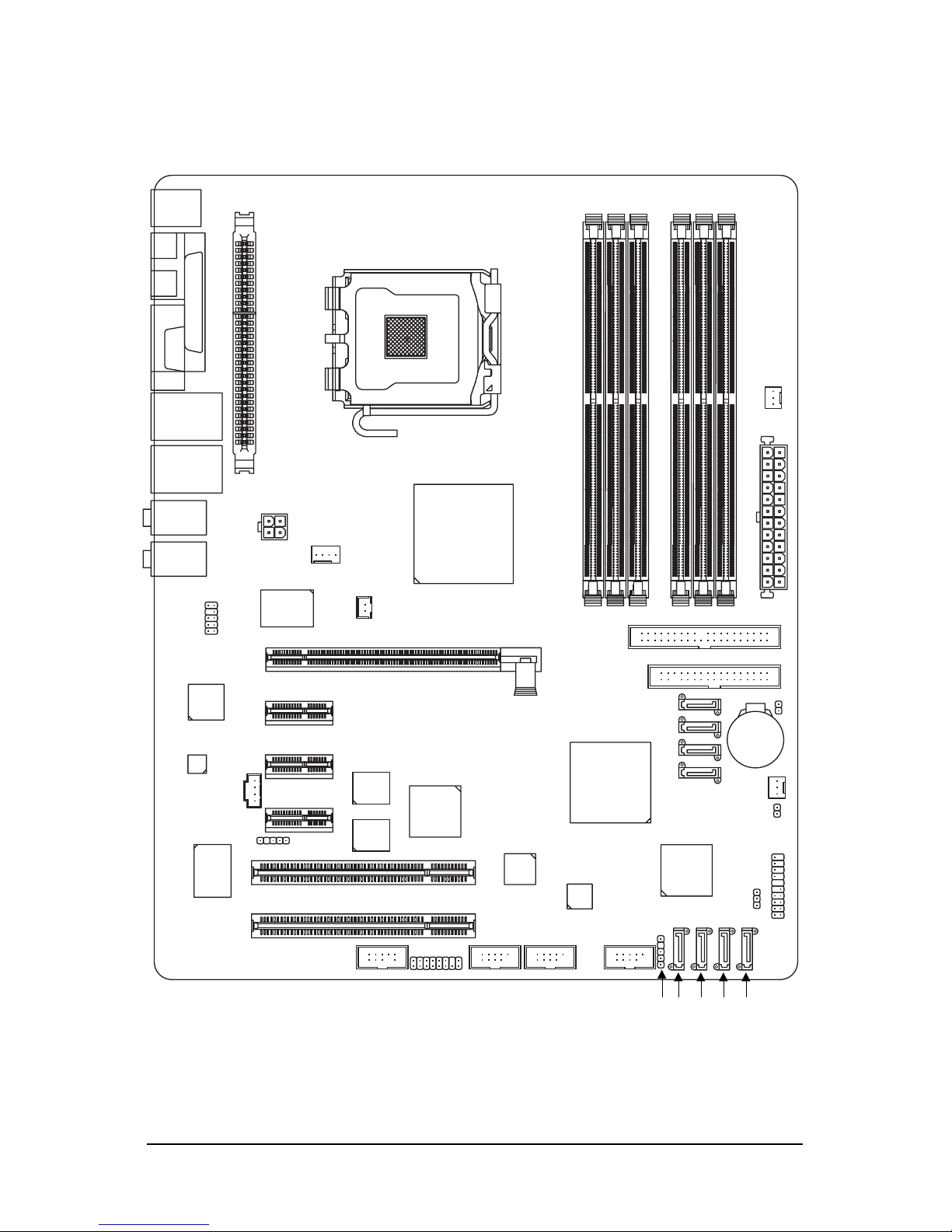

GA-8AENXP-D Motherboard Layout

ATX_12V

CPU_FAN

VRM_CONN

Intel 925XE

PCIE_16

NB_FAN

CODEC

IT8712

SATA3_SB

SATA2_SB

SATA0_SII

Intel ICH6R

SiI3114

Main

BIOS

Backup

BIOS

Marvell

8001

PCIE_1

PCIE_2

PCIE_3

PCI1

PCI2

DDRII1

F1_1394 F2_1394

F_USB2 F_USB1

F_USB4

DDRII2

DDRII3

DDRII4

DDRII5

DDRII6

SATA1_SB

SATA0_SB

TSB82AA2

TSB81BA3

CY7C6564D

BAT

PWR_FAN

ATX

IDE

FDD

CLR_CMOS

SYS_FAN

SATA1_SII

SATA2_SII

SATA3_SII

GA-8AENXP-D

KB_MS

LGA775

AUDIO1

SPDIF_I

COMA

LPT

USB

LAN2

USB

LAN1

Broadcom

5751/5789

AZALIA_FP

CD_IN

SPDIF_O

AUDIO2

F_PANEL

PWR_LED

F_USB3

- 7 -

Block Diagram

Line-Out

MIC

LGA775

Processor

CPUCLK+/-(266/200/133MHz)

PCI Express x16

33MHz

Host

Interface

Intel

925XE

MCH MCHCLK (266/200/133MHz)

66MHz

48MHz

DDRII 711/600(Note)/533/400MHz DIMM

24MHz

33MHz

IT 8712

4 Serial ATA

ATA33/66/100 IDE Channels

Intel

ICH6R

14.318MHz

Dual BIOS

CODEC

Line-In

PCICLK

(33MHz)

2 PCI

PCI Bus

Marvell

8001

RJ45

3 IEEE1394b

SPDIF In

SPDIF Out

3 PCI Express x 1 Ports

RJ45

PCI Express x 1 Bus

Broadcom

5751/5789

8 USB

Ports

CY7C6564D

3 USB

Ports

Dual Channel Memory

Floppy

PS/2 KB/Mouse

LPT Port

COM Port

TSB82AA2

TSB81BA3

4 Serial ATA

SiI3114

Side Speaker Out

Center/Subwoofer Speaker Out

Surround Speaker Out

PCI-ECLK

(100MHz)

PCI-ECLK

(100MHz)

(Note) To use a DDRII 711 memory module on the motherboard, you must install a 1066MHz FSB

processor and overclock in BIOS.

To use a DDRII 600 memory module on the motherboard, you must install an 800MHz FSB

processor and overclock in BIOS.

- 8 -

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please

follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic

pad or within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply

connector from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers

are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with

the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1Hardware Installation

GA-8AENXP-D Motherboard - 10 -

English

CPU Supports the latest Intel®Pentium®4 LGA775 CPU

Supports 1066/800/533MHz FSB

L2 cache varies with CPU

Chipset Northbridge: Intel®925XE Express Chipset

Southbridge: Intel®ICH6R

Memory 6 DDR II DIMM memory slots (supports up to 4GB memory) (Note 1)

Supports dual channel DDR II 711/600(Note 2)/533/400 unbrffered DIMM

Supports 1.8V DDR II DIMM

Slots 1 PCI Express x 16 slot

3 PCI Express x 1 slots

2 PCI slots

IDE Connections 1 IDE connection (UDMA 33/ATA 66/ATA 100), allows connection of

2 IDE devices

FDD Connections 1 FDD connection, allows connection of 2 FDD devices

Onboard SATA 8 Serial ATA ports :

4 ports from ICH6R controller (SATA0_SB, SATA1_SB, SATA2_SB, SATA3_SB);

4 ports from SiI3114 controller (SATA0_SII, SATA1_SII, SATA2_SII, SATA3_SII)

Peripherals 1 parallel port supporting Normal/EPP/ECP mode

1 serial port (COMA)

11 USB 2.0/1.1 ports (rear x 4, front x 7 via cable)

3 IEEE1394b ports (requires cable)

1 front audio connector

1 IR connector

1 PS/2 keyboard port

1 PS/2 mouse port

Onboard LAN Onboard Marvell 8001 chip (10/100/1000 Mbit) (LAN1)

Onboard Broadcom 5751/5789 chip (10/100/1000 Mbit) (LAN2)

2 RJ 45 ports

Onboard Audio ALC880 CODEC

Supports Jack Sensing function

Supports 2 / 4 / 6 / 8 channel audio

Supports Line In ; Line Out (Front Speaker Out) ; MIC ; Surround Speaker Out

(Rear Speaker Out) ; Center/Subwoofer Speaker Out ;

Side Speaker Out connection

SPDIF In/Out connection

CD In connection

1-2 Feature Summary

(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage and

therefore the actual memory size is less than the stated amount.

For example, 4 GB of memory size will instead be shown as 3.xxGB memory during system startup.

(Note 2) To use a DDRII 711 memory module on the motherboard, you must install a 1066MHz FSB

processor and overclock in BIOS.

To use a DDRII 600 memory module on the motherboard, you must install an 800MHz FSB

processor and overclock in BIOS.

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte GA-K8NF-9-TA Bedienungsanleitung

Gigabyte

Gigabyte GA-X170-Extreme ECC Bedienungsanleitung

Gigabyte

Gigabyte 5SG100 Bedienungsanleitung

Gigabyte

Gigabyte GS-R12P4E Bedienungsanleitung

Gigabyte

Gigabyte GA-890XA-UD3 Bedienungsanleitung

Gigabyte

Gigabyte GA-BX2000 Bedienungsanleitung

Gigabyte

Gigabyte Z790 AORUS PRO X Bedienungsanleitung

Gigabyte

Gigabyte AMD Socket AM2 Processor Motherboard... Bedienungsanleitung

Gigabyte

Gigabyte GA-P55M-UD4 Bedienungsanleitung

Gigabyte

Gigabyte GA-G31M-ES2L Bedienungsanleitung

Gigabyte

Gigabyte MZ31-AR0 Bedienungsanleitung

Gigabyte

Gigabyte GA-7IXEH Bedienungsanleitung

Gigabyte

Gigabyte GA-H110TN Bedienungsanleitung

Gigabyte

Gigabyte GA-A75-D3H Bedienungsanleitung

Gigabyte

Gigabyte GA-Z68MA-D2H-B3 Bedienungsanleitung

Gigabyte

Gigabyte GA-E3000N Bedienungsanleitung

Gigabyte

Gigabyte Z690I AORUS ULTRA PLUS Bedienungsanleitung

Gigabyte

Gigabyte GA-MA790FX-DS5 Handbuch

Gigabyte

Gigabyte GA-7DPXDW-P Bedienungsanleitung

Gigabyte

Gigabyte 6BXDS Bedienungsanleitung

Gigabyte

Gigabyte GA-H97M-HD3 Bedienungsanleitung

Gigabyte

Gigabyte MN525BI Bedienungsanleitung

Gigabyte

Gigabyte B660 GAMING X Bedienungsanleitung

Gigabyte

Gigabyte 6WMM7 Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
