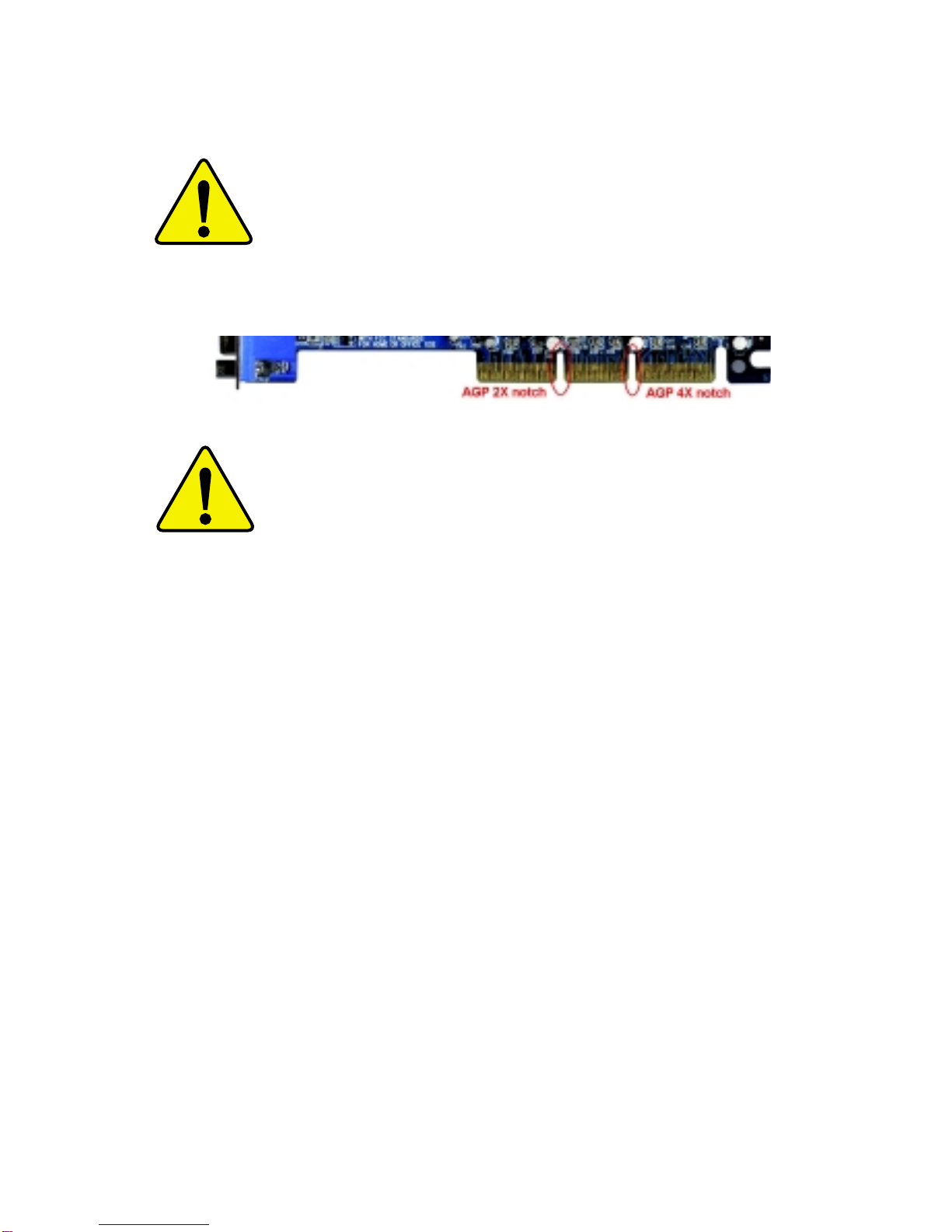

When you installing AGP card, please make sure the

following notice is fully understood and practiced. If your

AGP card has "AGP 4X notch"(show below), please make

sure your AGP card isAGP 4X (1.5V).

Do not useAGP 2X card (3.3V) in this motherboard. It will

burn and damage the motherboard due to Intel®850 chipset

can't support AGP 2X(3.3V).

Example 1: Diamond Vipper V770 golden finger is compatible

with 2X/4X mode AGP slot. It can be switched between AGP 2X

(3.3V) or 4X(1.5V) mode by adjusting the jumper. The factory

default for this card is 2X(3.3V). If you install this card in

GA-8ITML (or any AGP 4X only) motherboards without switching

the jumper to 4X mode (1.5V), it will burn the motherboard.

Example 2:ATi Rage 128 Pro (Power Color) & SiS 305 golden

finger is compatible with 2X/4X mode AGP slot, but it supports

2X(3.3V) only. If you install this card in GA-8ITML (or any AGP

4X only) motherboards, it will burn the motherboard.

The author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to up

date the information contained herein.

Third-party brands and names are the property of

their respective owners.

Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

Due to rapid change in technology, some of the

specifications might be out of date before pwblicution

of this booklet.

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),

Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

causeharmfuland(2)thisdevicemustacceptanyinferencereceived,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

18305 Valley Blvd., Suite#A LA

Puent, CA 91744

G.B.T. INC.

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8ITML

Date:

ERIC LU

August 15,2001

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8ITML

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive

EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment

EN 61000-3-2*

EN 60555-2 Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”

EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment

EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”

EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry

EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment

EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment

EN 55082-2

EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus

ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)

EN50091-2

EN 55020

DIN VDE 0855

part 10

part 12

(EC conformity marking)

CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use

EN 60950

EN 60065

Safety of household and similar

electrical appliances

EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : August 15, 2001

EN 60555-3

Rex Lin

EN 50091-1

USER’S MANUAL

GA-8ITML

P4 Titan-RDRAM Motherboard

Pentium®4ProcessorMotherboard

Rev.1.01ThirdEdition

12ME-8ITML-1013

GA-8ITML Motherboard

Table of Content

Revision History.....................................................................................4

Item Checklist .........................................................................................4

WARNING!...............................................................................................5

Chapter 1 Introduction.............................................................................6

Summary of Features .................................................................................. 6

GA-8ITML Motherboard Layout .................................................................8

Chapter 2 Hardware Installation Process................................................9

Step 1: Install the Central Processing Unit (CPU).....................................10

CPU Installation ............................................................................................................... 10

CPU Heat Sink Installation...............................................................................................11

Step 2: Install memory modules................................................................12

Introduce RIMM (Rambus In-line Memory Module) .................................................... 13

Step 3: Install expansion cards .................................................................14

Step 4: Connect ribbon cables, cabinet wires, and power supply ...........15

I/O Back Panel Introduction ............................................................................................ 15

Connectors Introduction .................................................................................................. 17

Jumper Setting ................................................................................................................. 23

ATX 12V Power Supply Introduction ............................................................................. 24

6 Pin Aux. Power Connector......................................................................................... 24

Chapter 3 BIOS Setup ..........................................................................25

The Main Menu (For example: BIOS Ver. :FA2).......................................26

Standard CMOS Features.........................................................................28

BIOS Features Setup.................................................................................31

Table of Content

Chipset Features Setup.............................................................................33

Power Management Setup .......................................................................36

PNP/PCI Configuration..............................................................................40

Load Fail-Safe Defaults.............................................................................42

Load Optimized Defaults...........................................................................43

Integrated Peripherals ...............................................................................44

Hardware Monitor & MISC Setup..............................................................50

Set Supervisor / User Password ................................................................52

IDE HDD Auto Detection............................................................................53

Save & Exit Setup.......................................................................................54

Exit Without Saving ....................................................................................55

Chapter 4 Technical Reference ............................................................56

Performance List .......................................................................................56

Block Diagram...........................................................................................57

Q-Flash Utility Introduction........................................................................58

@ BIOS Introduction..................................................................................60

Easy TuneIIITM Introduction .......................................................................61

Chapter 5 Appendix..............................................................................62

GA-8ITML Motherboard

Revision RevisionNote Date

1.01 InitialreleaseoftheGA-8ITMLmotherboarduser'smanual. Sep.2001

1.01 SecondreleaseoftheGA-8ITMLmotherboarduser'smanual. Sep.2001

1.01 ThirdreleaseoftheGA-8ITMLmotherboarduser'smanual. Oct.2001

TheGA-8ITMLmotherboard

IDE cable x 1/ Floppy cable x 1

CDformotherboarddriver&utility(IUCD)

GA-8ITMLuser’smanual

I/O Shield

CRIMM x 2

Revision History

Item Checklist

WARNING!

Computermotherboards and expansion cardscontainvery delicate Integrated Circuit(IC)chips.To

protectthemagainstdamagefromstaticelectricity,youshouldfollowsomeprecautionswheneveryou

workonyourcomputer.

1. Unplugyourcomputerwhenworkingontheinside.

2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonothave

one,touchbothofyourhandstoasafelygroundedobjectortoametalobject,suchas

thepowersupplycase.

3. HoldcomponentsbytheedgesandtrynottouchtheICchips,leadsorconnectors,or

othercomponents.

4. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe

componentswheneverthecomponentsareseparatedfromthesystem.

5. EnsurethattheATXpowersupplyisswitchedoffbeforeyoupluginorremovetheATX

powerconnectoronthemotherboard.

Ifthemotherboardhasmountingholes,buttheydon’tlineupwiththeholesonthebaseandthereare

noslotstoattachthespacers,donotbecomealarmedyoucanstillattachthespacerstothemounting

holes.Justcutthebottomportionofthespacers(thespacermaybealittlehardtocutoff,sobecareful

ofyourhands).Inthiswayyoucanstillattachthemotherboardtothebasewithoutworryingaboutshort

circuits.Sometimesyoumayneedtousetheplasticspringstoisolatethescrewfromthemotherboard

PCBsurface,becausethecircuitwiremaybenearbythehole.Becareful,don’tletthescrewcontact

anyprintedcircuitwriteorpartsonthePCBthatarenearthefixinghole,otherwiseitmaydamagethe

boardorcauseboardmalfunctioning.

Installing the motherboard to the chassis…

WARNING!

GA-8ITML Motherboard

FormFactor 24.5cm x 24.3cm MicroATX size form factor, 6 layers PCB.

CPU Socket478 for Intel®MicroFC-PGA2Pentium®4processor

Intel Pentium®4 400MHzFSB

2ndLevel cache depend on CPU

Chipset Chipset82850HOST/AGP/Controller

82801BA(ICH2) I/O Controller Hub

Memory 4184-pinRIMM Sockets

DualdirectRDRAMchannel

Supportsupto 2GB (Max)

I/OControl WinbondW83627HF

Slots 1CNR(CommunicationandNetworkingRiser)Slot

1AGP support 4X(1.5V)device

3 PCI slot supports 33MHz & PCI 2.2 compliant

On-BoardIDE AnIDEcontrolleronthe Intel82801BAPCI chipset

provides IDE HDD/CD-ROM with PIO, Bus Master (Ultra

DMA33/ATA66/ATA100)operationmodes.

Canconnectuptofour IDEdevices

On-BoardPeripherals 1 Floppy port supports 2FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

1Parallel port supports Normal/EPP/ECP mode

2 Serial ports (COMA&COMB)

4 USB ports (Rear USB x 2, Front USB x 2)

1IrDAconnector for IR/CIR

HardwareMonitor CPU/Power/System FanRevolution detect

CPU/Power/System Fan Control

CPUOverheatWarning

SystemVoltageDetect

Summary of Features

Chapter 1 Introduction

tobecontinued......

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte GA-8GEM667 Series Bedienungsanleitung

Gigabyte

Gigabyte GA-8GEM667 Series Bedienungsanleitung

Gigabyte

Gigabyte GA-8KNXP Ultra Bedienungsanleitung

Gigabyte

Gigabyte GA-H87-HD3 Bedienungsanleitung

Gigabyte

Gigabyte MZGLKAI Bedienungsanleitung

Gigabyte

Gigabyte GA-990FXA-UD5 Bedienungsanleitung

Gigabyte

Gigabyte GA-X58A-UD7 Bedienungsanleitung

Gigabyte

Gigabyte GA-Z68XP-UD5 Bedienungsanleitung

Gigabyte

Gigabyte GA-946GMX-S2 Bedienungsanleitung

Gigabyte

Gigabyte GA-A55M-DS2 Bedienungsanleitung

Gigabyte

Gigabyte GA-8IPE1000 Pro Bedienungsanleitung

Gigabyte

Gigabyte GA-6BX7+ Bedienungsanleitung

Gigabyte

Gigabyte G1.Sniper 3 Bedienungsanleitung

Gigabyte

Gigabyte GA-H55M-UD2H Bedienungsanleitung

Gigabyte

Gigabyte GA-EX58-UD4P Bedienungsanleitung

Gigabyte

Gigabyte GA-8AENXP Dual Graphic Bedienungsanleitung

Gigabyte

Gigabyte GA-7N400E Bedienungsanleitung

Gigabyte

Gigabyte B760M D3H DDR4 Bedienungsanleitung

Gigabyte

Gigabyte GA-H67MA-D2H-B3 Bedienungsanleitung

Gigabyte

Gigabyte GA-H270-Gaming 3 Bedienungsanleitung

Gigabyte

Gigabyte X670E AORUS PRO X Bedienungsanleitung

Gigabyte

Gigabyte 6WMM Series Bedienungsanleitung

Gigabyte

Gigabyte GA-P55-UD3R Bedienungsanleitung

Gigabyte

Gigabyte H370N WIFI Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
