GA-A55-S3P

User's Manual

Rev. 1001

12ME-A55S3P-1001R

Motherboard

GA-A55-S3P

Jul. 1, 2011

Motherboard

GA-A55-S3P

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-A55-S3P Motherboard Layout...................................................................................5

GA-A55-S3P Motherboard Block Diagram......................................................................6

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions.................................................................................... 7

1-2 Product Specications...................................................................................... 8

1-3 Installing the APU........................................................................................... 10

1-4 Installing the Memory..................................................................................... 11

1-5 Installing an Expansion Card ......................................................................... 11

1-6 Setup of the AMD Dual Graphics Conguration............................................. 12

1-7 Back Panel Connectors.................................................................................. 13

1-8 Internal Connectors........................................................................................ 15

Chapter 2 BIOS Setup ..................................................................................................22

2-1 Startup Screen ............................................................................................... 22

2-2 The Main Menu .............................................................................................. 23

2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 24

2-4 Standard CMOS Features.............................................................................. 28

2-5 Advanced BIOS Features .............................................................................. 29

2-6 Integrated Peripherals.................................................................................... 30

2-7 Power Management Setup............................................................................. 32

2-8 PC Health Status............................................................................................ 34

2-9 Load Fail-Safe Defaults.................................................................................. 35

2-10 Load Optimized Defaults................................................................................ 35

2-11 Set Supervisor/User Password ...................................................................... 36

2-12 Save & Exit Setup .......................................................................................... 36

2-13 Exit Without Saving........................................................................................ 37

Chapter 3 Drivers Installation........................................................................................37

Chapter 4 Appendix ......................................................................................................38

Conguring SATA Hard Drive(s)................................................................................ 38

- 5 -

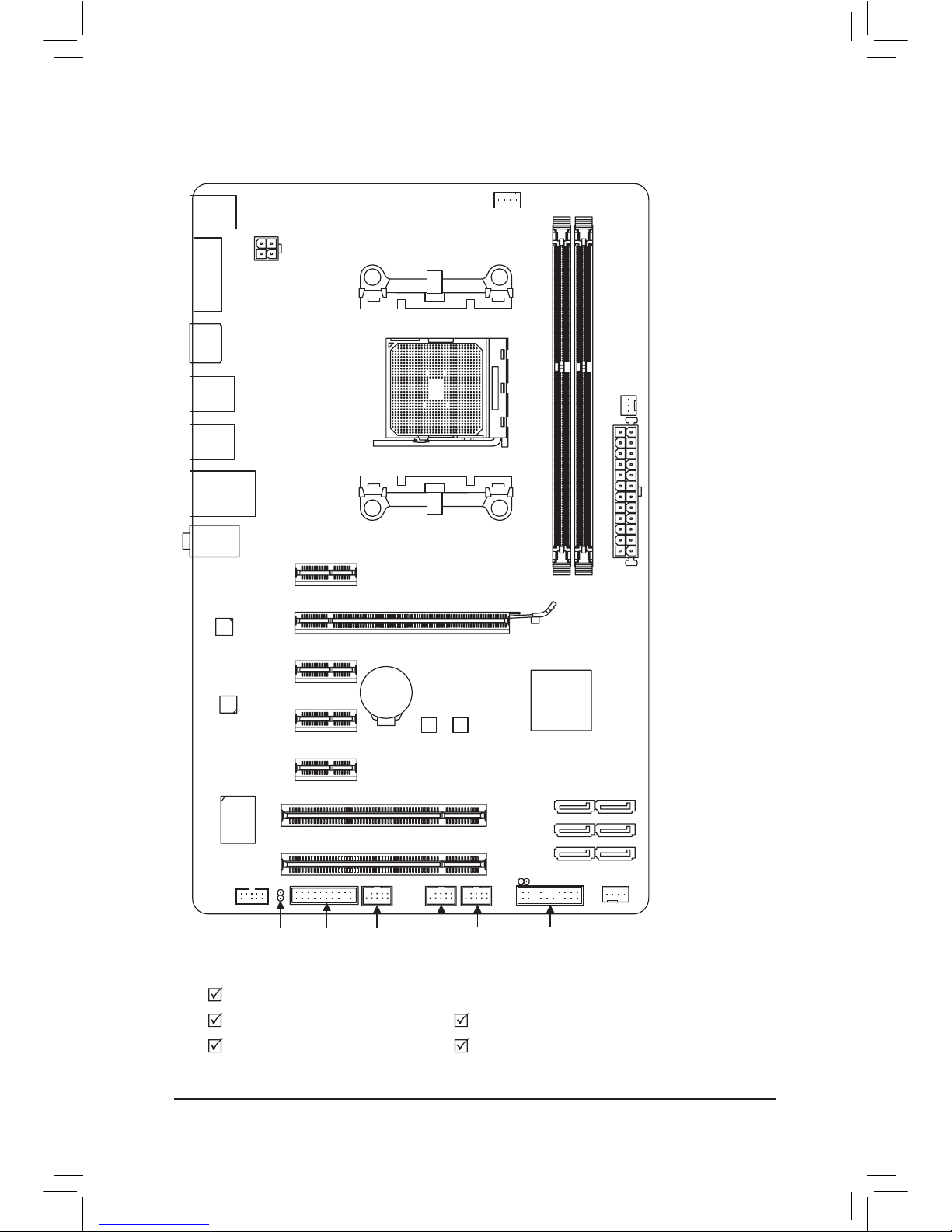

GA-A55-S3P Motherboard Layout

KB_MS CPU_FAN

Socket FM1

ATX

GA-A55-S3P

F_AUDIO

AUDIO

PCIEX1_4

DDR3_2

DDR3_1

BAT

F_USB3TPMSPDIF_O

ATX_12V

AMD A75/A55

SATA2_0 SATA2_3

SATA2_1 SATA2_4

SATA2_2 SATA2_5

PCI1

PCI2

HDMI

R_USB2

R_USB1

CODEC

PWR_FAN

SYS_FAN

PCIEX1_2

PCIEX1_3

PCIEX1_1

COM

USB_LAN

PCIEX16

F_USB2 F_USB1 F_PANEL

M_BIOSB_BIOS

CLR_CMOS

Realtek

RTL8111E

iTE

IT8720

Box Contents

GA-A55-S3P motherboard

Motherboard driver disk Two SATA cables

User's Manual I/O Shield

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

- 6 -

GA-A55-S3P Motherboard Block Diagram

UMI

AMD A75/A55

AMD APU

COM Port

iTE

IT8720

LPC

Bus

PS/2 KB/Mouse

Dual BIOS

12 USB 2.0/1.1

6 SATA 3Gb/s

APU CLK+/- (100 MHz)

DISP CLK+/- (100 MHz)

DDR3 1866/1600/1333/1066 MHz

Dual Channel Memory

HDMI

PCI Bus

2 PCI

PCI CLK

(33 MHz)

PCI Express Bus

PCIe CLK

(100 MHz)

PCIe CLK

(100 MHz)

1 PCI Express x16

3 PCI Express x1

1 PCI Express x1

x16

x1 x1x1

LAN

RJ45

Realtek

RTL8111E

Line Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line In (Rear Speaker Out)

CODEC

S/PDIF Out

- 7 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or•

warranty sticker provided by your dealer. These stickers are required for warranty validation.

Always remove the AC power by unplugging the power cord from the power outlet before•

installing or removing the motherboard or other hardware components.

When connecting hardware components to the internal connectors on the motherboard,•

make sure they are connected tightly and securely.

When handling the motherboard, avoid touching any metal leads or connectors.•

It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-•

ponents such as a motherboard, APU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

Prior to installing the motherboard, please have it on top of an antistatic pad or within an•

electrostatic shielding container.

Before unplugging the power supply cable from the motherboard, make sure the power sup-•

ply has been turned off.

Before turning on the power, make sure the power supply voltage has been set according to•

the local voltage standard.

Before using the product, please verify that all cables and power connectors of your hard-•

ware components are connected.

To prevent damage to the motherboard, do not allow screws to come in contact with the•

motherboard circuit or its components.

Make sure there are no leftover screws or metal components placed on the motherboard or•

within the computer casing.

Do not place the computer system on an uneven surface.•

Do not place the computer system in a high-temperature environment.•

Turning on the computer power during the installation process can lead to damage to sys-•

tem components as well as physical harm to the user.

If you are uncertain about any installation steps or have a problem related to the use of the•

product, please consult a certied computer technician.

- 8 -

1-2 ProductSpecications

APU FM1 Socket:

- AMD A series processors/AMD E2 series processors

(Go to GIGABYTE's website for the latest APU support list.)

Chipset AMD A75/A55

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Dual channel memory architecture

Support for DDR3 1866/1600/1333/1066 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

APU:

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

(HDMI port do not support Hot plug. If you want to change to another graphics

port when the computer is on, be sure to turn off the computer rst.)

Audio Realtek ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

4 x PCI Express x1 slots

(All PCI Express slots conform to the PCI Express 2.0 standard.)

2 x PCI slots

Multi-Graphics

Technology

Support for AMD Dual Graphics technology

* Only A series APUs support AMD Dual Graphics.

Storage Interface Chipset:

- 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

- Support for RAID 0, RAID 1, RAID 10, and JBOD

USB Chipset:

- Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available

through the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

6 x SATA 3Gb/s connectors

1 x APU fan header

1 x system fan header

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

- 9 -

Internal

Connectors

3 x USB 2.0/1.1 headers

1 x clearing CMOS jumper

1 x Trusted Platform Module (TPM) header

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x serial port

1 x HDMI port

6 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE IT8720 chip

Hardware

Monitor

System voltage detection

APU/System temperature detection

APU/System/Power fan speed detection

APU overheating warning

APU/System/Power fan fail warning

APU/System fan speed control

* Whether the APU/system fan speed control function is supported will depend on the

APU/system cooler you install.

BIOS 2 x 32 Mbit ash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress BIOS Rescue

Support for Download Center

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery

Support for Auto Green

Support for ON/OFF Charge

Support for 3TB+ Unlock

Support for Q-Share

Bundled

Software Norton Internet Security (OEM version)

Operating

System Support for Microsoft®Windows 7/Vista/XP

Form Factor ATX Form Factor; 30.5cm x 19.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

- 10 -

Installing the APU

A. Locate the pin one (denoted by a small triangle) of the APU socket and the APU.

1-3 Installing the APU

Read the following guidelines before you begin to install the APU:

Make sure that the motherboard supports the APU.•

(Go to GIGABYTE's website for the latest APU support list.)

Always turn off the computer and unplug the power cord from the power outlet before installing•

the APU to prevent hardware damage.

Locate the pin one of the APU. The APU cannot be inserted if oriented incorrectly.•

Apply an even and thin layer of thermal grease on the surface of the APU.•

Do not turn on the computer if the APU cooler is not installed, otherwise overheating and dam-•

age of the APU may occur.

Set the APU host frequency in accordance with the APU specications. It is not recommended •

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the APU, graph-

ics card, memory, hard drive, etc.

APU

A Small Triangle Marking

Denotes APU Pin One

FM1 Socket

A Small Triangle Mark

Denotes Pin One of the

Socket

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte GA-8IE2004P Bedienungsanleitung

Gigabyte

Gigabyte GA-8GE667 Pro Bedienungsanleitung

Gigabyte

Gigabyte GA-7VM400A-FA Bedienungsanleitung

Gigabyte

Gigabyte GA-8IGML-T Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A85X-UP4 Bedienungsanleitung

Gigabyte

Gigabyte GA-Z77M-D3H-MVP Bedienungsanleitung

Gigabyte

Gigabyte GA-880GM-UD2H Bedienungsanleitung

Gigabyte

Gigabyte GA-H81.AMP-UP Bedienungsanleitung

Gigabyte

Gigabyte GA-B85M-D2V Bedienungsanleitung

Gigabyte

Gigabyte GA-H97-DS3H Bedienungsanleitung

Gigabyte

Gigabyte R151-Z30 Bedienungsanleitung

Gigabyte

Gigabyte GA-6CXC7 Bedienungsanleitung

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Bedienungsanleitung

Gigabyte

Gigabyte IM-H410G Bedienungsanleitung

Gigabyte

Gigabyte GA-A320M-H Bedienungsanleitung

Gigabyte

Gigabyte B550 AORUS ELITE AX Bedienungsanleitung

Gigabyte

Gigabyte MW34-SP0 Bedienungsanleitung

Gigabyte

Gigabyte GA-8IEX Series Gebrauchs- und Pflegehandbuch

Gigabyte

Gigabyte B450M DS3H Bedienungsanleitung

Gigabyte

Gigabyte GA-X79-UD5 Bedienungsanleitung

Gigabyte

Gigabyte GA-P67A-D3-B3 Bedienungsanleitung

Gigabyte

Gigabyte GA-M55plus-S3G Bedienungsanleitung

Gigabyte

Gigabyte GA-Z97N-Gaming 5 Bedienungsanleitung

Gigabyte

Gigabyte GA-Z270-Gaming 3 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
