GA-B75M-D3H

User's Manual

Rev. 1201

12ME-B75MD3H-1201R

Motherboard

GA-B75M-D3H

Jul. 20, 2012

Motherboard

GA-B75M-D3H

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

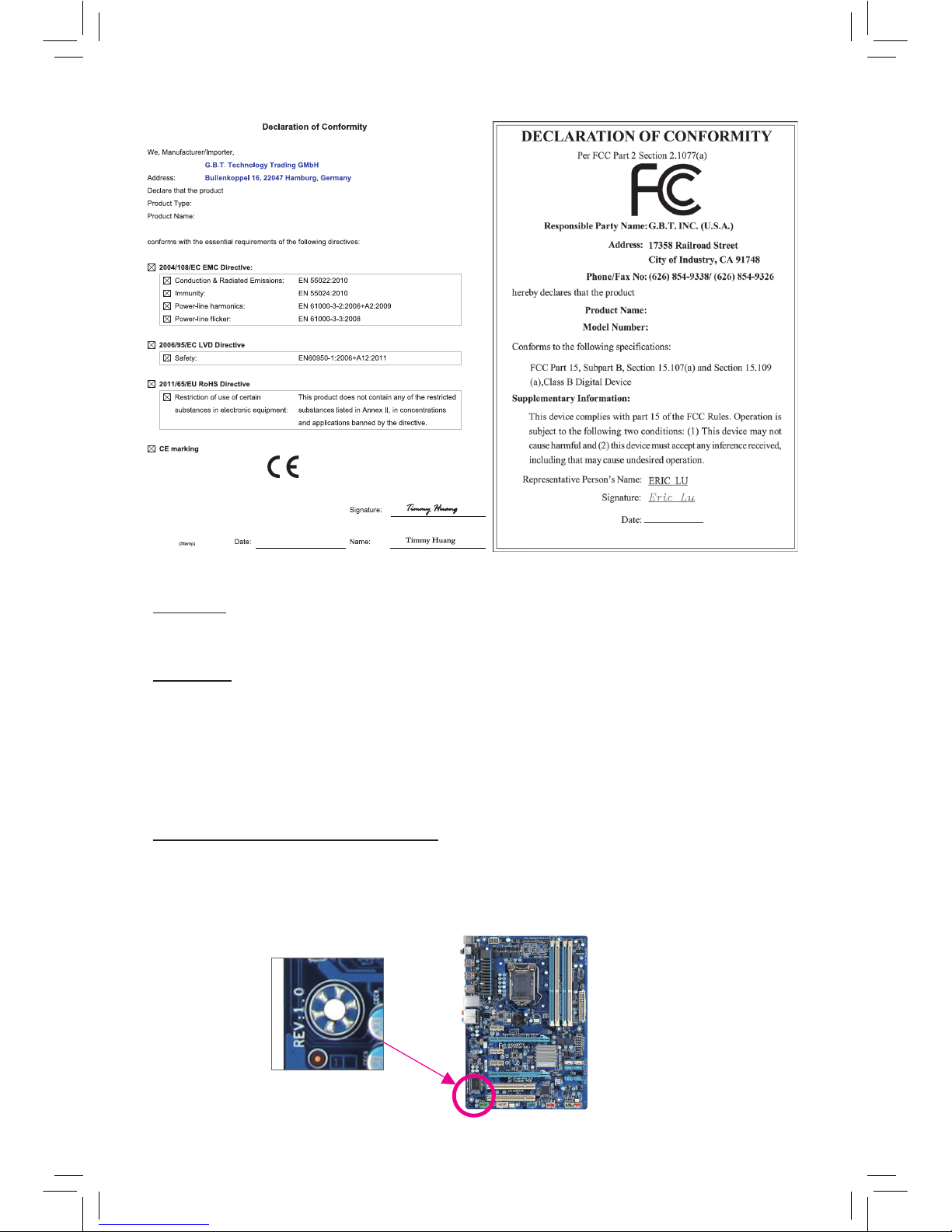

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-B75M-D3H Motherboard Layout ...............................................................................4

GA-B75M-D3H Motherboard Block Diagram...................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 ProductSpecications...................................................................................... 7

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 M.I.T. .............................................................................................................. 19

2-3 System ........................................................................................................... 23

2-4 BIOS Features ............................................................................................... 24

2-5 Peripherals..................................................................................................... 26

2-6 Power Management....................................................................................... 28

2-7 Save & Exit..................................................................................................... 29

Chapter 3 Drivers Installation........................................................................................30

Regulatory Statements.............................................................................................. 31

Contact Us ................................................................................................................ 32

- 4 -

GA-B75M-D3H Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

Box Contents

5GA-B75M-D3H motherboard

5Motherboard driver disk 5Two SATA 6Gb/s cables

5User's Manual 5I/O Shield

KB_MS_USB

CPU_FAN

LGA1155

ATX

GA-B75M-D3H

F_AUDIO

AUDIO

M_BIOS

DDR3_4

DDR3_3

DDR3_2

DDR3_1

BAT

F_PANEL

ATX_12V_2X4

Intel®B75

SATA2

2 3

4 5

F_USB30

R_USB30

CODEC CLR_CMOS

B_BIOS

VGA_DVI

USB_LAN

PCIEX16

PCI1

PCI2

PCIEX4

SPDIF_O

F_USB1F_USB2LPT TPMCOM

SYS_FAN

HDMI

Realtek®

GbE LAN

iTE®

Super I/O

SATA3

SATA2 0

- 5 -

GA-B75M-D3H Motherboard Block Diagram

PS/2 KB/Mouse

COM

LPT

LPC

Bus

Line Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line In (Rear Speaker Out)

S/PDIF Out

CODEC

LGA1155 CPU

PCI Express Bus

CPU CLK+/- (100 MHz)

PCIe CLK

(100 MHz)

1 PCI Express x16

x16

DMI 2.0

FDI

DDR3 1600/1333/1066 MHz

Dual Channel Memory

LAN

RJ45

PCI Express Bus

PCIe CLK

(100 MHz) Realtek®

GbE LAN

1 PCI Express x4

Dual BIOS

D-Sub

DVI-D

HDMI

1 SATA 6Gb/s

4 USB 3.0/2.0

5 SATA 3Gb/s

8 USB 2.0/1.1

Intel®B75

PCI Bus

PCI CLK

(33 MHz)

2 PCI

iTE®

Super I/O

Fordetailedproductinformation/limitation(s),referto“1-2ProductSpecications.”

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

- 7 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1155 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B75 Express Chipset

Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333/1066 MHz memory modules

* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.

Support for non-ECC memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

 * Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

* Whether PCI Express 3.0 is supported depends on CPU and graphics card

compatibility.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

(The PCIEX4 slot conforms to PCI Express 2.0 standard.)

2 x PCI slots

Multi-Graphics

Technology Support for AMD CrossFire™technology

Storage Interface Chipset:

- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

- 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s

devices

- 8 -

USB Chipset:

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x SATA 6Gb/s connector

5 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x parallel port header

1 x Trusted Platform Module (TPM) header

1xClearCMOSjumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3xaudiojacks(LineIn/LineOut/Microphone)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the CPU/system fan speed control function is supported will depend on the

CPU/system cooler you install.

BIOS 2x64Mbitash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

Support for EZ Setup

- 9 -

Bundled

Software

Norton®Internet Security (OEM version)

Intel®Rapid Start Technology

Intel®Smart Connect Technology

Intel®Small Business Advantage

Operating

System Support for Windows 8/7/XP

Form Factor Micro ATX Form Factor; 24.4cm x 22.0cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch

Alignment Key

Alignment Key Notch

LGA1155 CPULGA1155 CPU Socket

Pin One Corner of the CPU Socket Triangle Pin One Marking on the CPU

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

- 10 -

DualChannelMemoryConguration

This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the

memoryisinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.Enabling

Dual Channel memory mode will double the original memory bandwidth.

The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as

following:

Channel A: DDR3_1, DDR3_3

Channel B: DDR3_2, DDR3_4

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used and installed in the same colored DDR3

sockets. For optimum performance, when enabling Dual Channel mode with two memory modules,

we recommend that you install them in the DDR3_1 and DDR3_2 sockets.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

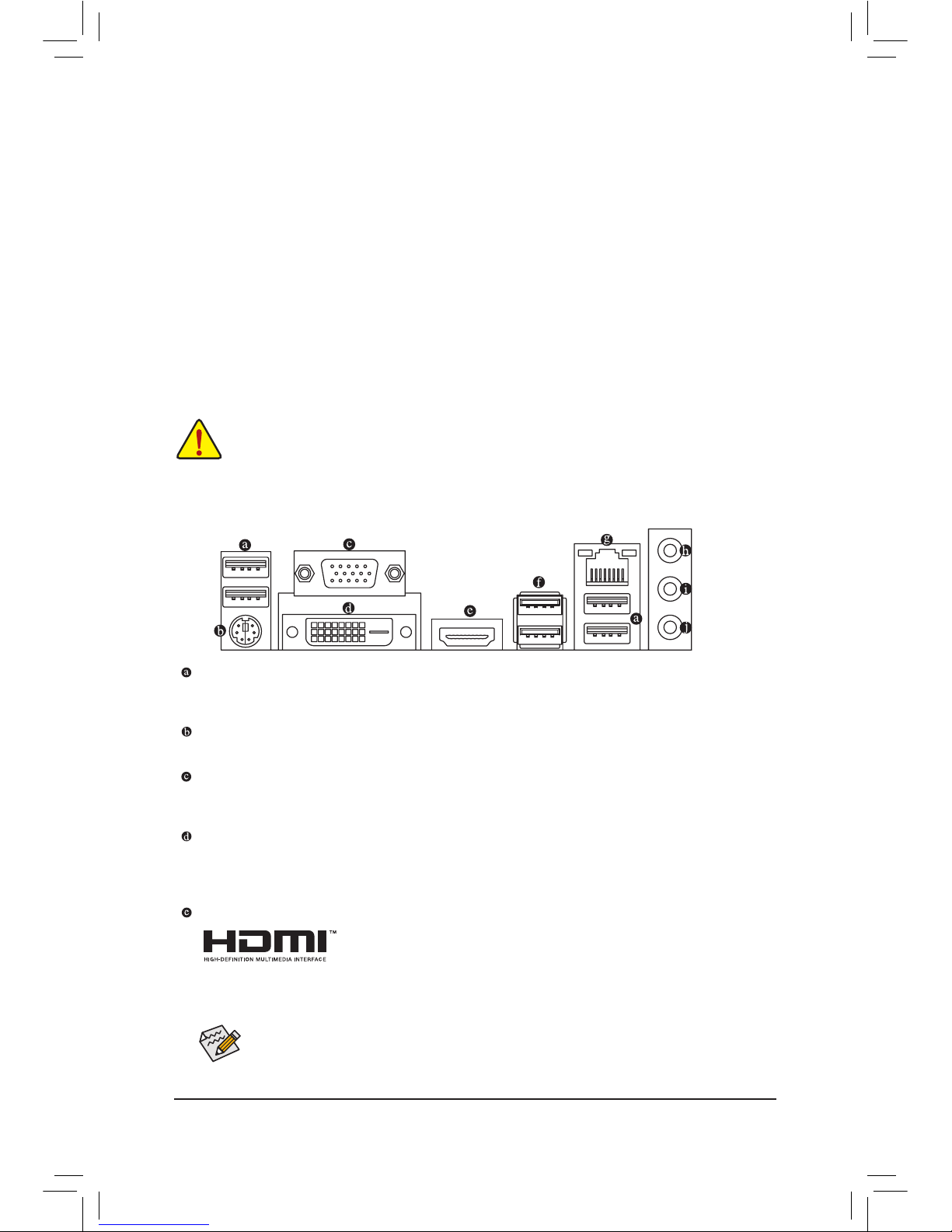

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportsthe USB 2.0/1.1specication.UsethisportforUSB devices suchasaUSB

keyboard/mouse,USBprinter,USBashdriveandetc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

DVI-D Port (Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

HDMI Port

The HDMI port is HDCP compliant and supports Dolby TrueHD and DTS

HDMaster Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM

audio output. You can use this port to connect your HDMI-supported audio/

video device. The maximum supported resolution is 1920x1200, but the actual resolutions supported

are dependent on the monitor being used.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system.)

(Note) The DVI-D port does not support D-Sub connection by adapter.

Andere Handbücher für GA-B75M-D3H

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte GA-M85M-US2H Bedienungsanleitung

Gigabyte

Gigabyte G-MAX Flex ATX Series Bedienungsanleitung

Gigabyte

Gigabyte GA-6VXDC7 Bedienungsanleitung

Gigabyte

Gigabyte GA-B250-FinTech Bedienungsanleitung

Gigabyte

Gigabyte GA-H81M-HD3 Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A85X-HD3 Bedienungsanleitung

Gigabyte

Gigabyte GA-9ITDW Kurzanleitung

Gigabyte

Gigabyte GA-Z97-HD3 Bedienungsanleitung

Gigabyte

Gigabyte GA-EP45C-DS3 Bedienungsanleitung

Gigabyte

Gigabyte AMD Socket AM2 Motherboard GA-3PXSL-RH Bedienungsanleitung

Gigabyte

Gigabyte X670E AORUS XTREME Bedienungsanleitung

Gigabyte

Gigabyte GA-7N400V Bedienungsanleitung

Gigabyte

Gigabyte GA-8I915G-M Bedienungsanleitung

Gigabyte

Gigabyte Z790 D AX Bedienungsanleitung

Gigabyte

Gigabyte GA-8IG1000MF Series Bedienungsanleitung

Gigabyte

Gigabyte GA-Z270-Gaming 3 Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A78M-HD2 Bedienungsanleitung

Gigabyte

Gigabyte GA-EX38-DS5 Bedienungsanleitung

Gigabyte

Gigabyte GA-Z77-HD4 Bedienungsanleitung

Gigabyte

Gigabyte B460 HD3 Bedienungsanleitung

Gigabyte

Gigabyte GA-P55A-UD3P Bedienungsanleitung

Gigabyte

Gigabyte GA-7PESLN Bedienungsanleitung

Gigabyte

Gigabyte GA-EP35-DS3 Bedienungsanleitung

Gigabyte

Gigabyte 6WMM7 Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
