Gigabyte GA-D425TUD Bedienungsanleitung
GA-D525TUD
Support Intel®Dual-core Atom™ D525 processor
GA-D425TUD
Support Intel®Single-core Atom™ D425 processor
User's Manual
Rev. 1302
12ME-525TUD-1302R
Motherboard
GA-D525TUD/GA-D425TUD
Jul. 15, 2010
Jul. 15, 2010
Motherboard
GA-D525TUD/GA-D425TUD
Copyright
©2010 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the information
on/from the Support&Downloads\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com

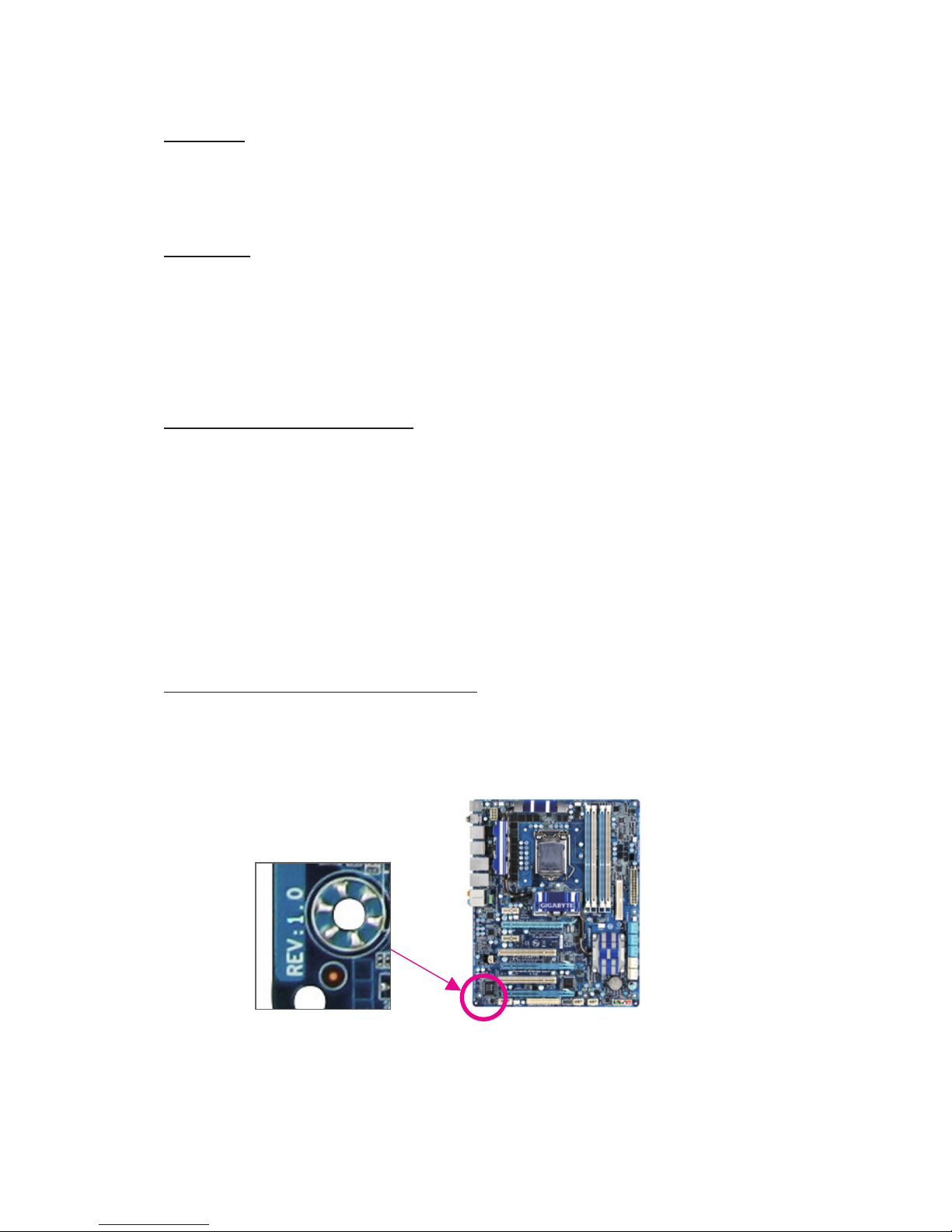

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-D525TUD/GA-D425TUD Motherboard Layout..........................................................7
GA-D525TUD/GA-D425TUD Motherboard Block Diagram.............................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 ProductSpecications.................................................................................... 10
1-3 Installing the Memory..................................................................................... 12
1-4 Back Panel Connectors.................................................................................. 13
1-5 Internal Connectors........................................................................................ 15
Chapter 2 BIOS Setup ..................................................................................................23
2-1 Startup Screen ............................................................................................... 24
2-2 The Main Menu .............................................................................................. 25
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 27
2-4 Standard CMOS Features.............................................................................. 29
2-5 Advanced BIOS Features .............................................................................. 31
2-6 Integrated Peripherals.................................................................................... 33
2-7 Power Management Setup............................................................................. 36
2-8 PnP/PCICongurations ................................................................................. 38
2-9 PC Health Status............................................................................................ 39
2-10 Load Fail-Safe Defaults.................................................................................. 40
2-11 Load Optimized Defaults................................................................................ 40
2-12 Set Supervisor/User Password ...................................................................... 41
2-13 Save & Exit Setup .......................................................................................... 42
2-14 Exit Without Saving........................................................................................ 42
- 5 -
Chapter 3 Drivers Installation........................................................................................43
3-1 Installing Chipset Drivers ............................................................................... 43
3-2 Application Software ...................................................................................... 44
3-3 Technical Manuals.......................................................................................... 44
3-4 Contact........................................................................................................... 45
3-5 System ........................................................................................................... 45
3-6 Download Center ........................................................................................... 46
3-7 New Utilities ................................................................................................... 46
Chapter 4 Unique Features...........................................................................................47
4-1 Xpress Recovery2.......................................................................................... 47
4-2 BIOS Update Utilities ..................................................................................... 50
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................50
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................53
4-3 EasyTune 6 .................................................................................................... 54
4-4 Q-Share.......................................................................................................... 55
4-5 SMART Recovery........................................................................................... 56
4-6 Auto Green..................................................................................................... 57
Chapter 5 Appendix ......................................................................................................59
5-1 ConguringSATAHardDrive(s)..................................................................... 59
5-1-1 ConguringGIGABYTESATA2SATAController....................................................60
5-1-2 Making a SATA RAID/AHCI Driver Diskette............................................................66
5-1-3 Installing the SATA RAID/AHCI Driver and Operating System ...............................67
5-2 ConguringAudioInputandOutput............................................................... 72
5-2-1 Conguring2/4/5.1/7.1-ChannelAudio...................................................................72
5-2-2 ConguringMicrophoneRecording........................................................................75
5-2-3 Using the Sound Recorder .....................................................................................77
5-3 Troubleshooting.............................................................................................. 78
5-3-1 Frequently Asked Questions ..................................................................................78
5-3-2 Troubleshooting Procedure ....................................................................................79
5-4 Regulatory Statements................................................................................... 81
- 6 -

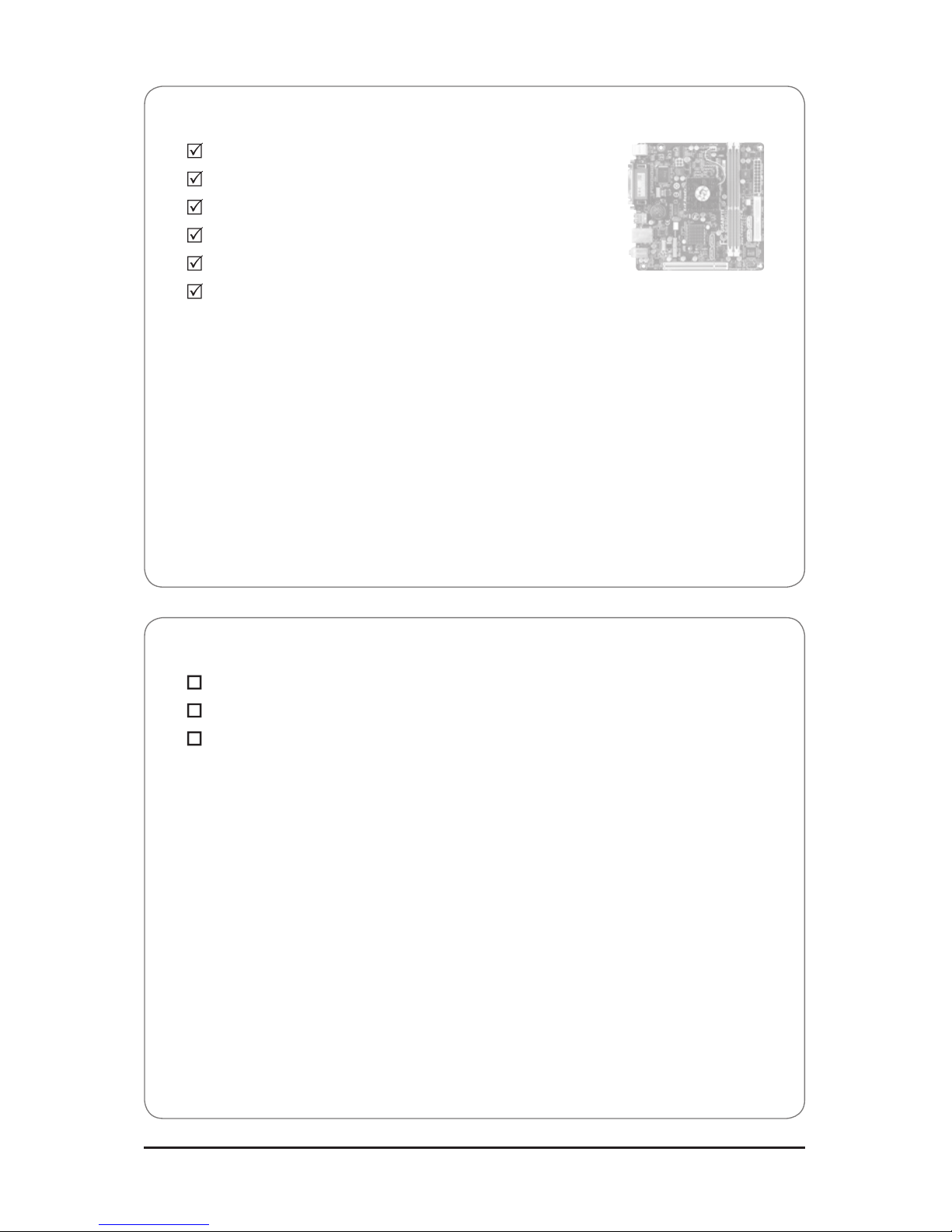

Box Contents
GA-D525TUD or GA-D425TUD motherboard
Motherboard driver disk
User's Manual
One IDE cable
One SATA cable
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 7 -

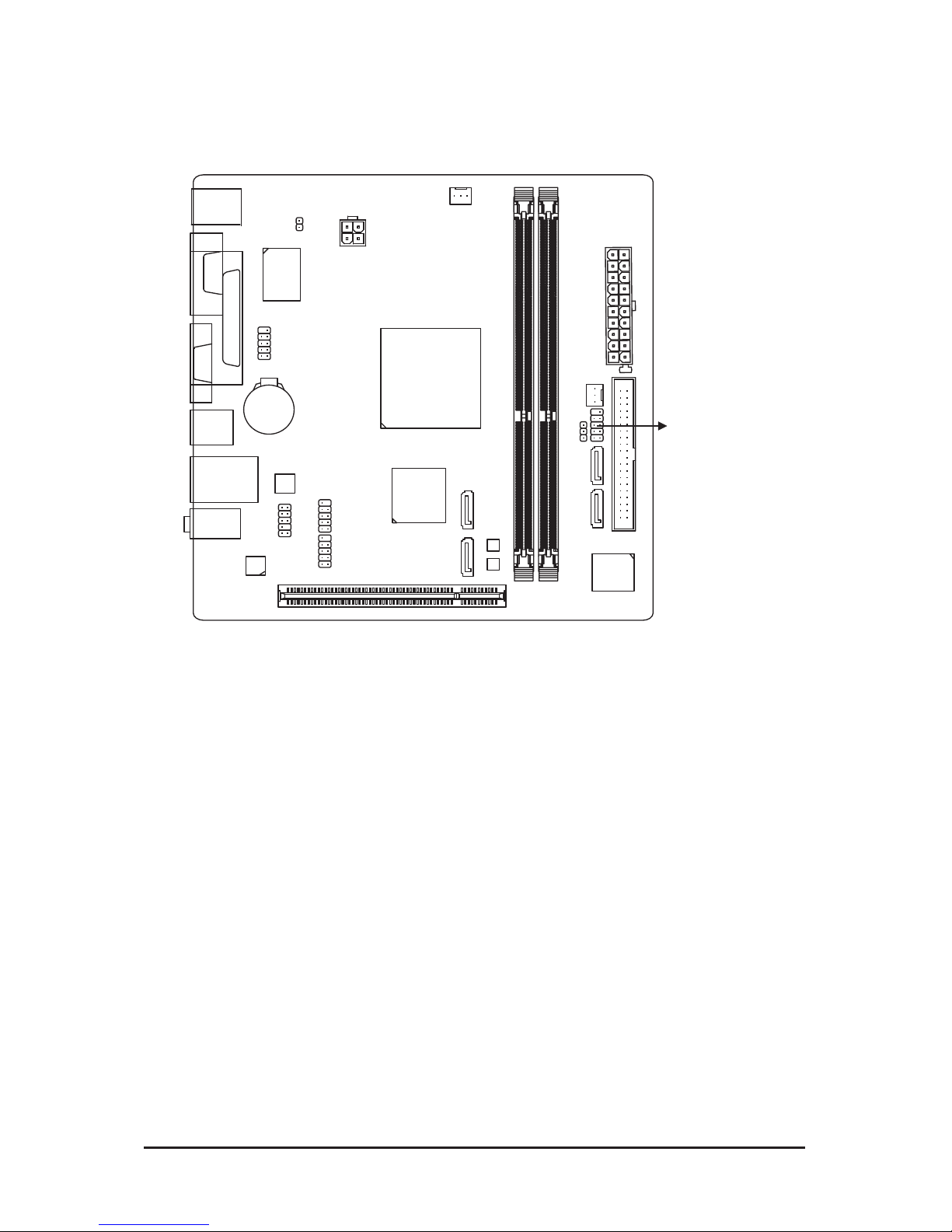

GA-D525TUD/GA-D425TUD Motherboard Layout
KB_MS ATX_12V
ATX
F_AUDIO
AUDIO B_BIOS
DDR3_1
DDR3_2
BAT
F_PANEL
F_USB1
Intel®
NM10
GSATA2_0
CODEC
SYS_FAN
M_BIOS
SATA2_0
IDE
GIGABYTE
SATA2
CPU_FAN
VGA
R_USB
COM
PWR_LED
USB_LAN
Realtek
RTL8111E
PCI
LPT
GA-D525TUD/
GA-D425TUD
Intel®Atom™ D525j
Intel®Atom™ D425k
COMB iTE
IT8720
CI
GSATA2_1
F_USB2
SATA2_1
jOnly for GA-D525TUD.
kOnly for GA-D425TUD.
- 8 -

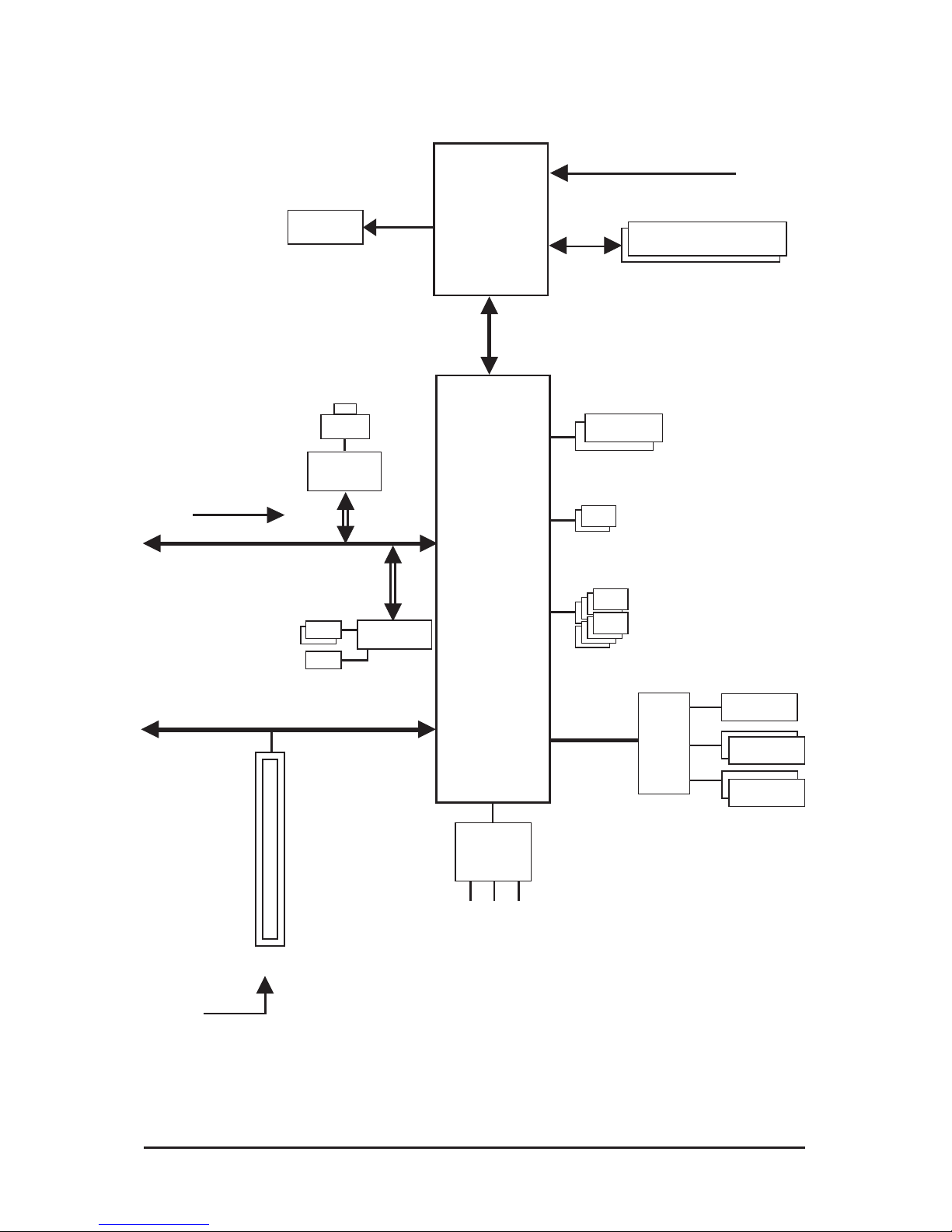

GA-D525TUD/GA-D425TUD Motherboard Block Diagram
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line-In (Rear Speaker Out)
CODEC
PS/2 KB/Mouse
Intel®
Atom™
CPU
DMI
Interface
1 PCI
PCI Bus
PCI CLK
(33 MHz)
CPU CLK+/- (200 MHz)
2 SATA 3Gb/s
Dual BIOS
DDR3 800 MHz
Memory
LPC Bus
LPT Port
Intel®NM10
8 USB 2.0/1.1
PCI Express Bus
x1
ATA-133/100/66/33 IDE Channel
2 SATA 3Gb/s GIGABYTE
SATA2
x1
LAN
RJ45
Realtek
RTL8111E
PCIe CLK
(100 MHz)
D-Sub
COM Ports
iTE
IT8720
- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation
Hardware Installation - 10 -
1-2 Product Specications
CPU Built in with an Intel® Dual-core Atom™D525j/ Intel® Single-core Atom™D425k
processor (1.8 GHz) (Note 1)
1M L2 cachej/512K L2 cachek
Chipset Intel®NM10
Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory (Note 2)
Support for DDR3 800 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Audio Realtek ALC888B codec
HighDenitionAudio
2/4/5.1/7.1-channel (Note 3)
LAN 1 xRealtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slot 1 x PCI slot
Storage Interface Chipset:
- 2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA
3Gb/s devices
GIGABYTE SATA2 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2
SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
USB Chipset:
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
Internal 1 x 20-pin ATX main power connector
Connectors 1 x 4-pin ATX 12V power connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x chassis intrusion header
1 x power LED header
jOnly for GA-D525TUD.
kOnly for GA-D425TUD.
Andere Handbücher für GA-D425TUD
1
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Gigabyte Hauptplatine Handbücher
Gigabyte
Gigabyte GA-H81M-S2V Bedienungsanleitung
Gigabyte
Gigabyte GA-P67A-UD3R Bedienungsanleitung
Gigabyte
Gigabyte R181-Z90 Bedienungsanleitung
Gigabyte
Gigabyte GA-8SD533 Bedienungsanleitung
Gigabyte
Gigabyte GA-P41T-ES3G Bedienungsanleitung
Gigabyte
Gigabyte K8S760M Series Bedienungsanleitung
Gigabyte
Gigabyte GA-F2A68HM-D3H Bedienungsanleitung
Gigabyte
Gigabyte GA-M55SLI-S4 Handbuch
Gigabyte
Gigabyte GA-945PL-S3G Bedienungsanleitung
Gigabyte
Gigabyte GA-Z77MX-D3H TH Bedienungsanleitung
Gigabyte
Gigabyte GA-6VEM Bedienungsanleitung
Gigabyte
Gigabyte B660M GAMING X AX Bedienungsanleitung
Gigabyte
Gigabyte GA-946GMX-S2 Bedienungsanleitung
Gigabyte
Gigabyte GA-B150M-D3H-GSM Bedienungsanleitung
Gigabyte
Gigabyte GA-8EGXDR Bedienungsanleitung
Gigabyte
Gigabyte GA-A320M-HD2 Bedienungsanleitung
Gigabyte
Gigabyte GA-MA770-DS3 Handbuch
Gigabyte
Gigabyte A520 AORUS ELITE Bedienungsanleitung
Gigabyte
Gigabyte 6VXDC7 Bedienungsanleitung
Gigabyte
Gigabyte B550M AORUS PRO AX Bedienungsanleitung
Beliebte Hauptplatine Handbücher anderer Marken
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Bedienungsanleitung
Texas Instruments
Texas Instruments ADS8372EVM Bedienungsanleitung
Commell
Commell MS-C73 Bedienungsanleitung
IBT Technologies
IBT Technologies MB860 Bedienungsanleitung
Nvidia
Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung
Biostar
Biostar M7VIT Bravo Bedienungs- und Montageanleitung
