Gigabyte GA-D510UD Bedienungsanleitung
GA-D510UD
Support Intel®Dual-core Atom™ D510 processor
User's Manual
Rev. 1002
12ME-D510UD-1002R
Motherboard
GA-D510UD
Feb. 5, 2010
Feb. 5, 2010
Motherboard
GA-D510UD
Copyright
©2010 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the information
on/from the Support&Downloads\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw

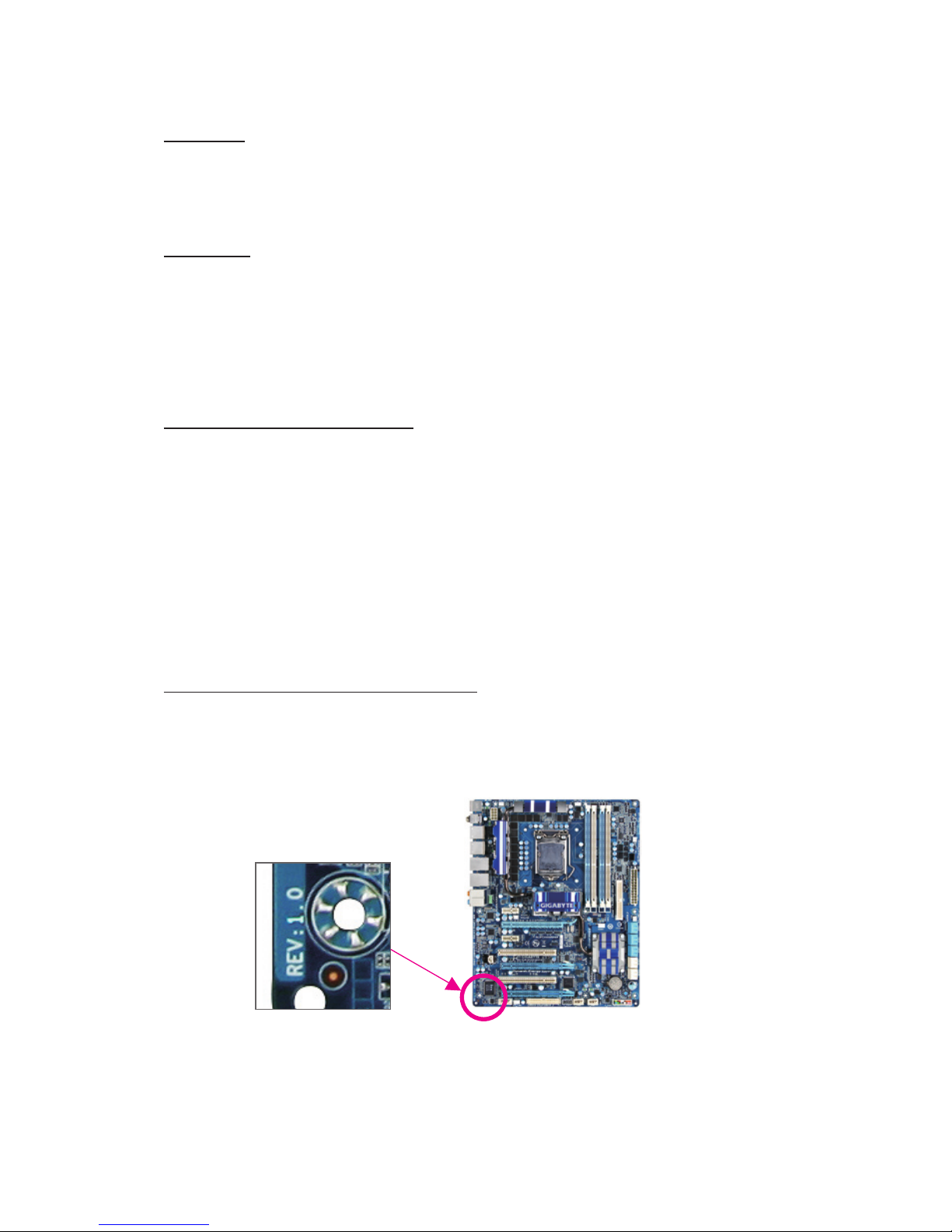

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-D510UD Motherboard Layout ...................................................................................7
GA-D510UD Motherboard Block Diagram.......................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 ProductSpecications.................................................................................... 10
1-3 Installing the Memory..................................................................................... 12
1-4 Back Panel Connectors.................................................................................. 13
1-5 Internal Connectors........................................................................................ 15
Chapter 2 BIOS Setup ..................................................................................................23
2-1 Startup Screen ............................................................................................... 24
2-2 The Main Menu .............................................................................................. 25
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 27
2-4 Standard CMOS Features.............................................................................. 29
2-5 Advanced BIOS Features .............................................................................. 31
2-6 Integrated Peripherals.................................................................................... 33
2-7 Power Management Setup............................................................................. 36
2-8 PnP/PCICongurations ................................................................................. 38
2-9 PC Health Status............................................................................................ 39
2-10 Load Fail-Safe Defaults.................................................................................. 40
2-11 Load Optimized Defaults................................................................................ 40
2-12 Set Supervisor/User Password ...................................................................... 41
2-13 Save & Exit Setup .......................................................................................... 42
2-14 Exit Without Saving........................................................................................ 42
- 5 -
Chapter 3 Drivers Installation........................................................................................43
3-1 Installing Chipset Drivers ............................................................................... 43
3-2 Application Software ...................................................................................... 44
3-3 Technical Manuals.......................................................................................... 44
3-4 Contact........................................................................................................... 45
3-5 System ........................................................................................................... 45
3-6 Download Center ........................................................................................... 46
3-7 New Utilities ................................................................................................... 46
Chapter 4 Unique Features...........................................................................................47
4-1 Xpress Recovery2.......................................................................................... 47
4-2 BIOS Update Utilities ..................................................................................... 50
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................50
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................53
4-3 EasyTune 6 .................................................................................................... 54
4-4 Q-Share.......................................................................................................... 55
4-5 SMART Recovery........................................................................................... 56
4-6 Auto Green..................................................................................................... 57
Chapter 5 Appendix ......................................................................................................59
5-1 ConguringSATAHardDrive(s)..................................................................... 59
5-1-1 ConguringGIGABYTESATA2SATAController....................................................60
5-1-2 Making a SATA RAID/AHCI Driver Diskette............................................................66
5-1-3 Installing the SATA RAID/AHCI Driver and Operating System ...............................67
5-2 ConguringAudioInputandOutput............................................................... 72
5-2-1 Conguring2/4/5.1/7.1-ChannelAudio...................................................................72
5-2-2 ConguringMicrophoneRecording........................................................................75
5-2-3 Using the Sound Recorder .....................................................................................77
5-3 Troubleshooting.............................................................................................. 78
5-3-1 Frequently Asked Questions ..................................................................................78
5-3-2 Troubleshooting Procedure ....................................................................................79
5-4 Regulatory Statements................................................................................... 81
- 6 -
Box Contents
GA-D510UD motherboard
Motherboard driver disk
User's Manual
One IDE cable
One SATA 3Gb/s cable
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 7 -

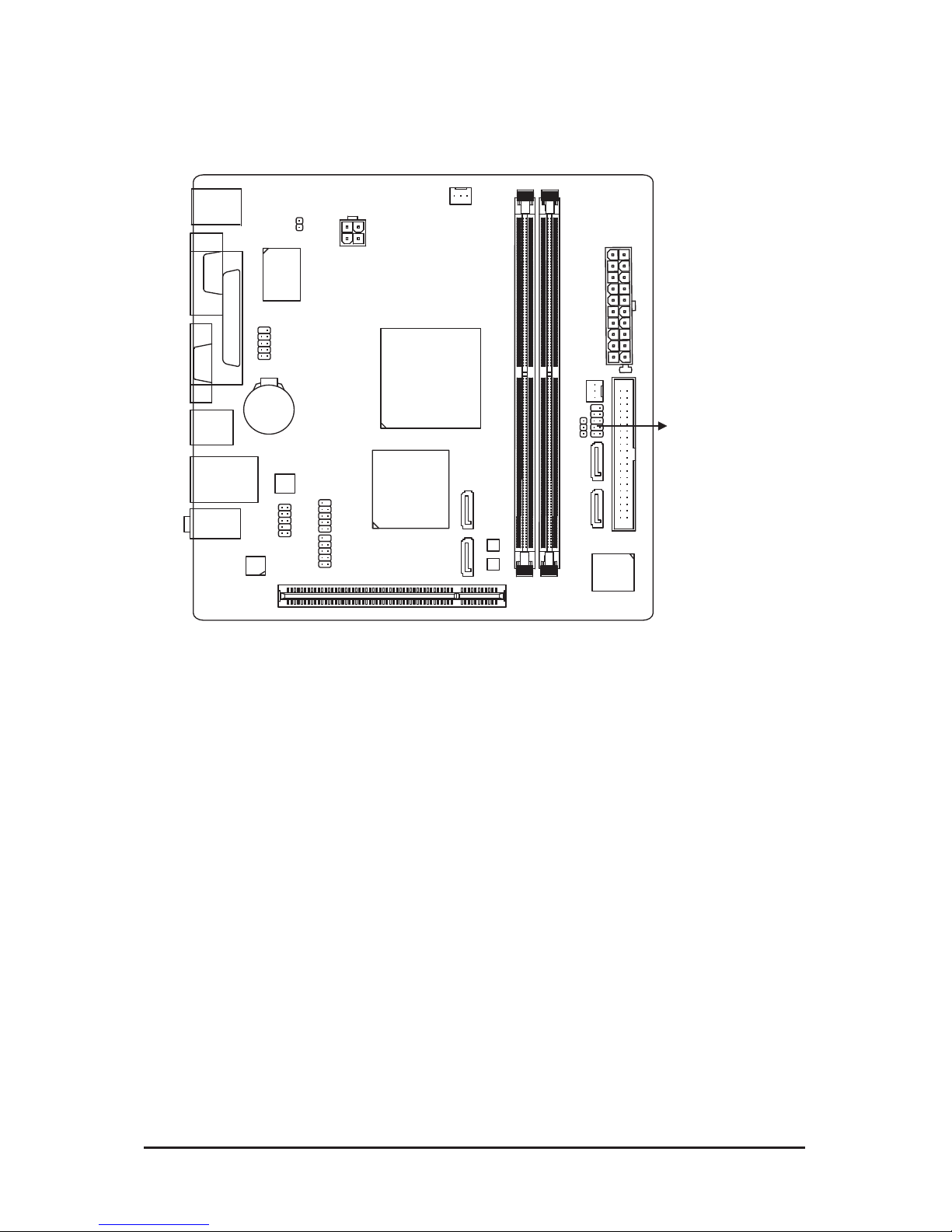

GA-D510UD Motherboard Layout
KB_MS ATX_12V
ATX
F_AUDIO
AUDIO B_BIOS
DDR2_1
DDR2_2
BAT
F_PANEL
F_USB1
Intel®NM10
GSATA2_0
CODEC
SYS_FAN
M_BIOS
SATA2_0
IDE
GIGABYTE
SATA2
CPU_FAN
VGA
R_USB
COMA
PWR_LED
USB_LAN
RTL8111D
PCI
LPT
GA-D510UD
Intel®Atom™ D510
COMB IT8720
CI
GSATA2_1
F_USB2
SATA2_1
- 8 -
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line-In (Rear Speaker Out)
CODEC

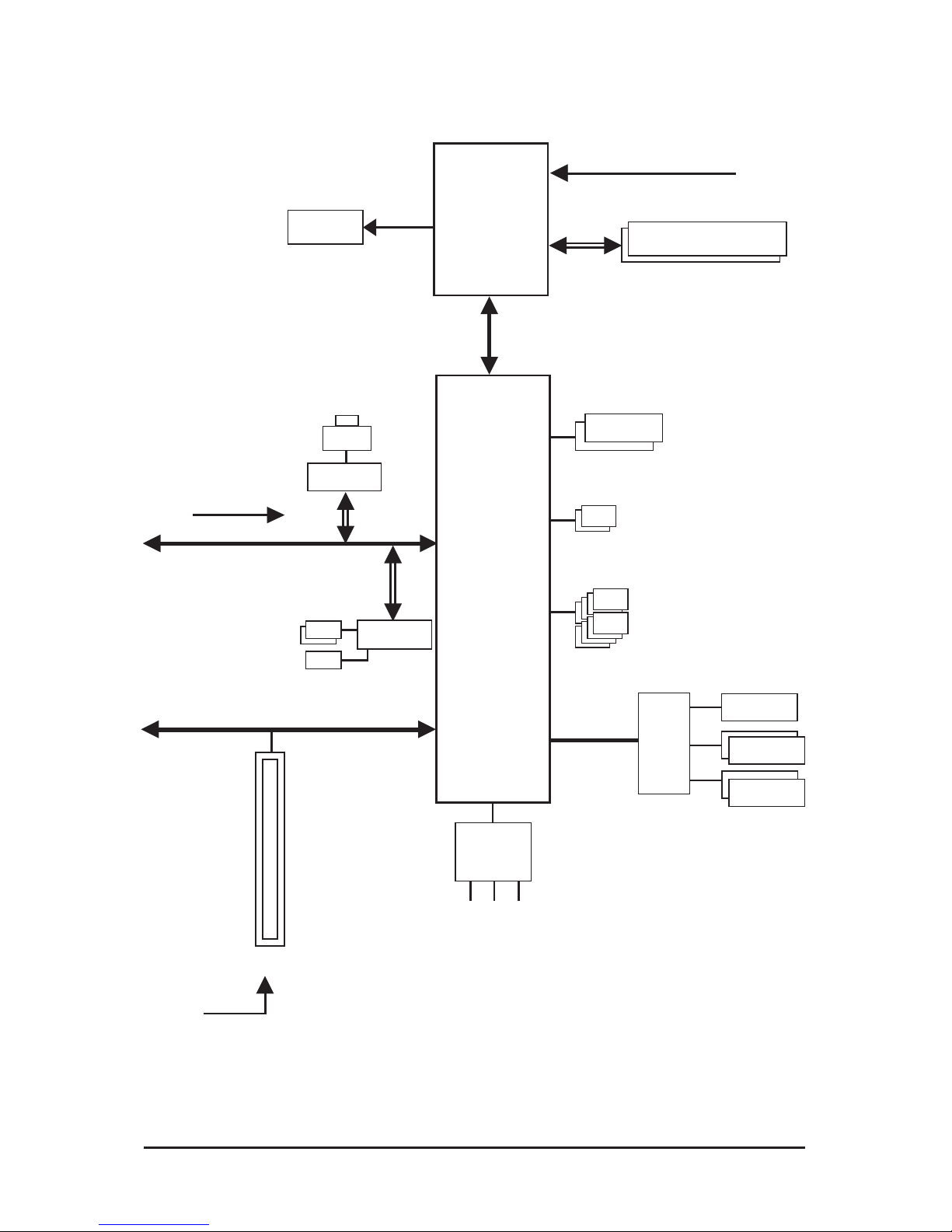

GA-D510UD Motherboard Block Diagram
PS/2 KB/Mouse
Intel®
Atom™
Processor
DMI
Interface
1 PCI
PCI Bus
PCI CLK
(33 MHz)
CPU CLK+/- (133 MHz)
2 SATA 3Gb/s
Dual BIOS
DDR2 800/667 MHz
Memory
LPC Bus
IT8720
LPT Port
Intel®NM10
8 USB 2.0/1.1
PCI Express Bus
x1
ATA-133/100/66/33 IDE Channel
2 SATA 3Gb/s GIGABYTE
SATA2
x1
LAN
RJ45
RTL8111D
PCIe CLK
(100 MHz)
D-Sub
COM Ports
- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation
Hardware Installation - 10 -
1-2 Product Specications
CPU Built in with an Intel® Dual-core Atom™D510 processor (1.66 GHz) (Note 1)
1M L2 cache
Chipset Intel®NM10
Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory (Note 2)
Support for DDR2 800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio Realtek ALC888B codec
HighDenitionAudio
2/4/5.1/7.1-channel (Note 3)
LAN 1 x RTL8111D chip (10/100/1000 Mbit)
Expansion Slot 1 x PCI slot
Storage Interface Chipset:
- 2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA
3Gb/s devices
GIGABYTE SATA2 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2
SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
USB Chipset
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
Internal 1 x 20-pin ATX main power connector
Connectors 1 x 4-pin ATX 12V power connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x power LED header
Inhaltsverzeichnis
Andere Gigabyte Hauptplatine Handbücher
Gigabyte
Gigabyte GA-8IR533 Bedienungsanleitung
Gigabyte
Gigabyte GA-8IRX Bedienungsanleitung
Gigabyte
Gigabyte GA-7IX Bedienungsanleitung
Gigabyte
Gigabyte GA-Z77M-D3H-MVP Bedienungsanleitung
Gigabyte
Gigabyte GA-J1800N-D2H Bedienungsanleitung
Gigabyte
Gigabyte GA-F2A78M-DS2 Bedienungsanleitung
Gigabyte
Gigabyte GA-8I945GMF Bedienungsanleitung
Gigabyte
Gigabyte GA-HA65M-UD3H-B3 Bedienungsanleitung
Gigabyte
Gigabyte B760M D DDR4 Bedienungsanleitung
Gigabyte
Gigabyte MC12-LE0 Bedienungsanleitung
Gigabyte
Gigabyte GA-7VT600 Bedienungsanleitung
Gigabyte
Gigabyte GA-K8N51GMF Bedienungsanleitung
Gigabyte
Gigabyte B560M DS3H V3 Bedienungsanleitung
Gigabyte
Gigabyte GA-MA74GM-S2 Bedienungsanleitung
Gigabyte
Gigabyte GA-945P-S3 Bedienungsanleitung
Gigabyte
Gigabyte GA-Z270X-Ultra Gaming Bedienungsanleitung
Gigabyte
Gigabyte GA-8PENXP Bedienungsanleitung
Gigabyte
Gigabyte GA-EX58-DS4 Bedienungsanleitung
Gigabyte
Gigabyte R281-Z91 Bedienungsanleitung
Gigabyte
Gigabyte GA-H81M-S2PT Bedienungsanleitung
Beliebte Hauptplatine Handbücher anderer Marken
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Bedienungsanleitung
Texas Instruments
Texas Instruments ADS8372EVM Bedienungsanleitung
Commell
Commell MS-C73 Bedienungsanleitung
IBT Technologies
IBT Technologies MB860 Bedienungsanleitung
Nvidia
Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung
Biostar
Biostar M7VIT Bravo Bedienungs- und Montageanleitung
