Gigabyte GA-E3000N Bedienungsanleitung

GA-E3000N

User's Manual

Rev. 1001

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

GA-E3000N

Feb. 2, 2018

Motherboard

GA-E3000N

Feb. 2, 2018

- 3 -

Table of Contents

GA-E3000N Motherboard Layout....................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the Memory....................................................................................... 8

1-4 Installing an Expansion Card ........................................................................... 8

1-5 Back Panel Connectors.................................................................................... 8

1-6 Internal Connectors........................................................................................ 10

Chapter 2 BIOS Setup ..................................................................................................15

2-1 Startup Screen ............................................................................................... 15

2-2 M.I.T. .............................................................................................................. 16

2-3 System Information ........................................................................................ 19

2-4 BIOS Features ............................................................................................... 20

2-5 Peripherals..................................................................................................... 23

2-6 Power Management....................................................................................... 25

2-7 Save & Exit..................................................................................................... 27

Chapter 3 Appendix ......................................................................................................28

Drivers Installation..................................................................................................... 28

Regulatory Statements.............................................................................................. 29

Contact Us ................................................................................................................ 31

- 4 -

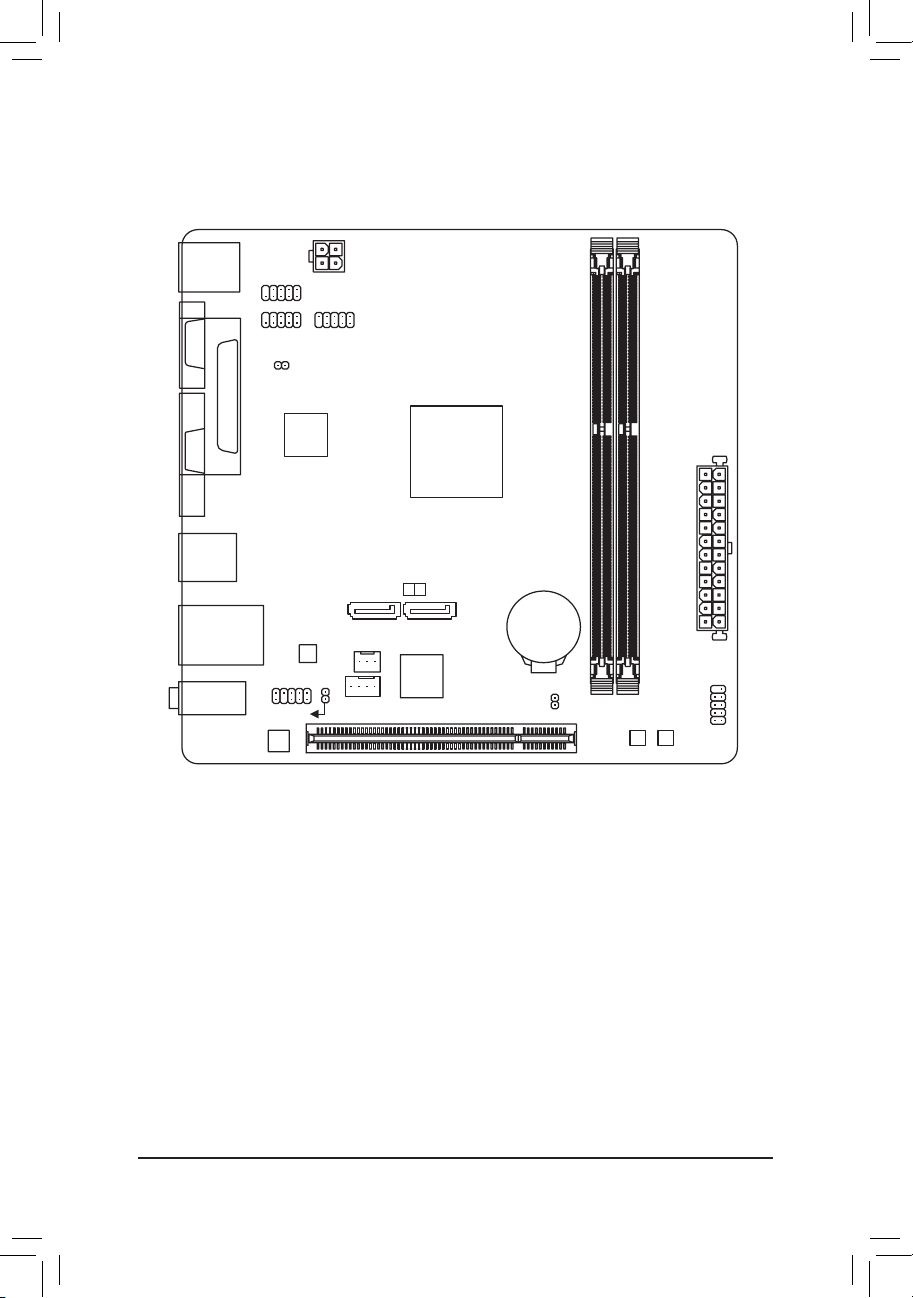

GA-E3000N Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-E3000N motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS_USB

ATX

GA-E3000N

F_AUDIO

AUDIO

B_BIOS

DDR3_1

DDR3_2

BAT

F_PANEL

ATX_12V

COMA

CODEC

CLR_CMOS

M_BIOS

VGA

USB_LAN

PCI

F_USB1

F_USB2

COMB

SYS_FAN

APU FT3

HDMI

R_USB30

Realtek®

GbE LAN

SPDIF_O

PCIe to

PCI Bridge

0 1

SATA3

LPT

iTE®

Super I/O

CPU_FAN

- 5 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

APU Built in with an AMD®E2-3000 (1.3 GHz) APU with Radeon™HD 8280 SoC

* Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage

to these components.

2MB L2 cache

Memory 2 x DDR3 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

* The maximum 32 GB of system memory can be supported using 16 GB (or above)

memory modules. GIGABYTE will update the memory support list on the ofcial

website when the memory modules are available on the market.

Support for DDR3 1600/1333 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated in the SoC:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200

- 1 x HDMI port, supporting a maximum resolution of 4096x2160

* Support for HDMI 1.4a version.

- Maximum shared memory of 2 GB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI slot

Storage Interface Integrated in the SoC:

- 2 x SATA 6Gb/s connectors

USB Integrated in the SoC:

- 2 x USB 3.1 Gen 1 ports on the back panel

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

1 x APU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x chassis intrusion header

1 x Clear CMOS jumper

- 7 -

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

1 x HDMI port

2 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 2x32Mbitash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for Xpress Install

Support for @BIOS

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

Bundled

Software Norton®Internet Security (OEM version)

Operating

System

Support for Windows 10 64-bit

Support for Windows 7 64-bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website

and install it before installing Windows 7.

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest version

of apps.

Please visit GIGABYTE's website for details on hardware installation.

Please visit GIGABYTE's website for support lists of memory modules.

- 8 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

1-4 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-5 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

USB 3.1 Gen 1 Port

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

- 9 -

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off

No data transmission or receiving is occurring

HDMI Port

The HDMI port is HDCP compliant and supports Dolby TrueHD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio

output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution

is 4096x2160, but the actual resolutions supported are dependent on the monitor being used.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system.)

Dual-DisplayCongurationsfortheOnboardGraphics:

 Dual-displaycongurationsaresupportedafteryouinstallmotherboarddriversinOS.

LineIn/RearSpeakerOut(Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

LineOut/FrontSpeakerOut(Green)

The line out jack.

MicIn/Center/SubwooferSpeakerOut(Pink)

The Mic in jack.

Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe

multi-channel audio feature through the audio driver.

AudioJackCongurations:

Jacks Headphone/

2-channel 4-channel 6-channel 8-channel

Line In/Rear Speaker Out aaa

Line Out/Front Speaker Out aaaa

Mic In/Center/Subwoofer

Speaker Out a a

Front Panel Line Out/

Side Speaker Out a

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

- 10 -

Read the following guidelines before connecting external devices:

•First make sure your devices are compliant with the connectors you wish to connect.

•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

•After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

1-6 Internal Connectors

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1

6) F_PANEL

7) SPDIF_O

8) F_AUDIO

9) F_USB1/F_USB2

10) COMB

11) CLR_CMOS

12) BAT

13) CI

711

8 12

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte 6WOZ7 Bedienungsanleitung

Gigabyte

Gigabyte GA-Z170MX-Gaming 5 Bedienungsanleitung

Gigabyte

Gigabyte 6VM7 Bedienungsanleitung

Gigabyte

Gigabyte Z690 A ELITE AX D4 V2 Bedienungsanleitung

Gigabyte

Gigabyte GA-9ILDR Bedienungsanleitung

Gigabyte

Gigabyte GA-M52LT-D3P Bedienungsanleitung

Gigabyte

Gigabyte G481-H80 Bedienungsanleitung

Gigabyte

Gigabyte G-MAX Micro ATX Series Bedienungsanleitung

Gigabyte

Gigabyte GA-8I845G Bedienungsanleitung

Gigabyte

Gigabyte GA-8IPXDR-E Series Bedienungsanleitung

Gigabyte

Gigabyte GA-7N400V Bedienungsanleitung

Gigabyte

Gigabyte H310M A 2.0 Bedienungsanleitung

Gigabyte

Gigabyte GA-M68SM-S2L Bedienungsanleitung

Gigabyte

Gigabyte Z490 AORUS PRO AX Bedienungsanleitung

Gigabyte

Gigabyte GA-K8NS-939 Bedienungsanleitung

Gigabyte

Gigabyte GA-78LMT-USB3 Bedienungsanleitung

Gigabyte

Gigabyte B660M AORUS PRO AX Bedienungsanleitung

Gigabyte

Gigabyte GA-8S661GXMP Bedienungsanleitung

Gigabyte

Gigabyte GA-8SLML Bedienungsanleitung

Gigabyte

Gigabyte GA-6VXC7-4X Bedienungsanleitung

Gigabyte

Gigabyte B760 GAMING X AX Bedienungsanleitung

Gigabyte

Gigabyte GA-P85-Gaming 3 Bedienungsanleitung

Gigabyte

Gigabyte B450 AORUS ELITE V2 Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A88XM-DS2P Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
