GA-Z87-HD3

GA-H87-HD3

User's Manual

Rev. 1002

12ME-Z87HD3-1002R

Motherboard

GA-Z87-HD3/GA-H87-HD3

Apr. 19, 2013

Motherboard

GA-Z87-HD3/GA-H87-HD3

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in

any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of docu-

mentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-Z87-HD3/GA-H87-HD3 Motherboard Layout ...........................................................7

GA-Z87-HD3/GA-H87-HD3 Motherboard Block Diagram...............................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions ................................................................................... 9

1-2 ProductSpecications................................................................................... 10

1-3 Installing the CPU and CPU Cooler............................................................... 13

1-3-1 Installing the CPU ..................................................................................................13

1-3-2 Installing the CPU Cooler ......................................................................................15

1-4 Installing the Memory .................................................................................... 16

1-4-1 DualChannelMemoryConguration....................................................................16

1-4-2 Installing a Memory................................................................................................17

1-5 Installing an Expansion Card......................................................................... 18

1-6 Back Panel Connectors ................................................................................. 19

1-7 Internal Connectors ....................................................................................... 21

Chapter 2 BIOS Setup..................................................................................................31

2-1 Startup Screen............................................................................................... 32

2-2 The Main Menu.............................................................................................. 33

2-3 M.I.T. .............................................................................................................. 35

2-4 System ........................................................................................................... 45

2-5 BIOS Features ............................................................................................... 46

2-6 Peripherals..................................................................................................... 50

2-7 Power Management....................................................................................... 54

2-8 Save & Exit .................................................................................................... 56

- 5 -

Chapter3 ConguringSATAHardDrive(s) ..................................................................57

3-1 ConguringSATAControllers........................................................................ 57

3-2 Installing the SATA RAID/AHCI Driver and Operating System ..................... 69

Chapter 4 Drivers Installation .......................................................................................73

4-1 Chipset Drivers .............................................................................................. 73

4-2 Application Software...................................................................................... 74

4-3 Information..................................................................................................... 74

Chapter 5 Unique Features...........................................................................................75

5-1 BIOS Update Utilities..................................................................................... 75

5-1-1 Updating the BIOS with the Q-Flash Utility...........................................................75

5-1-2 Updating the BIOS with the @BIOS Utility............................................................78

5-2 APP Center.................................................................................................... 79

5-2-1 EasyTune............................................................................................................... 80

5-2-2 EZ Setup ................................................................................................................81

5-2-3 USB Blocker.......................................................................................................... 86

Chapter 6 Appendix......................................................................................................87

6-1 ConguringAudioInputandOutput.............................................................. 87

6-1-1 Conguring2/4/5.1/7.1-ChannelAudio..................................................................87

6-1-2 ConguringS/PDIFOut........................................................................................ 89

6-1-3 ConguringMicrophoneRecording...................................................................... 89

6-1-4 Using the Sound Recorder ....................................................................................92

6-2 Troubleshooting ............................................................................................. 93

6-2-1 Frequently Asked Questions .................................................................................93

6-2-2 Troubleshooting Procedure .................................................................................. 94

Regulatory Statements............................................................................................. 96

Contact Us ................................................................................................................ 99

- 6 -

Optional Items

2-portUSB2.0bracket(PartNo.12CR1-1UB030-6*R)

eSATAbracket(PartNo.12CF1-3SATPW-4*R)

3.5"FrontPanelwith2USB3.0/2.0ports(PartNo.12CR1-FPX582-2*R)

S/PDIFIncable(PartNo.12CR1-1SPDIN-1*R)

HDMI-to-DVIadapter(PartNo.12CT2-HDMI01-1*R)

LPTportcable(PartNo.12CF1-1LP001-0*R)

COMportcable(PartNo.12CF1-1CM001-3*R)

The box contents above are for reference only and the actual items shall depend on the product package you

obtain. The box contents are subject to change without notice.

Box Contents

5GA-Z87-HD3 or GA-H87-HD3 motherboard

5Motherboard driver disk

5User's Manual

5Quick Installation Guide

5Four SATA cables

5I/O Shield

- 7 -

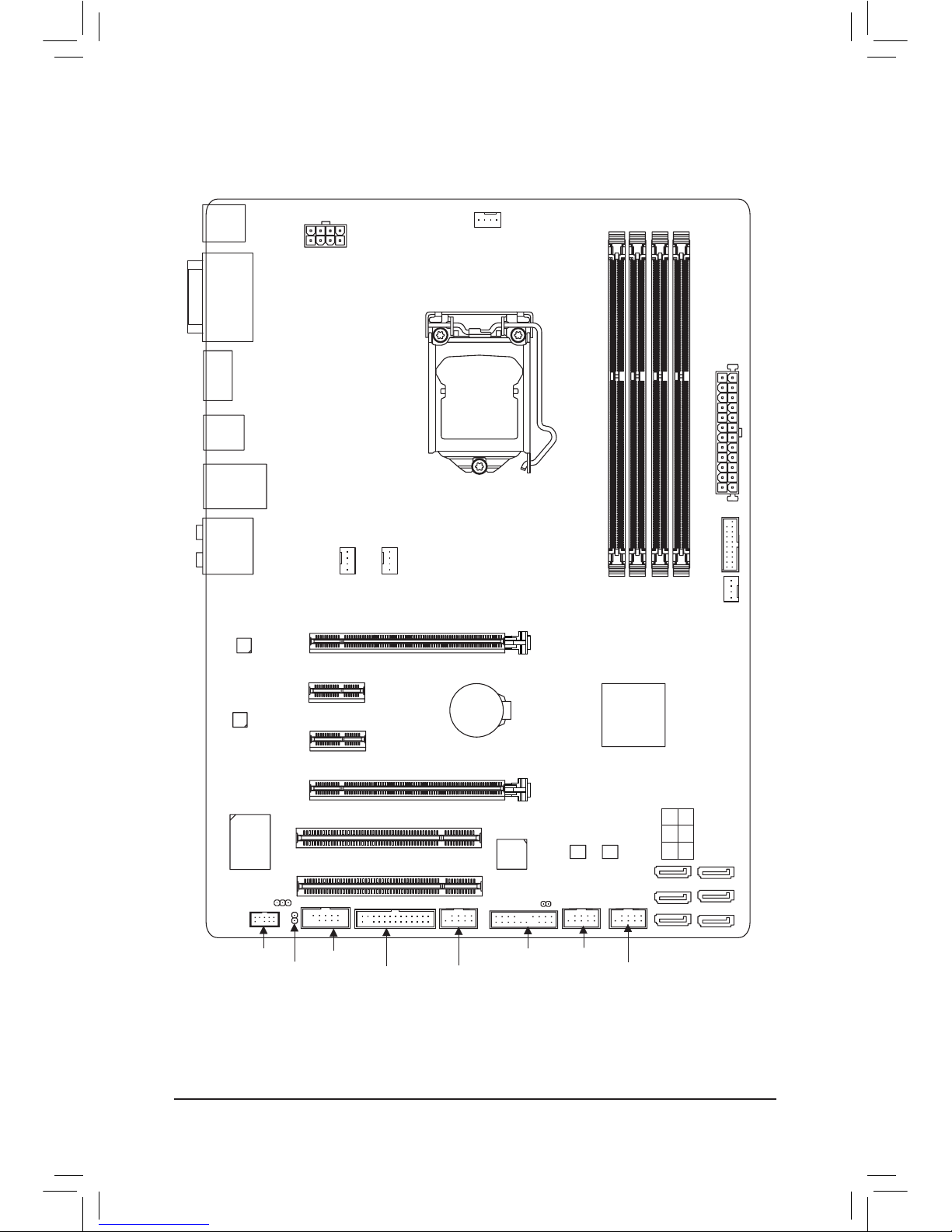

GA-Z87-HD3/GA-H87-HD3 Motherboard Layout

KB_MS_USB

CPU_FAN

ATX_12V_2X4

ATX

F_AUDIO

AUDIO

B_BIOS

PCIEX4

DDR3_2

DDR3_1

DDR3_4

DDR3_3

BAT

F_PANEL

COMA

Intel®Z87j/

Intel®H87k

PCI2

CLR_CMOS

CODEC

M_BIOS

PCIEX1_1

PCIEX16

SPDIF_O F_USB1

LGA1150

GA-Z87-HD3/GA-H87-HD3

DVI

VGA

HDMI

R_USB30

USB30_LAN

Realtek®

GbELAN

PCI1

F_USB30

PCIEX1_2

SYS_FAN3

SATA3

iTE®

Super I/O

SYS_FAN2

F_USB2

LPT

1 0

3 2

5 4

jOnly for GA-Z87-HD3.

kOnly for GA-H87-HD3.

SYS_FAN1

PCIe to

PCI Bridge

F_USB3

SPDIF_IN

- 8 -

GA-Z87-HD3/GA-H87-HD3 Motherboard Block Diagram

PS/2 KB/Mouse

LGA1150

CPU

DMI 2.0 FDI

CPUCLK+/-(100MHz)

Dual BIOS

DDR31600/1333MHz

Dual Channel Memory

COM

LPC Bus

Intel®Z87j/

Intel®H87k

iTE®

Super

I/O

PCIe CLK

(100MHz)

PCI Express Bus

1 PCI Express x16

LAN

RJ45

Realtek®

GbELAN

2 PCI

PCI Bus

PCI CLK

(33MHz)

PCIe to PCI

Bridge

PCI Express Bus

x16

D-Sub

6 SATA 6Gb/s

jOnly for GA-Z87-HD3.

kOnly for GA-H87-HD3.

DVI-D

HDMI

8 USB 2.0/1.1

6 USB 3.0/2.0

Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."

Center/Subwoofer Speaker Out

Line Out

MIC

Line In

S/PDIF Out

S/PDIF In

Side Speaker Out

Rear Speaker Out

CODEC

2 PCI Express x1

1 PCI Express x4

Switch

- 9 -

Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priorto installation, donot removeorbreak motherboard S/N(Serial Number)stickeror

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•Whenconnectinghardwarecomponentstotheinternalconnectorsonthemotherboard,make

sure they are connected tightly and securely.

•Whenhandlingthemotherboard,avoidtouchinganymetalleadsorconnectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

Chapter 1 Hardware Installation

- 10 -

Hardware Installation

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1150 package

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

L3 cache varies with CPU

Chipset Intel®Z87j/Intel®H87kExpress Chipset

Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

  * DuetoaWindows32-bitoperatingsystemlimitation,whenmorethan4GBofphysical

memoryisinstalled,theactualmemorysizedisplayedwillbelessthanthesizeof

the physical memory installed.

Dual channel memory architecture

SupportforDDR31600/1333MHzmemorymodules

Support for non-ECC memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

 (GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

 * TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160

* SupportforHDMI1.4aversion.

- Maximum shared memory of 1 GB

Audio Realtek®ALC892 codec

HighDenitionAudio

2/4/5.1/7.1-channel

Support for S/PDIF In

Support for S/PDIF Out

LAN Realtek®GbELANchip(10/100/1000Mbit)

Expansion Slots 1xPCIExpressx16slot,runningatx16(PCIEX16)

 (ThePCIEX16slotconformstoPCIExpress3.0standard.)

  * Foroptimumperformance,ifonlyonePCIExpressgraphicscardistobeinstalled,

besuretoinstallitinthePCIEX16slot.

1xPCIExpressx16slot,runningatx4(PCIEX4)

* ThePCIEX4slotsharesbandwidthwithallPCIExpressx1slots.AllPCIExpressx1

slots will become unavailable when a PCIe x4 expansion card is installed.

* Wheninstallingax8orabovecardinthePCIEX4slot,makesuretosetPCIESlot

CongurationinBIOSSetuptox4.

2 x PCI Express x1 slots

 (ThePCIEX4andPCIExpressx1slotsconformtoPCIExpress2.0standard.)

2 x PCI slots

Multi-Graphics

Technology

Support for AMD CrossFire™technology

 * ThePCIEX16slotoperatesatuptox4modewhenAMDCrossFire™is enabled.

jOnly for GA-Z87-HD3.

kOnly for GA-H87-HD3.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte G1.Guerrilla Bedienungsanleitung

Gigabyte

Gigabyte GA-H170M-D3H-GSM Bedienungsanleitung

Gigabyte

Gigabyte GA-8I915G-MFD Bedienungsanleitung

Gigabyte

Gigabyte GA-8IEXRR Bedienungsanleitung

Gigabyte

Gigabyte GA-8IRX Bedienungsanleitung

Gigabyte

Gigabyte 6EMM Bedienungsanleitung

Gigabyte

Gigabyte GA-MA74GM-S2H Bedienungsanleitung

Gigabyte

Gigabyte GA-945GCM-S2L Bedienungsanleitung

Gigabyte

Gigabyte GA-EX38T-DQ6 Bedienungsanleitung

Gigabyte

Gigabyte GA-MA790X-DS4 Bedienungsanleitung

Gigabyte

Gigabyte GA-M61VME-S2 Bedienungsanleitung

Gigabyte

Gigabyte GA-PICO3455 Bedienungsanleitung

Gigabyte

Gigabyte 6VM7-4E Series Bedienungsanleitung

Gigabyte

Gigabyte GA-8PE667 Pro Bedienungsanleitung

Gigabyte

Gigabyte GA-P35-DS3P Bedienungsanleitung

Gigabyte

Gigabyte GA-8I865GMFK-775 Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A58-DS3 Bedienungsanleitung

Gigabyte

Gigabyte B460M AORUS PRO Bedienungsanleitung

Gigabyte

Gigabyte MP30-AR0 Bedienungsanleitung

Gigabyte

Gigabyte GA-965P-DS3P Bedienungsanleitung

Gigabyte

Gigabyte GA-6BXU Bedienungsanleitung

Gigabyte

Gigabyte GA-G33-DS3R Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A88X-D3HP Bedienungsanleitung

Gigabyte

Gigabyte GA-Z170-Gaming K3-EU Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
