Gigabyte GA-VM800PMC Bedienungsanleitung

GA-VM800PMC

Intel®CoreTM 2 Duo / Intel®Pentium®D / Pentium®4 / Celeron®D

LGA775 Processor Motherboard

User's Manual

Rev. 1003

12ME-VM800PMC-1003R

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

Motherboard

GA-VM800PMC

Motherboard

GA-VM800PMC

Dec. 5, 2006

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

For detailed product information and specifications, please carefully read the

"Product User Manual".

For detailed information related to Gigabyte's unique features, please go to "Technology

Guide" section on Gigabyte's website to read or download the information you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

ItemChecklist ................................................................................................................. 6

OptionalAccessories ...................................................................................................... 6

GA-VM800PMC Motherboard Layout ............................................................................ 7

Block Diagram ................................................................................................................ 8

Chapter 1 Hardware Installation ..................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and CPU Cooler ....................................................... 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the CPU Cooler ............................................................................ 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 15

1-6 I/O Back Panel Introduction ........................................................................... 16

1-7 Connectors Introduction .................................................................................. 17

Chapter 2 BIOS Setup................................................................................................ 27

The Main Menu (For example: BIOS Ver. : D5) ....................................................... 28

2-1 Standard CMOS Features ............................................................................. 30

2-2 Advanced BIOS Features .............................................................................. 32

2-3 IntegratedPeripherals ..................................................................................... 34

2-4 Power Management Setup ............................................................................. 36

2-5 PnP/PCI Configurations ................................................................................. 38

2-6 PC Health Status ........................................................................................... 39

2-7 Load Fail-Safe Defaults ................................................................................... 41

2-8 Load Optimized Defaults ................................................................................. 41

2-9 Set Supervisor/User Password ..................................................................... 42

2-10 Save & Exit Setup ......................................................................................... 43

2-11 Exit Without Saving ....................................................................................... 43

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 45

3-1 Install Chipset Drivers .................................................................................... 45

3-2 SoftwareApplication ....................................................................................... 46

3-3 Software Information ....................................................................................... 46

3-4 Hardware Information ..................................................................................... 47

3-5 Contact Us ..................................................................................................... 47

Chapter 4 Appendix ................................................................................................... 49

4-1 Unique Software Utilities ................................................................................ 49

4-1-1 EasyTune 5 Introduction ..................................................................................... 49

4-1-2 Xpress Recovery2 Introduction ......................................................................... 50

4-1-3 Flash BIOS Method Introduction ........................................................................ 52

4-1-4 Configuring SATA Hard Drive(s) ........................................................................ 61

4-1-5 2 / 4 / 6 Channel Audio Function Introduction ................................................. 73

4-2 Troubleshooting ............................................................................................... 78

- 6 -

Item Checklist

IDE Cable x 1, FDD Cable x 1

SATA Cable x 1

I/O Shield

* The items listed above are for reference only, and are subject to change without notice.

Optional Accessories

2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/R)

4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/R)

6-Channel Audio Combo Kit (Part Number: 12CR1-1SPAUD-12)

S/PDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/R)

COM Port Cable (Part Number: 12CF1-1CM001-31/12CF1-1CM001-12R)

- 7 -

KB_MS

COMA

LPT

LGA775

CPU_FAN

ATX

FDD

VGA

COMB

ATX_12V

PWR_LED

PCI3

F_USB1

BIOS

F_PANEL

VIA

VT8237R+

F_USB2

BATTERY

PCI2

CODEC

SUR_CEN

CLR_CMOS

CD_IN

SATA1

SATA0

SYS _FAN

PCI1

Winbond

W83627

GA-VM800PMC

F_AUDIO

USB

IDE2

IDE1

AGP

DDRII1

VIA

P4M800 Pro

LAN

AUDIO

USB

DDRII2

VIA

VT6103L

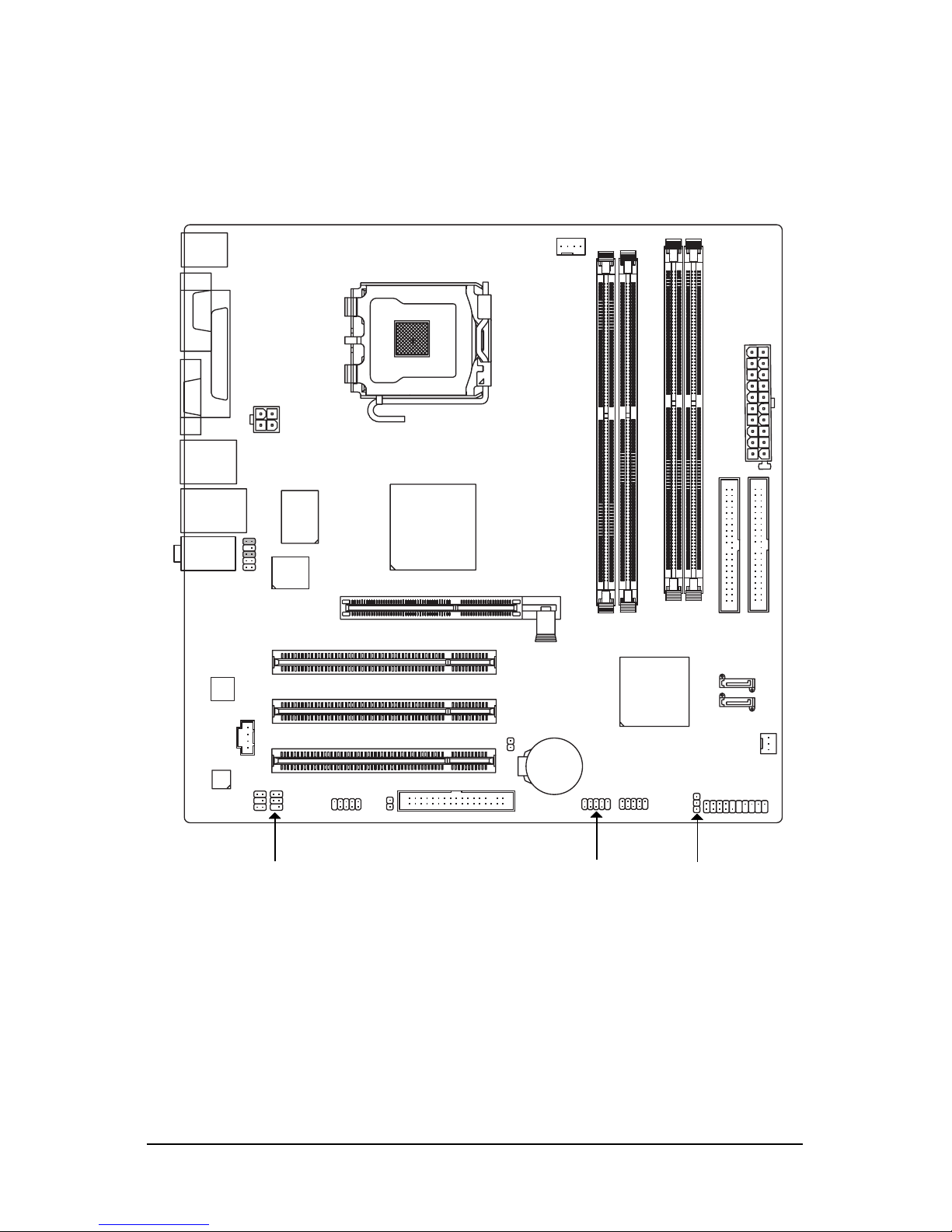

GA-VM800PMC Motherboard Layout

SPDIF_IO

DDR1

DDR2

- 8 -

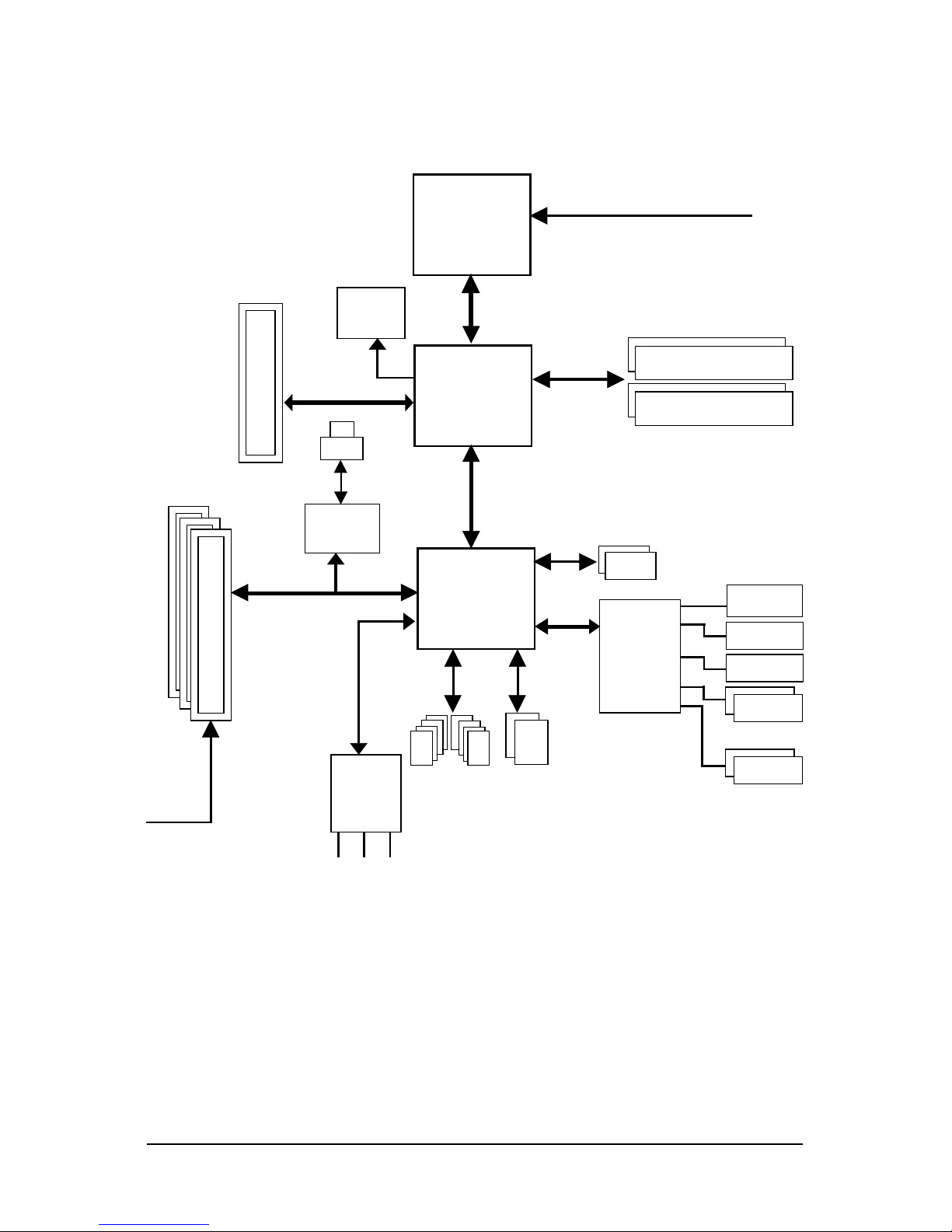

Block Diagram

VIA

P4M800 Pro

VIA

VT8237R+

CPUCLK+/- (200/133 MHz)

System Bus

800/533 MHz

LPC BUS

AGP 4X/8X

3 PCI

PCI CLK

(33 MHz)

AC97 Link

8 USB

Ports

ATA 33/66/

100/133

IDE Channels

VIA 6103L

Floppy

LPT Port

PS/2 KB/Mouse

COMA/COMB

MIC

LINE-IN

LGA 775

Processor

6 Channel

CODEC

DDRII

VGA Port

LINE-OUT

2 Serial ATA

RJ45

Winbond

W83627

DDR

BIOS

400/333 MHz

533/400 MHz

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the

instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or

within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are

required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the

motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product,

please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1 Hardware Installation

GA-VM800PMC Motherboard - 10 -

English

CPU Supports LGA775 Intel®CoreTM 2 Duo(Note 1) / Pentium®D / Pentium®4 /

Celeron®D

L2 cache varies with CPU

Front Side Bus Supports 800/533 MHz FSB

Chipset Northbridge: VIA P4M800 Pro Chipset

Southbridge: VIA VT8237R+

LAN Onboard VIA 6103L chip (10/100 Mbit)

Audio Onboard VIA 1618 chip

Supports 2 / 4 / 6 channel audio

Supports S/PDIF In/Out connection

Supports CD In connection

Storage VT8237R+ Southbridge

- 1 FDD connector, allowing connection of 1 FDD device

- 2 IDE connectors with UDMA 33/ATA 66/ATA 100/ATA 133 support,

allowing connection of 4 IDE devices

- 2 SATA connectors, allowing connection of 2 SATA devices

- Supports data striping (RAID 0), mirroring (RAID 1) for Serial ATA

O.S Support Microsoft Windows 2000/XP

Memory DDRII

- 2 DDRII DIMM memory slots (supports up to 2GB memory)

- Supports DDRII 533/400 unbuffered DIMMs

- Supports 1.8V DDRII DIMMs

DDR

- 2 DDR DIMM memory slots (supports up to 2GB memory)

-Supports DDR 400/333 unbuffered DIMMs

- Supports 2.5V DDR DIMMs

(Note: Mixed mode, populating DDR and DDRII memory modules

simultaneously is not supported. To avoid memory incompatibility, do use

the memory modules on the memory support list at GIGABYTE's website.)

Expanstion Slots 1 AGP slot

3 PCI slots

Internal Connectors 1 20-pin ATX power connector

1 4-pin ATX 12V power connector

1 floppy connector

2 IDE connectors

2 SATA connectors

1 CPU fan connector

1 system fan connector

1 front panel connector

1 front audio connector

1 CD In connector

1 S/PDIF In/Out connector

1 SUR_CEN connector

1 COMB connector

1-2 Feature Summary
