Gigabyte MNNM1PI Bedienungsanleitung

USER’S MANUAL

MNNM1PI

Intel®mini-ITX Motherboard

Intel® mini-ITXMotherboard

Rev.1001

* The WEEE marking on the product indicates this product must not be disposed of with

user's other household waste and must be handed over to a designated collection point

for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

Thetrademarksmentionedinthemanualarelegallyregisteredtotheirrespectivecompanies.

Notice

ThewrittencontentprovidedwiththisproductisthepropertyofGigabyte.

Nopart of thismanual may bereproduced, copied, translated,or transmitted inany form orby any

meanswithoutGigabyte'spriorwrittenpermission.Specificationsandfeaturesaresubjecttochange

withoutpriornotice.

Product Manual Classification

Inordertoassistintheuseofthisproduct,Gigabytehascategorizedtheusermanualinthe

following:

Fordetailedproductinformationandspecifications,pleasecarefullyreadthe

"Product User Manual".

FordetailedinformationrelatedtoGigabyte'suniquefeatures,pleasegoto"Technology

Guide"sectiononGigabyte'swebsitetoreadordownloadtheinformationyouneed.

Formoreproductdetails,please click onto Gigabyte'swebsiteatwww.gigabyte.com.tw

MNNM1PI Motherboard Table of Content

Item Checklist ........................................................................................4

Chapter 1 Introduction............................................................................5

1-1Considerations Prior to Installation........................................................ 5

1.2 Features Summary................................................................................ 6

1.3 Motherboard Components.................................................................... 8

Chapter 2 Hardware Installation Process...............................................9

2-1: Installing Memory Module....................................................................9

2-2: Connect ribbon cables, cabinet wires, and power supply ................10

2-2-1 : I/O Back Panel Introduction................................................................................ 10

2-3: Connectors Introduction & Jumper Setting........................................13

Chapter 3 BIOS Setup .........................................................................22

Main...........................................................................................................24

Advanced ...................................................................................................25

CPU Configuration........................................................................................................... 26

IDE Configuration ............................................................................................................. 27

Super IO Configuration .................................................................................................... 30

Hardware Health Configuration....................................................................................... 33

ACPI Configuration .......................................................................................................... 36

USB Configuration .......................................................................................................... 38

PCI/PnP......................................................................................................40

Boot............................................................................................................41

Security ......................................................................................................43

Chipset.......................................................................................................45

North Bridge Configuration.............................................................................................. 46

South Bridge Configuration ............................................................................................. 47

Onboard Peripheral Configuration .................................................................................. 48

Exit .............................................................................................................49

Introduction

TheMNNM1PImotherboard

I/O Shield Kit

CDformotherboarddriver&utility

Power cable x 1

B4P/S4P Cable x 1

OptionalPowerAdapterx 1

Item Checklist

*Theitemslistedaboveareforreferenceonly,andaresubjecttochangewithoutnotice.

MNNM1PI Motherboard

Chapter 1 Introduction

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the

instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or

within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are

required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the

motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product,

please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Introduction

1.2 Features Summary

FormFactor 170mmx 170mm MiniITX formfactor, 8 layers PCB.

CPU SupportssingleIntel®D410processor

Supports DMI x4

Chipset Intel®NM10

Memory 2 x DDR2 DIMM socket

Supportsupto4GB 800 memory

Supports 1.8V DDR2 DIMMs

I/O Control ITEIT8721F Super I/O

ExpansionSlots Supports 1 PCI slot 32-Bit/33MHz

Supports 1 mini card slot (PCI-E x1/ USB 2.0)

SATAController Intel®NM10

On-BoardGraphic BuildinIntel® GMA 3150

Sharedsystem memoryup to384MB

On-BoardSound Relteak®ALC662chipset

SupportsHD6channel

InternalConnector 1x 24-pinATXpowerconnector

1x 4-pinATXpower connector

2x SATA connectors

3 x Serial connectors (COM)

1xfrontaudioconnector

2x USB 2.0connectors for additional4ports by cable

1xfrontpanelconnecctor

1xDIO panel connecctor

1x System fancableconnector

1 x CPU fan cable connector

RearPanel I/O P/S2KeyboardandMouse connectors

1xParallelport

1 x VGA port

1 x COM port

4 x USB 2.0 ports

1 x LAN RJ45 port1

1 HDAudiojacks(Line-out/MIC-in / Line-in) canconfigure6

channeloutputbyutility

HardwareMonitor Enhanced features with CPU Vcore, +12V, VCC3 (3.3V) ,

CPUTemperature,andSystemTemperaturevaluesviewing

CPU/SystemFan RevolutionDetect

MNNM1PI Motherboard

CPUshutdown whenoverheat

On-BoardLAN Realtek8111DLGbELANcontroller

Supports WOL, PXE

BIOS AMI BIOS on 8Mb SPI Flash ROM

AdditionalFeatures ExternalModem wake up

SupportsS1,S3, S4, S5underWindows Operating System

Wakeon LAN(WOL)

Supports4-pinFancontroller

Introduction

1.3 Motherboard Components

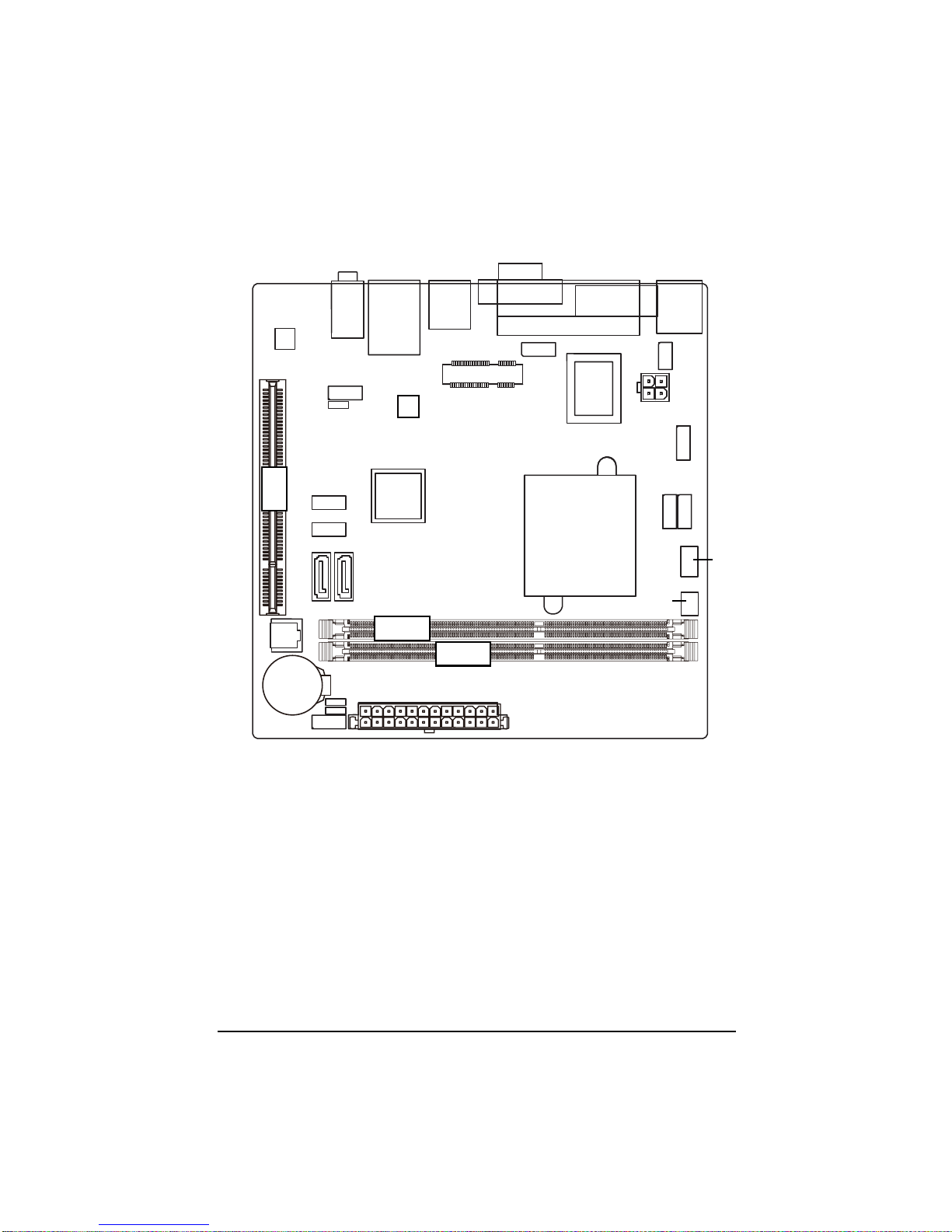

CPU

Intel

NM10

AUDIO

USB_LAN

R_USB

VGA

COMA

LPT

DIO

ATX_12V

ITE

IT8721F

COMC

COMD

F_AUDIO

SYS_FAN

JP5

CPU_FAN

DDRII1

DDRII2

MIN_CARD

F_USB1

F_USB2

BIOS

PCI

BATTERY

F_PANEL ATX

ALC662

8111DL

COMB

Hardware Installation Process

2-1: Installing Memory Module

ThemotherboardsupportsDDR2memorymodule,wherebyBIOSwillautomaticallydetectmemory

capacityandspecifications.Thememorymoduleonlycanbeinsertedinonedirection.

Installation Steps:

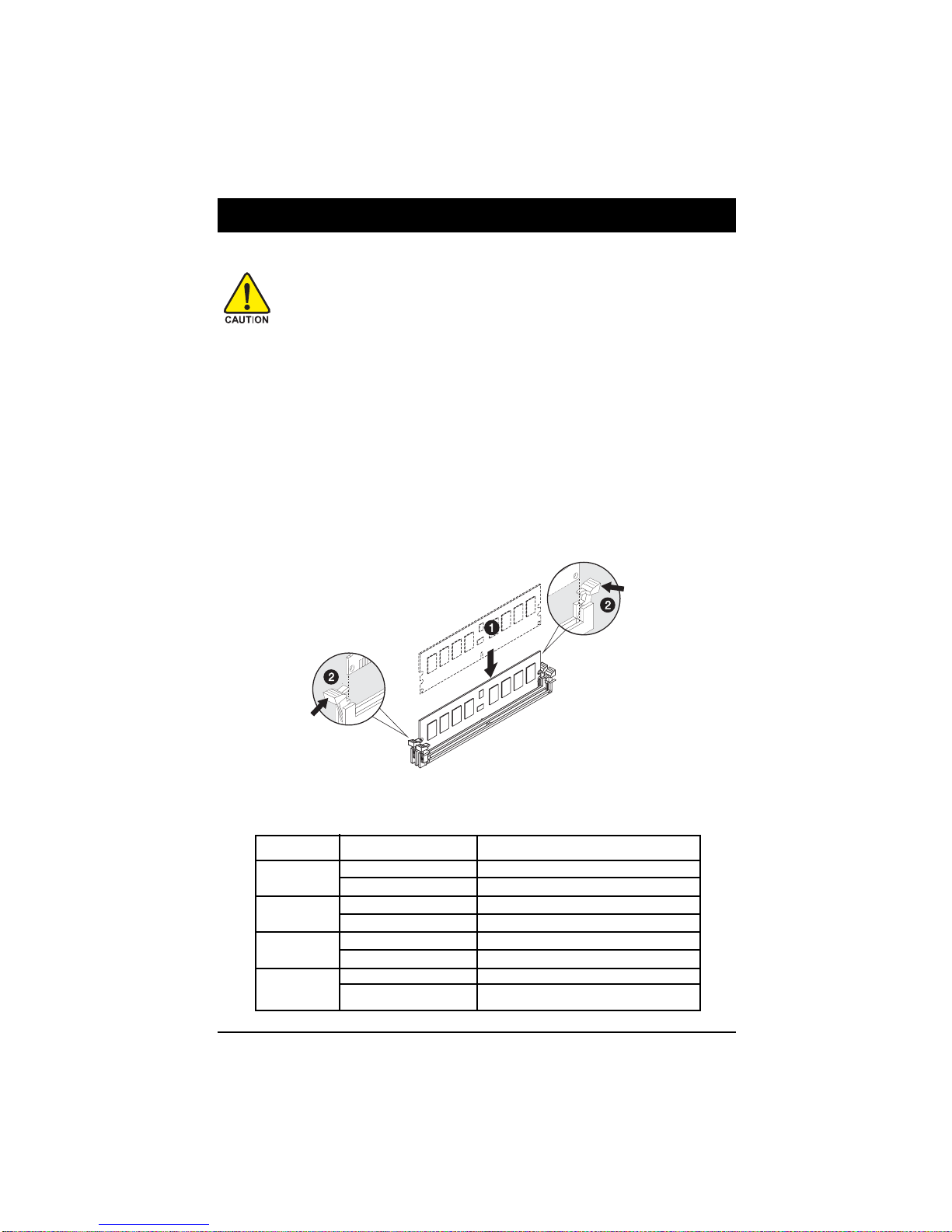

1. InserttheDIMM memory moduleverticallyinto the DIMMslot, and pushitdown.

2. ClosetheplasticclipatbothedgesoftheDIMMslotstolockthe DIMM module.

Table 1. Supported DIMM Module Type

Size Organization RAM Chips/DIMM

256MB 8MB x 8 x 4 bks 8

16MB x 16 x 4bks 16

512MB 16MB x 8 x 4bks 8

32MB x 16 x 4bks 16

1GB 32MB x 8 x 4bks 8

64MB x 16 x 4bks 16

2GB 32MB x 8 x 4bks 8

64MB x 16 x 4bks 16

Chapter 2 Hardware Installation Process

Beforeinstallingthememorymodules,pleasecomplywiththefollowingconditions:

1. Pleasemakesurethatthememoryis supported by the motherboard. Itis

recommendedtousethememorywithsimilarcapacity,specificationsandbrand.

2. Beforeinstallingorremovingmemorymodules,pleasemakesurethatthecomputer

powerisswitched offtopreventhardwaredamage.

3. Memorymoduleshaveafoolproofinsertiondesign. Amemorymodulecanbeinstalled

inonlyonedirection. Ifyouareunabletoinsertthemodule,pleaseswitchthedirection.

MNNM1PI Motherboard

2-2: Connect ribbon cables, cabinet wires, and power

supply

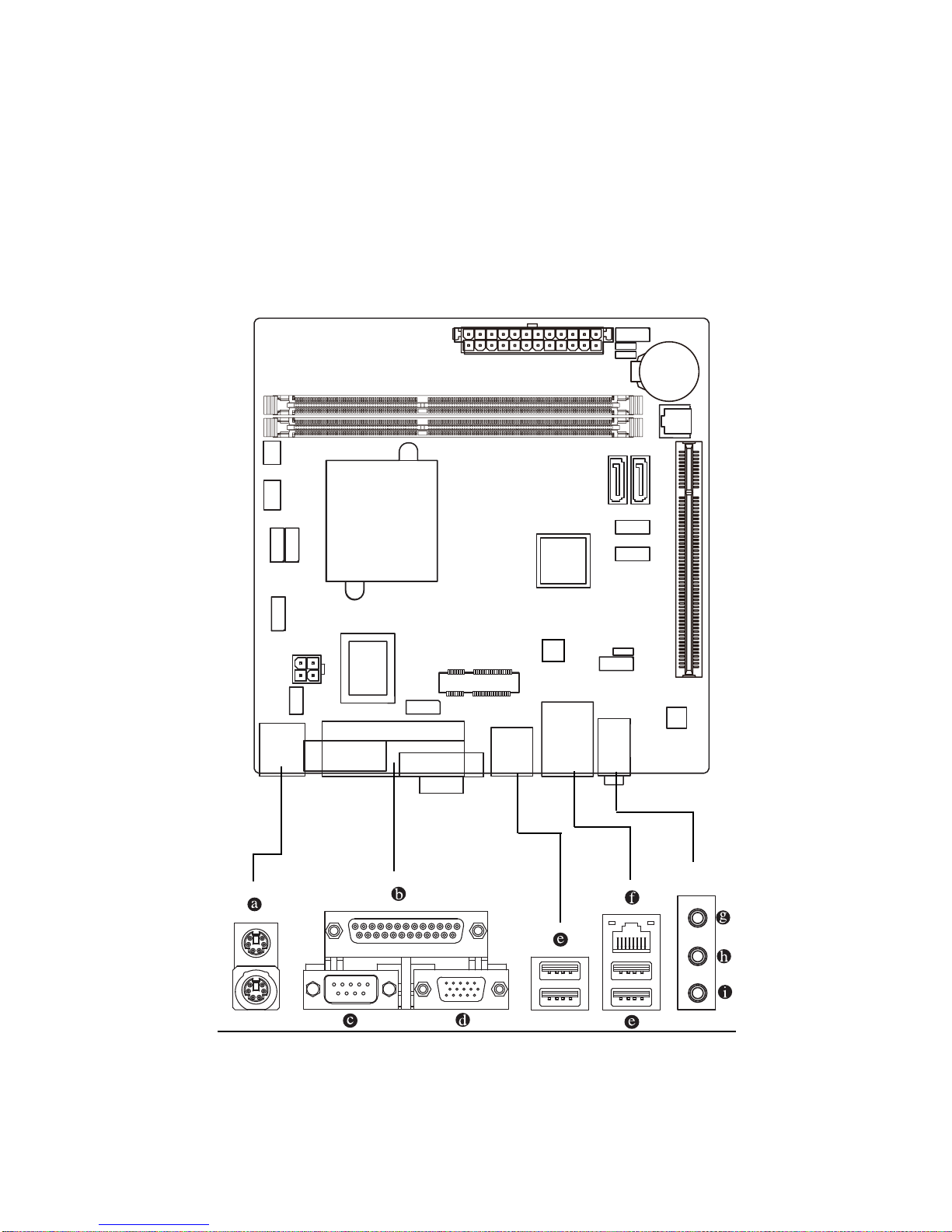

2-2-1 : I/O Back Panel Introduction
