Gigabyte MSQ77DI Bedienungsanleitung
MSQ77DI
LGA1155 socket motherboard for Intel®Core™i3 / Core™i5
Core™i7 processors/ Intel®Pentium®series processors
User's Manual
Rev. 1001
Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
- 3 -
Table of Contents
Box Contents...................................................................................................................4
MSQ77DI Motherboard Layout........................................................................................5
Chapter 1 Hardware Installation .....................................................................................7
1-1 Installation Precautions.................................................................................... 7
1-2 ProductSpecications...................................................................................... 8
1-3 Installing the CPU and CPU Cooler ............................................................... 10
1-3-1 Installing the CPU...................................................................................................10
1-3-2 Installing the CPU Cooler .......................................................................................12
1-4 Installing the Memory..................................................................................... 13
1-4-1 DualChannelMemoryConguration .....................................................................13
1-4-2 Installing a Memory ...............................................................................................14
1-5 Back Panel Connectors.................................................................................. 15
1-6 Internal Connectors........................................................................................ 17
Chapter 2 BIOS Setup ..................................................................................................29
2-1 The Main Menu .............................................................................................. 31
2-2 Advanced Menu ............................................................................................. 33
2-2-1 ACPI Settings .........................................................................................................34
2-2-2 Trusted Computing .................................................................................................35
2-2-3 CPUConguration..................................................................................................36
2-2-4 SATAConguration.................................................................................................38
2-2-5 IntelTXT(LT)Conguration ....................................................................................40
2-2-6 AMTConguration..................................................................................................41
2-2-7 H/W Monitor............................................................................................................42
2-2-8 CPUPPMConguration.........................................................................................43
2-3 Chipset Menu................................................................................................. 44
2-4 Boot Menu...................................................................................................... 45
2-5 Security Menu ................................................................................................ 46
2-6 Exit Menu ....................................................................................................... 47
- 4 -
Box Contents
MSQ77DI motherboard
Driver CD
Two SATA cables
I/O Shield
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 5 -

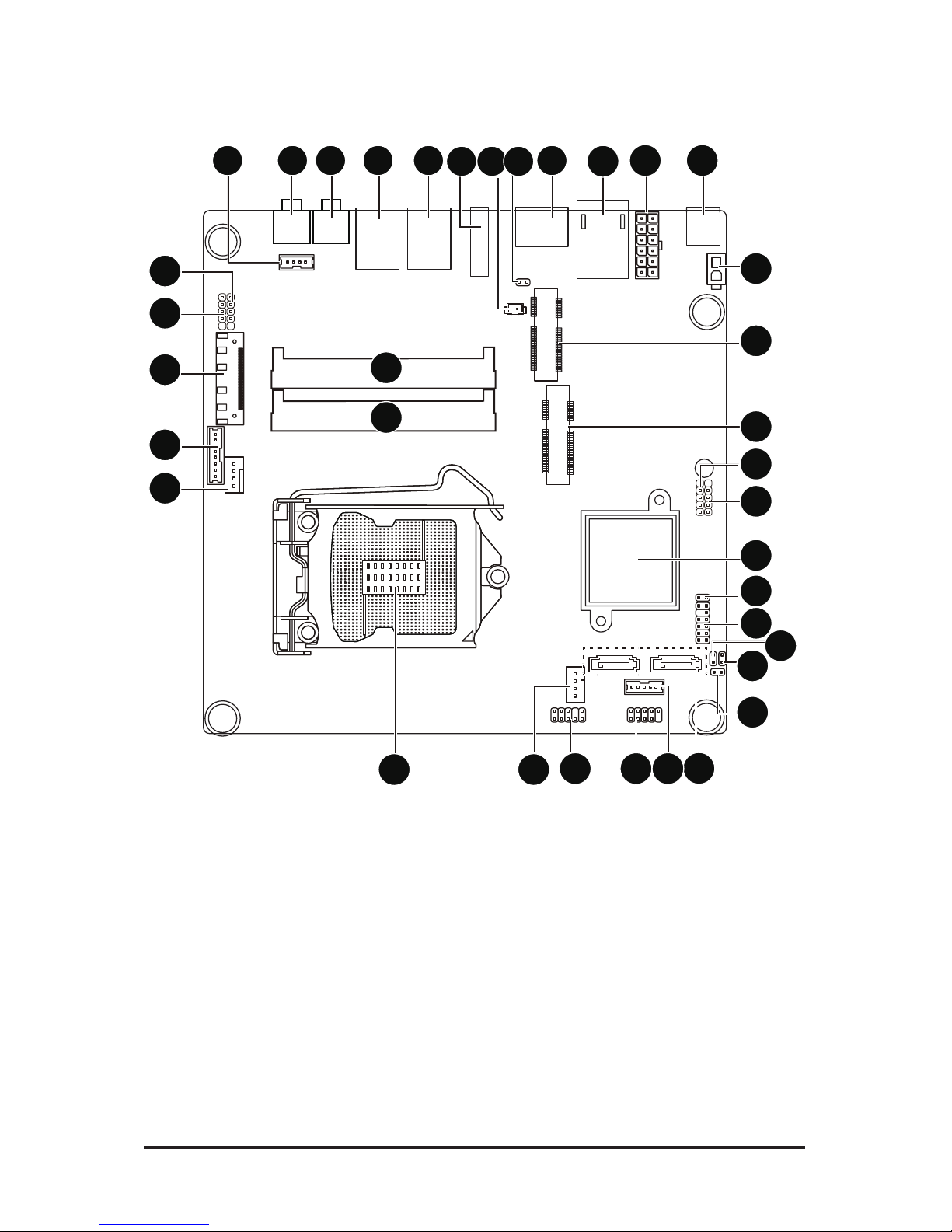

MSQ77DI Motherboard Layout
3421 5710 11 12
8
14
13
15
16
17
18
19
20
24
252627
2829
32
34
35
36
33
31
30
9
6
22
23
21
- 6 -
Item Code Description
1 SPEK Speaker cable connector
2 LINE_IN Audio Line In port
3 SPDIF Optical S/PDIF Out connector
4 R_USB2 USB 3.0 ports
5 R_USB1 USB 3.0 ports
6 HDMI1 HDMI port
7BAT Battery cable connector
8 DP DisplayPort connector
9 CLR_CMOSHW Clear CMOS jumper
10 LAN RJ45 LAN port
11 PWRCON 12-pin power connector
12 DC_IN DC In power connector
13 AD_IN 2 pin power connector
14 MIN_PCIE1 Mini PCi Express connector
15 M_SATA MSATA connector
16 TP_USB Touch panel USB header
17 TV_USB TV tuner USB header
18 U52 Intel BD82Q77 Chipset
19 BL_SW Back Light switch
20 F_PANEL Front panel header
21 LAN LED LAN LED header
22 WF_LED Wireless LAN LED header
23 ME_LVDS_JP LVDS Enabled Jumper
24 SATA0/SATA1 SATA cable connectors
25 HDD_PWR Hard disk power connector
26 F_USB1 USB connector
27 F_AUDIO Audio cable connector
28 CPU_FAN CPU fan connector
29 CPU Intel LGA1155 socket
30 SYS_FAN System fan connector
31 FPD Flat Panel Display connector
32 LVDS LVDS connector
33 DMIC_CON Digital Mic connector
34 WEB_CON WEBCAM connector
35 SODIMMB1 DDR3 SO-DIMM slot (channel B-1 )
36 SODIMMA1 DDR3 SO-DIMM slot (channel A-1 )
- 7 -
Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation
Hardware Installation
- 8 -
1-2 ProductSpecications
CPU Support for Intel®Core™i7, Core™i5, Core™i3 processors/Intel®Pentium®
processors in the LGA1155 package
Support Up to 95W
L3 cache varies with CPU
Chipset Intel®BD82Q77 Platform Controller Hub
Memory 2 x 1.5V DDR3 SO-DIMM slot
Max. to 8GB (4GB x 2)
Dual channel architecture
Support for DDR3 1333/1600 MHz
Display 1 x HDMI 1.3 out
1 x LVDS slot
Audio Realtek ALC887 codec
High Denition Audio
2 Channel / SPDIF out
LAN 1 x Intel 82579LM supports 10/100/1000 Mbps
Supports AMT 8.0
Expansion Slots 1 x Mini PCI Express slot (Half size)
1 x Mini PCI Express slot (Full size/MSATA function/optional)
Onboard
Graphics
Build in Intel®processor
Storage Interface 2 x SATA 6Gb/s connectors
USB 4 x USB 3.0 ports (back panel)
5 x USB 2.0/1.1 headers (Card reader/Touch panel/webcam and other devices)
Internal
Connectors
1 x 12-pin power connector
1 x 2-pin power connector
2 x SATA 6Gb/s connectors
1 x HDD power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Audio header
3 x USB 2.0 headers
1 x Speaker header
1 x LVDS connector
1 x FPD connector
1 x Web CAM header
1 x DMIC header
- 9 -
Hardware Installation
Back Panel
Connectors
1 x DC-IN
1 x RJ-45 port
1 x HDMI port
1 x DisplayPort connector
4 x USB 3.0 ports
1 x SPDIF Out port (Optical)
1 x Audio Line In
I/O Controller iTE IT8773 chip
Hardware
Monitor
CPU/System temperature detection
CPU fan speed detection
BIOS 1 x 64 Mbit ash
AMI BIOS
Form Factor Mini ITX Form Factor; 170cm x 170cm
* GIGABYTE reserves the right to make any changes to the product specications and product-related information
without prior notice.
- 10 -
Hardware Installation
1-3 Installing the CPU and CPU Cooler
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
• Always turn off the computer and unplug the power cord from the power outlet before installing
the CPU to prevent hardware damage.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specications. It is not recommended
that the system bus frequency be set beyond hardware specications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specifications, please do so according to your hardware specifications including the CPU,
graphics card, memory, hard drive, etc.

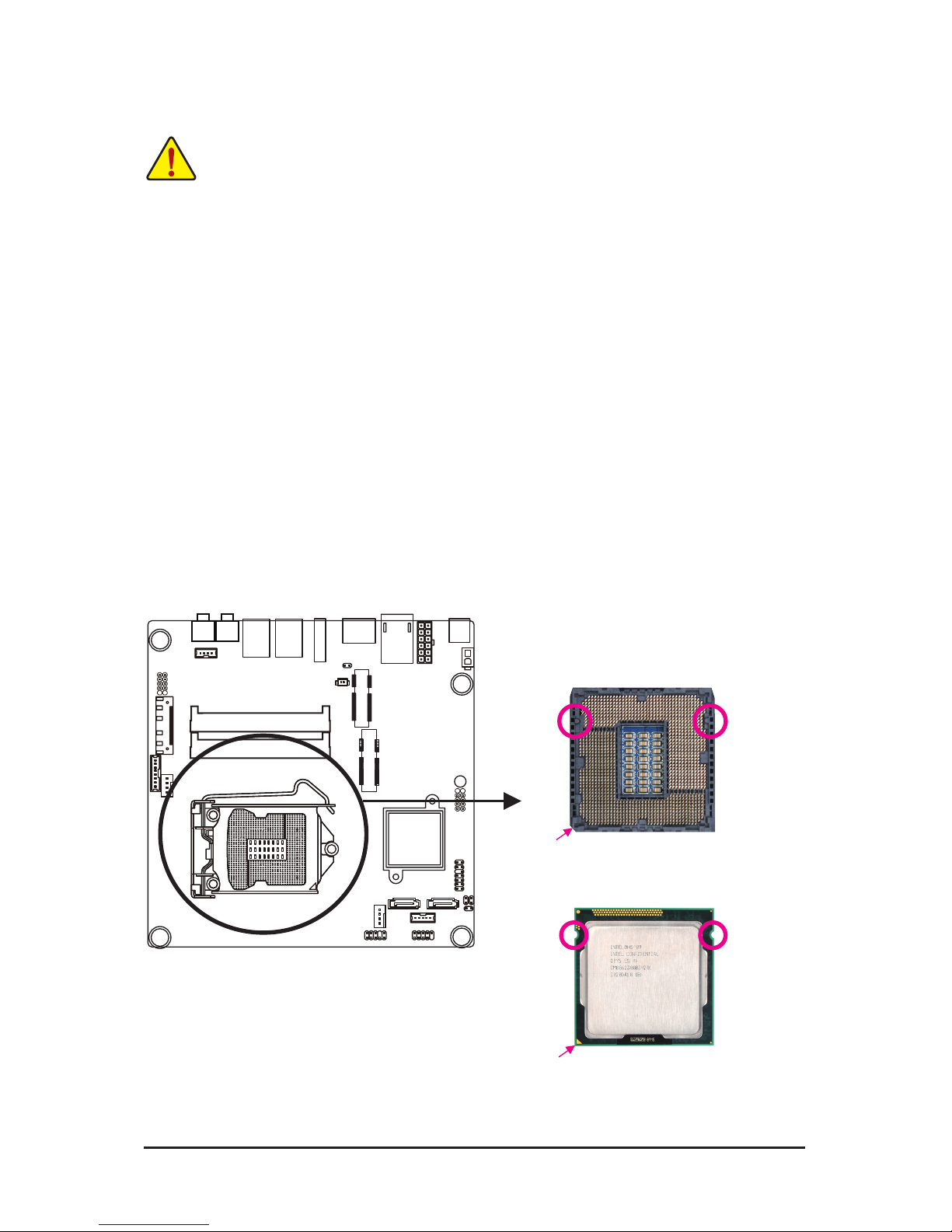

Notch
Alignment KeyAlignment Key
Notch
LGA1155 CPU
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
