When you installing AGP card, please make sure the following notice

is fully understood and practiced. If your AGP card has "AGP 4X/8X

(1.5V) notch"(show below), please make sure your AGP card is AGP

4X/8X.

Caution:AGP 2X card is not supported by nVIDIA®nForce™2 Ultra 400.

You might experience system unable to boot up normally. Please

insert anAGP Pro 4X/8X card.

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

modeAGPslot.It can be switched betweenAGP2X(3.3V) or 4X(1.5V) mode

by adjusting the jumper. The factory default for this card is 2X(3.3V). The

GA-7N400 Pro2 / GA-7N400 / GA-7N400-L (or any AGP 4X/8X only)

motherboards might not function properly, if you install this card without

switching the jumper to 4X(1.5V) mode in it.

Example 2: SomeATi Rage 128 Pro graphics cards made by "Power Color",

the graphics card manufacturer & some SiS 305 cards, their golden finger is

compatible with 2X(3.3V) / 4X(1.5V) mode AGP slot, but they support

2X(3.3V) only. The GA-7N400 Pro2 / GA-7N400 / GA-7N400-L(or anyAGP

4X/8Xonly) motherboards mightnot function properly,If youinstall this card

in it.

Note :Although Gigabyte's AG32S(G) graphics card is based onATi Rage

128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)

specification.Therefore,AG32S(G)will work fine with nVIDIA®nForce2Ultra

400 based motherboards.

Before you install PCI cards, please remove the Dual BIOS label from PCI

slots if there is one.

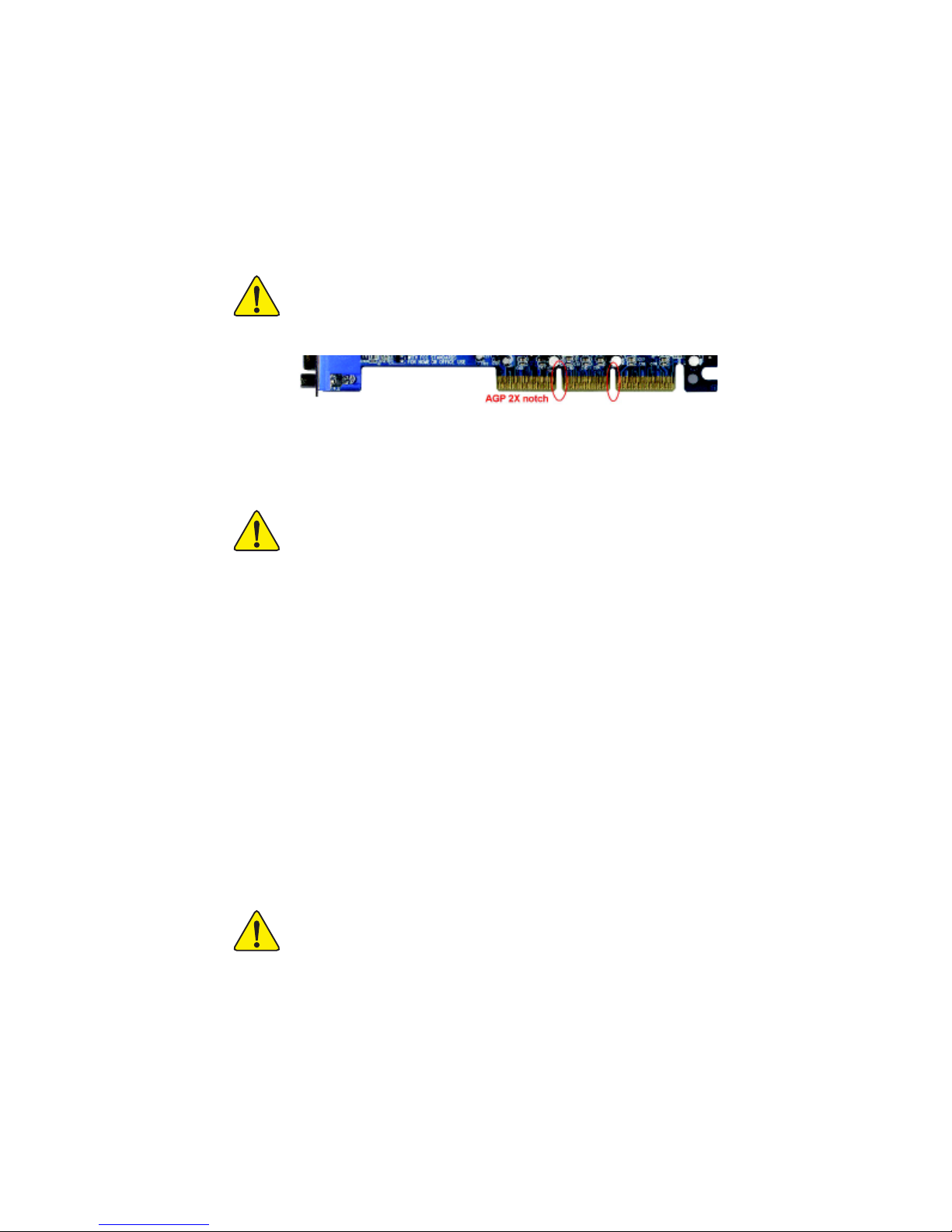

AGP 4X/8X notch
