Gigabyte GV-N4464TE Bedienungsanleitung

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

VGA Card

GV-N4464TE

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2 Disturbances in supply systems cause

by household appliances and similar

electrical equipment "Harmonics"



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment "Voltage fluctuations"



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Dec. 17, 2003

7EN 60555-3

Timmy Huang



EN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirements for

uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

ProductName:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

VGA Card

GV-N4464TE

Date:

ERIC LU

Dec. 17, 2003

GV-N4464TE

User's Manual

GeForce™4 MX440-8X Graphics Accelerator

Rev. 101

12MD-N4464TE-101

any from without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on VGA card, this may void the warranty of this VGA card.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make

a commitment to update the information contained herein.

GV-N4464TE Graphics Accelerator - 2 -

English

Table of Contents

1. Introduction ......................................................................................... 3

1.1. Features ..................................................................................................... 3

1.2. Minimum system requirement .................................................................... 3

2. Hardware Installation........................................................................... 4

2.1. Unpacking .................................................................................................. 4

2.2. Board layout ............................................................................................... 5

2.3. Hardware installation .................................................................................. 6

3. Software Installation ............................................................................ 8

3.1. Win®XP driver and utilities installation ....................................................... 8

3.1.1. Operating system requirement ...................................................................... 8

3.1.2. DirectX installation ......................................................................................... 9

3.1.3. Driver installation ......................................................................................... 11

3.1.4. Utilities on driver CD .................................................................................... 13

3.1.5. Taskbar icon ................................................................................................. 15

3.1.6. Display properties pages ............................................................................. 18

3.1.7. nView properties pages ............................................................................... 23

3.2. Win®98/98SE / Win®2000 / Win®ME driver installation ........................... 28

3.3. BIOS flash utility ....................................................................................... 28

4. Troubleshooting Tips ......................................................................... 29

5. Appendix ...........................................................................................30

5.1. How to reflash the BIOS ........................................................................... 30

5.2. Resolutions and color depth table (In Windows®XP) ............................... 31

Introduction- 3 -

English

1. Introduction

1.1. Features

•Powered by NVIDIA®GeForce™4 MX440-8X Graphics Processing Unit (GPU)

•Supports AGP 8X/ 4X/ 2X/ 1X

•64MB DDR memory accelerates the latest 3D games

•64-bit memory interface

•2-pixel pipeline architecture

•Supports DirectX 8.1

•Supports D-SUB, TV-Out connector

1.2. Minimum system requirement

•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz

class processor or higher

•One available AGP3.0 compliant slot or better

•Operating Systems Win®98/98SE / Win®2000 / Win®ME / Win®XP

•64MB system memory

•50MB of available disk space for full installation

•CD-ROM or DVD-ROM drive

GV-N4464TE Graphics Accelerator - 4 -

English

2. Hardware Installation

Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect

them against damage from static electricity, you should follow some precautions

whenever you work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not have one,

touch both of your hands to a safely grounded object or to a metal object, such as the power

supply case.

3. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static

electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator should

be wearing an anti-static wristband, grounded at the same point as the anti-static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage to

your card. Be sure there are no shipping and handling damages on the card before proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD.

In order to ensure your graphics card working correctly, please use official Gigabyte

BIOS only. Use none official gigabyte BIOS might cause problem on the graphics

card.

2.1. Unpacking

The GV-N4464TE package contains the following:

The GV-N4464TE graphics accelerator

GV-N4464TE user's manual

NVIDIA Series driver and utility CD

PowerDVD CD

TV-Out cable x 1

Hardware Installation- 5 -

English

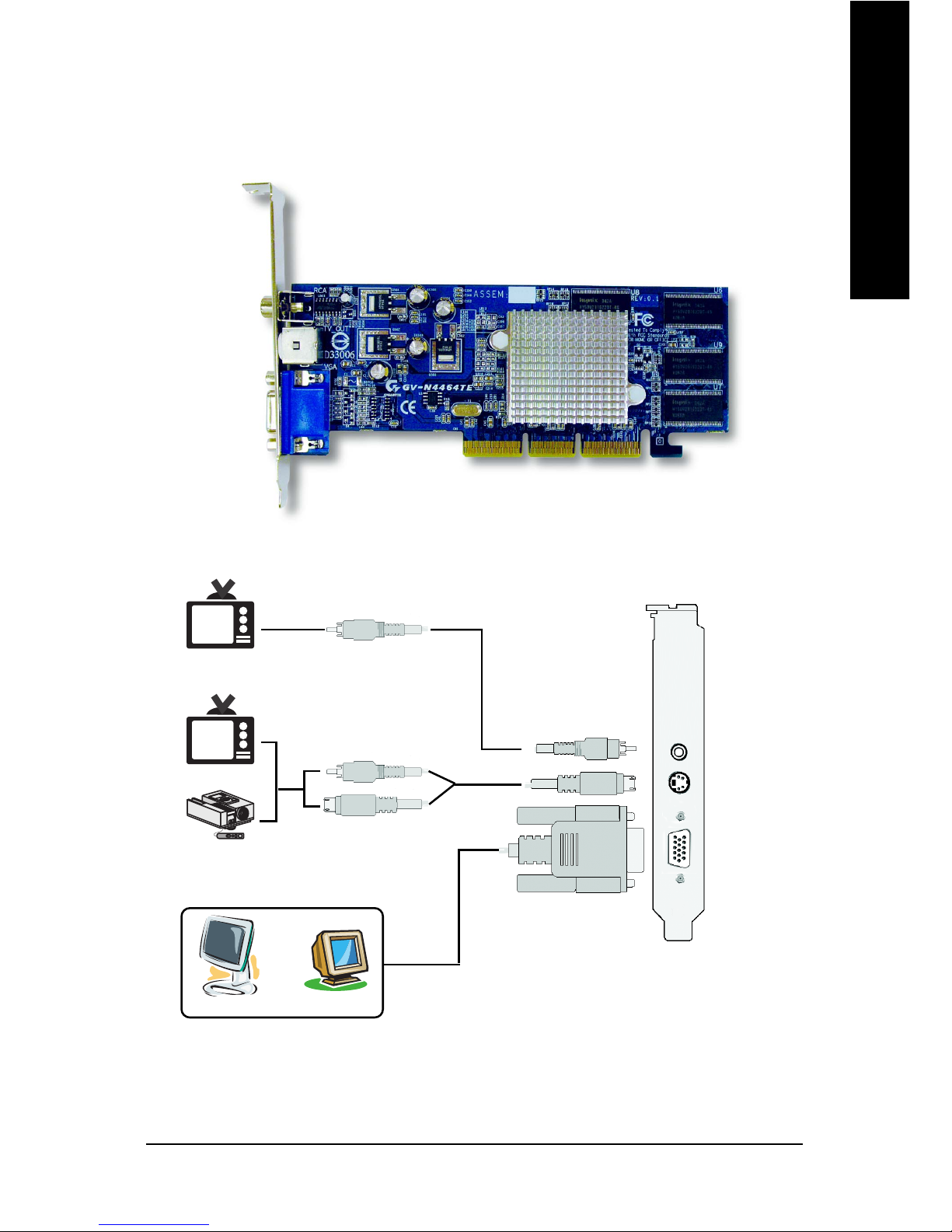

2.2. Board layout

GV-N4464TE

S-Video

VGA Monitor

Connector

(15pin)

RCA

S-Video

VGA Monitor

Connector

(15pin)

AV Output

NTSC / PAL TV

Projector

S-Video Output

Analog LCD Monitor Analog Monitor

VGA Output

RCA

AV Output

NTSC / PAL TV

GV-N4464TE Graphics Accelerator - 6 -

English

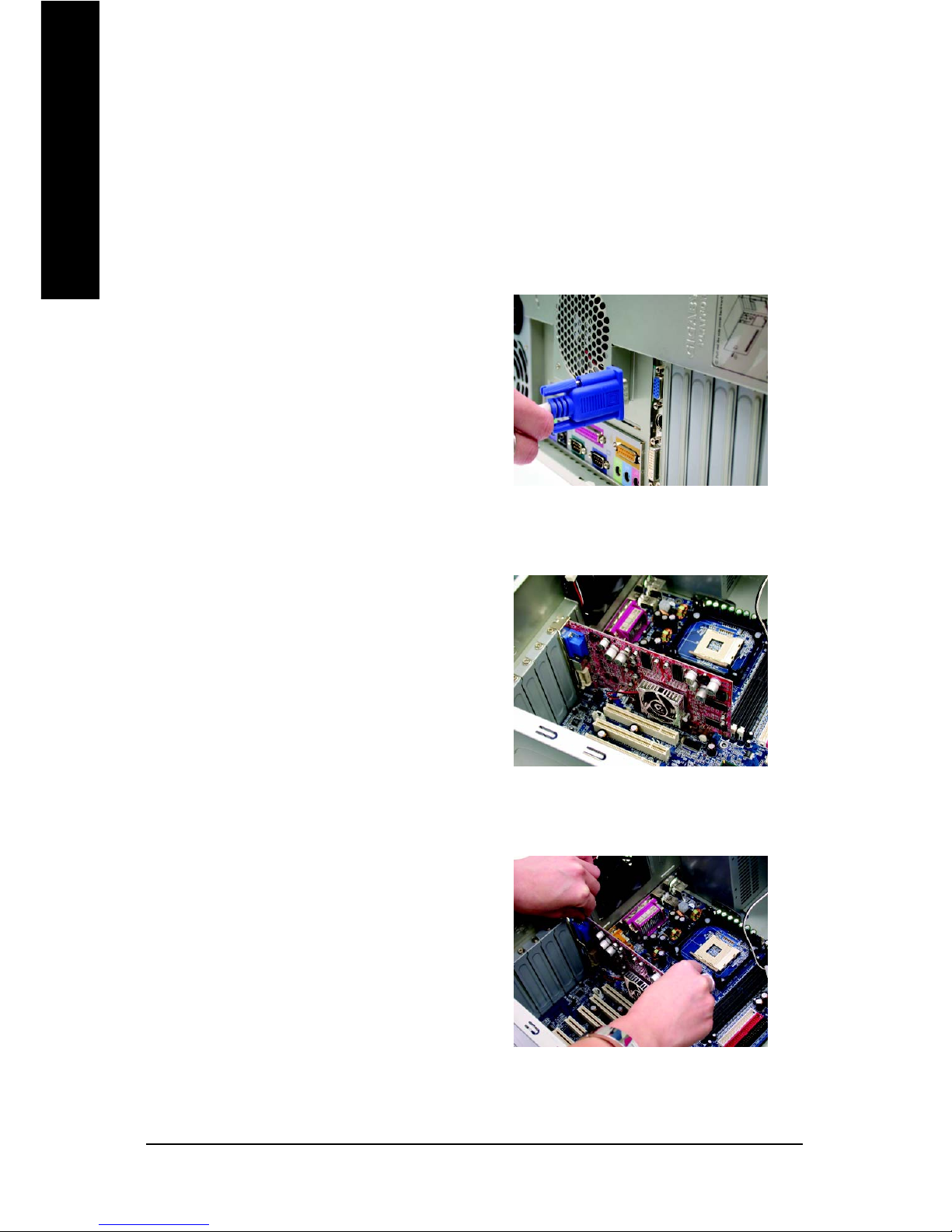

2.3. Hardware installation

Installing Your graphics card.

Now that you have prepared your computer, you are ready to install your graphics

accelerator card.

To install your graphics accelerator card:

1. Power off the computer and monitor, then

disconnect the display cable from the back

of your computer.

2. Remove the computer cover. If necessary,

consult your computer's manual for help

in removing the cover.

3. Remove any existing graphics card from

your computer.

Or, if your computer has any on-board

graphics capability, you may need to

disable it on the motherboard. For more

information, see you computer

documentation.

Hardware Installation- 7 -

English

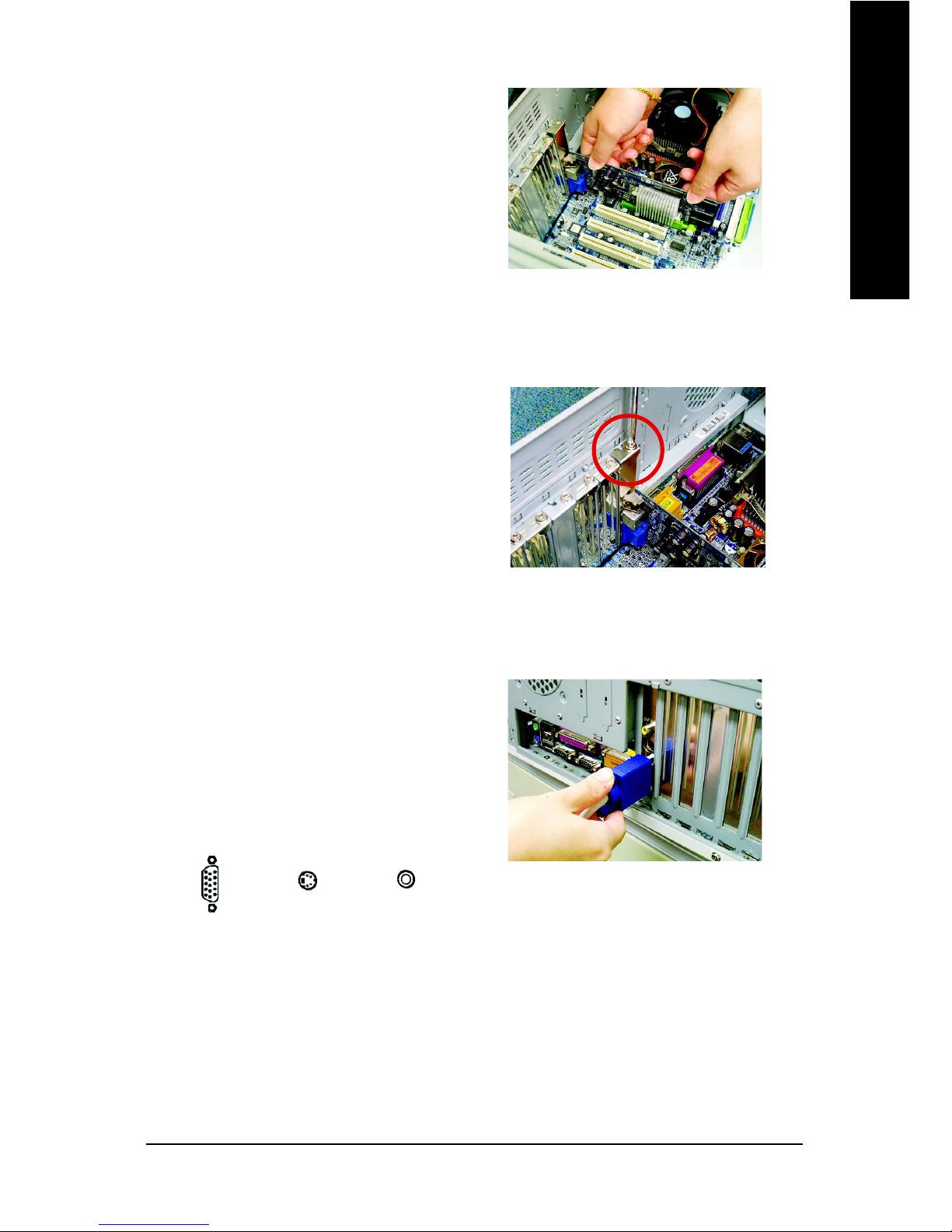

4. Locate the AGP slot. If necessary, remove

the metal cover from this slot; then align

your graphics card with the AGP slot, and

press it in firmly until the card is fully eated.

5. Replace the screw to fasten the card in

place, and replace the computer cover.

6. Plug the display cable into your card; then

turn on the computer and monitor. If your

graphics card came with a DVI connector,

you can connect a flat panel display to the

appropriate connector, as shown below...

You are now ready to proceed with the installation of the graphics card driver. For detailed

instructions, select your operating system from the list below.

To TV or VCR

To VGA Monitor

To TV or VCR

GV-N4464TE Graphics Accelerator - 8 -

English

3. Software Installation

In this manual, we assume that your CD-ROM Drive letter to be Drive D:

The installation of Win®98/98SE / Win®2000 / Win®ME / Win®XP drivers is very simple.

When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN

window (if it does not show up, run "D:\setup.exe"). Then you can follow the guides to

setup your graphics card driver. (Please follow the subsection 3.1.3 "Driver installation"

to install the driver for your graphics accelerator.)

3.1. Win®XP driver and utilities installation

3.1.1. Operating system requirement

•When loading the graphics card drivers for the system, please make sure your

system has installed DirectX 8 or later version.

•If you install the graphics card drivers for the motherboard, which consist of SIS,

ALI or VIA chipsets, please install the appropriate driver program for that

motherboard. Or please contact your motherboard nearest dealer for motherboard

driver.

Inhaltsverzeichnis

Andere Gigabyte Grafikkarte Handbücher

Gigabyte

Gigabyte GV-NX73L128D-RH Bedienungsanleitung

Gigabyte

Gigabyte GV-N96TGR-512I Bedienungsanleitung

Gigabyte

Gigabyte GV-R567D3-1GI Bedienungsanleitung

Gigabyte

Gigabyte GV-N220D2-1GE Bedienungsanleitung

Gigabyte

Gigabyte GV-R575SL-1GI Bedienungsanleitung

Gigabyte

Gigabyte GV-RX60X128V Bedienungsanleitung

Gigabyte

Gigabyte GV-N56GOC-1GI Bedienungsanleitung

Gigabyte

Gigabyte GV-N470SO-13I Bedienungsanleitung

Gigabyte

Gigabyte GV-R92128TE Bedienungsanleitung

Gigabyte

Gigabyte GV-NX98X1GHI-B Bedienungsanleitung

Gigabyte

Gigabyte GV-3D1 Bedienungsanleitung

Gigabyte

Gigabyte GV-NX66T128D Bedienungsanleitung

Gigabyte

Gigabyte GV-N460D5-768I-B Bedienungsanleitung

Gigabyte

Gigabyte GV-N550D5-1GI Bedienungsanleitung

Gigabyte

Gigabyte GV-NX62TC256P4-RH Bedienungsanleitung

Gigabyte

Gigabyte GV-R597D5-2GD-B Bedienungsanleitung

Gigabyte

Gigabyte GV-RX80256DE Bedienungsanleitung

Gigabyte

Gigabyte GV-N780OC-3GD Bedienungsanleitung

Gigabyte

Gigabyte GV-N95TD3-1GI Bedienungsanleitung

Gigabyte

Gigabyte GV-N450-1GI Bedienungsanleitung

Gigabyte

Gigabyte GV-N210D3-512I Bedienungsanleitung

Gigabyte

Gigabyte GV-R545OC-512I Bedienungsanleitung

Gigabyte

Gigabyte GV-NX76G256HI-RH Bedienungsanleitung

Gigabyte

Gigabyte GV-N26OC-896I Bedienungsanleitung

Beliebte Grafikkarte Handbücher anderer Marken

Gainward

Gainward GeForce GTX 690 4GB Bedienungsanleitung

ATI Technologies

ATI Technologies RADEON 137-40225-20 Bedienungsanleitung

MSI

MSI N220GT series Bedienungsanleitung

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Bedienungsanleitung

SIIG

SIIG aurora Bedienungsanleitung

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Bedienungsanleitung

MSI

MSI R7850 series Bedienungsanleitung

DVS

DVS Atomix HDMI Bedienungsanleitung

Aztech

Aztech VGS3D-AGP Bedienungsanleitung

Advoli

Advoli TB4 Standard Bedienungsanleitung

ELSA

ELSA ERAZOR III LT Bedienungsanleitung

Themis

Themis TGA-7000 PMC Bedienungsanleitung

EMS

EMS XtremeRGB-Ex1 Bedienungsanleitung

Nvidia

Nvidia Quadro Workstation Bedienungsanleitung

Pioneer

Pioneer PDA-5003 Bedienungsanleitung

QDI

QDI N2 Bedienungsanleitung

NEC

NEC N8116-48 Bedienungsanleitung

MSI

MSI R7770 PoweR Edition Bedienungsanleitung
