GV-N57128DP
User's Manual
GeForce™FX 5700 Graphics Accelerator
Rev. 101
12MD-N57128DP-101
GV-N57128DP Graphics Accelerator - 2 -
English
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum System Requirement .................................................................. 3
2. Hardware Installation........................................................................... 4
2.1. Board Layout .............................................................................................. 4
2.2. Hardware Installation .................................................................................. 6
3. Software Installation ............................................................................ 8
3.1. Win®XP driver and Utilities Installation ....................................................... 8
3.1.1. Operating System Requirement ....................................................................................... 8
3.1.2. DirectX Installation ............................................................................................................ 9
3.1.3. Driver Installation ............................................................................................................. 11
3.1.4. Utilities on Driver CD ...................................................................................................... 13
3.1.5. Taskbar Icon .................................................................................................................... 15
3.1.6. Display Properties Pages ............................................................................................... 18
3.1.7. nView Properties Pages ................................................................................................. 23
3.2. Win®98/98SE/ Win®2000/ Win®ME Driver Installation ............................ 28
3.3. BIOS Flash Utility ..................................................................................... 28
4. Troubleshooting Tips ......................................................................... 29
5. Appendix ...........................................................................................30
5.1. How to Reflash the BIOS in MS-DOS Mode ............................................. 30
5.2. Resolutions and Color Depth Table (In Windows®XP) ............................. 31
Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by NVIDIA®GeForce™FX 5700 Graphics Processing Unit (GPU)
•Supports the new AGP 8X standard
•Integrated with 128MB DDR memory
•Supports TV-Out and D-Sub connectors
•Supports DVI-I connector
•Supports Direct X 9.0
1.2. Minimum System Requirement
•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz
class processor or higher
•One available AGP3.0 compliant slot or better
•Operating Systems Win®98/98SE / Win®2000 / Win®ME / Win®XP
•64MB system memory
•50MB of available disk space for full installation
•CD-ROM or DVD-ROM drive
GV-N57128DP Graphics Accelerator - 4 -
English
2. Hardware Installation
TV-Out
DVI-I Connector
VGA Monitor Connector
(15 pins)

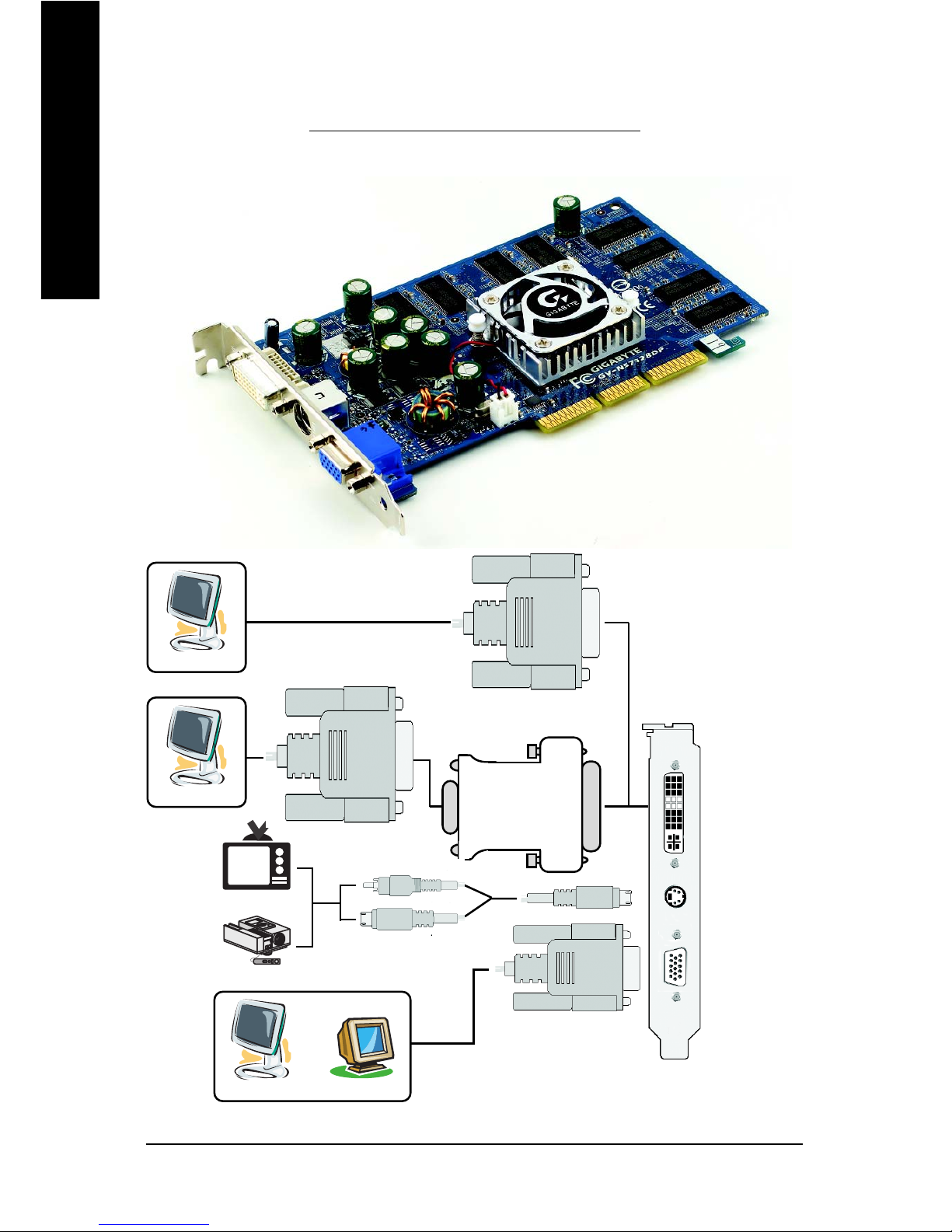

2.1. Board Layout
TV-out
VGA Monitor
Connector
(15pin)
DVI-I Connector
NTSC / PAL TV
Projector
Analog LCD Monitor Analog Monitor
OR
VGA Output
AV Output
S-VideoOutput
Analog LCD Monitor
Digital LCD Monitor
DVI Output
DVI-I to D-Sub Connector
VGA Output
Hardware Installation- 5 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow
some precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not
have one, touch both of your hands to a safely grounded object or to a metal object,
such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by
static electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-
static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.
GV-N57128DP Graphics Accelerator - 6 -
English
2.2. Hardware Installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics
accelerator card.
To install your graphics accelerator card:

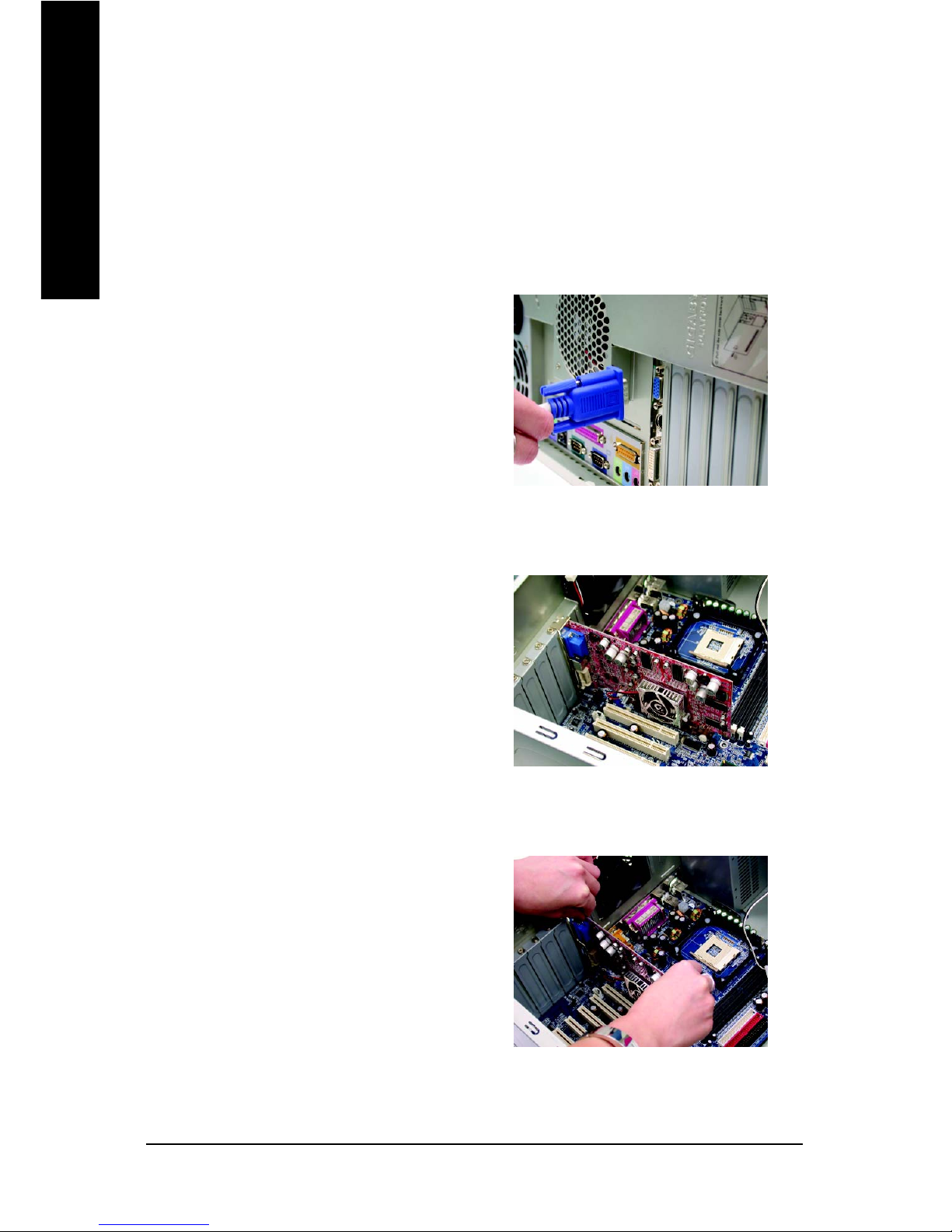

1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help
in removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to
disable it on the motherboard. For more
information, see you computer
documentation.
Hardware Installation- 7 -
English

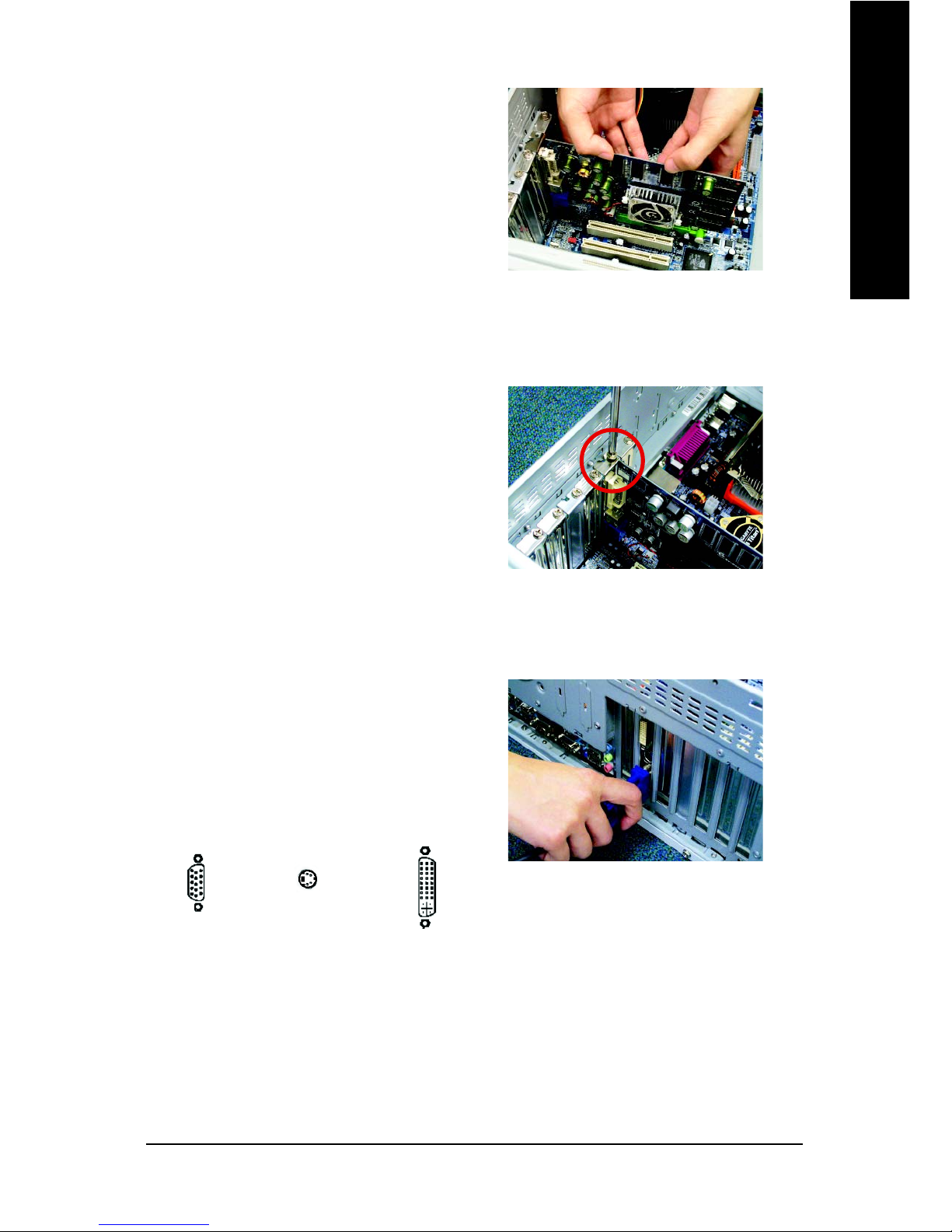

4. Locate the AGP slot. If necessary, remove
the metal cover from this slot; then align
your graphics card with the AGP slot, and
press it in firmly until the card is fully
seated.
5. Replace the screw to fasten the card in
place, and replace the computer cover.
6. Plug the display cable into your card; then
turn on the computer and monitor. If your
graphics card came with a DVI connector,
you can connect a flat panel display to the
appropriate connector, as shown below...
You are now ready to proceed with the installation of the graphics card driver. For detailed
instructions, select your operating system from the list below.
To TV or VCR
To VGA Monitor
To Flat Panel Display
GV-N57128DP Graphics Accelerator - 8 -
English
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Win®98/98SE / Win®2000 / Win®ME / Win®XP drivers is very simple.
When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN
window (if it does not show up, run "D:\setup.exe"). Then you can follow the guides to
setup your graphics card driver. (Please follow the subsection 3.1.3 "Driver installation"
to install the driver for your graphics accelerator.)
3.1. Win®XP driver and Utilities Installation
3.1.1. Operating System Requirement
•When loading the graphics card drivers for the system, please make sure your
system has installed DirectX 9 or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS or
VIA chipsets, please install the appropriate driver program for that motherboard.
Or please contact your motherboard nearest dealer for motherboard driver.
