Gigaset SL3501 Betriebsanleitung

Gigaset SL 3501, USA, A31008-L350-U122-2-7619 Cover 4215.fm 26.06.03

Be inspired

User Manual and

Safety Precautions

Gigaset SL 3501, USA, A31008-L350-U122-1-7619 congratulation.fm 26.06.0

Congratulations

Congratulations on your purchase of the Siemens Gigaset SL 3501 telephone sys-

tem! This phone´s 2.4 GHz frequency and high-speed digital voice encoding provide

reception and voice clarity that is superior to other cordless phones. And, its digital

spread spectrum technology will provide you with secure, private conversations.

Please read the following important information.

For Siemens Customer Care, product operation

information, or for problem resolution, call toll-free

1-888-777-0211

9 a.m. to 8 p.m. Central Standard Time Monday-Saturday

www.my-siemens.com

It’s fast progress in the world of communication. Register today for the world of Siemens mo-

bile on „my-siemens.com“ and stay current with customized information on Siemens latest

products and applications.

Please go to: www.icm.siemens.com/register

DO NOT RETURN

THIS PRODUCT TO THE

STORE!

III

General

Gigaset SL 3501, USA, A31008-L350-B102-1-7619 umschl_v.fm 26.06.0

Quick Reference

Handset

Turning on/off the handset

(see page 6) hold down a

Turning keypad protection on/

off (see page 7) hold down ª

Turning tones on/off

(see page 68) hold down «

Making an external call

(see page 10) oc

Redialing a number

(see page 17) zif necessary Dselect entry c

Saving a called number

in the directory (see page 23) zMENU D[

Dialing from the directory

(see page 24) Do[Name] if necessary Dcor Dc

Dialing from the call log

(see page 38) ?D[if necessary F G entry c

Setting the handset volume

(see page 68)

MENU D[[

DF or GSave

Making an Internal call to a spe-

cific handset Fand Dto select internal user c

Making an Internal call to a all

handsets (see page 10) Fand Dc

Transferring a call to another

handset Fand Dto select internal user [a

Making a consultation call Fand Dto select internal user [; end: End

Setting the date and time

(see page 8)

MENU D[D[

Set date and time F G DSave

Setting the alarm clock

(see page 19)

MENU D[D[

Enter settings F G D Save

Answering machine

Playing back messages

(see page 45) ?D[or hold down]

Skipping to the next message:

(see page 46)

Repeating the message

Gor ^

For ]

Deleting messages

(see page 47) MENU D[or press Delete

Skipping to the previous mes-

sage (see page 46) 2 x F

Send to Dir

Call Log

Sound Settings Handset Volume

Intercom Call

Appoint./Clock Date/Time

Appoint./Clock Alarm Clock

Ans Msg.:

Delete Old Msg.

Gigaset SL 3501, USA, A31008-L350-B102-1-7619 umschl_v.fm 26.06.0

Handset Diagram

Using the Navi Key and Soft Keys

Open directory

End call and On/

Off key

Ta l k k ey

Memory key

Accesses speed dial

numbers

– end call

– cancel function

– back one menu level

(press briefly)

– return to idle state

(hold down)

– on/off in idle status

(hold down)

–

Accept call

–

Dial number

–

Switch from handset to

speakerphone.

Star key (*)

Hold down to turn on

nd off the ringer

Charging status

= empty

U full

flashes: Battery low

Signal strength

Navi key

Status LED (light)

Lights up during a call;

Flashes for:

– Incoming calls

– New messages

– Alarm calls, appoint-

ments, anniversaries

Key 1

(Programmable) Hold

down to select Answ.

machine/telco voice

mailbox

Microphone

Pound key

Hold down to turn on and off

the keypad protection

Ñ ¸ e

Annabella

07.19.03 01:13pm

{MENU

Handsfree key

Socket

–forHeadset,

– MP3-Player

Display (display field)

Current functions

and display keys

With the display keys, you

have access to the current

functions.

Caller list

Access to message lists

witch from handset to

andsfree talking.

Answering machine sym-

bol if registered to SL 3501

With the soft keys you can

carry out functions that can

also be partly controlled with

the navi key.

The side of the navi key

which you must press is indi-

cated in the operating instruc-

tions by arrows:

F/ G(left/right)

E/ D(top/bottom)

Navi key

Soft keys

General

Gigaset SL 3501, USA, A31008-L350-B102-1-7619 umschl_v.fm 26.06.0

Functions of the Navi Key

The Navi key has different functions in specific operating situations.

Displays

The following symbols appear in the display, depending on the operating situation:

Example for menu operation: setting the volume for the

speakerphone

Navi key When the tele-

phone is idle

In lists and menus In an entry field

EUpward Cursor one

line up

DOpen directory Downward Cursor one

line down

GOpen menu Select entry (OK) Cursor to the right

FOpen the list of inter-

nal users

One menu level

back (cancel)

Cursor to the left

Soft keys Meaning

MENU Menu button: Activate the general menu when telephone is idle

ZConfirm menu function and select. End and save the setting

WDelete key (Backspace): Delete entries from right to left

{Automatic redial key: Open the list of the last 5 numbers dialed

ÍOne menu level back, cancel

1. MENU Press G or the right soft key ¿.

2. DScroll to Sound Settings.

3. ZSelect Sound Settings.

4. ZSelect Handset Volume.

5. Gor FSelect the required volume for speakerphone.

6. Save Store the required volume for speakerphone.

Gigaset SL 3501, USA, A31008-L350-B102-1-7619 umschl_v.fm 26.06.0

Safety precautions*

Only use the power supply unit supplied as indicated on the underside of the

device.

Only insert approved rechargeable batteries of the same type. Never use ordi-

nary (non-rechargeable) batteries as they may pose a health hazard or cause injury.

Make sure the rechargeable battery is inserted the right way round

Use the battery specified in these operating instructions

The phone may affect medical equipment so always switch your phone off before

entering hospitals or doctors’ practices.

The handset may cause an unpleasant humming noise in hearing aids.

Do not operate the phone in places where there is a risk of explosion (such as paint

workshops).

The handset is not splash-proof (see page 33).

Drivers must not use the phone while driving.

The phone must be switched off at all times in an aircraft. Make sure it cannot be

switched on accidentally.

If you give your Gigaset to someone else you should also give them the operating

instructions.

Dispose of batteries and the phone carefully. Do not pollute the environment.

Emergency numbers cannot be dialed if the keypad lock is activated!

*. see also page 86

‹

Gigaset SL 3501, USA, A31008-L350-U122-2-7619 4015coivz.fm 26.06.03

Contents

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI

Telephone set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Enhanced telephone features . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Operating the answering machine . . . . . . . . . . . . . . . . . . . . . . . 41

Customizing the answering

machine settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Handset operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Customizing handset settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Base station settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Advanced settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Menu table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Telephone set up

Gigaset SL 3501, USA, A31008-L350-U122-2-7619 vorberei.fm 26.06.03

Telephone set up

This delivery units contains:

• 1 Gigaset SL 3501base station

• 1 Gigaset SL 30 handset

• 1 power supply unit

• 1 telephone cord

• 1 belt clip

• 1 rechargeable NiMh battery

• 1 user manual

• 1 Quick Start Guide

Installing the base station

The base station is designed for operation in protected rooms with a

temperature range from +40°F to +100°F.

Range and reception strength

The base station range is approx. 1000 feet outdoors and up to

150 feet indoors. The receive strength display shows the quality of the

radio contact between the base station and the handset:

IMPORTANT! For best reception, place the base in a high cen-

tral location, away from other electrical devices.

Ðreceive strength 100%

ireceive strength 75%

Ñreceive strength 50%

Òlow receive strength

|no reception (flashes)

100° F

40° F

Telephone set up

Gigaset SL 3501, USA, A31008-L350-U122-2-7619 vorberei.fm 26.06.0

Connecting the base station

●Only use the power supply unit included as indicated on the

rear side of the base.

●Use the telephone cord supplied. Do not use any old cords.

●Do not use an outlet controlled by a wall switch.

●Insert the

small plug on

cord into

phone jack

●Place cord in

the base ca-

ble channel,

●insert power

supply unit

into wall out-

let.

●Insert plug on the telephone cord

into telephone jack on base unit

(clicks into place),

●Place cord in cable channel on

the bottom of the base,

●Insert other end of plug into tele-

phone jack on the wall.

●The installation of the base unit

should allow at least 8 inches

between the base and persons

to be in compliance with FCC RF

exposure guidelines

Telephone jack with te-

lephone cord

RJ11C

Key to register

additional

handsets/Page

handsets.

free

Power supply unit with

cord (110 VAC/60 Hz)

Telephone set up

Gigaset SL 3501, USA, A31008-L350-U122-2-7619 vorberei.fm 26.06.03

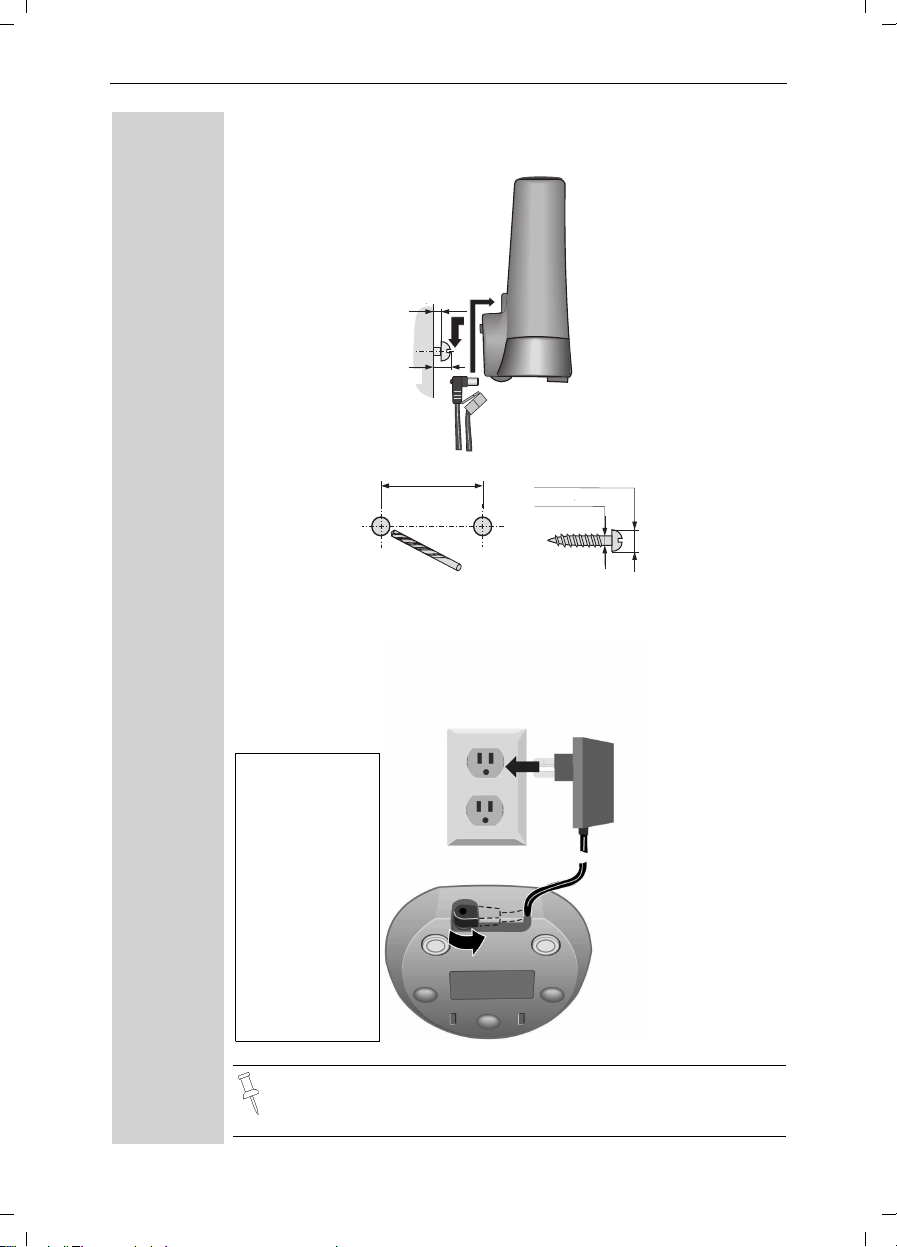

Wall-mounting the base

Connecting the charging unit

Only use the plug-in power supply unit supplied

(as identified under the charging unit).

max. ø 7,9 mm

max. ø 4 mm

69,6 mm

2,5 mm

max.

5,3 mm

0,1 inch

0,21 inch

2,74 inch 0,31 inch

0,16 inch

Plug-in power

supply unit

(110 VAC/60Hz)

with mains ca-

ble

●Insert the

small con-

nector of the

mains cable

into the jack,

●Turn the con-

nector in the

direction of

the arrow,

●Plug the

power supply

unit into the

socket.

Andere Handbücher für SL3501

Inhaltsverzeichnis

Andere Gigaset Telefonzubehör Handbücher

Gigaset

Gigaset C34 Bedienungsanleitung

Gigaset

Gigaset C530 IP Bedienungsanleitung

Gigaset

Gigaset SL910 Bedienungsanleitung

Gigaset

Gigaset A59H Bedienungsanleitung

Gigaset

Gigaset N870E IP PRO Kurzanleitung

Gigaset

Gigaset S650 H Pro Bedienungsanleitung

Gigaset

Gigaset E490 Bedienungsanleitung

Gigaset

Gigaset T500 PRO Bedienungsanleitung

Gigaset

Gigaset C590 Bedienungsanleitung

Gigaset

Gigaset S810 Bedienungsanleitung

Gigaset

Gigaset C610A Bedienungsanleitung

Gigaset

Gigaset E630H Bedienungsanleitung

Gigaset

Gigaset L410 Bedienungsanleitung

Gigaset

Gigaset N720 DECT IP Kurzanleitung

Gigaset

Gigaset AL140 Bedienungsanleitung

Gigaset

Gigaset L410 Bedienungsanleitung

Gigaset

Gigaset A540 Bedienungsanleitung

Gigaset

Gigaset A220 Bedienungsanleitung

Gigaset

Gigaset A400 Bedienungsanleitung

Gigaset

Gigaset N870 IP PRO Kurzanleitung

Gigaset

Gigaset SL 740 Bedienungsanleitung

Gigaset

Gigaset A510A Bedienungsanleitung

Gigaset

Gigaset N300IP Bedienungsanleitung

Gigaset

Gigaset C670 Bedienungsanleitung

Beliebte Telefonzubehör Handbücher anderer Marken

IAI

IAI CON-T Bedienungsanleitung

BT DIVERSE 5400 Bedienungsanleitung

Tadiran Telecom

Tadiran Telecom EMERALD ICE Bedienungsanleitung

Musicam

Musicam FieldFone II Bedienungsanleitung

Polycom

Polycom KIRK KIRK 4040 Technisches Datenblatt

TIPTEL

TIPTEL DECT Set 50 Bedienungsanleitung

Panasonic

Panasonic KX-UDS124 Bedienungsanleitung

BT BT7600 Technisches Datenblatt

Panasonic

Panasonic KX-TVP100E Bedienungsanleitung

View

View VP-PC Bedienungsanleitung

Baldwin Boxall

Baldwin Boxall BT8 Bedienungsanleitung

SMC Networks

SMC Networks SMCDPCR-AP Bedienungsanleitung

SkyLink

SkyLink SD-001 Bedienungsanleitung

Nera

Nera ISDN Bedienungsanleitung

MCheeta

MCheeta CT-CID803 Plus Bedienungsanleitung

YASKAWA

YASKAWA YRC1000 Bedienungsanleitung

Intellitouch

Intellitouch MOH-500E Bedienungsanleitung

Viking

Viking SQRG-12 Gebrauchsanweisung
