C330

The base at a glance

Gigaset C330/330 A / CHN chn/ A31008-M2410-Y101-1-7619 / overview.fm / 22.03.2013

Version 4, 16.09.2005

The base at a glance

Gigaset C330

1Display in idle status

Indicates that the telephone is powered on.

2End/Back key

3Control key

4INT key

– Making internal calls

– Registering handsets

5Menu / OK key

6One-touch memory keys (C330 only)

7Call list

8Redial key

9Mute key

Mute the microphone

10 Recall key

- Consultation call (ash)

- Insert a dialling pause (press and hold)

11 Speaker key (LED)

Switch between earpiece and speaker mode

12 Star key

Ringtone on/o (press and hold);

with an open connection: switch between

pulse and tone dialling (press briey);

13 Priority key

Memory key for IP code (press and hold)

14 Hash key

Keypad lock on/o (press and hold in

idle status);

12 14

02.01 10:27

INT

The base at a glance

Gigaset C330/330 A / CHN chn/ A31008-M2410-Y101-1-7619 / overview.fm / 22.03.2013

Version 4, 16.09.2005

Base display symbols

The following symbols are displayed dependent on the settings and the operating status of

your telephone:

Index number

Ringer melody menu

Date /Time menu

Keypad locked

Call log

Directory opened

Mute on

Current date and time

Missed call indication

Date/TimeRinger Melody Index

08.17 09:30

The handset at a glance

Gigaset C330/330 A / CHN chn/ A31008-M2410-Y101-1-7619 / overview.fm / 22.03.2013

Version 4, 16.09.2005

The handset at a glance

1Display in idle status

2Battery charge status

3Display keys

4End call key, On/O key

End call, cancel function, go back one menu

level (press briey), back to idle status (press

and hold), activate/deactivate handset (press

and hold in idle status)

5Hash key

Keypad lock on/o (press and hold in

idle status);

toggles between upper/lower case and digits

6Recall key

– Consultation call (ash)

– Insert a dialling pause (press and hold)

7Microphone

8Message key

Access to calls and message lists;

Flashes: new message or new call

9Star key

Ringtone on/o (press and hold);

with an open connection: switch between dial

pulsing/tone dialling (press briey);

10 Priority key

Memory key for IP code (press and hold)

11 Key 1

Dial answering machine (C330 A only) (press

and hold)

12 Talk key

Flashes: incoming call;

Accept a call (press briey);

13 Control key

initiate an internal call;

mute the microphone during a call;

open audio settings;

open the directory;

14 Signal strength symbol of the connection to

the base

15 Answering machine symbol (C330 A only)

Answering machine switched on;

Flashes: Answering machine is recording a

message or is being operated by another inter-

nal party.

You can register up to four handsets to the

Gigaset C330/330 A

INT 1

07:15

10.14



§§2§§

§§3§§

§§4§§

§§5§§

§§6§§

§§1§§

§13§

§12§

§§7§§

§§8§§

§§9§§

§11§

§14§

§15§

§10§

The handset at aglance

Gigaset C330/330 A / CHN chn/ A31008-M2410-Y101-1-7619 / overview.fm / 22.03.2013

Version 4, 16.09.2005

Handset display symbols

The following symbols are displayed dependent on the settings and the operating status of

your telephone:

Signalling

External call Internal call Alarm clock

Ø«Ú ØåÚ ØìÚ

Keypad locked

Ringtone switched off

Signal strength

Answering machine activated

(C330 A only)

Handset in talk mode

Battery charging state

Name of the handset

Ðó ÃæU

07:15

10.14

INT 1

Current date Current time

ÞMenu

ÐU

INT 1

ÞMenu

ë08:00

Alarm

switched on

and wake-up

time

07:15

™

ÐÃU

INT 1

ÞMenu

New messages

Ãon the

answering

machine (C330 A

only)

™in the list of

missed calls

Alarm indicationMessage indication

The handset at a glance

Gigaset C330/330 A / CHN chn/ A31008-M2410-Y101-1-7619 / overview.fm / 22.03.2013

Version 4, 16.09.2005

Display in idle status

Reception signal between the base and handset:

good to poor: 

If the handset goes out of range a warning tone will be heard.

Battery charge status:

–(empty to full)

– = low warning tone: batteries almost empty

–during charging, the symbol changes peri-

odically

INT 1

Internal name of the handset (default).

If the answering machine is activated, the symbol will be

displayed in the header (Gigaset C330 A only).

For more information about your telephone, visit : www.gigaset.com



07:15

10.14

INT 1

Menu

Safety precautions

Gigaset C330/330 A / CHN en/ A31008-M2307-Y101-1-7619 / security.fm / 22.03.2013

Version 4, 16.09.2005

Safety precautions

Warning

Read the safety precautions and the user guide before use.

Explain their content and the potential hazards associated with using the telephone to your

children.

Only use the mains adapters supplied, as indicated on the underside of the base.

Only use the recommended, rechargeable batteries as this could otherwise

result in signicant health risks and personal injury.

The operation of medical appliances may be aected. Be aware of the technical con-

ditions in your particular environment, e.g. doctor's surgery.

Do not hold the rear of the handset to your ear when it is ringing or when speaker

mode is activated. Otherwise you risk serious and permanent damage to your hear-

ing.

Your Gigaset is compatible with the majority of digital hearing aids on the market.

However, perfect function with all hearing aids cannot be guaranteed.

The handset may cause an unpleasant humming or whistling noise in hearing aids

or cause them to overload. If you require assistance, please contact the hearing aid

supplier.

Do not install the base or charging cradle in bathrooms or shower rooms. The base

is not splashproof

Do not use your phone in environments with a potential explosion hazard (e.g. paint

shops).

If you give your Gigaset to someone else, make sure you also give them the

user guide.

Please remove faulty bases from use or have them repaired by our Service depart-

ment, as they could interfere with other wireless services.

02.01 10:27

INT

First steps

Gigaset C330/330 A / CHN en/ A31008-M2307-Y101-1-7619 / starting.fm / 22.03.2013

Version 4, 16.09.2005

First steps

Checking the pack contents

1. one Gigaset C330 or C330 A base

2. one Gigaset C330H handset

3. one charger for Gigaset C330H

4. two batteries

5. one battery cover

6. one receiver

7. one receiver cable

8. one phone cable

9. one mains adapter

10. this user guide C330/C330A

(not pictured)

123

First steps

Gigaset C330/330 A / CHN en/ A31008-M2307-Y101-1-7619 / starting.fm / 22.03.2013

Version 4, 16.09.2005

Setting up the base and handset charging cradle

The base and charging cradle are designed for use in enclosed dry rooms with a temperature

range of +5°C to +45°C.

¤Install the base on a level, non-slip surface in a central location in your house or at.

Please note

Make sure you observe the range of the base for the handset connection.

This is up to 300 m in unobstructed outdoor areas and up to 50 m inside buildings.

The phone's feet do not usually leave any marks on surfaces. However, due to the multitude of

dierent varnishes and polishes used on today's furnishings, the occurrence of marks on the sur-

faces cannot be completely ruled out.

¤The display is protected by a plastic lm. Please remove the protective lm!

Please note:

uNever expose the telephone to the inuence of heat sources, direct sunlight or other electri-

cal devices.

uProtect your Gigaset from moisture, dust, corrosive liquids and vapours.

Connecting the base

¤Connect the receiver to the telephone

using the coiled cable supplied 1.

¤Connect the telephone jack 2.

¤Then connect the mains adapter 3.

¤Insert the cable of the mains adapter into

the cable ducts 4.

Please note:

uThe mains adapter must always be con-

nected, as the phone will not operate

without a mains connection.

¤Only use the mains adapter and phone

cord supplied. Pin connections on tele-

phone cables can vary (pin connections).

First steps

Gigaset C330/330 A / CHN en/ A31008-M2307-Y101-1-7619 / starting.fm / 22.03.2013

Version 4, 16.09.2005

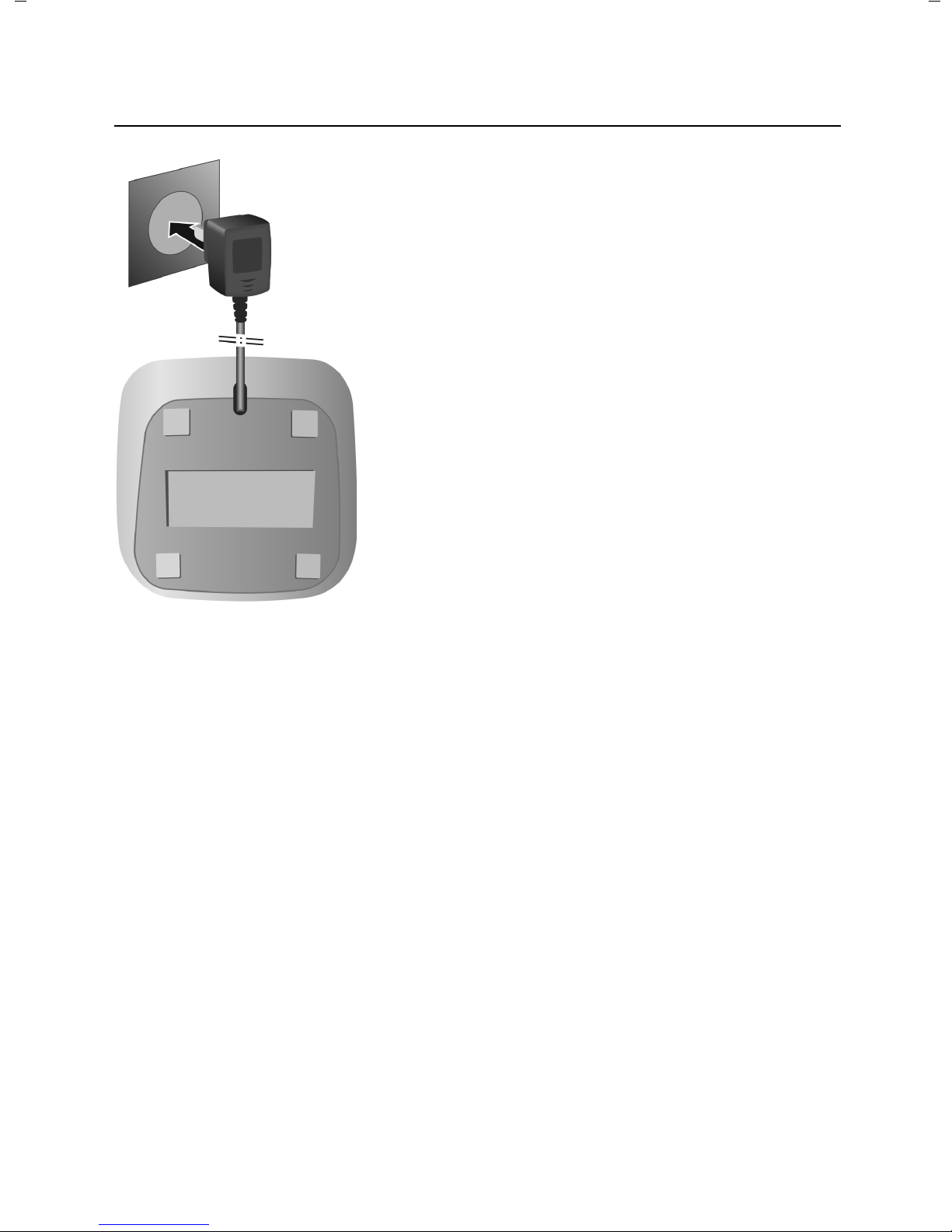

Connecting the handset charging cradle

¤Plug the mains adapter into the plug socket 1.
