GlassUp F4 Bedienungsanleitung
GlassUp F4
USE and MAINTENANCE MANUAL
GlassUp
Via Alfeo Corassori, 72
41124 Modena (MO), Italy
www.glassup.net
Tel.: +39 059 7879243
GlassUp F4
Page 3
USE AND MAINTENANCE MANUAL
GENERAL CONTENTS
INFORMATIVE LETTER ....................................................................................................4
SYMBOLS USED...............................................................................................................4
WARRANTY.................................................................................................................5
INTRODUCTION TO OUR COMPANY.....................................................................................6
PRODUCT DESCRIPTION...................................................................................7
CONTENT AND OPTIONAL..................................................................................7
TECHNICAL FEATURES......................................................................................12
FIELD OF APPLICATION.....................................................................................13
GENERAL SAFETY RULES.................................................................................................14
USE.................................................................................................................15
MAINTENANCE...................................................................................................18
CLEANING.............................................................................................................18
TROUBLESHOOTING...............................................................................................19
DISPOSAL...............................................................................................19
Manual edited by:
Redimec
via Libertà 35
Settimo Milanese (Milano - Italy)
www.redimec.it
Tel./Fax: +39 02 33503341
GlassUp F4
Page 4
USE AND MAINTENANCE MANUAL
Informative letter
This instruction and maintenance manual is an integral part of GlassUp F4 eyewear and must
be easily available to the staff in charge of its installation and maintenance. The user must
know the content of this manual. The descriptions and the pictures it contains are not to be
considered as binding.
Although the main features of the equipment described in this manual are not subject to chan-
ge, GlassUp reserves the right to change any part, detail and accessory it deems necessary to
improve the glasses, or for manufacturing or commercial requirements, at any time and without
being obliged to update this manual immediately.
ALL RIGHTS ARE RESERVED ACCORDING TO THE
INTERNATIONAL COPYRIGHT CONVENTIONS,
the reproduction of any part of this manual, in any form, is forbidden
without the prior written authorization of GlassUp.
The content of this guide can be modied without prior notice. Great care
has been taken in collecting and checking the documentation contained
in this manual to make it as complete and comprehensible as possible.
Nothing contained in this manual can be considered as a warranty,
either expressed or implied - including, but not limiting
the suitability warranty for any special purpose.
Nothing contained in this manual can be interpreted as a modication or
conrmation of the terms of any purchase contract.
WARNING
In case of damages or uncorrect operating, please contact GlassUp Customer Care Technical
Service at the following address:
GlassUp Technical Service
Via Alfeo Corassori, 72
41124 Modena (MO), Italy
www.glassup.net
Tel.: +39 059 7879243
Symbols used
The operations which can be dangerous if they are not carried out correctly are
indicated with this symbol.
GlassUp F4
Page 5
USE AND MAINTENANCE MANUAL
GlassUp F4 glasses have a 12 month warranty from the date of the invoice for companies or
workers with VAT number, unless otherwise stated in writing.
The warranty covers all manufacturing and material defects. Replacements and repair operations
are covered only if carried out by our company and at our servicing shop. In case of return for
repair under warranty, the customer must always send the glasses to GlassUp.
The material to be repaired will have to be sent CARRIAGE FREE.
Once the device has been repaired, it will be sent to the customer CARRIAGE FORWARD.
The warranty does not include:
+failure caused by wrong use or assembly,
+failure caused by external agents,
+failure caused by lack of maintenance or carelessness
WARRANTY FORFEITURE:
+in case of arrearage or other breaches of contract,
+whenever the seals are broken,
+whenever changes or repairs are carried out on our glasses without our prior authorization,
+whenever the damage is caused by improper use, bad treatment, bumps, falls and other
causes not due to normal working conditions,
+whenever the device seems tampered with, dismantled or previously repaired by unautho-
rized staff.
The repairs under manufacturer’s warranty do not interrupt it.
All disputes will be settled in the court of justice of Modena (Italy).
We thank you in advance for the attention you will pay to this manual and we invite you to
inform us of any improvement you will think necessary to make it more complete.
Warranty
GlassUp F4
Page 6
USE AND MAINTENANCE MANUAL
The company is marked by the continuous search of brand new ideas to be developed. This
business is centred on new innovative ideas, curiosity and research are the main characteristics
of every project developed by our team.
GlassUp is also creativity and passion for details. These elements are perfectly integrated in
order to work for innovation in the eyewear sector.
Operators and employees in logistics, quality check and safety departments can have access to
advanced technologies optimizing timing and performances for industrial machine maintenance.
GlassUp services and technologies allow companies enhancing productivity, reducing maintenance
timing and costs, optimizing training results and increasing safety standards at work.
(The management)
Introduction to our company
GlassUp F4
Page 7
USE AND MAINTENANCE MANUAL
Product description
GlassUp F4 glasses are full color monocular, with a 22° FOV and are provided with the following
systems:
• LED
• onboard videocamera
• thermographic camera
• lighting system
• safety lenses
The safety lenses guarantee more security and protection.
Content and Optional
The glasses are supplied with a USB socket type C and a 3.5 headphone jack (placed on the
lower right part of the glasses).
The glasses packaging contains also a battery charger, a charging cable, headphones and a
soft cloth to clean the lenses.
Furthermore, GlassUp offers the following Optional:
- Neoprene foam
- Headset with headband
- Lenses of different colours (transparent, grey, dark)
For further information about the available optional, please contact GlassUp team and the dealer.
GlassUp F4
Page 8
USE AND MAINTENANCE MANUAL
GlassUp F4
Page 9
USE AND MAINTENANCE MANUAL
GlassUp F4
Page 10
USE AND MAINTENANCE MANUAL

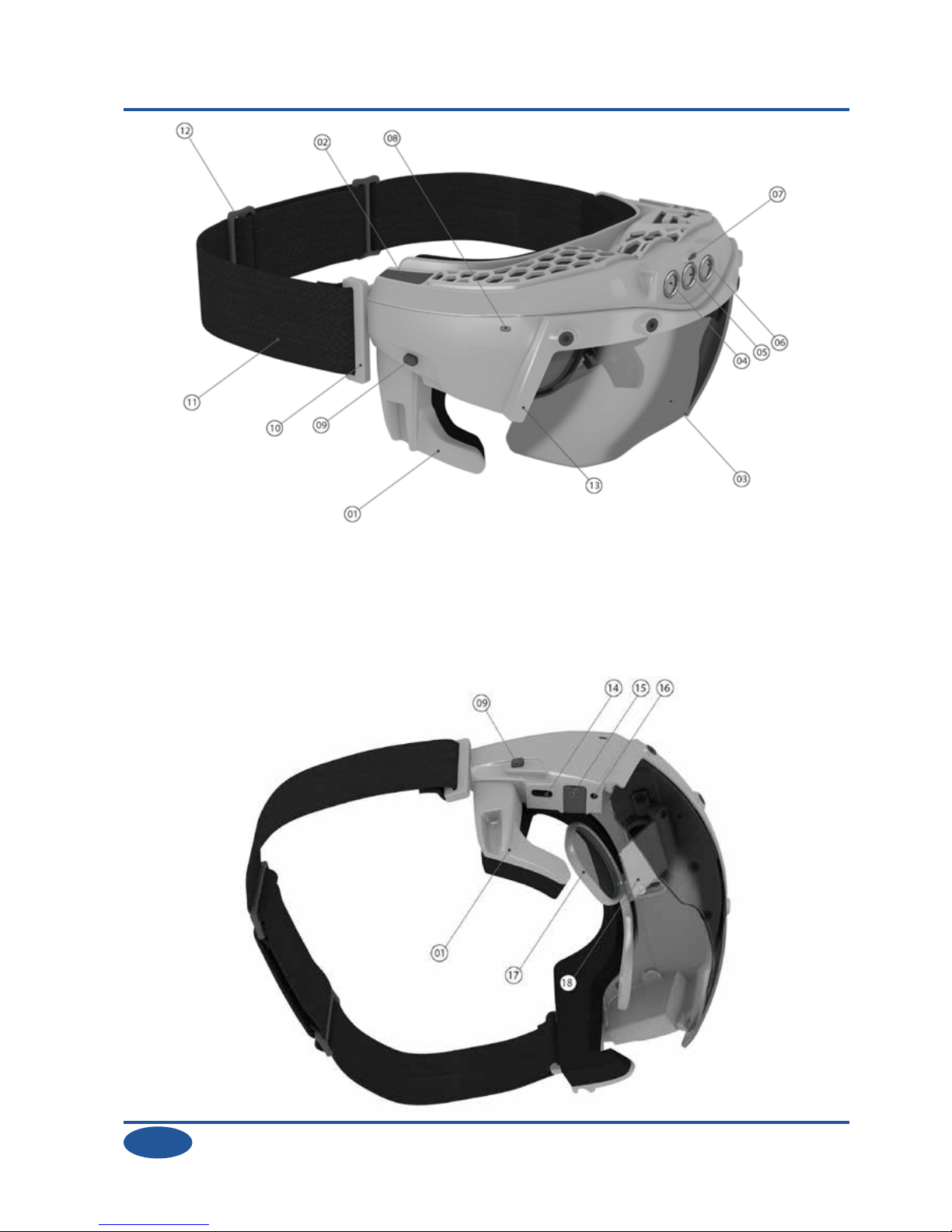

1) Cheekbone protection
2) SD Card input
3) Front protection lens
4) Videocamera
5) Lighting LED
6) Thermographic camera (if any)
7) Lux sensor
8) LED indicating active videocamera
9) Push button
10) Elastic band clip
11) Elastic band
12) Band size adjustment
13) Frame supporting the front protection lens
14) USB input
