Glendinning HOSEMASTER MODEL-S Montageanleitung

HOSEMASTER MODEL-S™&MODEL-D™

INSTALLATION&OPERATION INSTRUCTIONS

∆NOTE: Hosemater Model-S™ or Model-D™ not approved for potable water applications ∆

BEFORE INSTALLING THE HOSEMASTER MODEL-S™ OR MODEL-D™:

Careful consideration should be given to where the sprayer nozzle will be installed. Determine if sufficient space is available below the sprayer nozzle

where the base unit will be installed. MAKE SURE to allow a minimum of 1.60” space on the 1/2” NPT outlet side of the unit for the installation of water

connection hardware to the Hosemaster Model-S™ or Model-D™.

THERE ARE 4 DIFFERENT WAYS TO MOUNT YOUR HOSEMASTER MODEL-S OR MODEL-D:

1. U-BRACKET INSTALLATION (Fig. 1)

The U-Bracket is to be used with the thru-hull deck fitting (PN 99582-DK).

1) AttachtheU-Bracket to the Hosemasterbaseunit by placing over the studs

of the roller guide assembly. Attach the lock nuts and washers and tighten.

2) Usinga1.25” bit, drill a hole where you have determined sufficient space is

available for the installation of the Hosemaster.

2) Remove the nut and gasket from the thru-hull fitting and insert thru-hull fitting

into the hole.

3) Pull outalength of hose and insert the hose through the nut, mounting bracket

andthegasket (in that order) ontothehosebefore insertinghoseintothethru-hull

fitting. Thread nut onto thru-hull fitting shaft and tighten.

4) Connect the sprayer attachment onto the sprayer adapter and pull and release

hose to retract length of hose so that sprayer attachment fits into thru-hull fitting.

5) Connect a lengthofhose from the watersource to the1/2”NPTinletconnector

located on the side of the reel. Hold nut on opposite side when tightening

inlet fitting.

Ø 10.25

[260mm]

11.50

[292mm]

.864

[22mm]

Allow

6.00 [152mm]

for water supply

connection

3.625

[92mm]

Water Connection

hardware

(not included)

Thru-hull

deck fitting

Hose

Fig. 1

U-Bracket

Installation with

thru-hull deck

fitting

Gasket

U-bracket

Nut

Sprayer

Adapter

Deck

lock nuts

740 Century Circle • Conway, SC 29526 • P: 843-399-6146 • F: 843-399-5005

www.glendinningprods.com SML-HMS-INSTAL

LIMITED WARRANTY

PRODUCT(S) COVERED BY THIS LIMITED WARRANTY: HOSEMASTER—MODEL-S, MODEL-D

1. GLENDINNING MARINE PRODUCTS, INC. warrants to the original consumer purchaser that the Hosemaster will be free from defects in material and workmanship under normal use and service for a period of one (1) year from

the date of purchase.

2. This LIMITED WARRANTY applies to defects in material and workmanship. It does not apply to chromeplated or anodized finish or to power cable damage caused by inadequate cable storage area or installation not in accordance

with GLENDINNING MARINE PRODUCTS, INC. specifications.

3. This LIMITED WARRANTY is void if the product has been damaged by accident or unreasonable use, neglect, improper installation, or other causes not arising out of defects in material or workmanship.

4. To obtain performance of this LIMITED WARRANTY obligation the original purchaser should contact GLENDINNING MARINE PRODUCTS, INC. for instructions concerning removal and shipping of the defective component. Upon

compliance of the foregoing procedure all warranted defects will be repaired, or at GLENDINNING MARINE PRODUCTS, INC. option, the complete unit replaced and returned to the consumer, shipping charges prepaid.

5. GLENDINNING MARINE PRODUCTS, INC. does not assume the costs of removal and/or installation of the product or any other incidental costs which may arise asaresult of any defect in materials or workmanship.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ANY WARRANTY IMPLIED BY LAW INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS, IS IN EFFECT ONLY FOR THE DURATION OF

THE EXPRESS WARRANTIESSETFORTH IN THE FIRST PARAGRAPHABOVE. NO REPRESENTATIVE OR PERSON IS AUTHORIZED TO GIVE ANYOTHER WARRANTY OR TO ASSUMEFOR GLENDINNING MARINE

PRODUCTS,INC.ANYOTHER LIABILITY IN CONNECTIONWITHTHE SALEOFIT’SPRODUCTS.GLENDINNING MARINEPRODUCTS, INC.WILLNOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES RESULTINGFROM

THE USE OR INSTALLATION OF IT’S PRODUCTS.

P/N DESCRIPTION HOSE LENGTH

05550-08-X Hosemaster Model-S™ (Base unit/sprayer optional)

NOTE: must specify type of mounting bracket (U=u-bracket, S=side bracket,

E=edge bracket)

8 ft.

[2.4 meters]

05550-16-X Hosemaster Model-S™ (Base unit/sprayer optional)

NOTE: must specify type of mounting bracket (U=u-bracket, S=side bracket,

E=edge bracket)

16 ft.

[4.9 meters]

05551-16-X Hosemaster Model-D™ (Base unit w/ deck wash sprayer&hose adapter fitting)

NOTE: must specify type of mounting bracket (U=u-bracket, S=side bracket,

E=edge bracket)

16 ft.

[4.9 meters]

05551-18-X Hosemaster Model-D™ (Base unit w/ deck wash sprayer&hose adapter fitting)

NOTE: must specify type of mounting bracket (U=u-bracket, S=side bracket,

E=edge bracket)

18 ft.

[5.5 meters]

99582-DK Deck sprayer attachment with thru-hull fitting

NOTE: used with U-bracket mounting assembly only.

99582-REC Long sprayer attachment with hatch assembly

99582-SN Short sprayer attachment with hatch assembly

99593 Deck wash sprayer attachment with hose adapter fitting

NOTE 1: The deck wash sprayer attachment is included when you purchase the

Hosemaster Model-D™ (PN-05551-XX-X).

NOTE 2: The deck wash sprayer attachment can also be used with any Hosemas-

ter Model-S™ (PN-05550-XX-X) when purchased separately.

PROBLEMS DURING INSTALLATION

1. HOSE ALIGNMENT (Fig. 5)

The alignment of thehose to the roller guide assembly is crucial

to the properoperation of the Hosemaster™. When installed

correctlythehoseshould NOT pulltoonesideofthe rollerguide

assembly as shown in the illustrations (right). Installation A and

C show POOR alignment and should be avoided. Installation B

shows GOOD alignment and is recommended for the best op-

eration of the unit.

2. WATER CONNECTION (installer provided)

MAINTENANCE

The Hosemaster-Model S™ and Model-D™ are designed for

longevity of operation with very little maintenance required.

• Any difficulty in the extension or retraction of the hose should

be inspected immediately. Inspect water connections onarou-

tine basis.

• When winterizing, caution should be taken to prevent freeze damage to Hosemaster-Model S™ or Model-D™.

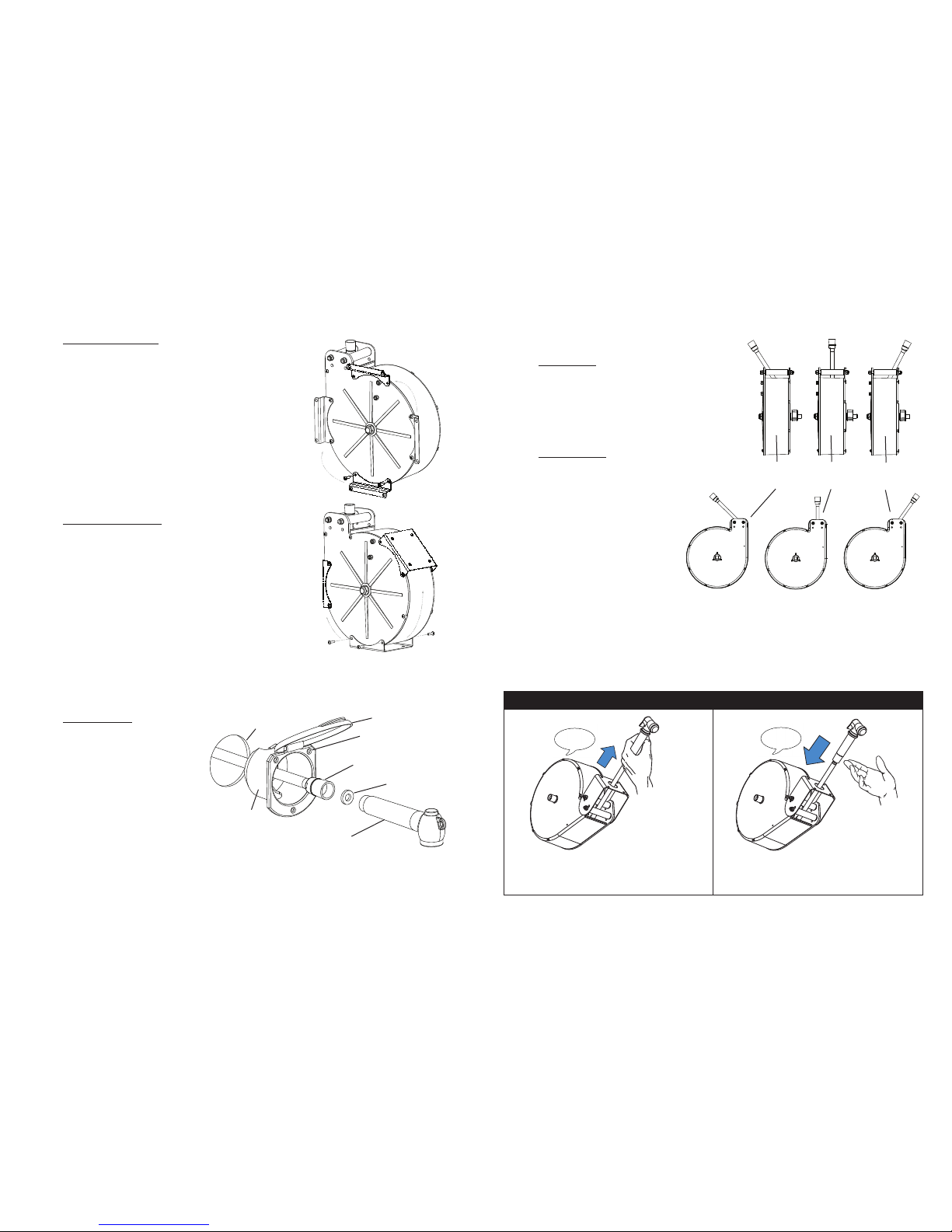

2. SIDE BRACKET INSTALLATION (Fig. 2)

The side brackets are used whenmountingthebaseunit to theceiling or wall of a stor-

age area.

1) Attach the side brackets to the Hosemaster base unit as shown in the illustration in

Figure2using the (4) screws provided with the brackets. Tighten securely.

2) Install (4) 1/4 - 20 lock nuts and washers to roller shafts.

3) Depending on the configuration of the base unit for your installation, it may be nec-

essary to attach theside brackets in one of the other locations on thesideoftheHose-

master. As the illustrations depicts, you may rotate the side brackets around the face

of the base unit to achieve the desired mounting location.

4) DO NOT attach the Hosemaster brackets to an exterior wall. Attach the side brack-

ets to the ceiling or wall of the storage area using (4) #10 screws.

3. EDGE BRACKET INSTALLATION (Fig. 3)

The edge bracket is used when mounting the base unit to the ceiling, floor, and side

or back wall ofastorage area.

1) Unlike the side bracket installation above, you must install the edge bracket to the

storage space BEFORE attaching the bracket to the Hosemaster. Make sure that you

DO NOT attach the bracket to an exterior wall. Attach the edge bracket to the wall or

ceiling/floor using (4) #10 type screws. Tighten securely.

3) Depending on the configuration of the base unit for your installation, it may be nec-

2) Install (4) 1/4 - 20 locknuts and washers to roller shafts.

essary to attachtheedge bracketinoneofthe otherlocationsonthesideofthe Hose-

master. As the illustrations depics, you may rotate the edge bracket around the width

of the base unit to achieve the desired mounting location.

4. HATCH INSTALLATION (Fig. 4)

When using the Recessed Hatch Assembly, you will still be re-

quired to install the Hosemaster™ using one of the3methods

described above. Two styles of hatch assemblies are available

(PN99582-RECshown and PN 99582-SN),eachhatchassem-

bly will be installed as indicated below.

1) Usinga2.75” bit, drillahole where you have determined suf-

ficientspace is available fortheinstallation of the recessed hatch

assembly. Insert cupthroughholeandopencapexposing

mounting screw holes.

2) Using three (3) #10 screws NOT provided, insert into screw

holes in flangeandtightenscrewsagainst mountingcuphousing

being careful not to break plastic flange with too much force.

3) Pull outalength of hose and insert it through the bottom of the hatch. Connect the sprayer attachment to the hose inserting rubber washer between

hose adapter and sprayer attachment. Pull and release hose to retract hose so that sprayer attachment fits into the recessed hatch assembly.

4) Make sure cap closes securely.

Cap

2.75” Hole

in Deck

Hose Adapter

Rubber Washer

Sprayer Attachment

Fig. 4

Hatch Installation with sprayer

Hatch Mounting

Screw Holes (x3)

POOR

ALIGNMENT

POOR

ALIGNMENT

GOOD

ALIGNMENT

Fig. 2

Side Bracket

Installation

Fig. 3

Edge Bracket

Installation

Recessed

Hatch Assembly

TO EXTEND THE HOSE:

Pull out sufficient hose length until you hear an audible “click”.

Releasing tension when “click” is heard will lock hose length

into place.

TO RETRACT THE HOSE:

Pull hose until NO CLICK is heard and release. Hose will auto-

matically retract (CAUTION—Spray attachment may scratch or

injure surface if left to retract unattended).

OPERATION INSTRUCTIONS

“CLICK!” NO

SOUND

Fig. 5

Alignment Issues

5) Connectalength of hose from the water source to the 1/2” NPT inlet con-

nector located on the side of the reel. HOLD nut on opposite side of inlet fitting

when tightening inlet fitting.

4) Attach the edge bracket to the Hosemaster base unit as shown in the illustration in

Figure3using the (4) screws provided with the bracket. Tighten securely.

Whendetermining where you will mountthe Hosemaster™,

ample space must be provided on the water connection side of

the unit.Thedimensional drawing on page1shows a minimum

of 1.60” required for the addition of the water connection hard-

ware (not provided with unit).

HOLD nut on opposite side of inlet fitting when tightening inlet

fitting.

5) Connectalength of hose from the water source to the 1/2” NPT inlet con-

nector located on the side of the reel. HOLD nut on opposite side of inlet fitting when

tightening inlet fitting.
