Glidermatic GRD+ Installation Instructions & owner’s manual Page 1

Glidermatic GRD+

Heavy Duty Automatic Roller Door Operator

Installation Instructions and

Glidermatic GRD+ Owners Manual

Glidermatic GRD+ Installation Instructions & owner’s manual Page 2

Glidermatic GRD+ Heavy Duty Automatic Roller Door Operator

IMPORTANT SAFETY INFORMATION - PLEASE READ CAREFULLY

SAFETY INSTRUCTIONS

WARNING! :-To reduce the risk of severe injury or death

Never let children operate or play with the doors controls

Keep the remote control away from children

Always keep the moving door in sight and away from people and objects until it is completely closed.

NO ONE SHOULD CROSS A MOVING DOOR.

Do not disengage the door opener to manual operation with children / persons or any other object including

motor vehicles within the doorway.

The Garage door must be well balanced. Sticking or binding doors can falsely trigger the obstruction

sensing of the Glidermatic GRD+ Unit.

All maintenance should be carried out by suitably qualified personnel.

Test the door opener monthly. The garage door MUST reverse on contact with a 40mm high rigid object on

the floor. The amount of force the door should encounter is adjustable. Failure to adjust the opener

properly may cause severe injury or death.

The Glidermatic GRD+ Operator has an electronic obstruction system that provides safe and reliable

operation. It is however a legal requirement in some countries to also install a Photo-electric sensor across

the door way, please check this requirement with your local distributor.

Glidermatic GRD+ Drive Assembly (Exploded View)

Fig: 1

Glidermatic GRD+ Installation Instructions & owner’s manual Page 3

Installation Instructions

The GRD+ unit may be retrofitted to any roller doors including non Gliderol doors and also it does not

require any disassembly of the door during installation.

The GRD+ unit may be retrofitted to either side of a roller door. Selection of the desired side may be

determined by the available room, location of power and general installation.

In some circumstances the wall bracket may need to be relocated if the distance between the side

edge of the bracket and face of the drum wheel is greater than 130mm or less than 70mm (110mm for

Gliderol doors drumwheel recessed at 75mm from edge of curtain).

Furthermore the face of the drum wheel should not be recessed more than 75mm from the edge of

the curtain.

The door must be in good working conditions, adjustments to spring tension may be required.

These instructions are to be read in conjunction with Roller Door Installation instructions.

Please note:-

THE FOLLOWING INSTRUCTIONS FOR FIXING OF THE DRIVE UNIT ASSEMBLY TO THE DOOR

ARE FOR A RIGHT HAND INSTALLATION. (Refer to Fig 1-8).

a) Check the door U-bolt is securely tightened on the LEFT hand side of the door.

b) Raise the door and tie a rope around the centre to secure the roll.

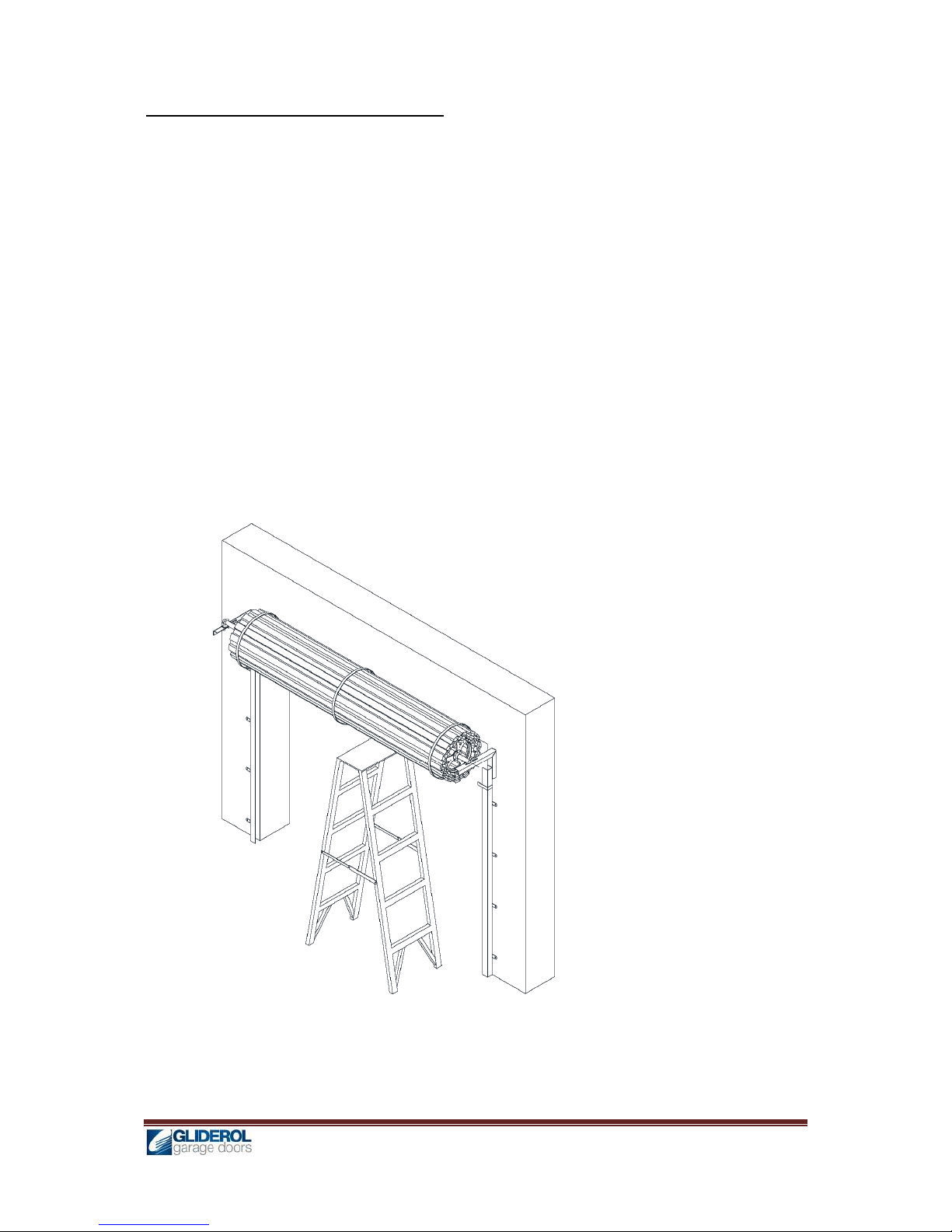

c) Support the right hand end of the door with a suitable prop, e.g. step ladder and soft padding to

protect the door surface (Fig. 2)

Fig: 2

Glidermatic GRD+ Installation Instructions & owner’s manual Page 4

STOP WARNING: DO NOT ALLOW CHILDREN/PEOPLE AROUND THE DOOR WHEN PROPPED.

SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE CAN RESULT FROM FAILURE TO FOLLOW

THIS WARNING.

d) Carefully loosen and remove the right hand spindle ‘U’ bolt

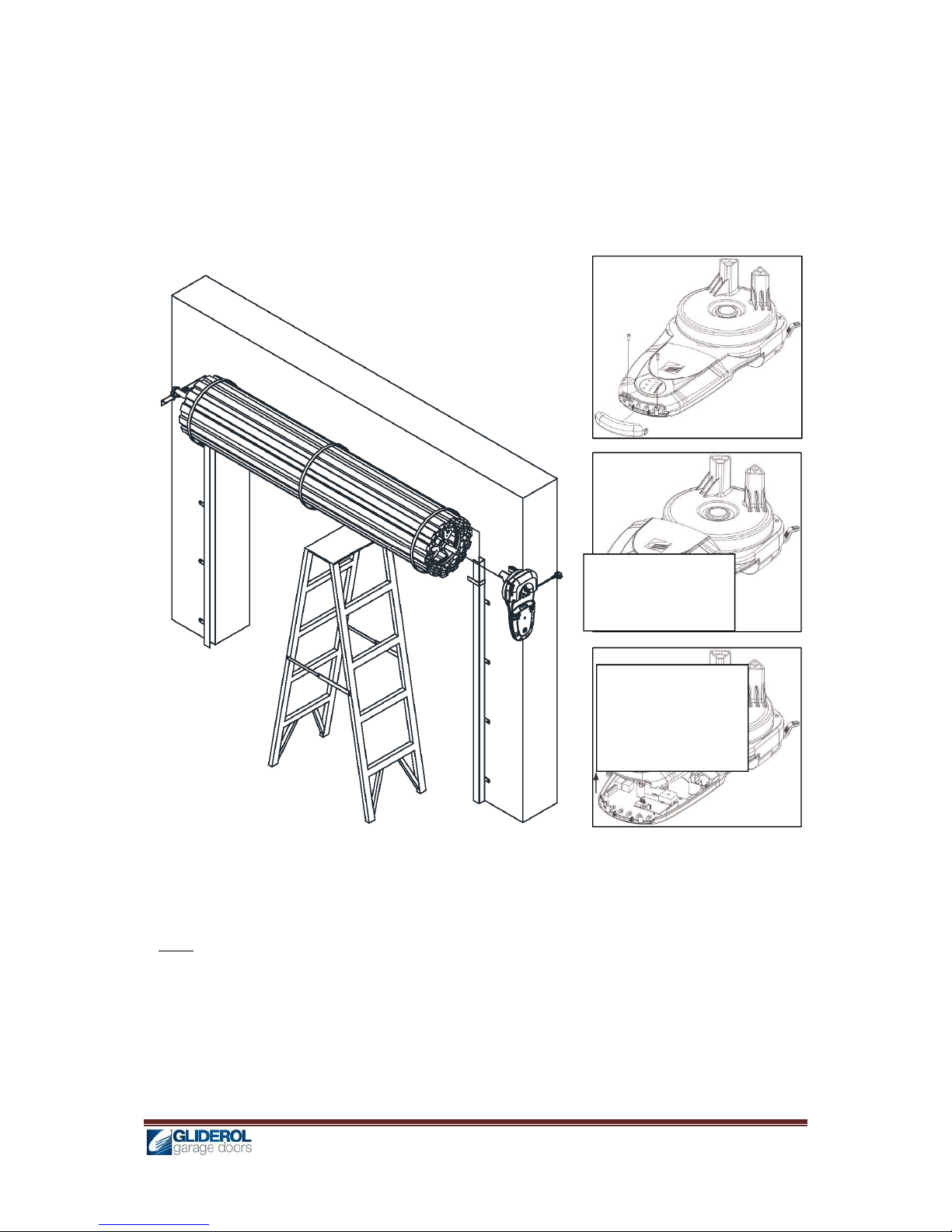

e) Make sure the door supporting prop is secure. While the door is supported remove the right hand

wall mount bracket.(Fig. 3)

f) Slide the GRD drive unit on to the spindle of the door.

g) Locate the engaging fork on the drive unit with drum wheel spoke. Please ensure the unit forks

are fully engaged into the spoke of the drum wheel.

Note: In the event of very tight side-room where the unit can’t be slide through the bottom control

unit of the GRD+ operator can be separated and fit back again upon completion of installation. To

separate the Control unit remove the light lens cover and undo the two screws and lift the control

unit cover (fig: 3a) and now you can access the two bolts and unscrew them to separate the control

unit(fig: 3b). Undo the motor connection wires and hall IC cable from the circuit board. The control

unit can alos be mounted on the wall in which case a motor wire extension loom is required.

Fig: 3

Fig: 3a

Fig: 3b

Fig: 3c

Replace picture Lid

removed and

showing the 2 bolts

Replace picture

Showing Bottom

part and top part

separate.

Glidermatic GRD+ Installation Instructions & owner’s manual Page 5

h) Replace right hand side wall mount bracket (Fig 4)

i) Carefully remove the support from the door and rest spindle on the wall mount bracket

j) Locate the Drive unit on the bracket and fit ‘U’ bolt provided in the fitting kit. Tighten the ‘U’ bolt

with two nuts provided (Fig 4a).

k) Fit Anti coning collar to the opposite end of the door to avoid sideways movement of the drum

wheel.

Alternate Method: On smaller size doors the GRD+ unit may be installed without removing and

replacing the bracket. After step (d) carefully lift the roller door from the bracket enabling GRD drive

unit to slide on to the spindle of the door. Ensuring the unit’s fork is properly engaged with the spoke

of drum wheel carefully rest the door on the spindle and follow consecutive steps from (j)

l) Insert manual release cable into the manual release lever in the motor and secure it by

tightening the lock screw. (Fig 5)

Note: If bracket is in the way of the manual release cable, a small hole may be drilled on the bracket and manual

release cable may be fitted by passing it through the bracket hole and then into the manual release lever and

secured by lock screw.

Replace this picture showing G+

roller unit manual release.

Fig: 5

Fig: 4

Fig: 4a

Glidermatic GRD+ Installation Instructions & owner’s manual Page 6

m) Locate the weight bar on the centre of the bottom rail and drill two locating holes through the holes on the

weight bar into the bottom rail. Secure the weight bar with two bolts provided. (Fig 6)

IMPORTANT: Security rivet / tek screw must always be applied to inner side of drum wheel as shown in Fig: 7a.

Failure to do so may result in internal damage to the GRD drive unit.

Fig: 6

Fig: 7 Fig: 7a

Glidermatic GRD+ Installation Instructions & owner’s manual Page 7

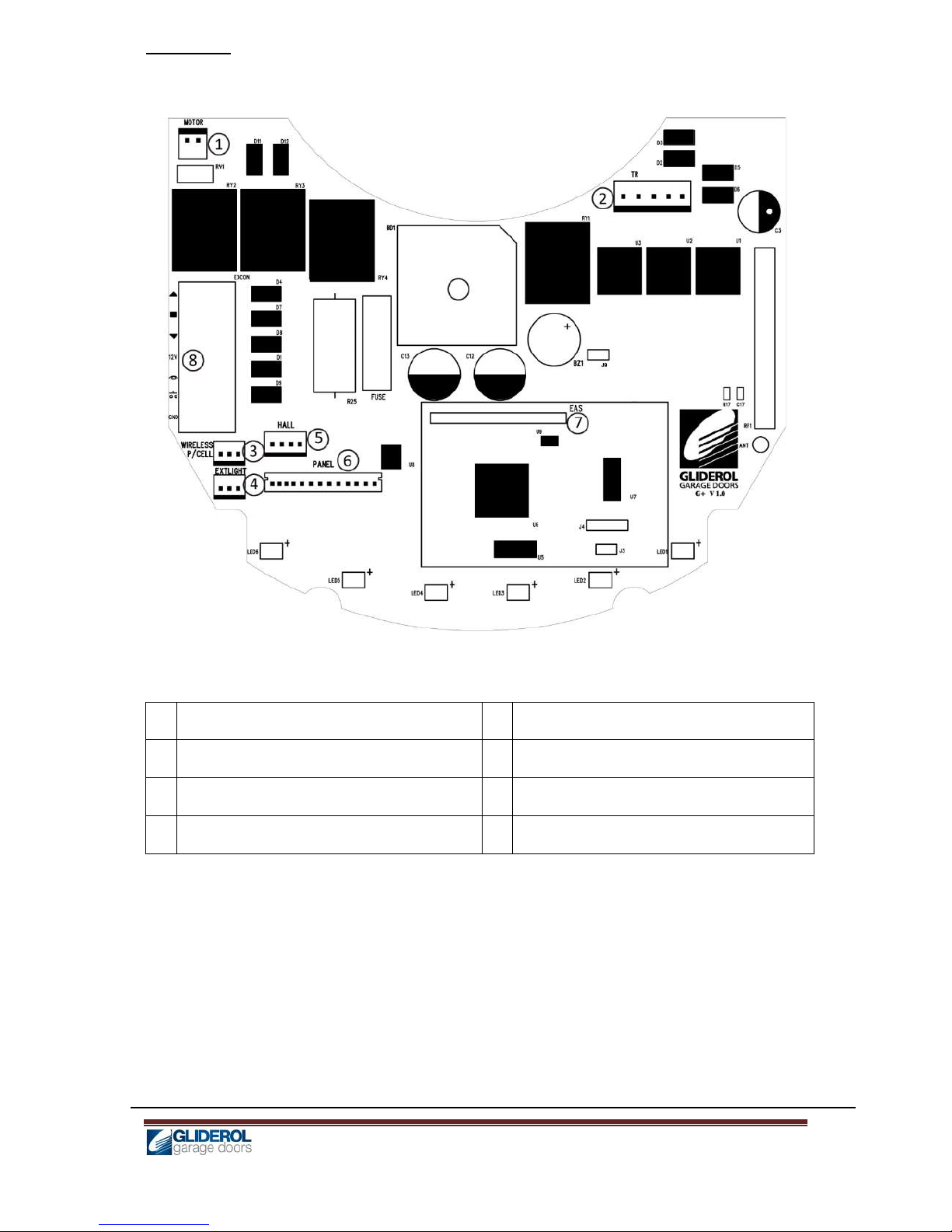

PCB Index

1 Motor Connector 5 Hall Connector

2 Transformer Connector 6 Control Panel Connector

3 Wireless Photocell Connector 7 EAS Receiver Connector

4 External LightConnector 8 External I/O Terminal

Glidermatic GRD+ Installation Instructions & owner’s manual Page 8

User Interface

Transmitter Coding – By Controller

1. Press and hold [ENTER] for 2 seconds to enter menu selection

2. Using [UP] and [DOWN] to select Learn option, and press [ENTER]

3. While the [INDICATOR] is lit, press the desired operation key on transmitter

4. A beep will signal for successful coding. Two beeps signal for a transmitter already in memory

5. Unit will automatically exit the setup after 3 seconds

Transmitter Coding – By Transmitter

1. Using an already programmed transmitter,press and hold OPEN

& STOP keys simultaneously for 2 seconds

2. Unit will beep three times to signal for Learn Mode

3. Press the desired operation key on the new transmitter

4. A beep will signal for successful coding. Two beeps signal for a

transmitter already in memory

5. Unit will automatically exit the setup after 3 seconds

Transmitter Key Setting

OPEN / MENU

STOP / MENU ENTER

/ MENU

DOWN

SETTING INDICATOR

[KEY1] STOP

[KEY2] OPEN

[KEY3] CLOSE

Glidermatic GRD+ Installation Instructions & owner’s manual Page 9

1. Press and hold [ENTER] for 2 seconds to enter menu selection

2. Using [UP] and [DOWN] to select Key option, and press [ENTER]

3. [INDICATOR] will lit to show current key configuration

4. Using [UP] and [DOWN],select the desire transmitter key setting

from the below options

Single Button Configuration: Any one of the three buttons in the transmitter can be used to

control all three functions Stop/Open/Close. Useful when one transmitter can operate more

than one door and a maximum of three doors.

5. Press [ENTER] to confirm selection,and a beep will signal for successful setup.

Transmitter Code Erase

1. Press and hold [ENTER] for 2 seconds to enter menu selection

2. Using [UP] and [DOWN] to select Learn option

3. To erase all transmitter code in memory, press and hold [ENTER] for 5 seconds

4. When [INDICATOR] diminishes, all codes have been erased

Limit Setting – By Controller

KEY 2

[KEY1]

Stop/Open/Close

[KEY1] STOP

[KEY2] OPEN

[KEY3] CLOSE

OPEN / STOP / CLOSE

Three Button Configuration: Each buttons in the transmitter can be used to control

individual functions like functions Stop/Open/Close of eth same door.

Glidermatic GRD+ Installation Instructions & owner’s manual Page 10

1. Press and hold [ENTER] for 2 seconds to enter menu selection

2. Using [UP] and [DOWN] to select Limit option

3. To initiate door limit setting, and press [ENTER]

4. [INDICATOR] will lit to show current drive handing

5. Using [UP] and [DOWN],select the desire drive handing

Left Hand Drive Right Hand Drive

6. Press [ENTER] to confirm selection, and door will begin to close to find floor position. Upon

reaching the floor, the unit will beep 3 times to confirm.

7. Proceed to setup the TOP limit, by using transmitter’s OPEN & CLOSE keys, and confirm TOP limit

position by pressing STOP key

8. Then set the BOTTOM limit, also by using transmitter’s OPEN & CLOSE keys, and confirm

BOTTOM limit position by pressing STOP key

9. Once limits are set, the unit will automatically performa full calibration cycle

10. When the door is closed after calibration, the limits are successfully setup

Limit Resetting – By Transmitter

1. Using an already programmed transmitter, press and hold OPEN

& CLOSE keys simultaneously for 10 seconds

2. Door will begin to close to find floor position, and upon

reaching the floor, the unit will beep 3 times to confirm.

3. Proceed to setup the TOP limit, by using transmitter’s OPEN &

CLOSE keys, and confirm TOP limit position by pressing STOP

key

4. Then set the BOTTOM limit, also by using transmitter’s OPEN & CLOSE keys, and confirm

BOTTOM limit position by pressing STOP key

5. Once limits are set, the unit will automatically performa full calibration cycle

6. When the door is closed after calibration, the limits are successfully setup

[KEY1] STOP

[KEY2] OPEN

[KEY3] CLOSE

Important Note: In the event of power failure and power resumed or GRD+ unit switched OFF and

switched back ON or Manual release chord operated, the GRD+ operator will perform an “AUTO

LIMIT RESET CYCLE” by which the door will only CLOSE upon pressing the remote button / CLOSE

button on control panel to find the floor (OPEN function is disabled until the limit reset cycle is

completed. From the nextcycle the door travel limits are restoredand door will operate as normal.
