Global Telecom Corp SWC-9200 Bedienungsanleitung

User manual

SWC-9200 VolP CPE

GLOBAL TELECOM CORP

User manual

SWC-9200 VolP CPE

Global Telecom Corp

HIGH ANTENNA GAIN

Contents

Introduction to the Product 4.8 Feature 30

1. Functional Features 04 4.9 Dialing 33

2. Front side of CPE 04 4.10 Speed Dial 34

3. Back of CPE 05 4.11 FAX 35

4.12 RTP 36

Configuration 4.13 Phone 37

1. Network Configuration 06 4.14 Voice 39

2. Package Contents 07 4.15 Profile 41

3. PC Configuration (Windows XP) 08 5. Application Setup

4. How to check your IP address 09 5.1 Firewall 42

5.2 DMZ & Port Forwarding 43

Logging in to the Built-in Web 10 5.3 VPN pass through 45

Interface 5.4 UPnP 46

5.5 QoS 47

CPE Setup on the web page 11 5.6 DDNS 49

5.7 MTU 50

1. WiMAX Status 11 5.8 NTP 51

2. LAN Setup 5.9 Remote Control 52

2.1 LAN Configuration 13 6. Admin Setup

2.2 Status 14 6.1 Version 53

3. WLAN 6.2 Password 53

3.1 WiFi(Wireless LAN) Setup 15 6.3 CPE Upgrade 54

3.2 WiFi Filter 16 6.4 Reboot/Default Setting 55

3.3 WiFi Status 17 6.5 Diagnostic 56

4. VolP

4.1 System 18 Troubleshooting 57

4.2 Media 20 Operating Information 60

4.3 QoS 22

4.4 Provision 23 Safety Information 60

4.5 Status 24 Legal Information

4.6 Server 25 61

4.7 User 27 Warranty Information 62

Introduction to the Product

Thank you for choosing SWC-9200 , Indoor VolP CPE. SWC-9200 allows

you

to share a superior data communication via an Ethernet and WiFi network.

It offers easy installation, reliable network connection, advanced security &

authentication features, and more.

Please read this User Manual carefully to learn about the SWC-9200.

It will help you to meet your diverse communication needs, at home and at

the office.

1. Functional Features

Function

IEEE802.16e WiMAX

Support

IEEE802.11 b/g/n WiFi Support

IEEE802.3u Ethernet Support

VoIP Support

LAN Port

NAT function

Firewall function

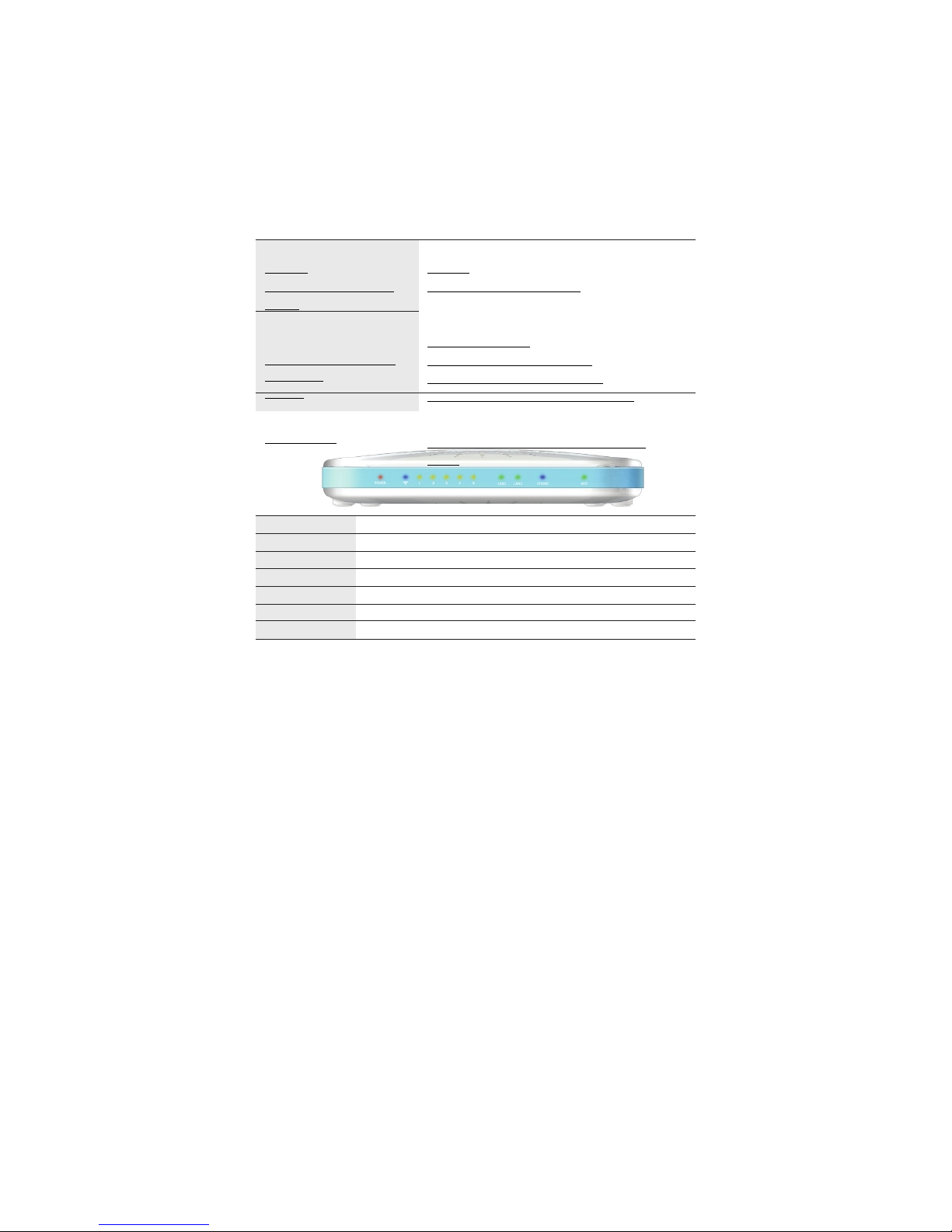

2. Front side of CPE

Features

Wave2 = DL : 40Mbps / UL : 8Mbps

802.11b CCK MODE / 802.11n OFDM

MODE

802.11g OFDM MODE

10/100Mbps wired LAN connectable

1 x RJ-11 for Analog Telephone Service

2 x Ports 10/100Mbps Ethernet Switch built-in

Supports up to 253 wired and wireless connections

and internet routers

Manages basic firewall and IP/Port/based

access

LED Indicator

WiFi

PHONE

LAN1 / LAN2

WiMAX

PWR

RSSI

Function

802.11b/g/n

ON when connected to Telephone

ON when connected to PC, Flashing during

communication

IEEE 802.16e-2005 Wave 2

Power Supply status

WiMAX RSSI ( Received Signal Strength Indication) Status

3. Back of CPE

Hardware Reset Power Switch

PC Power Adapter

Antenna1 Antenna3 WiFi Antenna2

WiMAX Main Telephone/Fax WiMAX Diversity

Item Details

External Antenna

LAN1 / LAN2

PHONE

DC 12V

Antenna1 : WiMAX Main

Antenna2 : WiMAX Diversity

Antenna3 : WiFi

Detachable external antenna

User external antenna (attachable)

* Antenna Classification

- 2.3G : M23

- 2.5G : M25

- 3.5G : M35

-WiFi : WiFi

PC or Hub connection

Telephone connection

Power Adapter connection(DC 12V

2.0A)

POWER Power On/Off Switch (Switch On/Off by pressing up or down)

RESET Restore CPE Factory Default Settings

NOTE : If you forget the LOGIN password for the CPE or IP address after

marking changes, use the Reset switch to restore the CPE to its

original Factory Default settings.

Configuration

1. Network Configuration

Local Network Gateway External Network

WiMAX Internet

Telephone

To verify that the CPE is operating normally, check the following LEDs after

connecting the CPE, modem and PC with a LAN cable, as follows:

LED

PWR

LAN1 / LAN2

PHONE

WiMAX

RSSI

Normal Operation

When power switch On

ON when cable is connected

normally

On when Phone cable is

connected

normally

The number of the lighting LEDs

increases depending on

WiMAX

received signal strength(1~5)

Action to take if not illuminated

Check for adapter power failure

Check cable connection and

power supply

Check cable connection and

Telephone

Check WiMAX connection

status

If one or more of the LED lights is not in"normal operation,"refer to the actions

specified in the table. If there is a normal connection between CPE and PC,

you have to set up the PC and CPE.

The purpose of PC setup is to control network configuration for Windows

98, Windows 2000, Windows XP, Vista, Windows 7 or Mac OS X to use

the Internet while the PC is connected to a CPE. The purpose of CPE

setup is to connect the CPE to the Internet.

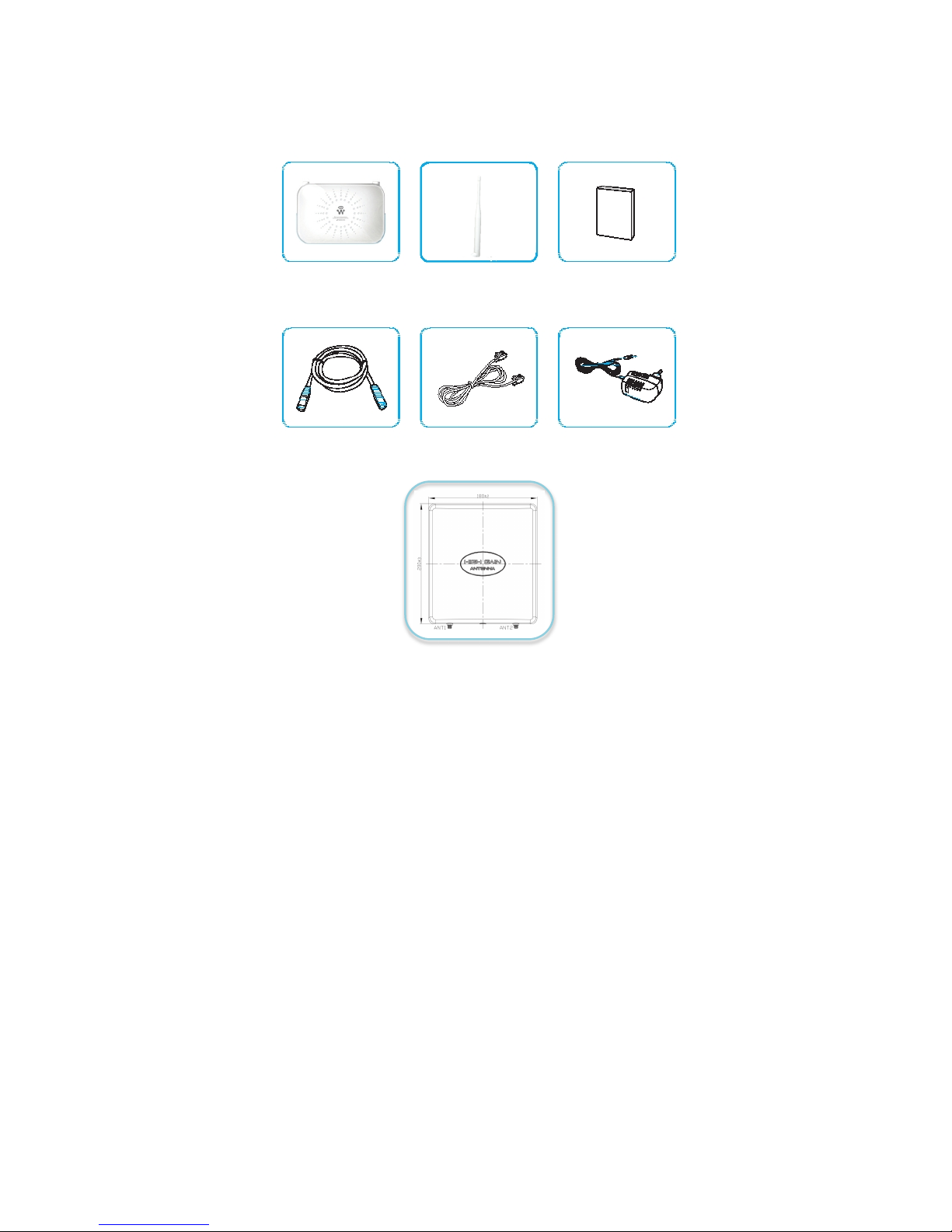

2. Package Contents

Main Unit WIFI Antenna X 1 User Manual

LAN Cable Tel. Line Adapter

Outdoor Antenna

3. PC Configuration (Windows XP)

Most computers already have TCP/IP configuration enabled. For your

computer to support CPE, please verify that the IP address and DNS

settings

are automatically generated in the Local Area connection of your Internet

Protocol (TCP/IP) properties.

•In the Windows environment :

- Click "Start" >> Settings >>Select "Control Panel" >> Click "Network and

Internet Connection" >> Click "Network Connection" >> Right-click "Local Area

Connection" and Select "Properties" >> Select "Internet Protocol (TCP/IP)" and

click "Properties" >> Select "obtain an IP address automatically" >> Click the

"OK" button.

- The "Wireless Network Connection" is the same as above step.

4. How to check your IP address

•Open the Command Prompt window by clicking the "Start" button and

selecting "Run".

Enter "cmd", and click the "OK" button.

•When the Command Prompt window opens, enter the "ipconfig"

command to verify the IP address, Subnet mask, and Gateway, which are

automatically assigned to your PC.

NOTE : All PCs connected to CPE will receive their own assigned IP address.

NOTE : If an IP address is not assigned, check the following. Then restart the

PC and check whether an IP address is assigned.

- LAN cable connection between PC and CPE

- Check TCP/IP setup details

Logging in to the built-in Web Interface

The Web Interface allows you to manage the CPE and to view.

In the Address Bar :

•Type http://192.168.1.1 and press ENTER to access the login screen.

•When the login screen appears, it prompts you for a password.

•Default user ID and password are "admin / admin"

•You can change the password after logging in

(Passwords are case-sensitive).

ID / Password = admin / admin

NOTE : The Web Interface can be accessed by entering http://192.168.1.1 in

the Address Bar, regardless of the network connection status.

When there is no input for 1 hour after you login to the Web Interface,

you will be automatically logged out.
