Glomex WeBBoat 4G Betriebsanleitung

INTEGRATED 3G/4G/WI-FI SYSTEM

To browse the Internet along the coast

USER AND INSTALLATION MANUAL

GL00159

LABEL

weBBoat 4G

TECHNICAL SPECIFICATIONS

Antenna dimensions (diam.x H): 250 x 300 mm / 10x12"

Antenna weight: 1,2 kg / 2,65 lb

Automatic switch from Wi-FI registred networks to 4G.

4G backup WAN function

LTE 4G up to 100 Mbps in download and 50 Mbps in upload

DC- HSPA+ up to 42 Mbps in download and 5.76 Mbps in upload

Four Ethernet ports

2 Diversity (high) performance antennas

SMS reboot function

Android and iOS App for an easy control

Easy installation require only power supply connection 12/24V

UV waterproof resistant Dome

General Feautures

LTE FDD bands: B1/B2/B3/B5/B7/B8/B20

DC- HSPA+/HASPA+/HSPA/UMTS: 850/900/1900/2000 MHz

GSM/GPRS/EDGE: 1900/1800/900/850 MHz

Power Class 3 (23 dBm) for LTE FDD

Power Class 3 (24 dBm) for UMTS

Power Class E2 (26 dBm) for EDGE 1800/1900 MHz

Power Class E2 (27 dBm) for EDGE 850/900 MHz

Power Class 1 (30 dBm) for GSM/GPRS 1900/1800 Mhz

Power Class 4 (33 dBm) for GSM/GPRS 900/850 Mhz

Data

Mode LTE: DL 100 Mbps - 50 Mbps UL

DC-HSPA+: DL 42 Mbps - 5.76 Mbps UL

WCDMA PS: DL 384 Kbps - 384 Kbps UL

EDGE: DL 236,8 Kbps - 236,8 Kbps UL

GPRS: DL 85,6 Kbps - 85,6 Kbps UL

Complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b wireless

Complies with IEEE 802.3 and IEEE 802.3u Ethernet standards - I Access

point for connecting Wi-FI

weBBoat 4G

INDEX

1. FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 DELIVERY LETTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 IDENTIFICATION weBBoat . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.4 GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.5 ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . 6

3. CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2 INSERTING THE SIM CARD . . . . . . . . . . . . . . . . . . . . . . . 13

4. HOW TO DOWNLOAD CONTROL APP FOR weBBoat . . . . . . 14

5. FIRST TIME SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

weBBoat 4G

1. FOREWORD

1.1 DELIVERY LETTER

Welcome: with the installation of this antenna, the world of fast Internet

comes on board your boat.

This manual has been drafted in order to help you with the correct installa-

tion and operation of the weBBoat to meet all your requirements.

1.2 IDENTIFICATION weBBoat

For any communication with GLOMEX or its service center, always have the

serial number and the model of the weBBoat shown on page one of the

manual, on the packaging and on the router inside the weBBoat.

1.3 WARRANTY

GLOMEX guarantees the weBBoat IT1004 against conformity defects for a

period of 24 (twenty-four) months from the date of shipment.

Warranty is intended as the repair or replacement of the equipment showing

conformity defects when entering the sales contract, with no charge for the

materials.

In case of conformity defects, the customer is entitled to the replacement of

the goods with no charge.

The warranty is only valid if the product comes with a valid proof of purchase

(receipt or invoice).

The non-conforming product must be sent back to a Service Centre or

authorized retailer, who, if necessary, will forward it to:

GLOMEX S.r.l.

Via Faentina 165/G

48124, Ravenna (Italy)

complete with all the accessories supplied at the time of purchase for a

refund.

The serial number must neither be erased nor made illegible, otherwise the

warranty will be voided.

SCAUTION

Conserve the installation and user manual with care! Losing

the serial number makes the warranty null and void!

weBBoat 4G

The warranty does not apply in case of damage due to carelessness, use or

installation not compliant with the instructions given, tampering, product or

serial number modification, damage due to accidental causes or to the

buyer’s negligence.

Moreover, warranty does not apply in case of damage consequent to connec-

tions of the equipment to different voltages than those indicated or to sud-

den voltage variations of the network the equipment is connected to, as well

as in case of damage caused by leakage, fire, inductive/electrostatic dis-

charges or discharges due to lightning, use of cables different to those pro-

vided, overvoltages or other phenomena not related to the equipment.

Finally, the warranty does not apply to problems caused by the tele-

phone operator and at a WI-FI hotspot.

The parts subject to wear consequent to use such as connection cables, con-

nectors, external parts and plastic supports are covered by a one-year

period warranty.

The following are not covered by warranty: periodic monitoring, software

updates, settings of the product, maintenance.

After the expiration of the warranty period, the technical support activities

will be carried out charging the customer for the replaced parts, the labour

costs and freight charges, according to current rates.

The equipment will be replaced or repaired under warranty only and

exclusively on Glomex quality department’s approval.

Should any dispute rise, the place of jurisdiction will exclusively be Ravenna

(Italy).

The warranty is provided by:

GLOMEX S.r.l.

Via Faentina 165/G

48124 Ravenna (Italy)

1.4 GENERAL SAFETY RULES

Carefully read the instructions and follow the recommended precautions to

avoid potential hazards and safeguard your

health and safety, before carrying out any installation and maintenance.

This manual contains the following indications:

SCAUTION

This symbol warns against potential damage to the equip-

ment which could involve the operator’s safety.

weBBoat 4G

Failure to comply with the instructions preceded by the above-mentioned

keywords (WARNING) can cause serious accidents or even the death of the

persons involved.

Moreover, in this Manual, some instructions are given with text in italics, pre-

ceded by the word NOTE.

The information and specifications given in this manual are based upon the

information available at the moment it is written.

In case of doubts, do not hesitate to contact GLOMEX S.r.l. to the following

email:

[email protected]

1.5 ENVIRONMENT

Do not throw the appliance away with the normal household waste at the

end of its life, but hand it in at an official point for recycling. By doing this,

you will help preserve the environment.

2. PRODUCT DESCRIPTION

weBBoat 3G/4G IT1004 is the new integrated system for surfing the internet

with 4G network and Wi-Fi both with the boat anchored in the harbor and

along the coast at more than 10 nautical miles, suitable for all types of

boats, ships and yachts where coverage of GSM networks and Wi-Fi permits.

The weBBoat 4G is also compatible with LTE, 3G systems, UMTS and GPRS

data.

NOTE The distance from the coast within which the weBBoat works

depends on the 3G/4G signal coverage from the transmitter of your

telephone operator, on the correct installation of weBBoat and on its

height.

Inside the ASA radome there is a 3G/4G antenna, a Wi-Fi antenna, a specifi-

cally constructed router with dedicated software to operate on the boat and

an access point which, protected from the elements, allow you to have a

simple and convenient high-speed internet connection on your boat in a few

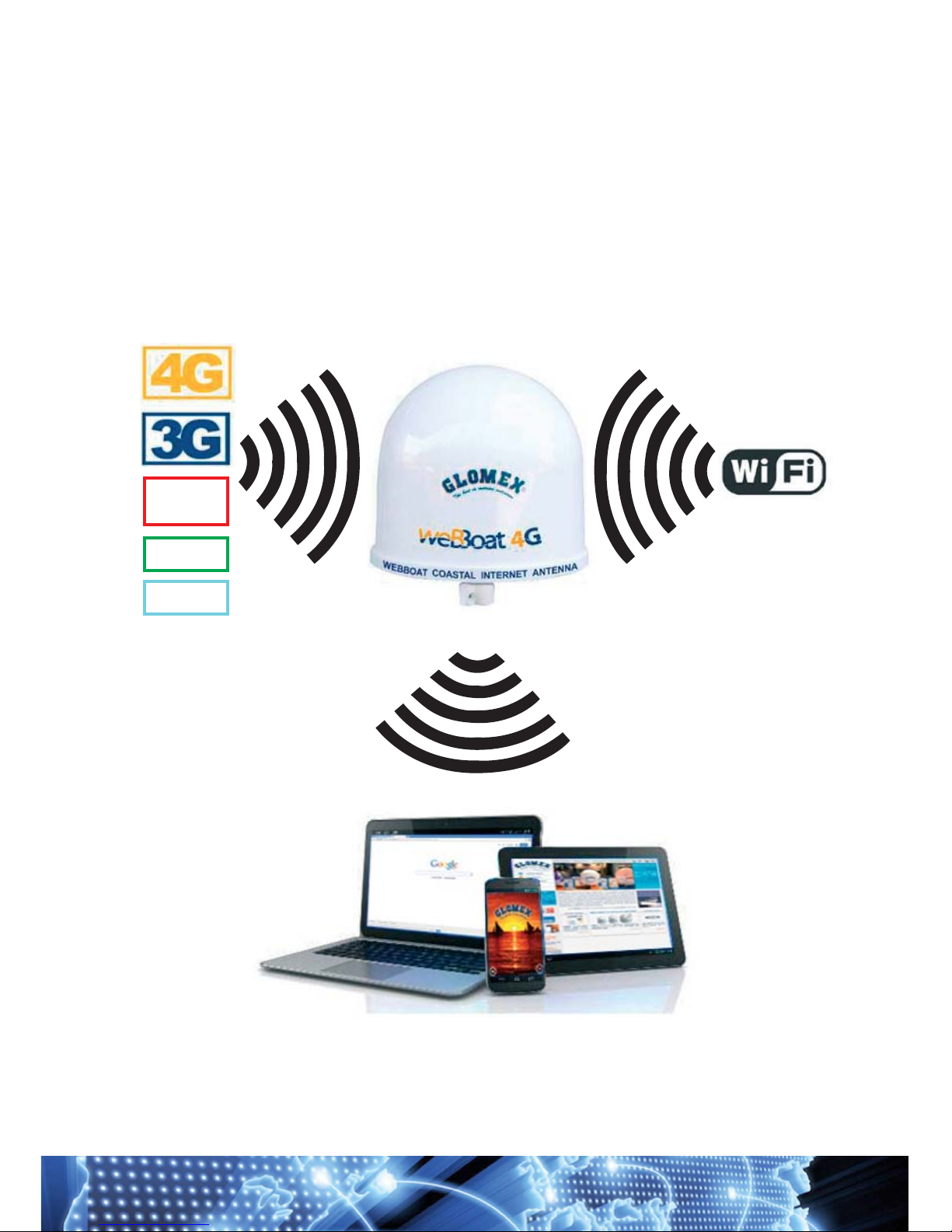

Fig. 1

weBBoat 4G

minutes: simply insert a SIM card (not supplied) into the external slot and

you can connect in Wi-Fi any internet devices (iPhone, smartphone, iPad,

tablet, PC...) to the Wi-Fi network of the harbor or to the 3G network.

In addition, the router inside the radome compact size (250mm/10" in diam-

eter and 300mm/12" in height), it automatically switches from 3G/4G net-

work to the Wi-Fi network (where you have already registered), and vice

versa to be certain of an internet connection without interruptions and cost-

effective. Finally, to manage in an extremely easy and convenient manner

the integrated system, weBBoat Glomex also offers an App for iOS and

Android.

GL00186

UMTS

GPRS

Fig. 2

weBBoat 4G

3. CONTENTS

The weBBoat is shipped packed in a cardboard box and sealed with the

strapping GLOMEX

"SEAL OF SAFETY" which acts as a seal for the WARRANTY OF CONTENTS.

Upon receipt, check that:

- the packaging is whole and the warranty hoop is present;

- the supply matches the order specifications;

- there is no damage to the antenna;

- there is the label with SSID, S/N and PASSWORD to access the weB-

Boat. This label is present on page 1 of this manual.

In case of damage or missing parts, immediately inform the Retailer, if possi-

ble with appropriate photos.

GL00152

Fig. 3

Fig. 4

SISTEMA INTEGRATO 4G/WI-FI
