Glowworm 100sxi Bedienungsanleitung

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

Tobeleftwiththeuser

Instructions for Use

High Efficiency System Store

Ultrapower sxi

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

WARNING

GAS LEAK OR FAULT

Turn off the gas emergency control valve immediately. Eliminate all sources of ignition, i.e.smoking,

blowlamps, hot air guns etc. Do not operate electrical lights or switches either on or off.

Open all doors and windows, ventilate the area.

METAL PARTS

This boiler contains metal parts (components) and care should be taken when handling and cleaning,

with particular regard to edges.

SEALED COMPONENTS

Under no circumstances must the user interfere with or adjust sealed parts.

Glow-worm service call: 01773 828100 Technical helpline: 01773 828300

General and Sales enquiries Tel: 01773 824639 Fax: 01773 820569

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

100sxi

G.C. No. 41-019-09

G.C. No. 41-019-10

13146

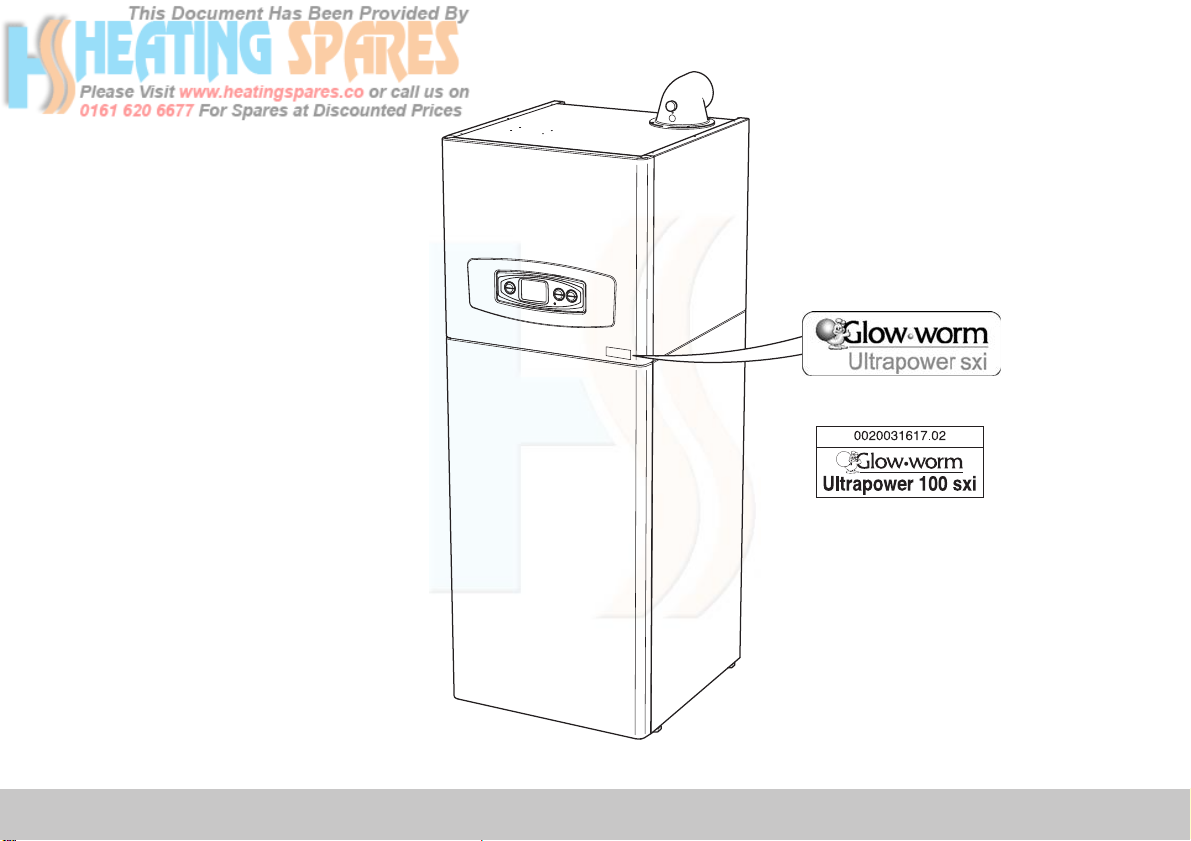

Position of name badge

170sxi

The model type label is

positioned on the lower

front panel top edge.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

Contents Page

Important Information 5

Boiler Design & Clearances 6

Boiler Safety Devices 7

Servicing, Maintenance & Spare Parts 8

User Control Panel 9

Lighting the Boiler 10

Adjusting Temperature 11

Setting the Clock 12

Setting the Programmer 13

Advancing Programmer 14

Fault Finding 15

These instructions are an integral part of the boiler and must, to comply with the current issue of the Gas

Safety (Installation and Use) Regulations, be left with the user.

Please read these instructions and follow them carefully for the safe and economical use of your boiler.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

Gas Safety (Installation and Use) Regulations

In your own interests and that of safety, it is the Law that ALL

gas appliances have been installed by a competent person

in accordance with the current issue of the regulations.

Gas Category

This boiler is for use only on G20 natural gas.

Testing and Certification

Thisboileristestedandcertificatedforsafetyandperformance.

It is, therefore, important that no alteration is made to the

boiler, without permission, in writing, by Glow-worm.

Any alteration not approved by Glow-worm, could invalidate

the certification, boiler warranty and may also infringe the

current issue of the statutory requirements.

Important Information

Electrical Connection

Boiler

The boiler MUST be earthed.

TheboilerMUSTbeconnectedtoapermanent230Vac,50Hz

supply, fused at 3A.

Connection of the whole electrical system of the boiler,

includinganyheatingcontrols,totheelectricalsupplymustbe

through one common isolator.

The colours of three core flexible cable are, blue - neutral,

brown - live, green and yellow - earth.

Immersion Heater

The immersion MUST be earthed.

TheimmersionMUSTbeconnectedtoapermanent230Vac,

50Hz supply, fused at 13A.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

Boiler Design & Clearances

Description

TheUltrapowersxiisahighefficiencycentralheatingappliance,

closecoupledtoanun-ventedcylinder.Thepump,expansion

vesselsand associatedsafety devicesare allfitted withinthe

appliance,providingaoneboxsolutionforpropertiesrequiring

a high domestic hot water demand. The intelligent control

system is designed for both simple operation and maximum

control. Once the controls are set the boiler will operate

automatically.

Additionally an immersion heater is supplied fitted to the

cylinder. It is intended for use as a back up should the boiler

fail, it will not give optimum DHW performance.

Pluming from flue terminal

Like all condensing boilers it will produce a plume of

condensation from the flue terminal in cool weather. This is

duetothehighefficiencyandhencelowfluegastemperature

of the boiler. It is normal and not a fault indication.

Compartment or Cupboard Installations

Ventilation is not required for compartment or cupboard

installations. Do not use the compartment or cupboard for

storage.

Diagram 1

13241

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

Boiler Safety Devices

Boiler Shutdown

The boiler software is designed to recognise the potential for

an overheat lockout and will shutdown before this happens.

To restart the boiler, press the reset button, see diagram 2.

If the boiler fails to resume normal operation and all external

controlsarecallingforheat,thencallyourInstallation/Servicing

company or Glow-worm service.

Frost Protection

Withthe gas andelectric suppliesON and irrespectiveof any

room thermostat setting, the integral frost protection device

will operate the pump when the temperature of the boiler

water falls below 8OC.

The pump will stop after 10 minutes if the temperature is

higher than 10OC or has already reached 35OC.

Theburnerwillonlyactivateiftheboilertemperaturedoesnot

reach 10OC after 30 minutes or at any time if the temperature

drops to 5OC.

The burner will switch off when the temperature reaches

35OC.

NOTE: Any other exposed areas of the system should be

protected by a separate frost thermostat.

Cylinder Protection

The cylinder also has integral frost protection and should the

temperature fall below 10°C the cylinder water will be heated

to 15°C.

Condensate Drain Blockage

Asasafetyfeaturetheboilerwillstopworkingifthecondensate

drain becomes blocked. During freezing conditions this may

be due to the forming of ice in the condense drain external to

thehouse. Releaseaniceblockagebytheuseofwarmcloths

on the pipe. The boiler should then restart. Contact your

Installation/Servicing company or Glow-worm service if the

fault persists.

Disinfection Cycle

The cylinder has a built in disinfection cycle which raises the

water temperature to 70OC for 1 hour every Wednesday at

2.00am.

Safety Discharge Valves

Safety discharge valves and discharge pipes are fitted to the

boiler. These valves MUST NOT be touched. If there is any

discharge from the pipes, switch off the boiler electrical

supply, then call your Installation/Servicing company or

Glow-worm service.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

General Note

Servicing/maintenanceshouldbecarriedoutbyacompetent

person in accordance with the rules in force in the countries

of destination.

If this boiler is installed in a rented property in the UK there is

a duty of care imposed on the owner of the property by the

current issue of the Gas Safety (Installation and Use)

Regulations, Section 35.

Servicing

To ensure the continued efficient and safe operation of the

boiler it is recommended that it is checked and serviced at

regularintervals.Thefrequencyofservicingwilldependupon

the site conditions and usage, but in general, once a year

should be enough.

To obtain service, please call your installer or Glow-worm’s

own service organisation using the telephone number on the

inside front cover of this booklet.

Cleaning

Theboilercasingcanbecleanedusingamildliquiddetergent

with a damp cloth, then a dry cloth to polish.

Donotuseanyformofabrasiveorsolventcleanerasyoumay

damage the paintwork.

Servicing, Maintenance & Spare parts

Frost Protection

Ifthemainselectricityandgasservicesaretobeturnedofffor

any long periods during severe weather, it is recommended

thatthewholesystem,includingthe boiler,shouldbedrained

to avoid the risk of freezing.

Sealed Water Systems

The draining, refilling and pressurising MUST be carried out

by a competent person, contact your Installation/Servicing

company or Glow-worm Service.

Spare Parts

REMEMBER, When replacing a part on this boiler, use only

sparepartsthatyoucanbeassuredconformtothesafetyand

performance specification that we require. Do not use

reconditioned or copy parts that have not been clearly

authorised by Glow-worm.

If replacement parts are required contact Glow-worm’s own

service organisation using the telephone number on the

inside front cover of this booklet.

Please quote the name and model of the boiler.

Thenamebadgeis on the topfrontcase,and the model label

is on the top edge of the bottom front panel, pull the panel

forward slightly to reveal the label.

If in doubt seek advice from the local gas company or Glow-

worm’sownserviceorganisationusingthetelephonenumber

on the inside front cover of this booklet.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

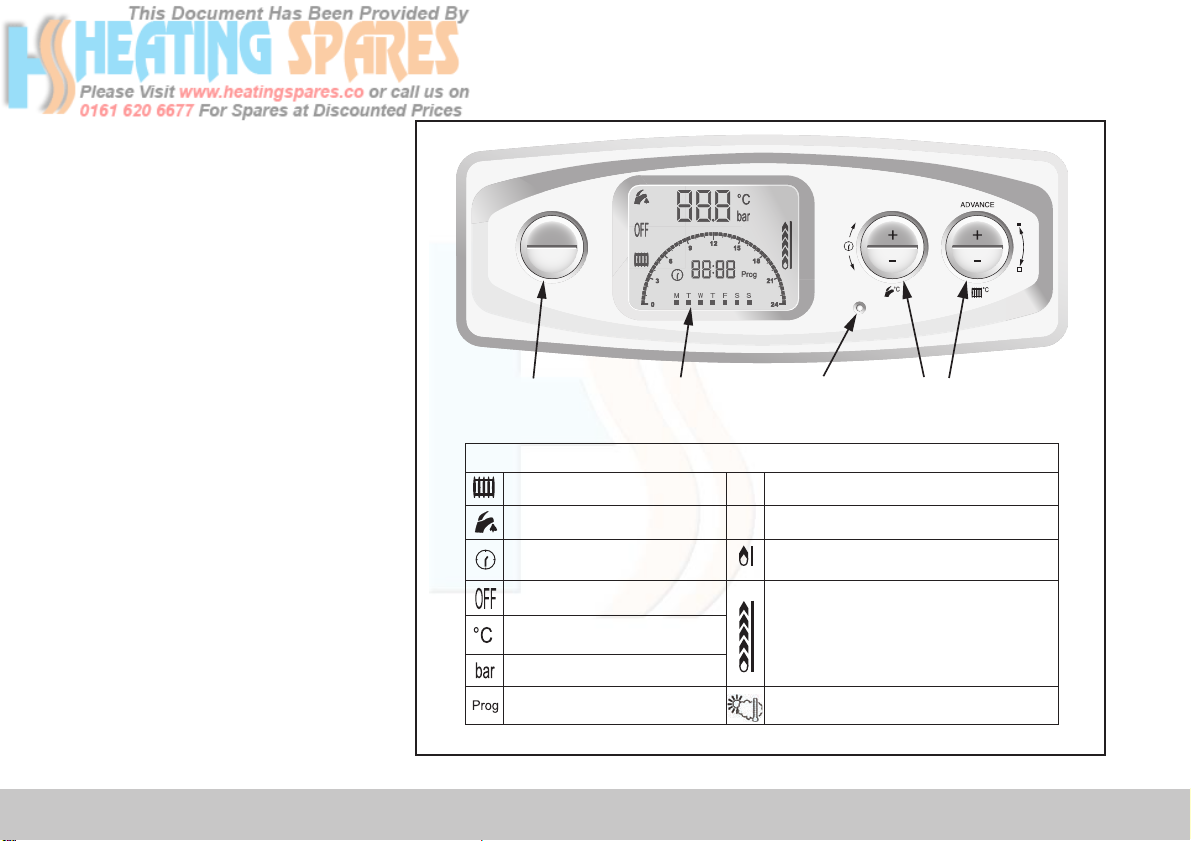

User Control Panel

General Description

The User Control panel consists

of three toggle buttons, a reset

button and display, which will

indicate with symbols the status of

the boiler, refer to diagram 2.

Diagram 2

13176

Control Panel

MODE

PROG

Eco Ext

SYMBOLS DISPLAYED ON THE LCD AND DESCRIPTIONS

Will be displayed when domestic hot

water temperature is less than 50

System Pressure

Max burner display

Intelligent control - (Optional)

Outdoor sensor - (Optional)

Min burner display

Temperature

Appliance OFF

Central Heating

Timed Mode

Programmer

Adjustment Mode

Domestic Hot Water Function

Central Heating Function

Ext

Eco

LCD

DISPLAY RESET

BUTTON DHW CH

TEMPERATURE

ADJUSTMENT

TOGGLE BUTTON

MODE and PROG

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk

Initial Lighting

Check that all isolating valves and the gas cock, on the

appliance are open and that water flows from the hot water

taps, then close taps, refer diagram 3.

Note: If you are in any doubt about the boiler being filled

with water contact your installer or Glow-worm's own

service organisation using the telephone number on the

inside front cover of this booklet.

Do not operate the boiler without water.

1. With no demand from any external controls, switch on

the electrical supply to the boiler.

Note: If the electrical supply has been interrupted for any

reason, you may need to set the clock and day before

continuing, refer to diagram 5.

Lighting the Boiler

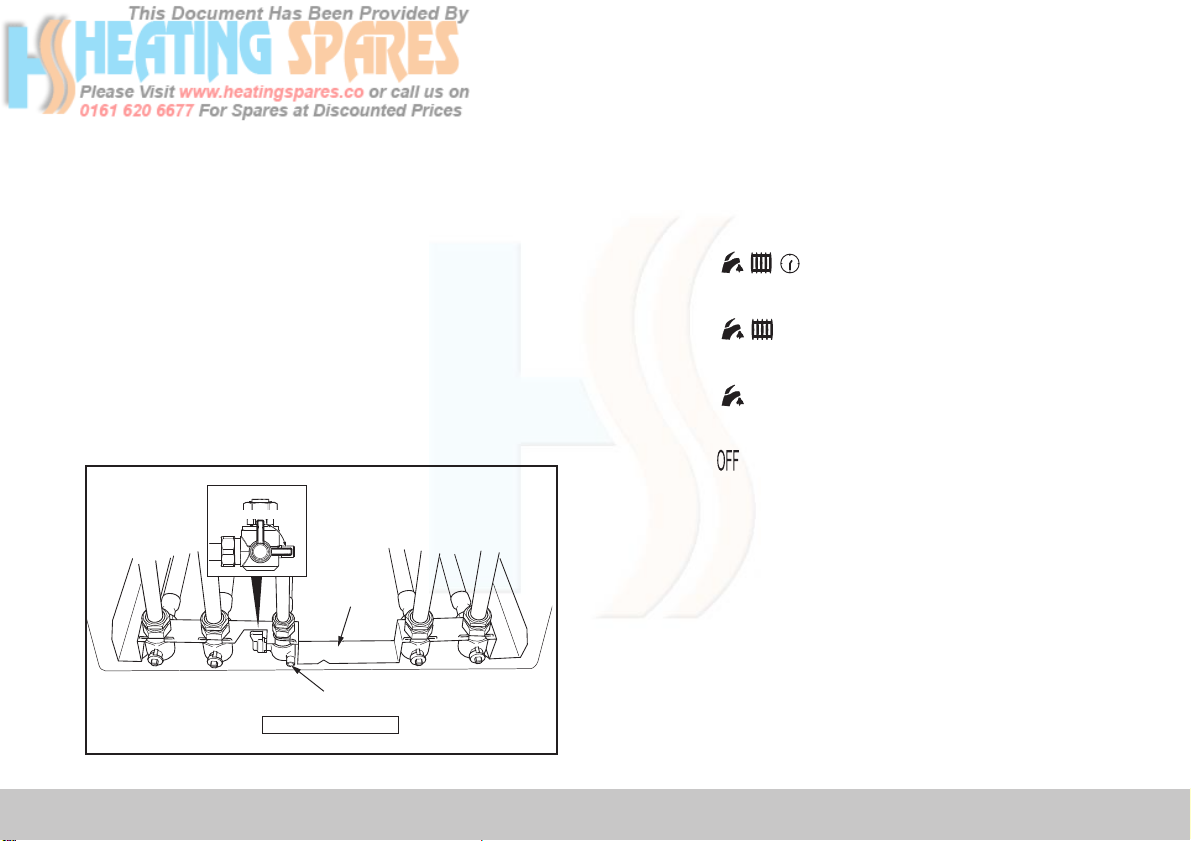

Diagram 3

CENTRAL

HEATING

RETURN

CENTRAL

HEATING

FLOW

VALVES SHOWN CLOSED

DHW

OUTLET GAS DCW

INLET

OPEN

CLOSED

FIXING JIG

GAS INLET

PRESSURE

TEST POINT

GAS SERVICE COCK

2. Select your required function by pressing " Mode ",

scroll through your options and select one of the following:-

Timed central heating with domestic hot water.

Constant central heating with domestic hot water.

Domestic hot water only.

Boiler functions ALL swicthed off.

3. Turn ON your external controls and select the room

temperature required.

The boiler will operate automatically.

Note: The display will indicate the Heating system

pressure in bar or:

•Water temperature, when heating is on.

•Domestic Hot Water temperature setpoint, when

there is a demand.

•Fault Code (see section Fault Finding)

13370

Andere Handbücher für 100sxi

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Glowworm Kessel Handbücher

Glowworm

Glowworm Space Saver K.F.B 60 Benutzerhandbuch

Glowworm

Glowworm Micron 50FF Bedienungsanleitung

Glowworm

Glowworm Swift flow 120 Bedienungsanleitung

Glowworm

Glowworm Flexicom 18sx Bedienungsanleitung

Glowworm

Glowworm economy plus c 30 Benutzerhandbuch

Glowworm

Glowworm Economy Plus C 40 Betriebsanleitung

Glowworm

Glowworm Ultracom 24cxi Bedienungsanleitung

Glowworm

Glowworm Economy Plus 50C Betriebsanleitung

Glowworm

Glowworm Micron 80FF Betriebsanleitung

Glowworm

Glowworm SwiftFlow 120 Benutzerhandbuch

Glowworm

Glowworm Ultimate 50FF Bedienungsanleitung

Glowworm

Glowworm 30sxi Betriebsanleitung

Glowworm

Glowworm Micron 70FF Betriebsanleitung

Glowworm

Glowworm Betacom 3 Bedienungsanleitung

Glowworm

Glowworm Ultracom 2 24cxi Bedienungsanleitung

Glowworm

Glowworm Micron 60FF Betriebsanleitung

Glowworm

Glowworm 12hxi Bedienungsanleitung

Glowworm

Glowworm Xtramax HE Bedienungsanleitung

Glowworm

Glowworm fuelsaver Bedienungsanleitung

Glowworm

Glowworm 24cx Benutzerhandbuch

Glowworm

Glowworm Energysaver Combi 80 Bedienungsanleitung

Glowworm

Glowworm Hideaway 100B Bedienungsanleitung

Glowworm

Glowworm MicraCom 24c-AS/1 Bedienungsanleitung

Glowworm

Glowworm 30ci Bedienungsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
