Glowworm Economy Plus Handbuch

Glo~~wonn

Instructions for

220161.04.92

Use

Keep for future reference

Econom

RANGE

anned lue

no i

e r

Introduction

These instructions should be read and carefully

followed for the safe and economical use of your

boiler.

The Economy Plus range are boilers designed to

provide central heating and indirect domestic hot

water from a fully pumped system with a fully

indirect cylinder.

Important Notice

This boiler is for use on natural gas only and

cannot be used on any other gas.

Gas Safety (Installation and Use)

Regulations.

In your interest and that of gas safety it is the Law

that ALL gas appliances are installed by a

competent person in accordance with the current

issue of the above regulations.

Gas Leak or Fault

If a gas leak or fault exists or is suspected, the

BOILER MUST BE TURNED OFF, including the

electrical supply and MUST NOT BE USED

UNTIL THE FAULT HAS BEEN PUT RIGHT.

Advice/help should be obtained from your

installation/servicing company or the local gas

undertaking.

Maintenance/Servicing

To ensure the continued efficient and safe operation

of the boiler it is recommended that it is checked

and serviced as necessary at regular intervals.

The frequency of servicing will depend upon the

particular installation conditions and usage, but in

general once a year, preferably at the end of the

heating season, should be enough.

It is the Law that any servicing must be carried out

by a competent person.

Hepworth Heating Ltd., Nottingham Road, 8elper, Derby. DE5 1JT Tel: 8elper (0773) 824141 Telex 37586

Technical Services Department: Telephone Belper 0773) 828100

957

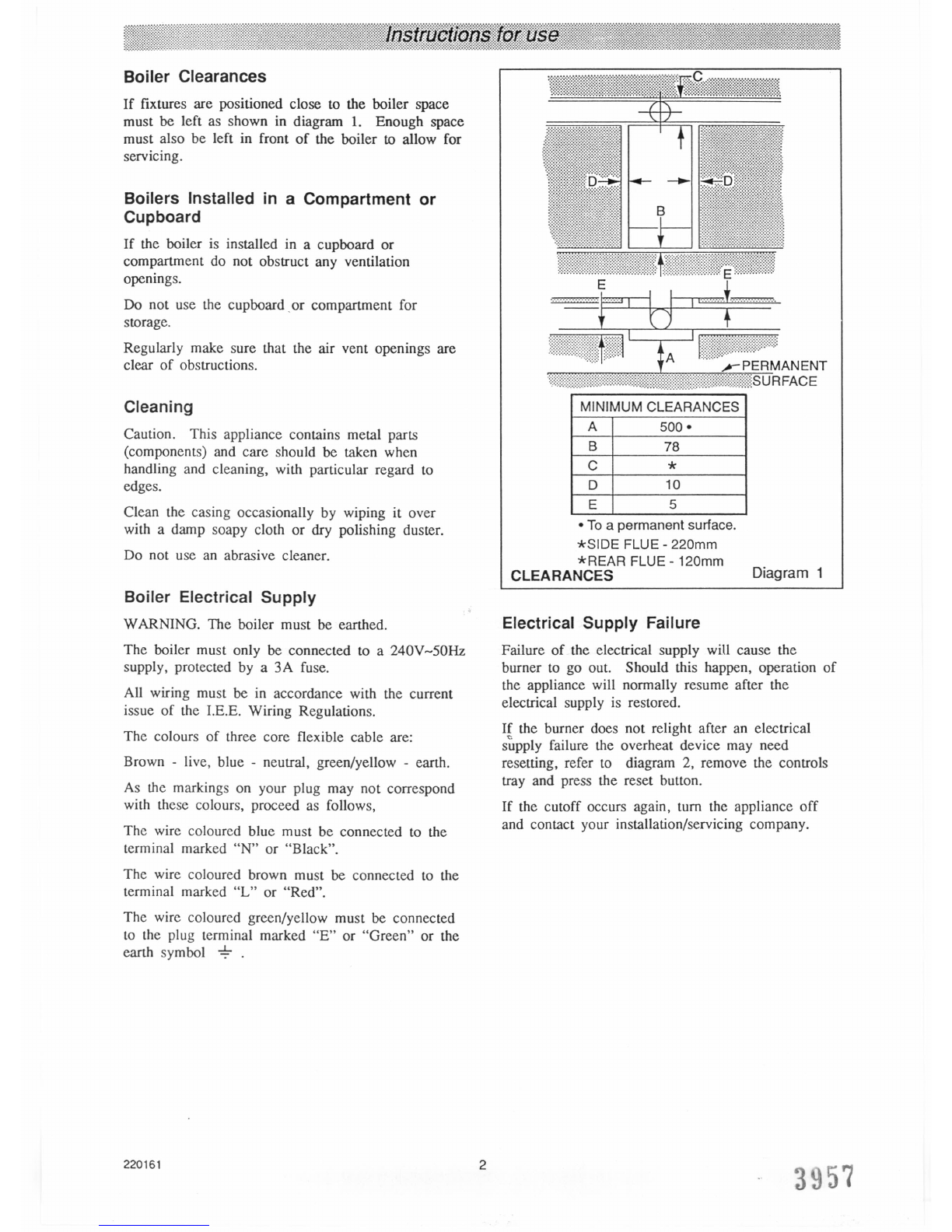

Boiler Clearances

If fixtures are positioned close to the boiler space

must be left as shown in diagram 1. Enough space

must also be left in front of the boiler to allow for

servicing.

Boilers Installed in a Compartment or

Cupboard

If the boiler is installed in a cupboard or

compartment do not obstruct any ventilation

openings.

Do not use the cupboard. or compartment for

storage.

Regularly make sure that the air vent openings are

clear of obstructions.

Cleaning

Caution. This appliance contains metal parts

(components) and care should be taken when

handling and cleaning, with particular regard to

edges.

Clean the casing occasionally by wiping it over

with a damp soapy cloth or dry polishing duster.

Do not use an abrasive cleaner.

Boiler Electrical Supply

WARNING. The boiler must be earthed.

The boiler must only be connected to a 240V-50Hz

supply, protected by a 3A fuse.

All wiring must be in accordance with the current

issue of the I.E.E. Wiring Regulations.

The colours of three core flexible cable are:

Brown - live, blue - neutral, green/yellow - earth.

As the markings on your plug may not correspond

with these colours, proceed as follows,

The wire coloured blue must be connected to the

terminal marked N or Black .

The wire coloured brown must be connected to the

terminal marked L or Red .

The wire coloured green/yellow must be connected

to the plug terminal marked E or Green or the

earth symbol

220161

MINIMUM CLEARANCES

A500·

• To

a permanent surface.

*SIDE FLUE - 220mm

*REAR FLUE - 120mm

CLEARANCES Diagram 1

Electrical Supply Failure

Failure of the electrical supply will cause the

burner to go out. Should this happen, operation of

the appliance will normally resume after the

electrical supply is restored.

If the burner does not relight after an electrical

s~pply failure the overheat device may need

resetting, refer to diagram 2, remove the controls

tray and press the reset button.

If the cutoff occurs again, turn the appliance off

and contact your installation/servicing company.

3957

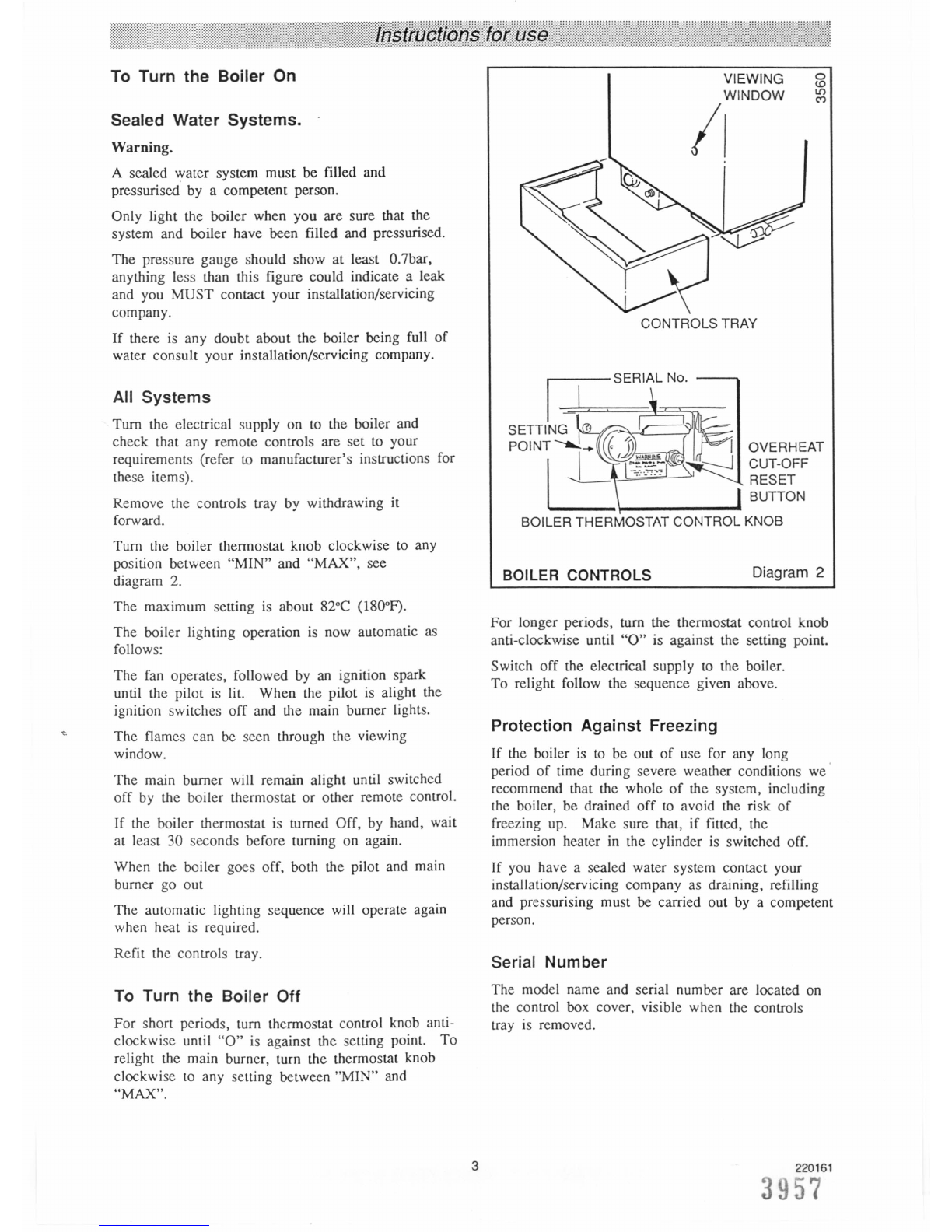

To Turn the Boiler On

Sealed Water Systems

Warning

A sealed water system must be filled and

pressurised by a competent person.

Only light the boiler when you are sure that the

system and boiler have been filled and pressurised.

The pressure gauge should show at least 0.7bar,

anything less than this figure could indicate a leak

and you MUST contact your installation/servicing

company.

If there is any doubt about the boiler being full of

water consult your installation/servicing company.

All Systems

Turn the electrical supply on to the boiler and

check that any remote controls are set to your

requirements (refer to manufacturer's instructions for

these items).

Remove the controls tray by withdrawing it

forward.

Turn the boiler thermostat knob clockwise to any

position between MIN and MAX , see

diagram 2.

The maximum setting is about 82°e (180°F).

The boiler lighting operation is now automatic as

follows:

The fan operates, followed by an ignition spark

until the pilot is lit. When the pilot is alight the

ignition switches off and the main burner lights.

The flames can be seen through the viewing

window.

The main burner will remain alight until switched

off by the boiler thermostat or other remote control.

If the boiler thermostat is turned Off, by hand, wait

at least 30 seconds before turning on again.

When the boiler goes off, both the pilot and main

burner go out

The automatic lighting sequence will operate again

when heat is required.

Refit the controls tray.

To Turn the Boiler Off

For short periods, turn thermostat control knob anti-

clockwise until

is against the setting point. To

relight the main burner, turn the thermostat knob

clockwise to any selling between MIN and

MAX .

VIEWING

WINDOW

CONTROLS TRAY

OVERHEAT

CUT-OFF

RESET

BUTTON

BOILER CONTROLS Diagram 2

For longer periods, turn the thermostat control knob

anti-clockwise until

is against the setting point.

Switch off the electrical supply to the boiler.

To relight follow the sequence given above.

Protection Against Freezing

If the boiler is to be out of use for any long

period of time during severe weather conditions we

recommend that the whole of the system, including

the boiler, be drained off to avoid the risk of

freezing up. Make sure that, if fitted, the

immersion heater in the cylinder is switched off.

If you have a sealed water system contact your

installation/servicing company as draining, refilling

and pressurising must be carried out by a competent

person.

Serial Number

The model name and serial number are located on

the control box cover, visible when the controls

tray is removed.

220161

3957
