Goclever TAB R83.2_3 Bedienungsanleitung

Prima di utilizzare il dispositivo, leggere il presente manuale

e salvarlo per il futuro

GOCLEVER TAB R83.2_3

OWNER’S MANUAL

GOCLEVER TAB R83.2_3

MANUALE UTENTE

WWW.GOCLEVER.COM

TABLET, SMARTPHONE, NAVIGATORI, DVR, DVB-T

Contents / Spis treści

English

Italiano

Garanzia

Introduction

Thank you for choosing our product. This device is equipped with built-in high performance

Wifi receiver module, G-sensor, support external 3G USB-DONGLE , also can bring you into

the portable media player world and fulfilled your entertainment needs. It can support

picture,video, music, E-book, games, online chat and other functions,moreover, various

settings will fully show your individuality. This manual contains important safety and operating

information in order to prevent accidents, please read this manual thoroughly and keep it for

future reference.

Safety precautions

Please always keep your device dry. To avoid the device short trouble, corrosion fault

and electric short, please prevent the device, battery and charger from water and

moisture, and don’t operate the device or charger by wet hand.

To avoid failure of device, battery and charger, please prevent the device, battery,

charger from violent shock or shake.

To avoid failure of device, battery and charger, please prevent the device, battery,

charger of all over heating or too cold circumstance

Never shock, throw, or drop, extrude, bend the device.

Never disassemble the device and accessories arbitrarily, otherwise the device and

accessories are not in our company warranty scope.

General View

1) Power on/off

2) DC port

3) Earphone port

4) USB port

5) HDMI Port

6) Mirco SD port

7) Reset

8) Volume +/-

9) Camera

10) Speaker

Turn on the device on and off

Note: After you turn on the device, you will see the Lock key symbol appear on the screen,

keep your finger pressed to Unlock.

Charging the battery

Important: The battery must be charged for at least 4-5 hours before using it for the first time.

Navigation

Touch screen navigation

The touch screen makes navigation smooth and quick. Move your finger over the touch

screen’s surface to select the various menus or applications and navigate around your device.

Home page

The Home screen gives you an overview of the contents of your device and gives you access

to all of it’s available functions and applications.

1) Return button

2) Home page

3) Last run application

4) Vol -

5) Vol +

6) USB connect

7) WiFi connection

8) Battery

9) Applications

Applications

Click the related program icons to enter corresponding functions.

Click ‘Music’ icon to open the music application. This application is used to play and

store MP3 audio files.

Click ‘Video’, you will see all video and photos in this application. Click the video files

and play it.

Click ‘Gallery’, you will see all video and photos in this application. Click the photo files

and review it.

Click ‘Browser’ icon to open ‘web browser’ application and freely browse the internet.

(Before you enter into website, please check you connect the wifi)

Click ‘Camera’ icon to open camera application. You can take a photo or make the

video recording.

Click ‘Calculator’ icon to open the calculator application. This calculator is used to

perform advanced mathematical operations. Use the number pad to enter the

numbers.

Click ‘Calendar’ icon to open the calendar application. You can personalize and add

your memorandum.

Click ‘Clock’ icon to open the Clock application. You can personalize and program

several types of alarms.

Click ‘Download’ icon to open the download, you will see all the files under

downloading.

Click ‘Email’ icon to open the email application and go directly to your personal e-mail

software. This application is compatible with most e-mail software and is used to

easily read, send and receive e-mails.

Click ‘File Manager’ icon to open your tablet’s navigator and have access to the

contents of your Micro SD or device’s internal memory.

Click ‘Search’ icon to open the search application. From here, you can search

Web/Apps/Music.

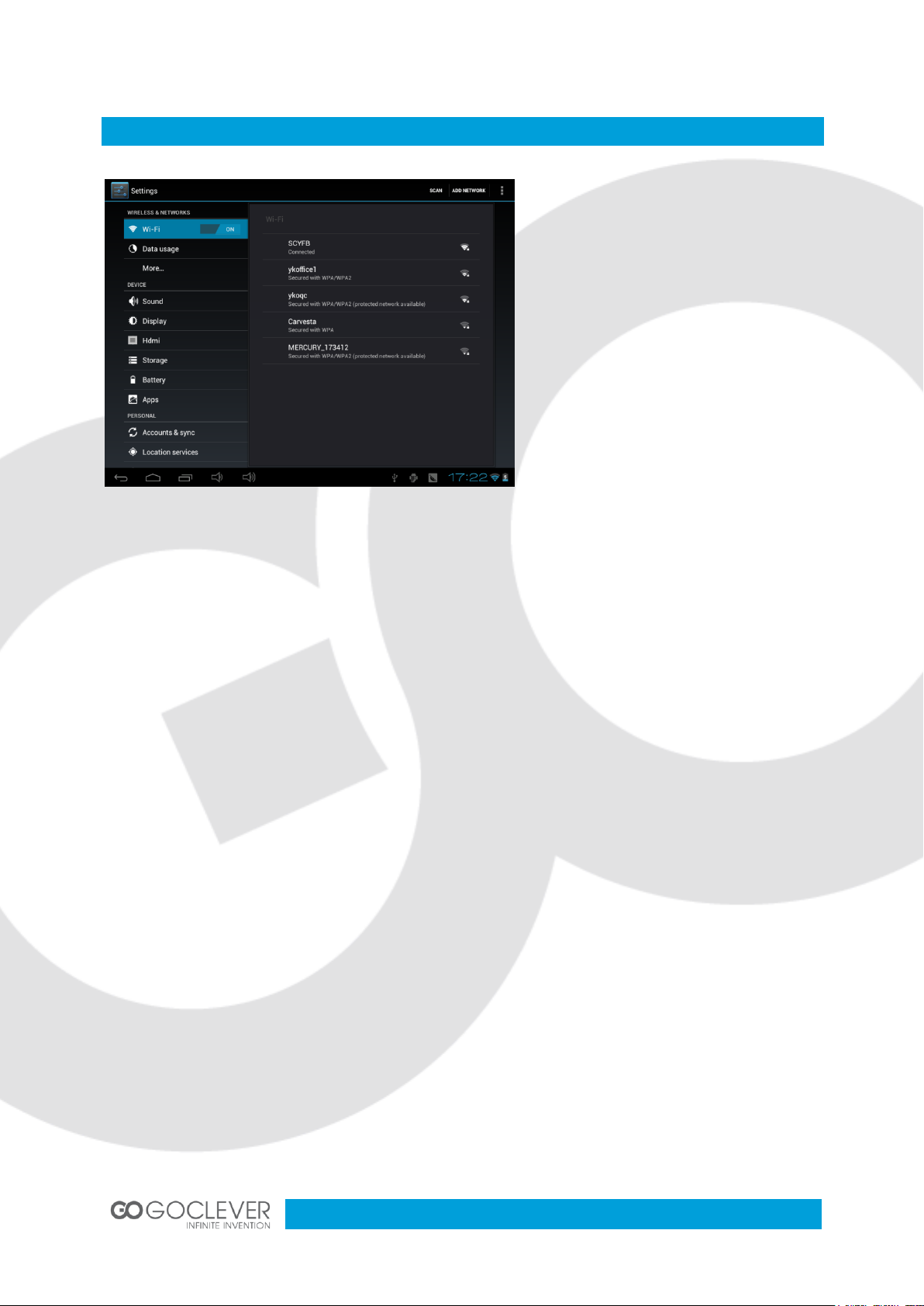

Settings

Wifi

Search the wifi and connect it. If you

use 3G dongle, please input the 3G

SIM card into dongle.

Data usage

Set data limit.

Sound

Set the volumes, system sounds

Display

Set the brightness, wallpaper, screensaver etc.

Storage

Show all storage and space of apps in internal memory/ SD card.

Battery

Show battery time.

Apps

Show all apps you installed.

Accounts & Sync

Sync your accounts you setup.

Location services

Determine your location by Intel.

Security

Set the screen security/Encryption/Passwords etc.

Language & Input

Set the language of device and input language you want.

Backup & reset

Recover factory data reset.

Date & Time

Set the date & time of device.

Accessibility

Set the font, auto-rotate etc.

Developer options

Show pointer location, screen updates, CPU usage etc.

About tablet

Show the model number, version etc.

USB Connections

You can connect your device to your computer, use it as a removable disk and open any files

saved on your device.

Specifications

LCD Display

Size

8” TFT Capacitive touch panel

Resolution

1024*768

Solution

RockChip RK3066 1,6GHz Cortex A9

Android 4.1

System Memory

1GB,DDR3

Wifi

802.11b/g/n, BT 4.0

Camera

Front 0.3M/ Back 2M

Built-in Flash

8GB(R83.2), 16GB(R83.3)

Capacity Expansion

Support Micro SD Card, capacity 32GB

Power Supply

Built-in 3800mAH Lithium rechargeable battery

DC 5V@2A

Audio format

MP3/WMA/APE/FLAC/AAC/OGG/AC3/WAV

Video format

Max.1280*720.MKV/AVI/RM/RMVB/FLV/ WMV9/ MP4

Picture format

JPEG /BMP/ GIF/ PNG

Working temperature

-5 ~ 40 ℃

Languages

Multiple languages

Accessories

(Optional)

Manual, Charger, USB, Gift box etc.
