Godex EZ-4206 Bedienungs- und Wartungshandbuch

P/N. 920-010512-02

Edition 2

April 02

EZ-4206/EZ-4216/EZ-4304 Programmer sManual

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

EZ-4206/EZ-4216/EZ-4304 PROGRAMMER S MANUAL .......0

1. COMMANDS...................................................................................... 2

1-1. EZPL................................................................................................2

1-2. LanguageDescription.......................................................................3

1-3. Barcode..........................................................................................12

2. EXAMPLES...................................................................................13

APPENDIX........................................................................................... 20

A. Barcode Details...................................................................................20

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

1. Commands

1-1. EZPL

The EZPL (EZ Programming Language) isa high-level label definition and printercontrol language.

The features are:

1. The data fields are stored and processed until the printing instruction is received.

2. All the data can be rotated.

3. Images can be downloaded and stored.

There are three basictypesof commands:

• Setup

• Control

• Label format

Setup commands

Contain the printer control instructions, configurationinstructionsand image downloading instructions.

Description Command Page

Printing mode ^Ax 3

Stop position setting ^Ex 3

Setting Print darkness ^Hx 3

Number of pages printed ^Px 4

Label length ^Qx,y(,z±) 4

Speed setting ^Sx 4

Number of copies per label ^Cx 4

Rowcolumn adjustment ^Rx 4

Label format begin sign ^L 4

10.

Stripper sensor ^Ox 5

11.

Download label format ^Fname 5

12.

Recall label format ^Kname 5

13.

Label width setting ^Wxx 5

14.

Number of labelspercut ^Dx 5

15.

Serial Port translation setting ^Yp1.p2,p3,p4 5

16.

Set the forward length ^Mx 6

17.

Set the backward length ^Bx 6

Control commands

Cause the printer to take action immediately, such as cleaning memory, feeding label.

Description Command Page

Graphic download memory ~Ea, name, length 6

Bit-Mapped font download ~Jn 6

Graphic mode ~G 6

Print last label ~Px 6

Print version message ~V 6

Date / Time setting ~Dm,d,y,h,I,s 6

Reset printer ~Z 7

Printerhead testing ~T 7

Clear all ~MDEL 7

10.

Clear memory ~MDELx,name 7

11.

Rotate printing ~Rx 7

12.

Print the available space and data name in the memory ~Xn 7

13.

Acknowledge form RS-232 ~Kn 7

14.

Row Offset Adjustment ~Q n 7

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

Labelformatting commands

Define field data, such as Line, Rectangle, Barcode, Text and image.

Description Command Page

Define date layout Daa|bb|cc 8

Serialnumber setting Cx,ys,±value,prompt 8

Terminate label formatting mode and print label

E 8

Graphic command Gwxxx 8

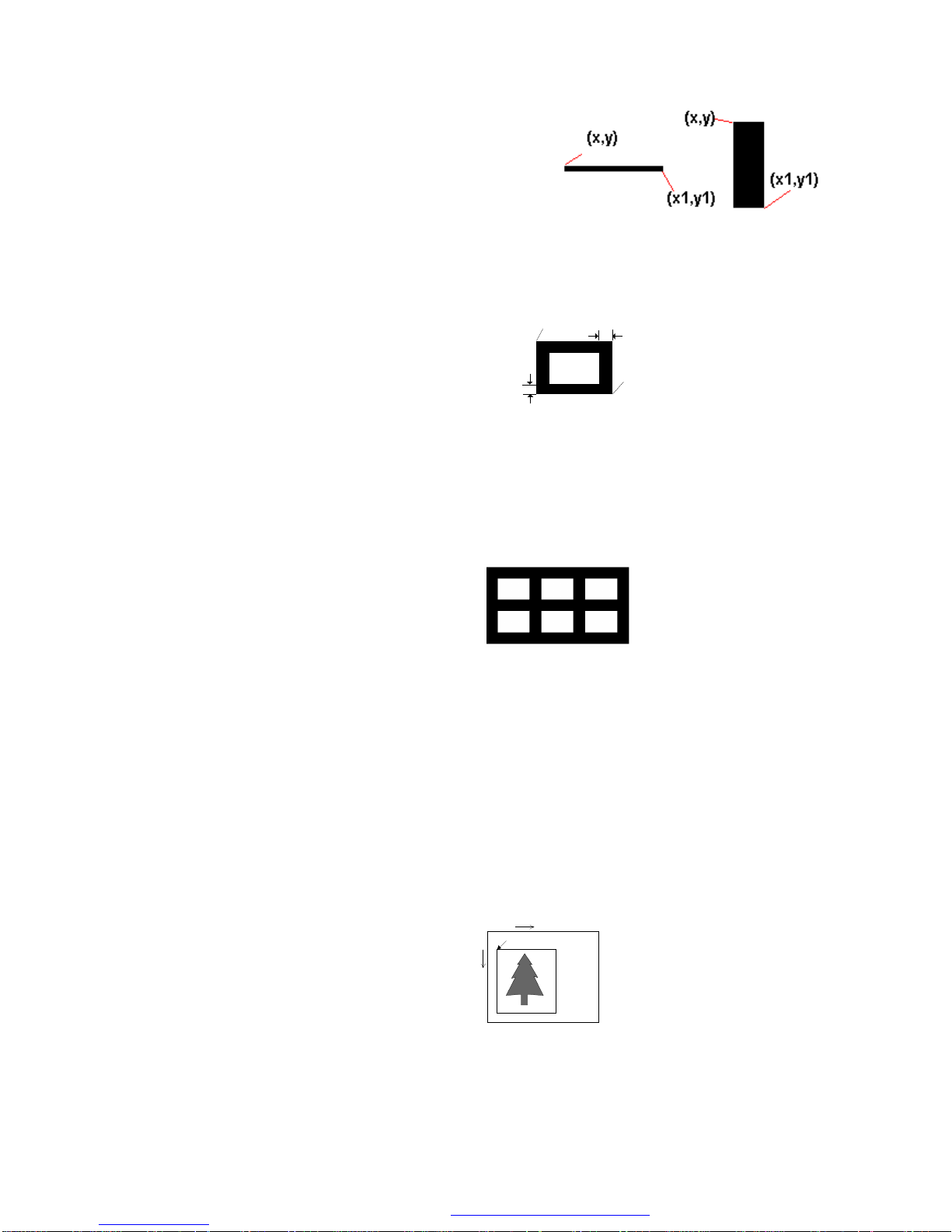

Line command La,x, y, x1, y1 9

Rectangle Rx, y, x1,y1, lrw, ubw 9

Table Hx,y,row_count,col_count,row_width,col_width,line_wi

dth 9

Define time layout formatting Th|m|s 9

Graphics Yx, y, name 9

10.

Text At, x, y, x_mul, y_mul, gap, rotation, data 10

11.

Barcode Bt,x,y,narrow,wide,height,rotation,readable,data 10

12.

PDG 417 Px,y,w,h,r,c,ec,len 11

13.

Maxicode

Mx,y,sno, nos, mode, ccode, zip, class, rotation,

message 11

14.

Define variable field Vxx, length, prompt 11

15.

Pattern command Qx, y, width, height 11

16.

Downloading character sets to memory Vt, x, y, x_mul, y_mul, gap, rotation, data 11

1-2. Language Description

Rules and syntax

EZPL commandshave parameter stringsassociated with them;

• The commands begin with a letteras ID for each function.

• The comma (,)is the delimiterto separate each parameter.

• The CR [Carriage Return: decimal (13), hex (oD) signifies the end of everycommand.

• Control and Setup commandsuse the tilde (~)and caret (^)prefix.

• Label Formatting commandshave no prefix.

Example: “~Ea,name,length “. ”E”is an image download command, and (a,name,length)are three parameters.

Setup commands

1. Printing mode

Syntax :

^Ax

Parameter :

x = D or T

Description :

x= D , Direct thermal mode

x= T , Thermal transfer mode

2. Stop position setting

Syntax :

^Ex

Parameter :

X = 0~40 (unit : mm)

Description :

Feed paperto desired stop position.

3. Setting Print darkness

Syntax :

^Hx

Parameter :

X = 00 ~ 19

Description :

Set printing darkness.

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

4. Numberof pagesprinted

Syntax :

^Px

Parameter :

x = 1 ~ 32767

Description :

Set how manylabelsto print; and it will initiate the program.

5. Label length

Syntax :

^Qx,y(,z±)

Die cut label (See fig. 1)

x = Label length (unit : mm)

y= Gap length (mm)

Parameter :

EX.

^Q25,3

(x=25,y=3) mm paper feed

direction

Plain paper:

x = Label length (unit : mm)

y= 0 (constant)

z= Feed paper length (unit : mm)

Black mark label:

x = Label length (unit : mm)

y= Blackmark width (mm)

z= Blackline to top of form position.

z+ : When the position is outside the blackmark.

z- : When the position is within the blackmark.

EX.

^Q25,4,3+

(x=25, y=4, z=3+) mm

^Q25,4,3-

(x=25, y=4, z=3-) mm

paper feed

direction

^Qx,y,z+

^Q,x,y,0+

^Q,x,y,z-

Description :

Set label size (length, gap length, [plain paper feed length])

6. Speed setting

Syntax :

^Sx

Parameter :

x=1 to 6 (inch/sec)

Description :

Set printing speed

7. Numberof copies per label

Syntax :

^Cx

Parameter :

X = 0 ~ 32767

Description :

Number of copiesof the same label.

8. Row column adjustment

Syntax :

^Rx

Parameter :

x = 0 ~ 399 dots

Response :

None

Description :

Set left margin

9. Label format begin sign

Syntax :

Parameter :

None

Descripton :

Set label begin sign

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

10. Stripper sensor

Syntax :

^Ox

Parameter :

x = 0 , stripper disable.

x = 1 , stripper enable

Description :

Enable ordisable the stripper sensor. When you use this command, it should be matched

with^Ex. (refer page 16)

11. Download label format

Syntax :

^Fname

data

Parameter :

Name = name of label format (up to 20 characters)

Data = the data containing the label formatting command for this stored format

Description :

Download label format into memory. Afterthe download is finished, the printer will beep once

(refer page 19). ^Fname

Control/Setup command

Label format command

data

Same name inspection : If you use the same file name, the printerwill print”REPEAT FILE

NAME”, and the download will be not be accepted.

12. Recall label format

Syntax :

^Kname

Parameter :

Name = name of recall label format (up tp 20 characters)

Description :

Recall label format from external format (referpage 19)

^Kname

~Px

data

Control/Setup command [option]

13. Label width setting

Syntax :

^Wxx

Parameter :

x=label width (mm)

Description :

Label width setting

14. Numberof labels per cut

Syntax :

^Dx

Parameter :

X = 0 , disable cutting.

X = 1 ~ 32767 , numberof label percut.

Description :

Number of labels per cut (referpage 16)

15. Serial Port translation setting

Syntax :

^Yp1.p2,p3,p4

Parameter :

p1 : Baud Rate (48 or96 or 19 or 38); 48=4800bps; 96=9600bps; 19=19200bps;

38=38400bps

p2 : Parity(N, O, E) ; N=none parity; O=odd parity; E=even parity

p3 : Numberof data bits(7 or8)

p4 : Numberof stop bits(1 or 2)

Description :

SerialPort translation setting

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

16. Set the forward length

Syntax :

^Mx

Parameter :

x = forward length (mm)

Description :

Set the forward length of the paper

17. Set the backward length

Syntax :

^Bx

Parameter :

x = backward length (mm)

Description :

Set the backward length of the paper

CONTROL COMMAND

1. Graphic download memory

Syntax :

~Ea, name, length

Parameters :

a = Por p : PCX file

a = B or b : BMP file

name : Name of image (up to 20 character)

length : Length of image (bytes), maximum 512K byte.

Description :

Download monochrome image onto memory. Printer will beep 1 time after completely

downloaded. If you use the same file name, the printerwill show”REPEAT FILE NAME”, and

the download will be not be accepted (refer page18).

2. Bit-Mapped font download

Syntax :

~Jn

Parameters :

n = character; From a ~ zorA ~Z; at least up to 26 characters.

Description :

The command used for font loading isusuallygenerated byQlabel-III label creation

software. The printerwill beep once after downloaded. If you use the same file name, the

printer will show ”REPEAT FILE NAME”, and the download will be not being accepted. The

downloaded font are compatible with the HP Laser Jet II Plus(PCL-4).

Download the “HVR0OE1A.SFP”text file to external memorycard. Use “A”to do the

character code name.

Example :

~JA ; Define Aas HVR0OE1A.SFP

COPY HVR0OE1A.SFP PRN/B ; Send the orderwith the DOS mode

3. Graphic mode

Syntax :

Parameter :

None

Decription :

Printer isin the image-receiving mode. Image data isdirectlysent from host to the printing

buffer (refer page 17)

4. Print last label

Syntax :

~Px

Parameter :

x = 1 ~ 32767

Description :

This command will repeatedlyprint the indicated copies of the last label format.

5. Print version message

Syntax :

Parameter :

None

Description :

Print firmware version.

6. Date/Time setting

Syntax :

~Dm,d,y,h,I,s

Parameter :

m =Month (01 to 12)

d = Date (01 to 31)

y= Year (last two digits of year)

h = Hour (00 to 23)

i = Minutes (00 to 59)

s = Seconds (00 to 59)

Description :

Set real time clock.

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

7. Reset printer

Syntax :

Parameter :

None

Description :

Reset the printer, the LED will flash once.

8. Printerhead testing

Syntax :

Parameter :

None

Description :

Print a pattern forthe user to determine if the print head is damaged (referpage19)

9. Clear all

Syntax :

~MDEL

Parameter :

none

Description :

Clear all in the memory(not include Asia font)

10. Clear memory

Syntax :

~MDELx,name

Parameter :

x = type

G, graphic

F, label form

E, Bit-Mapped font (not included Asia font)

name: The name of the graphic, formand Bit-Mapped font

Description :

Able to delete individual files or erase entire flash memory.

Example :

~MDELG,Bus ; the graphic “Bus”will be deleted

11. Rotate printing

Syntax :

~Rx

Parameter :

x = label width; from 1 to 104 (mm)

Description :

Rotate the label format 180-degrees when printing (refer page 18). To return to the original

print direction, set the x value greaterthan 104 (ie. ~R105).

12. .Print the available space and data name in the memory

Syntax :

~Xn

Parameter :

n = 1, print label format names and available space in memory.

n = 2, print graphic names and available space in memory.

n = 3, print Bit-Mapped font names and available space in memory.

n = 4, print the name of the label formats, graphics, fonts, and available space in memory.

n = 5, print Asia font names and available space in memory

n = 6, displaythe total printed length on the LCD

Description :

Print the available space in the memorycard (unit: bytes)

13. Acknowledge from RS-232

Syntax :

~Kn

Pararmeter :

n = 0, disable.

n = 1, enable.

Return value :

Description :

Acknowledge a “Y(0D0A)”from RS-232 backto host each printing label.

14. Row Offset Adjustment

Syntax :

~Q n

Pararmeter :

n=-36 ~ +36

Return value :

none

Description :

If the printing doed not appear in the same place on everylabel, thiscommand instructsthe

printer to print label formats +n increments above the position the format specifies, and –n

decrementsbelowthe position the format specifies.

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

Labelformatting commands

1. Define date layout

Syntax :

Daa|bb|cc

Parameter :

aa = Year

y2 : Year with two digits (such as 97)

y4 : Year with fourdigits (such as1997)

bb = Month

me : Month in letters (JAN, FEB, .... )

mn : Month in numeric (01, 02, .... )

cc = 2 digitsday

|= Separator, can be anyASCII characterbetween decimal 32 to 63.

Description :

Define the date layout for print out (referpage 14)

2. Serial number setting

Syntax :

Cx,ys,±value,prompt

Parameter :

x: 0 to 9(up to10group), maximum combination up to 3 groups.

y: select the decimal

y= none, Decimal (0~9)

y= A, Hexadecimal (0~9,A~F)

y= C, 0~9, A~Z

s: start value of serial variable (up to 13-digit)

±value: inc. / dec. value of serial variable (up to 12-digit)

prompt: prompt of serial variable (up to 20 characters)

Description :

Set the serial number (refer page 17)

Example :

^Q50,0,0

^W100

^S6

^H10

^E12

^P5

C0,000,+1,AA

C1,AEE,+1,BB

C2,CZYY,+1,CC

AC,5,5,1,1,1,0,^C0^C1^C2

Printing result:

000EEZYY

001EFZYZ

002F0ZZ0

003F1ZZ1

004F2ZZ2

3. Terminate label formatting mode and print label

Syntax :

Parameter :

None

Description :

End of formatting command; printerwill print label after receiving thiscommand.

4. Graphic command

Syntax :

Gwxxx

Parameter :

wxxx...

w : byte number of image data (xxx...)

Description :

Thiscommand isa sub-command of ~GIt is sent bybinarydata. Wis the digits number byte of

image data (referpage 17). Forexample, if the image file is50 bytes, the command is G2xxx. (2:

ASCII is 50 decimal)

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

5. Line command

Syntax :

La,x, y, x1, y1

Parameter :

a = o, overwrite line

a = e, exclusive orline

x: left-up; per horizontal(Hori.)pos. (dot; 1mm=

8dots)

y: left-upper vertical (Vert.) pos. (dots)

x1: right-bottom Hori. Pos. (dots)

y1: right-bottom Vert. Pos. (dots)

Description :

Define a line to renderin the label(refer page15)

** The diagonal line drawis not available **

6. Rectangle

Syntax :

Rx, y, x1,y1, lrw, ubw

Parameter :

x: left-upper Hori .pos. (dots)

y: left-upper Vert. Pos. (dots)

x1 : right-bottom Hori. Pos. (dots)

y1 : right-bottom Vert. Pos. (dots)

lrw : thicknessof left, right border(dots)

ubw : thickness of upper bottomborder

(dots)

(x,y)

lrm

ubw

(x1,y1)

Description :

Draw a rectangle in the label (refer page 15)

7. Table

Syntax :

Hx,y,row_count,col_count,row_width,col_width,line_width

Parameter :

x: left-upper Hori .pos. (dots)

y: left-upper Vert. Pos. (dots)

row_count : numbe of rows

col_count : number of columns

row_width : row width

col_width : column width

line_width : line width

Description :

Draw a table in the label.

Example :

H20,20,2,3,30,20,10

8. Define time layout formatting

Syntax :

Th|m|s

Parameter :

h = Hour format ( 2 digits, 00 ~ 23)

m = Minute format ( 2 digits, 00 ~ 59)

s= Second format (2 digits, 00 ~ 59)

|= Separator (It can be anyseparator between dec. 32 to 63 of ASCII).

Descripton :

Define the time layout forinternal real-time clock(refer page 14)

9. Graphics

Syntax :

Yx, y, name

Parameter :

x: Hori. Pos. of left-upper of graphics (dots)

y: Vert. Pos. of left-upper of graphics (dots)

name : Name of graphics download

Description :

Thiscommand isprint a graphicthat hasbeen previouslystored in printermemory(refer page

18)

Example:

Agraphic in printer named “Graphic1”,

command Y20,40,Graphic1 ↵will put

this graphicinto label at position

(20,40).

(20,40)

PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

Andere Handbücher für EZ-4206

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Godex Drucker Handbücher

Godex

Godex MX20 Bedienungsanleitung

Godex

Godex RT200i Bedienungsanleitung

Godex

Godex EZ-1000 Plus Bedienungs- und Wartungshandbuch

Godex

Godex EZ225i Bedienungsanleitung

Godex

Godex BP2250i Bedienungsanleitung

Godex

Godex CI-4040 Bedienungsanleitung

Godex

Godex EZPi-1200 Bedienungsanleitung

Godex

Godex AG2000 Bedienungsanleitung

Godex

Godex RT860i Bedienungsanleitung

Godex

Godex EZ-4TKP Bedienungsanleitung

Godex

Godex RT700i Bedienungsanleitung

Godex

Godex AG4000T Bedienungsanleitung

Godex

Godex EZ-1105P series Bedienungsanleitung

Godex

Godex HD830i Bedienungsanleitung

Godex

Godex EZ-4206 Bedienungsanleitung

Godex

Godex EZ-DT-2 Bedienungsanleitung

Godex

Godex EZ-1200 Bedienungsanleitung

Godex

Godex C-650Plus II Bedienungsanleitung

Godex

Godex EZ-1200 Bedienungs- und Wartungshandbuch

Godex

Godex C-680 FlatJet Handbuch

Godex

Godex RT200 Bedienungsanleitung

Godex

Godex EZ-2 Bedienungsanleitung

Godex

Godex EZ-2000 PLUS Bedienungsanleitung

Godex

Godex EZ-2000 PLUS Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Epson

Epson ET-7750 Betriebsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Epson

Epson SC-F7100 series Bedienungsanleitung

Epson

Epson Stylus C40UX Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung
