Part No. 39792

Pizza Oven

Models 5554 & 5554EX

Instruction Manual

Model 5554 & 5554EX

SAFETY PRECAUTIONS

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle. Keep cord and plug off the ground and away

from moisture. Always unplug the equipment before cleaning or servicing.

DO NOT immerse any part of this equipment in water.

DO NOT use a water jet or excessive water when cleaning. 008_012221

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

ALWAYS wear safety glasses when servicing this equipment.

010_010914

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

WARNING

Read and understand operator’s manual and all other safety instructions

before using this equipment. To order copies of the operator’s manual go to

gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,

Cincinnati, OH 45241 USA 1-(800)-543-0862

022_060215

WARNING

DO NOT allow direct contact of this equipment by the public when used in

food service locations. Only personnel trained and experienced in the

equipment operation may operate this equipment.

Carefully read all instructions before operation.

012_010914

Model 5554 & 5554EX

WARNING

This machine is NOT to be operated by minors.

007_010914

CAUTION

If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,

its service agent or similarly qualified persons in order to avoid a hazard.

039_080614

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

DO NOT install equipment in an area where a water jet is used.

Unit to be installed in locations where ambient temperatures are between a minimum of 5°C

(41°F) and a maximum of 55°C (131°F).

Unit to be installed in locations where it can be overseen by trained personnel.

Install unit on a level surface.

Unit is a pizza oven.

Note: Improvements are always being made to Gold Medal’s equipment. This information

may not be the latest available for your purposes. It is critical that you call Gold

Medal’s Technical Service Department at 1-800-543-0862 for any questions about

your machine operations, replacement parts, or any service questions. (Gold Medal

Products Co. does not assume any liability for injury due to careless handling and/or

reckless operation of this equipment.) General images may be used in manual for

reference only.

Model 5554 & 5554EX

Installation Instructions

Inspection of Shipment:

After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should

be filed immediately with the transportation company. The warranty does not cover damage that

occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this

machine, since it is beyond our control (reference warranty in back of manual).

Setup:

Your Pizza Oven was assembled and tested at the factory. Remove all packing material

and tape before starting operation.

Electrical Requirements:

The following power supply must be provided (reference unit Data Plate for Wattage requirement):

120 V~, 60 Hz

220-230 V~, 50/60 Hz

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle. Keep cord and plug off the ground and away

from moisture. Always unplug the equipment before cleaning or servicing.

DO NOT immerse any part of this equipment in water.

DO NOT use a water jet or excessive water when cleaning. 008_012221

A certified electrician must furnish sufficient power for proper machine operation and install any

supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage

requirements). We recommend this equipment be on a dedicated and protected circuit. Failure to

wire properly will void the warranty and may result in damage to the machine. It is Gold Medal

Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of

extension cords is not recommended due to safety concerns, and may cause sacrificed and/or

reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.

Before You Plug In Machine

1. Make sure all machine switches are OFF before plugging equipment into receptacle.

2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power

supply cord.

3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician

inspect the outlet and correct if necessary.

4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).

5. Install unit in a level position.

CAUTION

If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,

its service agent or similarly qualified persons in order to avoid a hazard.

039_080614

Model 5554 & 5554EX

Operating Instructions

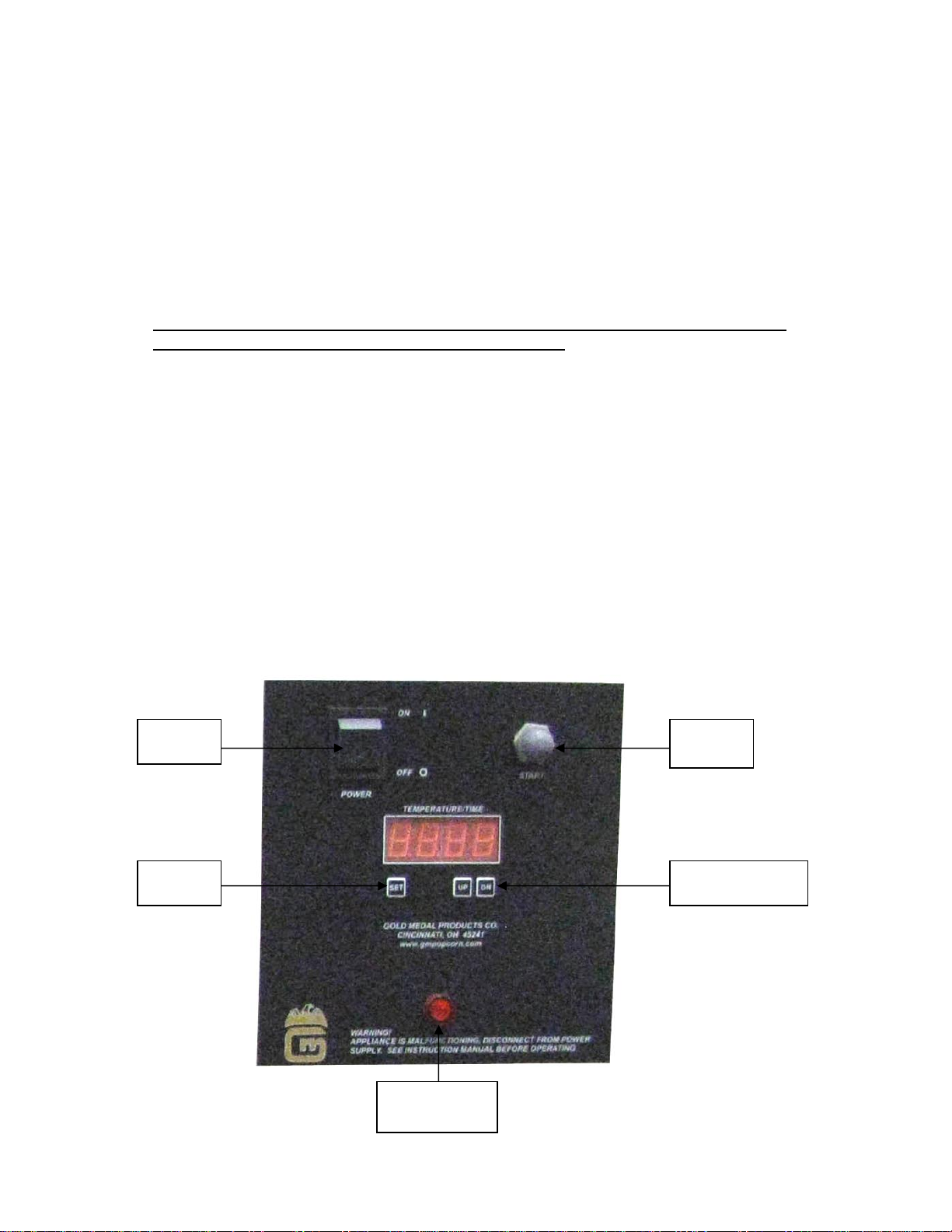

Controls And Their Functions

On/Off Switch

Flipping this switch to the "ON" position energizes the machine turning on the fan motor

and the heat elements.

Malfunction Light

If the malfunction light goes on, the appliance is malfunctioning.

TURN OFF OR DISCONNECT THE MACHINE FROM THE POWER SUPPLY AND

HAVE IT SERVICED BY A QUALIFIED TECHNICIAN.

Start Button

This button starts the count-down sequence on the digital control.

Mode Button

Changes the mode from time setting, to temperature setting, to viewing the current

temperature.

Up Button

Depressing the button increases the time or temperature accordingly.

Down Button

Depressing the button decreases the time or temperature accordingly

Start

Button

On/Off

Switch

Mode

Button

Malfunction

Light

Up and Down

Buttons

Model 5554 & 5554EX

EASY STEPS FOR USING UNIT

1. Prepare the oven for operation

a. Place the stone at the desired level. IF BEING USED FOR THE FIRST TIME, THE STONE

MUST BE PRE-DRIED. THIS IS A ONE TIME ONLY PROCEDURE WHEN A STONE IS NEW

OUT OF THE BOX. PLEASE FOLLOW THE INSTRUCTIONS BELOW FOR THE

PROCEDURE:

1. Place the stone on the baking pan in the center position of the oven.

2. Set the oven at 200°. Leave at 200 for 2 hours.

3. Set the oven at 300°. Leave at 300 for 2 hours.

4. Set the oven at 400°. Leave at 400 for 1 hour.

5. Set the oven at 450°. Leave at 450 for 1 hour.

CAUTION: a slight odor & outgassing may occur during the initial heat up. This is normal

as the decks are adjusting to their environment.

b. Turn on the power switch

c. Depress the mode button to time setting and enter the time using the up and down buttons.

d. Depress the mode button to temperature setting and enter the setting with the up and down

buttons.

e. When the oven reaches 200°F the L.E.D. will show the temperature.

f. Using oven mitts, load the food product into the oven when it reaches the desired temperature.

g. Depress the start button to display the count-down sequence.

h. When the control beeps the cook cycle is complete. Carefully remove the food product using

oven mitts.

i. Repeat steps F thru H for additional cycles.

DO NOT BAKE FROZEN PRODUCTS ON THE PIZZA STONE.

DOING SO MAY CAUSE THE STONE TO SHATTER!

FOR FROZEN PRODUCTS, PLEASE REMOVE THE STONE AND USE

THE ALUMINUM BAKING PAN ONLY.

Model 5554 & 5554EX

CARE AND CLEANING

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

DO NOT immerse in water. DO NOT clean appliance with a water jet or steam

cleaner. Always unplug the equipment before cleaning or servicing. 025_051321

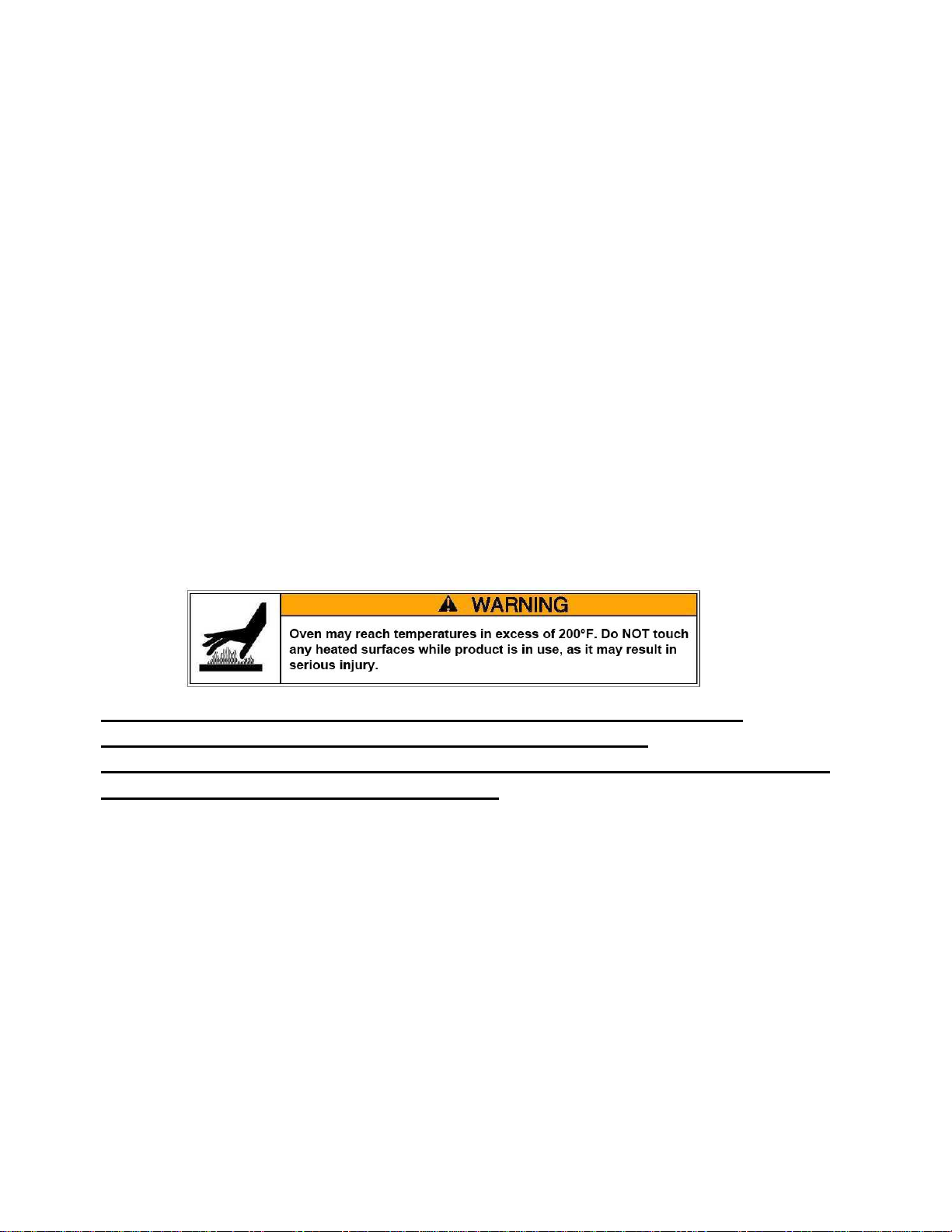

WARNING

To avoid burns, DO NOT touch heated surfaces.

DO NOT place or leave objects in contact with heated surfaces.

009_092414

Good sanitation practice demands that all food preparation equipment be cleaned regularly (only use

non-toxic, food grade cleaners).

For any cleaning products used, follow the manufacturer’s instructions on the product. DO NOT use

oven cleaners or abrasive materials as they will damage parts of machine.

The stainless steel body of the Warmer can be kept clean with cleaner designed for stainless

steel and a clean cloth. We recommend Gold Medal Products Company’s Watchdog

Stainless Steel Polish (P/N 2088.)

Model 5554 & 5554EX

THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY

MAINTENANCE INSTRUCTIONS

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle. Keep cord and plug off the ground and away

from moisture. Always unplug the equipment before cleaning or servicing.

DO NOT immerse any part of this equipment in water.

DO NOT use a water jet or excessive water when cleaning. 008_012221

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

CAUTION

THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY

FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH

ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE

OPERATOR.

027_010914

Model 5554 & 5554EX

ORDERING SPARE PARTS

1. Identify the needed part by checking it against the photos, illustrations, and/or

parts list. (General images may be used in manual for reference only.)

2. Use only approved replacement parts when servicing this unit.

3. When ordering, please include part number, part name, and quantity needed.

4. Please include your model number, serial number, and date of manufacture (located on

the machine nameplate/data plate) with your order.

5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion

Drive, Cincinnati, Ohio 45241-4807

or place orders by phone or online:

Phone: (800) 543-0862

(513) 769-7676

Fax: (800) 542-1496

(513) 769-8500

E-mail: info@gmpopcorn.com

Web Page: gmpopcorn.com

Model 5554 & 5554EX

Item Part No. Description

139797 Oven Front Door Weldment

240807 Handle

342798 Switch, Lighted Rocker Green

441031 Switch, Oil Pump

541033 Pilot Light, 125V Red

647155 Rubber Feet 3/4" High

776540A Digital Baker Control

839794 Baking Pan

943288 Bottom Element (500 Watts)

10 50017 Top Element (900 Watts)

11 39790 Pizza Stone (Not Shown)

Andere Handbücher für 5554

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Goldmedal Küchengerät Handbücher

Goldmedal

Goldmedal 3077-00-000 Bedienungsanleitung

Goldmedal

Goldmedal 1871EX Bedienungsanleitung

Goldmedal

Goldmedal MACHO POP 2554C Bedienungsanleitung

Goldmedal

Goldmedal 2174EL/ER Bedienungsanleitung

Goldmedal

Goldmedal Whiz Bang 2003 Bedienungsanleitung

Goldmedal

Goldmedal Pop-O-Gold Bedienungsanleitung

Goldmedal

Goldmedal Discovery 2556EX Bedienungsanleitung

Goldmedal

Goldmedal 2556 Bedienungsanleitung

Goldmedal

Goldmedal Citation Bedienungsanleitung

Goldmedal

Goldmedal 1617 Bedienungsanleitung

Goldmedal

Goldmedal 5280 Bedienungsanleitung

Goldmedal

Goldmedal Astro Pop 2023ETS Bedienungsanleitung

Goldmedal

Goldmedal UNIFLOSS Bedienungsanleitung

Goldmedal

Goldmedal 2102E Bedienungsanleitung

Goldmedal

Goldmedal 2085 Bedienungsanleitung

Goldmedal

Goldmedal 2404 Series Bedienungsanleitung

Goldmedal

Goldmedal Econo-Floss Bedienungsanleitung

Goldmedal

Goldmedal 2022 Bedienungsanleitung

Goldmedal

Goldmedal Karmel King 2620 Bedienungsanleitung

Goldmedal

Goldmedal Econo-Pop 14 Popper Bedienungsanleitung

Goldmedal

Goldmedal 2408 Bedienungsanleitung

Goldmedal

Goldmedal 2102 Bedienungsanleitung

Goldmedal

Goldmedal Top Half Antique Unifloss 3119 Series Bedienungsanleitung

Goldmedal

Goldmedal 1866 Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
