ROOM AIR CONDITIONER

OWNER'S MANUAL

Please read the operating instructions and safety precautions

carefully and thoroughly before installing and operating your

room air conditioner.

MANUEL D'UTILISATION

CLIMATISEUR DE FENI_TR

Veuillez lire attentivement et en entier ce guide d'utilisation

et les mesures de s6curit6 ci-incluses avant de proc6der

I'installation et au fonctionnement de votre climatiseur.

ACONDICIONADORDEAIREDEVENTANA

MANUAL DEL PROPIETARIO

Por favor lea las instrucciones de operaci6n y las precauciones

de seguridad cuidadosa y totalmente antes de instalar y operar

su acondicionador de aire de ventana.

MODELS, MODELES, MODELOS: R8000, R1003

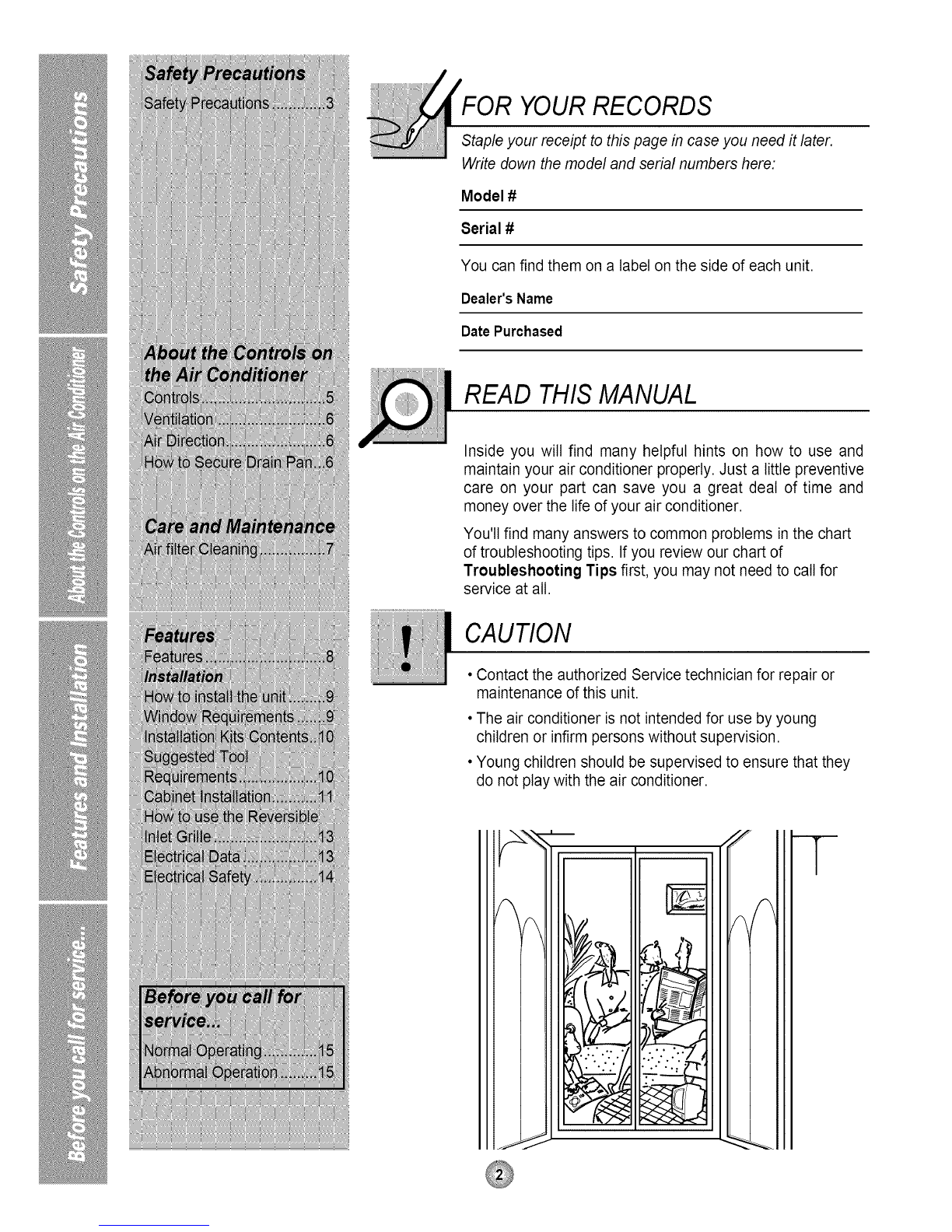

FOR YOUR RECORDS

Stapleyour receipt to this page in caseyou need it later.

Writedown the model and serial numbers here:

Model #

Serial#

You can find them on a label on the side of each unit.

Dealer'sName

DatePurchased

READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly, Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner,

You'll find many answers to common problems in the chart

of troubleshooting tips, If you review our chart of

Troubleshooting Tips first, you may not need to callfor

service at all,

CAUTION

• Contact the authorized Service technicianfor repair or

maintenanceof this unit.

•The air conditioner isnot intended for use by young

children or infirm persons without supervision.

• Young children should be supervised to ensure that they

do not playwith the air conditioner.

c..z..AIT,_

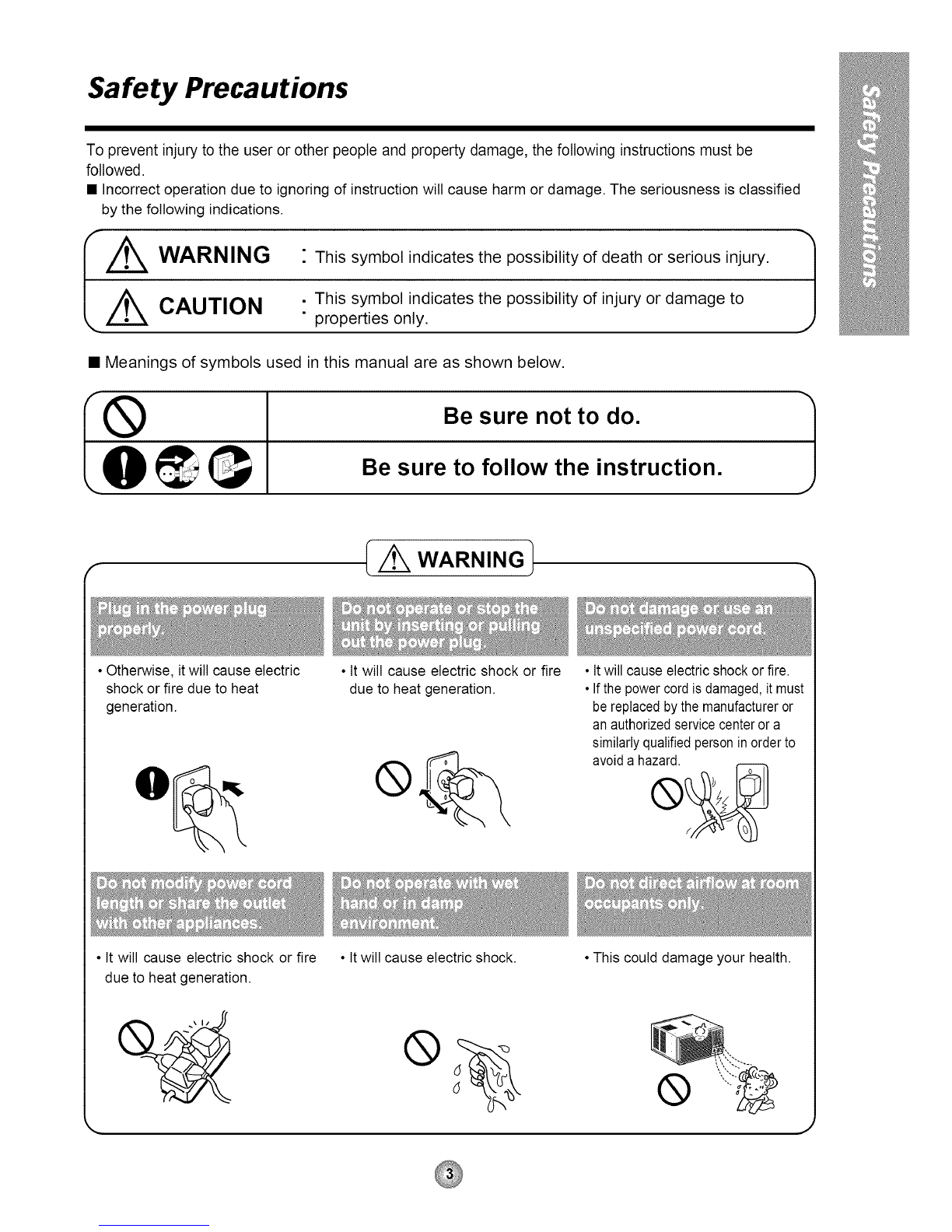

Safety Precautions

To prevent injury to the user or other people and property damage, thefollowing instructionsmust be

followed.

• Incorrect operation due to ignoring of instruction will cause harmor damage. The seriousness is classified

by the following indications.

/_ WARNING " This symbol indicates the possibility of death or serious injury. /

//_ CAUTION . This symbol indicates the possibility of injury or damage to

• properties only,

• Meanings of symbols used in this manual are as shown below.

Be sure not to do. J

Be sure to follow the instruction.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• It will cause electric shock or fire

due to heat generation. • It will cause electric shock or fire.

• If the powercordis damaged,it must

be replacedbythe manufactureror

an authorizedservicecenteror a

similarlyqualifiedpersonin orderto

avoid ahazard.

• It will cause electric shock or fire • It will cause electric shock.

due to heat generation. • This could damage your health.

• It may cause an injury.

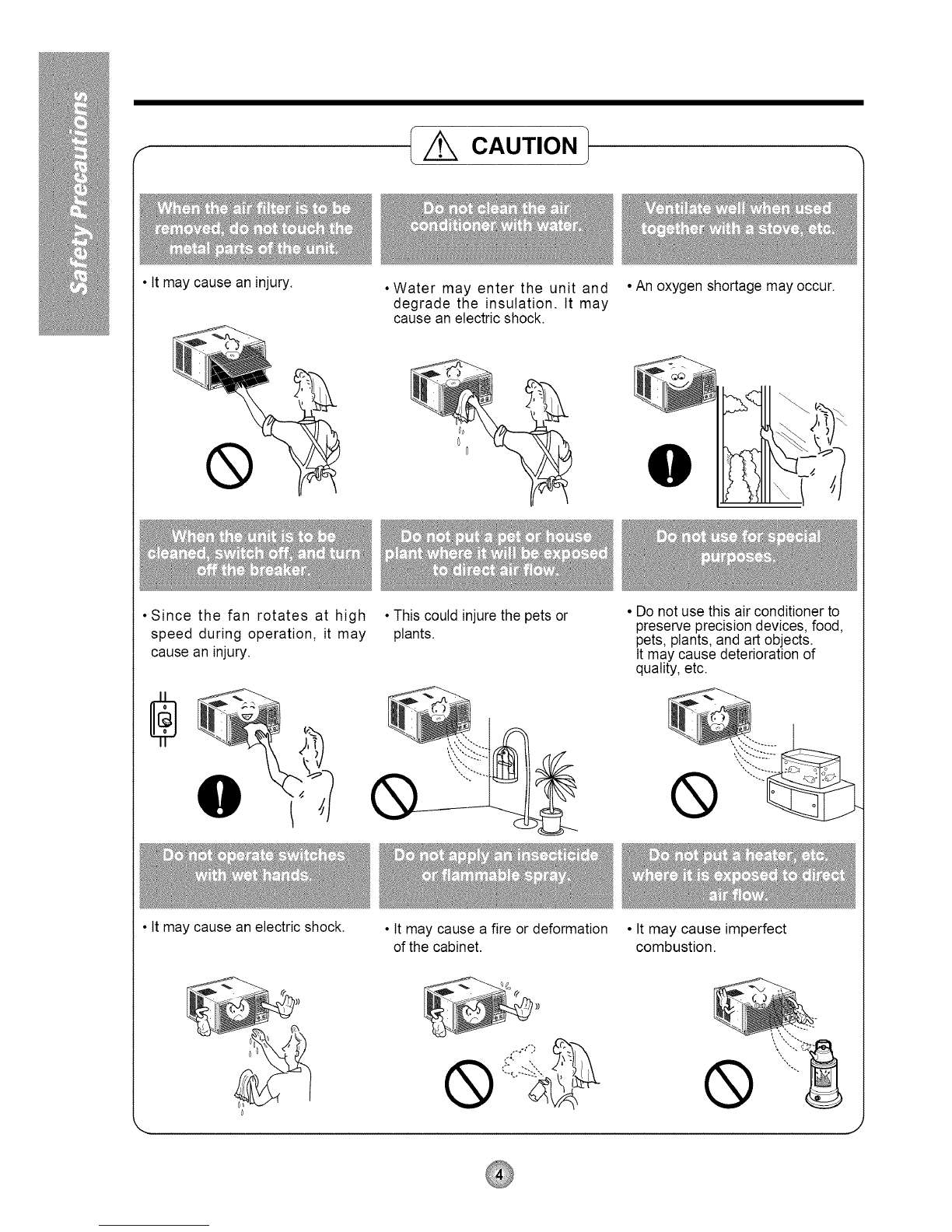

c.uT o.l

• Water may enter the unit and • An oxygen shortage may occur.

degrade the insulation. It may

cause an electric shock.

• Since the fan rotates at high

speed during operation, it may

cause an injury.

• It may cause an electric shock.

• This could injure the pets or

plants.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

• It may cause a fire or deformation

of the cabinet.

))

• It may cause imperfect

combustion.

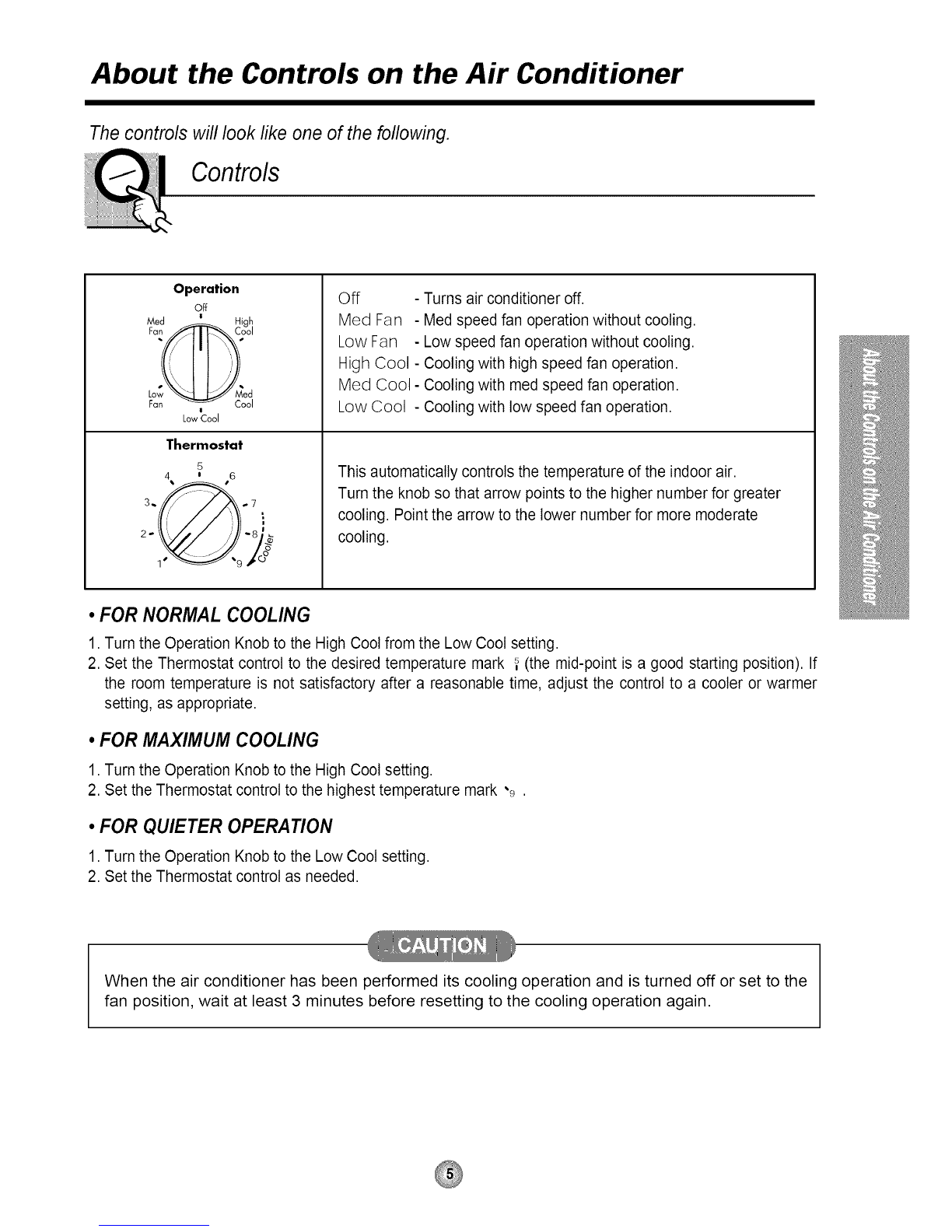

About the Controls on the Air Conditioner

The controls will look like one of the following.

Controls

Operation

off

Med _ High

Fa___ol

Low__od

Fan Cool

LowCool

Thermostat

4 _ 6

3"_'7 i

2-_7©c _-8 _

Off - Turns air conditioner off.

Med Fan - Medspeed fan operation without cooling.

Low Fan - Lowspeed fan operation without cooling.

High Cool - Coolingwith high speed fan operation.

Med Cool - Coolingwith med speed fan operation.

Low Cool - Coolingwith low speedfan operation.

This automatically controls the temperature of the indoor air.

Turnthe knob so that arrow points to the higher numberfor greater

cooling. Pointthe arrowto the lower number for more moderate

cooling.

•FOR NORMAL COOLING

1. Turnthe Operation Knob to the HighCool from the Low Cool setting.

2. Set the Thermostat control to the desired temperature mark _(the mid-point is a good starting position). If

the room temperature is not satisfactory after a reasonable time, adjust the control to a cooler or warmer

setting, as appropriate.

•FOR MAXIMUM COOLING

1. Turnthe Operation Knob to the HighCool setting.

2. Set the Thermostat control to the highest temperature mark "9 .

•FOR QUIETER OPERATION

1. Turnthe Operation Knob to the LowCool setting.

2. Setthe Thermostat control as needed.

When the air conditioner has been performed its cooling operation and is turned off or set to the

fan position, wait at least 3 minutes before resetting to the cooling operation again.

Additional controls and important information.

Ventilation

The ventilation lever must be inthe CLOSE position in order to maintain the best cooling conditions.

When fresh air is necessary in the room, set the ventilation lever to the OPEN position.

The damper isopened and room air isdrawn out.

CLOSE-LVENT-LOPEN

NOTE: Before usingthe ventilationfeature,

make a ventilation kit. First, pull down

part @_to horizontal line with part CB_.

--"_pa rt @_,!':;;i;

Air Direction

The direction of air can be controlled wherever you

want to cool by adjusting the horizontal louver and

the vertical louver.

•HORIZONTAL AIR-DIRECTION CONTROL

The horizontal air direction is adjusted by

rotating the vertical louver right or left.

• VERTICAL AIR-DIRECTION CONTROL

The vertical air direction is adjusted by rotating the

horizontal louver forward or backward.

How to Secure the Drain Pipe

In humid weather, excess water may cause the BASE

PAN to overflow. To drain the water, remove the DRAIN

CAP and secure the DRAIN PIPE to the rear hole of the

BASE PAN.

Drain cap

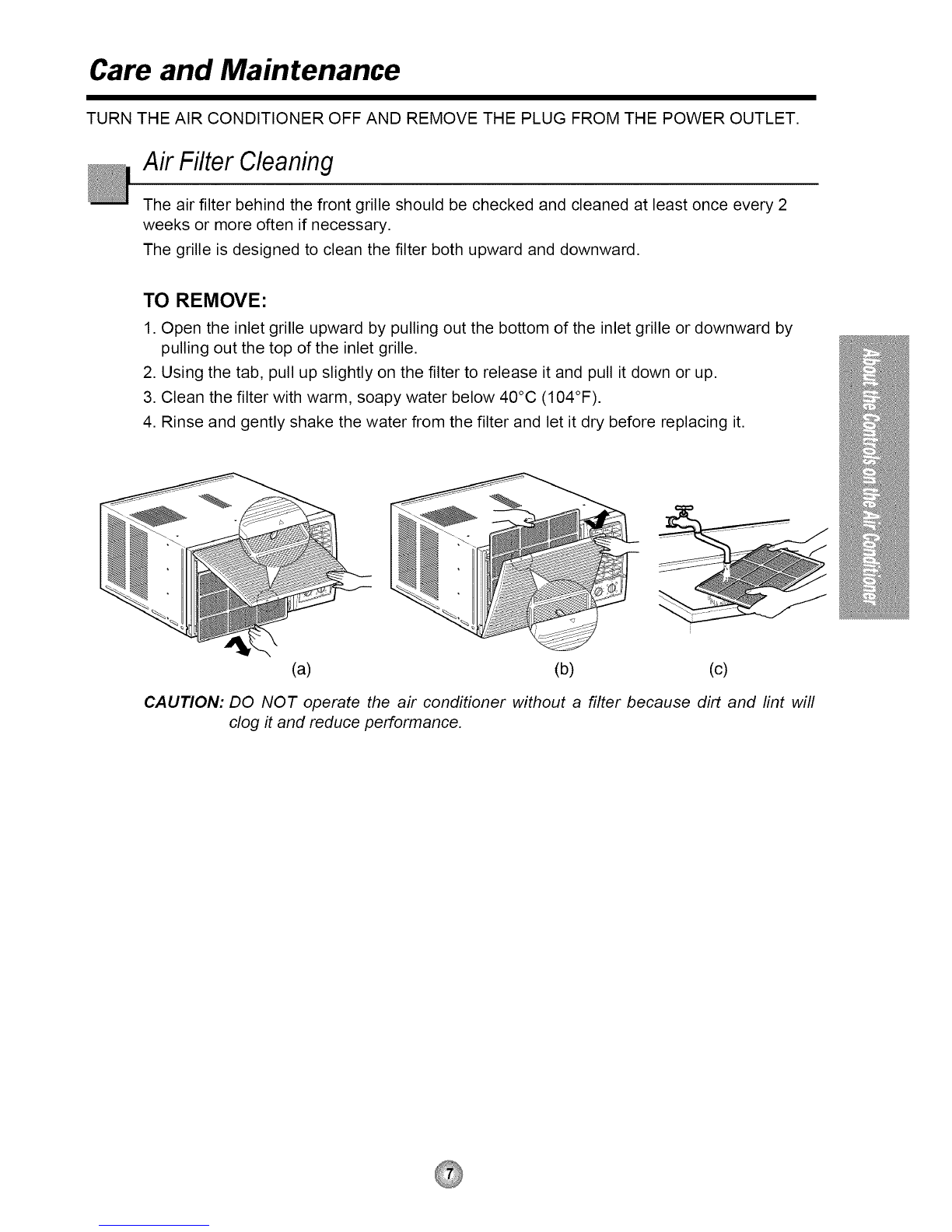

Care and Maintenance

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

Air Filter Cleaning

The air filter behind the front grille should be checked and cleaned at least once every 2

weeks or more often if necessary.

The grille is designed to clean the filter both upward and downward.

TO REMOVE:

1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by

pulling out the top of the inlet grille.

2. Using the tab, pull up slightly on the filter to release it and pull it down or up.

3. Clean the filter with warm, soapy water below 40°C (104°F).

4. Rinse and gently shake the water from the filter and let it dry before replacing it.

(a) (b) (c)

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will

clog it and reduce performance.

Features

Learning parts name prior to installation will help you understand the installation procedure.

Features

CABINET

FRONT GRILLE

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

AIR DISCHARGE

AIR FILTER AIR INTAKE

(INLET GRILLE)

R8000

EVAPORATOR

CONTROLBOARD

BRACE

COMPRESSOR

--CONDENSER

BASE PAN

POWER CORD

R1003

EVAPORATOR

CONTROLBOARD

BRACE

COMPRESSOR

--CONDENSER

BASE PAN

POWER CORD

INSTALLATION

How to Install the Unit

To prevent vibration and noise, make sure

the unit is installed securely and firmly

Install the unit where the sunlight does not

shine directly on the unit.

3. The outside of the cabinet must extend Cooledair

outward for at least 11" and there should

be no obstacles, such as a fence or wall,

within 20" from the back of the cabinet

because it will prevent heat radiation of the

condenser.

Restriction of outside air will greatly reduce

the cooling efficiency of the air conditioner.

CAUTION: All side louvers of the cabinet must remain exposed to the outside of the

structure.

4. Install the unit a little slanted so the back is slightly lower than the front(about 1/2").

This will force condensed water to flow to the outside.

5. Install the unit with the bottom about 30"~60" above the floor level.

Fence

Window Requirements

NOTE:All supporting parts should be secured to firm wood, masonry, or metal.

This unit is designed for installation in

standard double hung windows with actual

opening widths from 22" to 36".

The top and bottom window sash must open

sufficiently to allow a clear vertical opening of

15" from the bottom of the upper sash to the

window stool.

I pii!i!iiii!!i!lii!i_¸_'_¸_!,liiii!_li!!ii_iii_iiii_liiii_lit

15"min

(Withframecurtain)

Ill t

Interiorwail

181/2"min.

(Withoutframecurtain'

Offset

1/2"to 11/4"

,, Sill

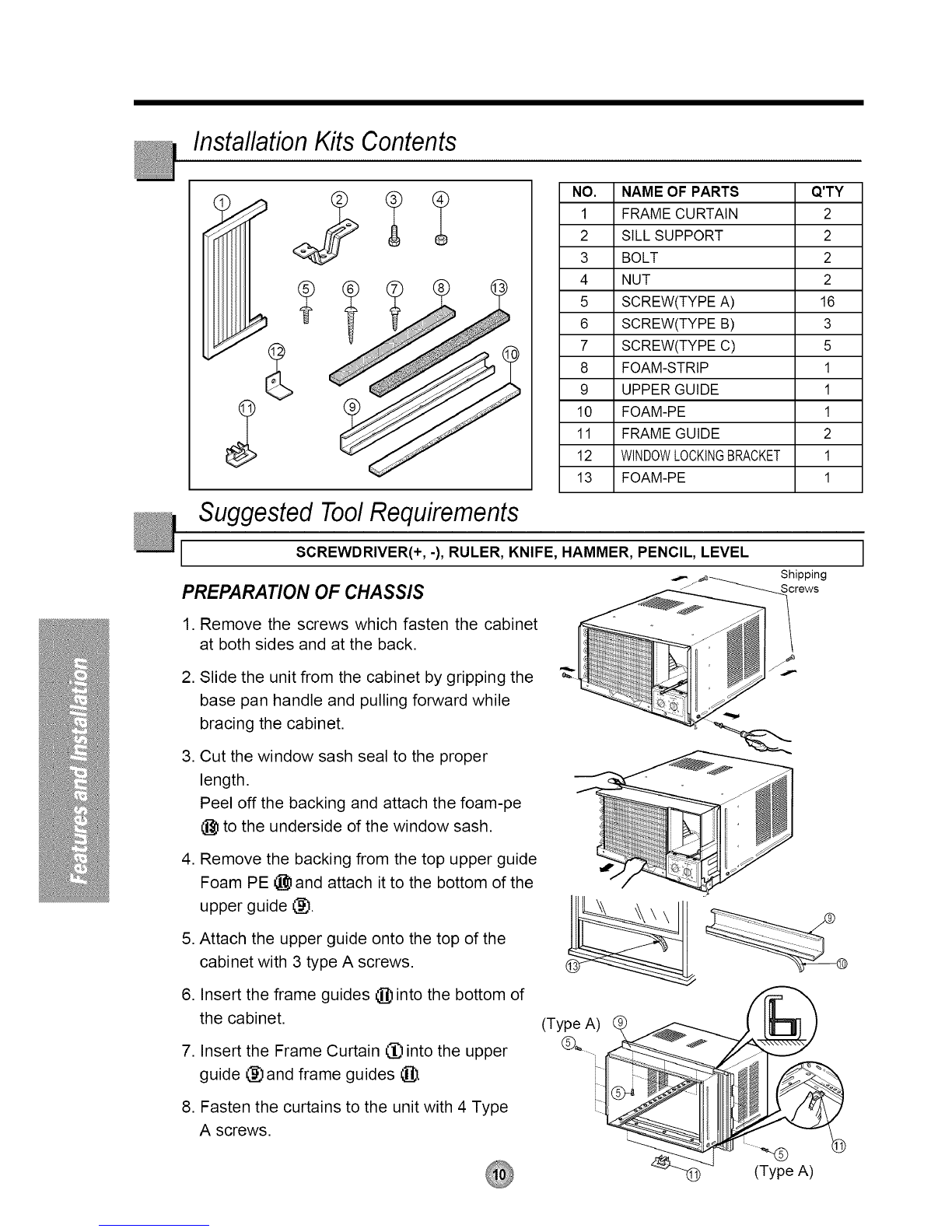

Installation Kits Contents

NO. NAME OF PARTS Q'TY

1 FRAME CURTAIN 2

2 SILL SUPPORT 2

3 BOLT 2

4 NUT 2

5 SCREW(TYPE A) 16

6 SCREW(TYPE B) 3

7 SCREW(TYPE C) 5

8 FOAM-STRIP 1

9 UPPER GUIDE 1

10 FOAM-PE 1

11 FRAME GUIDE 2

12 WINDOWLOCKINGBRACKET 1

13 FOAM-PE 1

Suggested ToolRequirements

PREPARATION OF CHASSIS

1. Remove the screws which fasten the cabinet

at both sides and at the back.

2. Slide the unit from the cabinet by gripping the

base pan handle and pulling forward while

bracing the cabinet.

SCREWDRIVER(+,-), RULER, KNIFE, HAMMER, PENCIL, LEVEL

Shipping

---__Screws

3. Cut the window sash seal to the proper

length.

Peel off the backing and attach the foam-pe

(_ to the underside of the window sash.

4. Remove the backing from the top upper guide

Foam PE (_ and attach it to the bottom of the

upper guide (_).

5. Attach the upper guide onto the top of the

cabinet with 3 type A screws.

6. Insert the frame guides _!])into the bottom of

the cabinet.

7. Insert the Frame Curtain _ into the upper

guide (_)and frame guides tj]).

(Type A)

8. Fasten the curtains to the unit with 4 Type

A screws.
