Goodwe MT series Bedienungsanleitung

Wall bracket

Expansion Pipe

Self-tapping screws

Warning:All fasteners must be locked tight.Otherwise water

may flow in , resulting in machine failure. In such case warranty

shall not be provided.

Installation space Dimensions for Drilling holes

Standard Connection

Mounting place and installation

Fix the wall bracket AC Connection and Assembly

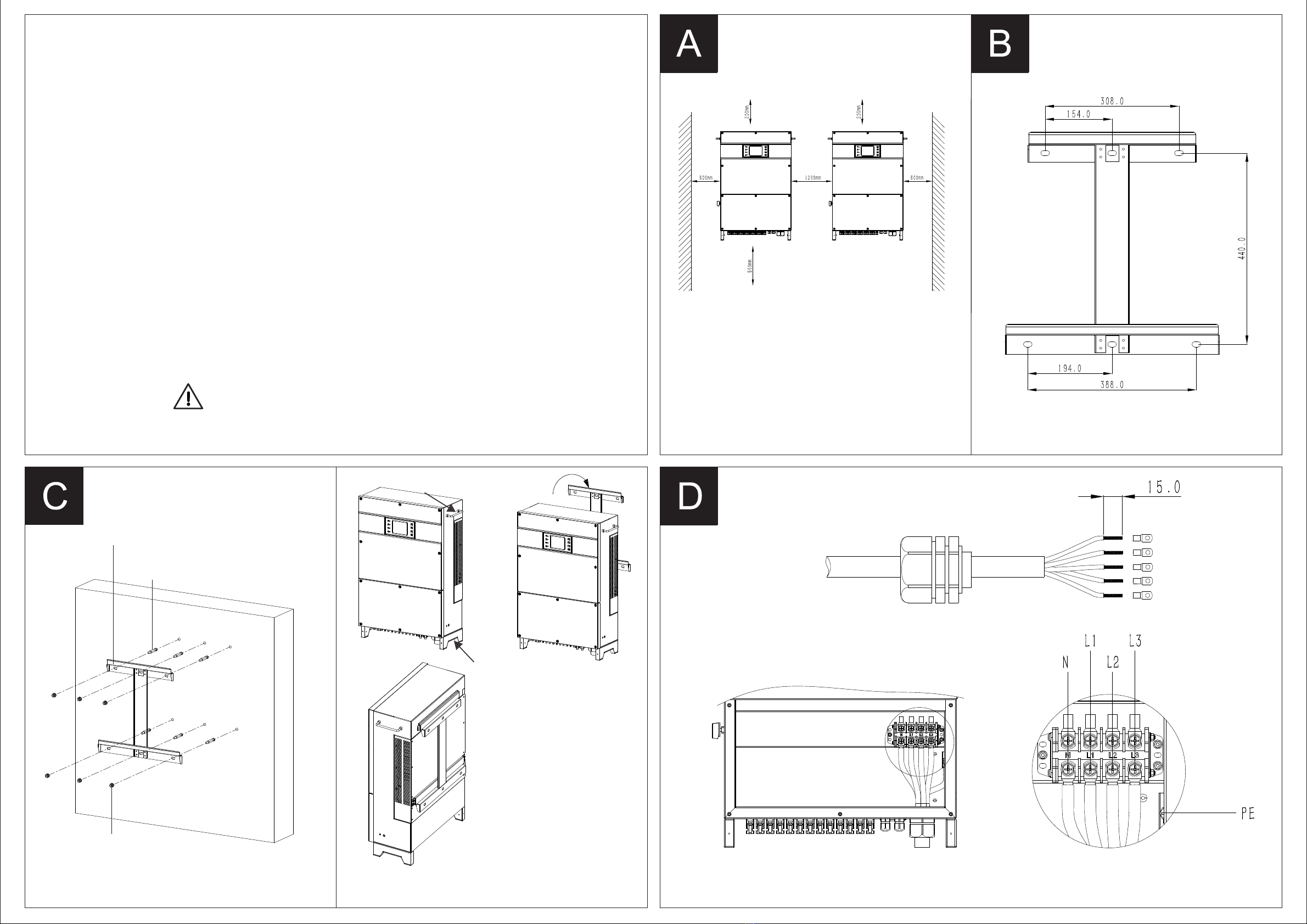

Quick Installation Guide

MT Series

For the earthing of

casing, please refer to

the specification.

340-00015-00

Contigure safety

DC Connection and Assembly RS485 communication assembly

Set up the clock

Connet the cable terminal

with external WIFI module

Configure cowctry secting

WiFi Assembly

M3 * 8 Screw

Tightening Torque: 0.6 N•m

Wire Size Function

485_TX+

485_TX-

485_TX+

485_TX-

PE(Earth)

GHI

Set fafety 50Hz Grid

Defallct

Set safety

China

Step 1: Turn on DC power of inverter.

Step 2: If LCD shows”Configure

Suftey”as below.Otherwise, skip all

steps.

Step 3: Long press“ENTER” key until

LCD shows as below.

Step 4: Press “UP” and “DOWN” key

to switch different cowctry setting

suchas .

Step 5: Hold on the “ENTER” key to save

the emergency decree setting. If this is

your first time to turn on the machine,

please choose the synchronization

standard “China”, with 187 ~ 242Vac

as the voltage range for synchronization. If the on-site grid voltage is

beyond the scope, the synchronization standard “Chinese Standard

Higher Pressure/ Chinese Standard Highest Pressure” can only be

chosen after obtaining the approval of local power operator.

If 65KW/75KW type is applied to medium-pressure synchronization,

please choose synchronization standard “Chinese Power Station”.

WiFi

WiFi/GPRS

AC DUTPUT

Inverter side

Positive Plug

Negative Plug

Special tool are used to stitching

Limit buckle can’t

crimp the wire

AMPHENOL Series

Positive Connector

Negative Connector

Inverter side

MC4 Series

Normal

2012-03-26

Error Log

Date&Time

Language

Histogram

Down Up

Error Log

Date&Time

Language

Set Time

13:12:25

2012-03-25

Enter

ESC

Error Log

Date&Time

Language

Histogram

Down Up

Enter
