Gorenje ZOS2467 Bedienungsanleitung

GB Instructions for use

Upright Freezer

302967

We thank you for the conﬁdence you have shown by purchasing our appliance.

We wish you a lot of pleasure using the appliance.

The appliance is intended solely for household use.

The upright freezer is intended for use in households, for freezing fresh food and long-term storage

of frozen food (up to one year, depending on the type of food).

Important warnings ..................................................... 3

A few tips on how to save power with your

refrigerator-freezer combo ........................................ 5

Appliance description................................................. 6

Installation and connection........................................ 8

Changing the door opening direction ..................... 10

Operating the appliance............................................ 13

Freezing fresh food and storing frozen food.......... 19

Defrosting the appliance........................................... 21

Cleaning the appliance ............................................. 22

Troubleshooting ........................................................ 23

Information on appliance noise ............................... 24

302967

• The appliance is manufactured in compliance with

the effective safety standards. However, it can be

used by children aged from 8 years and above

and persons with reduced physical, sensory or

mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a

safe way and understand the hazards involved.

• Before connecting the appliance, carefully

read the instructions for use which describe

the appliance and its correct and safe use. The

instructions apply to several types / models;

therefore, they may include descriptions of

settings and equipment that may not be available

in your refrigerator. The instructions also apply to

the NO FROST version of the freezer, featuring a

built-in fan and automatic defrosting.

• Remove the packaging that is intended for protecting

the appliance or its respective parts during transport.

• Spacers are ﬁtted in the corners of the doors;

these should be removed and the plugs attached

(only with some models) should be inserted into

the openings.

• Before connecting to the power mains, the

appliance should be left to stand still in upright

position for at least 2 hours. Thus, operation

errors due to the effect of transport on the cooling

system will be much less likely to occur.

• The appliance must be connected to the power

mains and grounded in compliance with the

effective standards and regulations.

• The appliance may not be used outdoors and

should not be exposed to rain.

• The appliance must be disconnected from the

power mains (unplug the power cord from the wall

outlet) before cleaning or before replacing the bulb.

• If the power cord is damaged, it should be replaced

by a service technician or other authorized person.

• If the appliance is not used for a longer period

of time, switch it off with the relevant button and

disconnect it from the power mains. Empty the

appliance, defrost it, clean it, and leave the door ajar.

Important warnings

302967

• To protect the environment, dispose of the appliance after its useful life by

taking it to an authorized waste collection center.

• The packaging is made of environment-friendly materials that can be

recycled, disposed of, or destroyed without hazard to the environment.

• Children should not play with the appliance.

• The label with basic information on the appliance is attached in the appliance

interior. If the label is not in your local language, replace it with the one

supplied with the appliance.

• WARNING! Ventilation openings on the appliance or

built-in cupboard must be kept clean and unobstructed

at all times.

• WARNING! Do not use any mechanical accessories or

other methods to defrost the appliance, except for those

expressly recommended by the manufacturer.

• WARNING! During installation, cleaning, and removal

of appliance, be careful not to damage the insulation of

the parts of the cooling system. This will also prevent

pollution.

• WARNING! Do not use any electric devices inside

the appliance, except for those allowed by the

manufacturer of this refrigeration appliance.

The symbol on the product or on its packaging indicates that this product may not be

treated as household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment. By ensuring

this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused

by inappropriate waste handling of thisproduct. For more detailed information about

recycling of this product, please contact your local city ofﬁce, your household waste

disposal service or the shop where you purchased the product.

302967

• Observe the installation instructions.

• Do not open the appliance door more frequently than necessary.

• Occasionally check whether air can circulate freely behind the appliance.

• Condenser unit mounted on the appliance back wall must be kept clean at all times (see section

“Cleaning the appliance”).

• If the seal is damaged or loose, replace it as soon as possible.

• Store your food in closed containers or other appropriate packaging.

• Before placing the food in the refrigerator, let it cool down to room temperature.

• Defrost your frozen food in the refrigerator compartment.

• Remove the freezer drawers and door as described in the instructions, in order to make use of

the entire capacity.

• Defrost your conventional freezer when a frost layer approximately 3-5 millimetres thick has

accumulated on the surfaces in the freezer compartment.

• Make sure the shelves are evenly distributed and that the food is arranged in a way that

allows free circulation of air (heed the recommended food arrangement as described in the

instructions).

• In appliances ﬁtted with a fan, do not block the fan slots.

A few tips on how to save power with your

refrigerator-freezer combo

302967

• Interior accessories of the appliance may vary according to the model.

• Drawers are protected against accidental extraction. To extract the drawer from the appliance,

open it and lift front part upwards, then pull it out. Certain models are ﬁtted with pull-out slide

guides which facilitate opening. Pull-out guide drawers are extracted by lifting the rear end and

pulling out inclined under the 45° angle. Reinsert in opposite sequence.

* Certain models only.

1 Control panel

2 Interior light*

3 Freezing compartment

4 Fast freeze for small quantities of food*

5 Larger drawer SpaceBox*

6 Storage compartment

7 Defrost drain outlet groove

8 Leg support*

9 Leg

10 Wheels*

11 Cold accumulator*

TRADITIONAL FREEZER

Appliance description

302967

NO FROST FREEZER

1 Control unit

2 Interior illumination*

3 NO FROST freezing unit

(cooler, fan ...)*

4 Freezing and storage area

5 Large space - SpaceBox

drawer*

6 Leg support*

7 Leg

8 Wheel*

• Interior accessories of the appliance may vary according to the model.

• Drawers are protected against accidental extraction. To extract the drawer from the appliance,

open it and lift front part upwards, then pull it out. Certain models are ﬁtted with pull-out slide

guides which facilitate opening. Pull-out guide drawers are extracted by lifting the rear end and

pulling out inclined under the 45° angle. Reinsert in opposite sequence.

• Fan (hid within the freezer unit) provides better distribution of temperature. It is off when the

freezer door is open, or during idle compressor periods.

* Certain models only.

302967

• The appliance should be installed in a dry and well ventilated

room. The appliance will operate correctly if the environment

temperature is within the ranges listed in the table below.

The appliance class is indicated on the label with the basic

information on the appliance.

Class Temperature

SN (subnormal) from +10°C to +32°C

N (normal) from +16°C to +32°C

ST (subtropical) from +16°C to +38°C

T (tropical) from +16°C to +43°C

Appliance installation should be carried out by at least two

persons to avoid any physical injury or damage to the appliance.

• The appliance should stand ﬁrmly in an upright position on a

sufﬁciently solid base. At the front, the appliance is ﬁtted with

two adjustable legs that can be used to level the appliance

(only with some models). Rear side of the appliance is ﬁtted

with wheels (certain models only) facilitating the positioning of

the appliance at the preselected place.

• If there is a kitchen furniture element above the appliance,

there should be a clearance of at least 5 centimeters between

this element and the refrigerator, to ensure sufﬁcient cooling of

the condenser unit.

• Do not expose the appliance to direct sunlight and do not

place it near sources of heat. If this cannot be avoided, install

an insulation panel.

• Bottom front corners of the appliance is ﬁtted with handles to

facilitate moving. The appliance may stand freely or it can be

placed next to a kitchen furniture element or a wall. Mind the

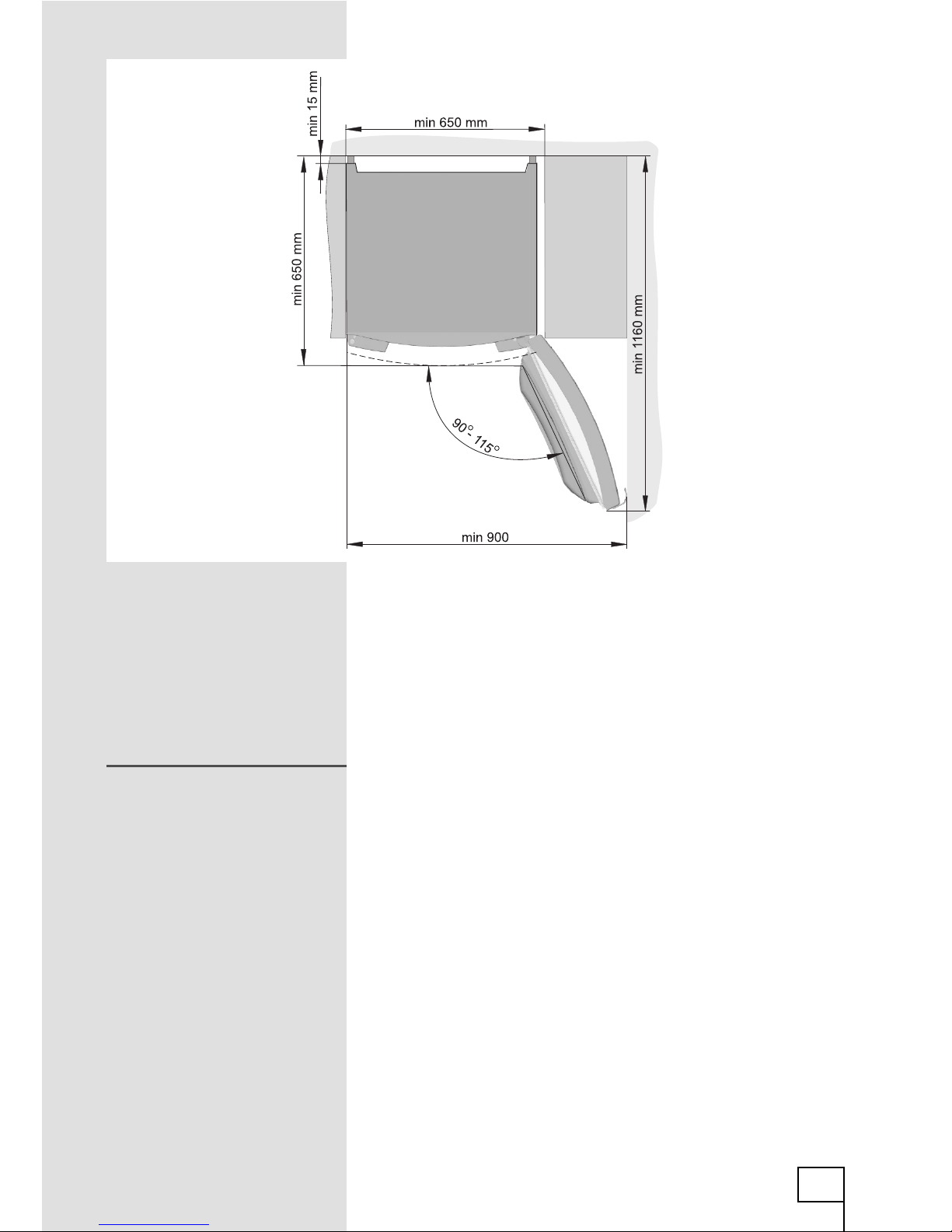

space required to open the door and pull out the drawers and

shelves (see installation diagram).

Selecting the room

Installing the appliance

Installation and connection

302967

Note: When placing the appliances side by side, the anti-dew

(anti-condensation)

set has to be purchased and installed.

Code for ordering the set: 151046

• Use the power cord to connect the appliance to the power

mains. The wall outlet should be ﬁtted with a ground contact

(safety socket). Nominal voltage and frequency are indicated

on the label with basic information on the appliance.

• The appliance should be connected to the power mains and

grounded in compliance with the relevant effective standards

and regulations. The appliance will withstand short-term

deviations from the nominal voltages, but not more than from

-6% to +6%.

Connecting the

appliance

302967

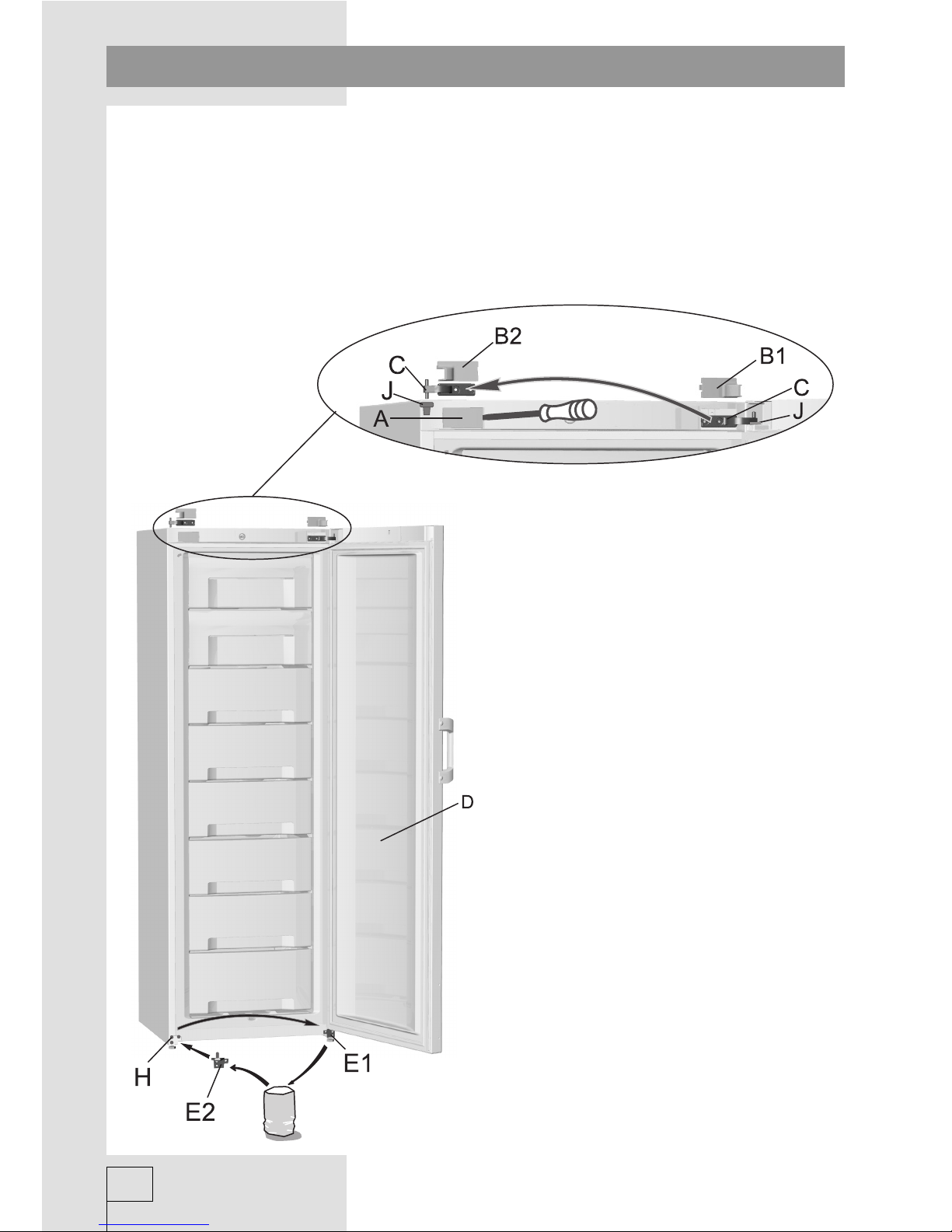

Tools required: ring spanner (box-end wrench) No. 8, screwdriver, torx25, ﬂathead

screwdriver

1. Use the ﬂat-bladed screwdriver to remove the covers A and B1.

2. Remove, starting from the top and working your way down: hinge (C), door (D), and hinge (E1).

Make sure the door is not damaged.

3. Move the cover plugs (H) to the opposite side.

Changing the door opening direction

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Gorenje Gefrierschrank Handbücher

Gorenje

Gorenje F 3101 W Bedienungsanleitung

Gorenje

Gorenje F 247 CB Bedienungsanleitung

Gorenje

Gorenje F 317 B Bedienungsanleitung

Gorenje

Gorenje FN6191DHW Bedienungs- und Wartungshandbuch

Gorenje

Gorenje F 65 SYW Bedienungsanleitung

Gorenje

Gorenje FH 13400 W Bedienungsanleitung

Gorenje

Gorenje UKM235XNF Bedienungsanleitung

Gorenje

Gorenje NRK7191TX Bedienungsanleitung

Gorenje

Gorenje FH101AW Technisches Handbuch

Gorenje

Gorenje RK 4256 E Bedienungsanleitung

Gorenje

Gorenje FH15FPW Technisches Handbuch

Gorenje

Gorenje RB 3135 W Bedienungsanleitung

Gorenje

Gorenje rk 1000 ip Bedienungsanleitung

Gorenje

Gorenje FH211W Bedienungsanleitung

Gorenje

Gorenje FS600 ADVANCED Bedienungs- und Wartungshandbuch

Gorenje

Gorenje FH401W Bedienungsanleitung

Gorenje

Gorenje FH130W Bedienungsanleitung

Gorenje

Gorenje FH330WW Bedienungsanleitung

Gorenje

Gorenje FIU6091AW Bedienungsanleitung

Gorenje

Gorenje F4092ANW Bedienungsanleitung

Gorenje

Gorenje F 50106 W Bedienungsanleitung

Gorenje

Gorenje FH401IW Bedienungsanleitung

Gorenje

Gorenje F6181AX Bedienungsanleitung

Gorenje

Gorenje FH211IW Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
