Instructions for use

Upright refrigerator - freezer

142519

Thank you for your conﬁdence in buying our appliance and congratulations on the excellent choice.

We hope it will successfully serve its purpose for many years.

Upright refrigerator - freezer (hereinafter: the appliance) is combined from two parts: top part is

refrigerator and bottom part is upright freezer.

Refrigerator is used in households for storage of fresh food at temperatures above 0°C).

Freezer is used in households for freezing fresh food and storage of frozen food for up to one year

(depending on the type of food).

Before ﬁrst operation ................................................. 3

Description of the appliance ...................................... 5

Installation and connection........................................ 6

Control panel .............................................................. 8

Recommended distribution of food ........................ 16

Storing fresh food in the

refrigerator ............................................................... 17

Storing of food in the ZERO’N’FRESH drawer ....... 19

Freezing and storage of frozen food ....................... 21

Defrosting the appliance........................................... 23

Cleaning ..................................................................... 24

Troubleshooting guide.............................................. 25

Noise level.................................................................. 27

142519

• The appliance is manufactured in compliance with all relevant

safety standards; however, it is recommended that persons

with impaired physical, motional, or mental abilities, or persons

with inadequate experience and knowledge, do not use the

appliance without due supervision. The same recommendation

applies to minors using the appliance.

• Before connecting the appliance read these instructions

carefully. They describe the appliance and provide instructions

for its safe and correct use. The instructions are prepared

for different types and models of the appliance so they may

contain descriptions of functions and components your

appliance may not have.

Instructions also contain the NO FROST freezer version, with

integrated fan and automatic defrost.

• Remove the wrapping protecting the appliance during

transport. Door corners are ﬁtted with protective spacers.

Remove the spacers and replace them with the attached pegs.

• Before connecting the appliance to the mains supply, leave it

in upright position for about 2 hours. This will reduce possibility

of malfunctions in the cooling system resulting from prior

transport and handling.

• The appliance must be connected to the mains supply

in accordance with the standing regulations and local

requirements.

• The appliance must not be used in open air or exposed to

weather precipitation.

• Always disconnect the appliance from power supply (pull

the power cord from wall socket) before cleaning and before

replacing the light bulb.

• If the power cord is damaged, it must be replaced by qualiﬁed

service personnel.

• In case of longer disuse ﬁrst turn the appliance off with the ON/

OFF button and disconnect it from mains supply. Empty the

appliance, clean the interior and leave the door ajar.

• For the protection of environment deliver the obsolete

appliance to the authorized scrap appliance dealers.

• Wrappings contain environmentally friendly materials which

can be recycled, recovered or disposed without threat to the

environment.

• To prevent any pollution be careful not to damage the

insulation or refrigeration tubes at the rear wall during the

installation, cleaning and disposal of the appliance.

• Never let the children play with the appliance.

• Self closing door hinge pulls the door to the cabinet just before

closing, thereby preventing the door to remain ajar. Equally

it limits the door opening angle and prevents damage to

adjacent elements. 3

Before ﬁrst operation

142519

• Practical longitudinal aluminum handle offers convenient grip

anywhere along its length (convenient for children). It may also

be decorated with a variety of design inserts (wood, inox,…).

• Odor ﬁlter removes foul and unpleasant smells from inside

the cabinet and prevents their absorption by other food stored

in the refrigerator. First remove the protective foil from the

ﬁlter, then remove the aluminum gel protection at the back,

and ﬁnally slip the ﬁlter onto the support from above, as

shown on the sketch. Odor ﬁlter removes foul and unpleasant

smells from inside the cabinet and prevents their absorption

by other food stored in the refrigerator. After approximately 3

months the gel inside the ﬁlter is used up and the ﬁlter needs

replacement. It can be purchased from the authorized Gorenje

service centers.

• For normal operation of radio receiver, connect the attached

antenna to the antenna connection on the back side of the

appliance. In case of bad reception, the appliance must be

connected to the cable or external antenna.

• Rating plate with basic information is located in the interior

of the appliance. If the sticker plate is not suitable for your

language, replace it with the attached one.

• Warning: Ventilation slots on the appliance or built-in element

should always be kept clean and unobstructed.

• Warning: Do not use any mechanical accessories

when thawing the refrigerator, except for those explicitly

recommended by the manufacturer.

• Warning: To prevent any pollution be careful not to damage

the insulation or refrigeration tubes at the rear wall during the

installation, cleaning and disposal of the appliance.

• Warning: Do not use any electrical devices inside the

appliance, except for those explicitly recommended by the

manufacturer.

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it shall be handed over to

the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment and

human health, which could otherwise be caused by

inappropriate waste handling of thisproduct. For more

detailed information about recycling of this product,

please contact your local city ofﬁce, your household

waste disposal service or the shop where you purchased

the product.

142519

• Interior accessories of the appliance may vary according to the model.

• Pull-out guide drawers (or shelves) are extracted by lifting the rear end and pulling out inclined

under the 45° angle. Reinsert in opposite sequence.

* Certain models only.

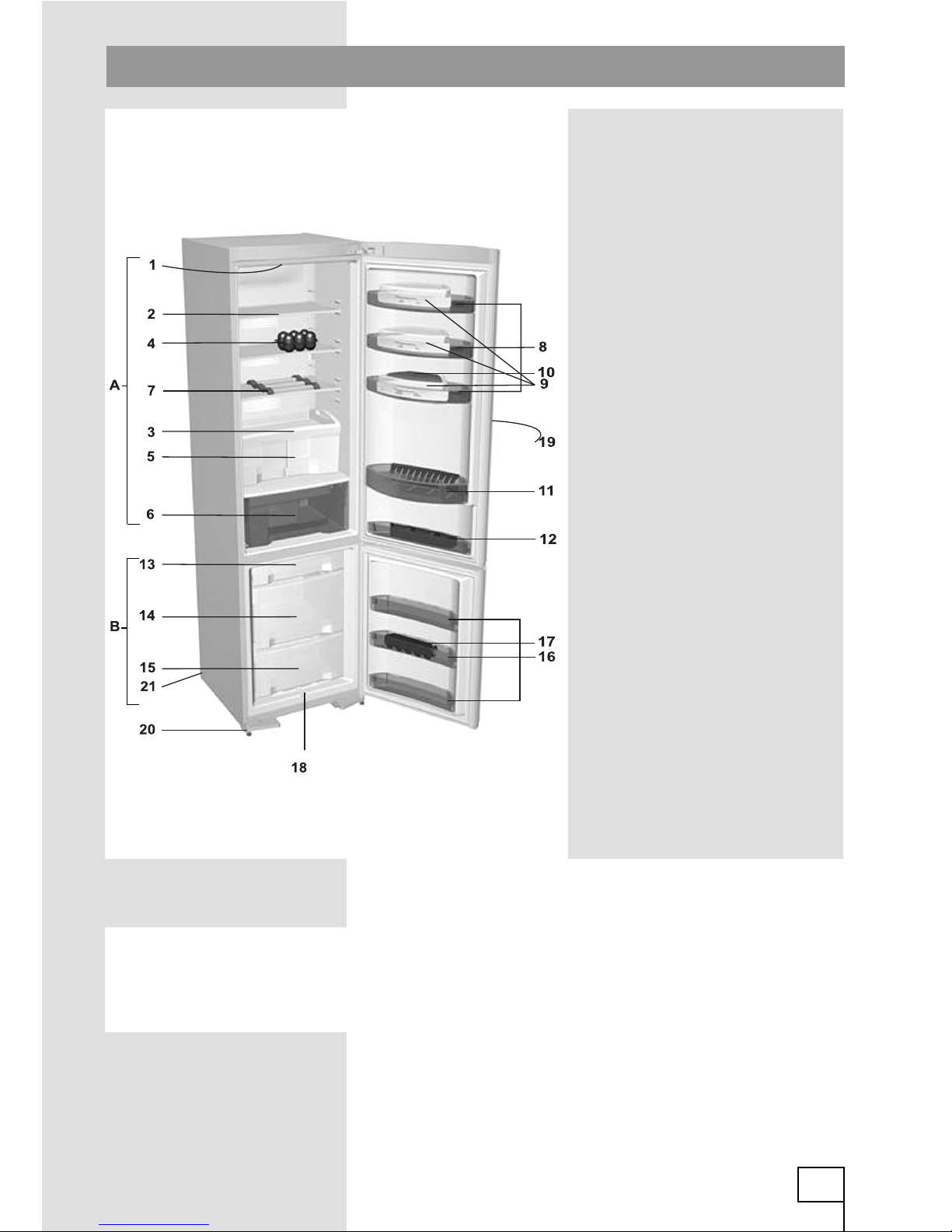

A Refrigerator

B Freezer

1Interior light

2Shelf (adjustable height)

3Telescopic guide shelf

(max. 12 kg)

4Foldable egg rack (closed - six

eggs, open - 12 eggs)

5Vegetable crisp pan*

6ZERO’N’FRESH food storage

drawer with pull-out guides (may.

20 kg)

7Bottle rack*

8Refrigerator door tray (max. 6 kg)

9Deep shelf removable tray with lid

READY’N’SERVE

10 Cheese board

11 Twin row bottle carrier with safety

holder*

12 Tube holder*

13 Fast freeze drawer for small

quantities of food

14 Large BIG’N’FREEZE drawer on

telescopic guides (max. 16 kg)

15 Storage compartment (short)

16 Freezer door shelf*

17 Ice tray*

18 Defrost drain outlet groove*

19 Cooled water dispenser*

20 Legs

21 Wheels*

Description of the appliance

142519

• Place the appliance in dry and well aired room. The appliance

operates best at temperature ranges indicated in the chart

below. Relevant class of the appliance is indicated on the

rating plate.

Class Ambient temperature

SN (subnormal) from +10°C to +32°C

N (normal) from +16°C to +32°C

ST (subtropical) from +16°C to +38°C

T (tropical) from +16°C to +43°C

Positioning the appliance requires two persons in order to avoid

injuries or damage to the appliance.

• Place the appliance ﬂatly and ﬁrmly on a solid base. The

appliance is ﬁtted with adjustable feet on the front side, used

to level the appliance. Rear side of the appliance is ﬁtted

with wheels facilitating the positioning of the appliance at the

preselected place.

• The element above the appliance must be at least 5 cm away

to allow sufﬁcient cooling of the condenser.

• Avoid exposing the appliance to direct sunlight or heat

sources. If this is not feasible, install insulation plate between

the appliance and adjacent heat source.

• Bottom front side of the appliance is ﬁtted with handles to

facilitate relocation. The appliance may stand independently

or adjacent to a furniture element or wall. Be sure to leave

enough space for the opening of the door, to avoid damage to

the appliance or injuries to persons. Also leave ample space

for extracting shelves (see installation diagram).

Selecting the location

Positioning the

appliance

Installation and connection

142519

• Use the power cord to connect the appliance to the mains

power. Wall outlet must be ﬁtted with ground terminal (safety

socket). Nominal voltage and frequency are indicated on the

relevant label or rating plate of the appliance.

• Mains power connection and grounding must be made in line

with standing regulations and local requirements.

The appliance is able to accommodate minor temporary voltage

tolerances, but they may not exceed -6% to +6%.

Door swing change is not possible.

Connecting to power

supply

Reverse door swing

142519

Control display is located on the outside the door and is

controlled on touch screen principle.

Master menu

7 8 9 10 11 12

III

I. Basic controls

1. Setting refrigerator temperature

2. Setting freezer temperature

3. Help

4. Child lock

5. Current time

6. Alarm

7. ECO saving program

8. Vacation program

9. Super frost

10. Super cool

11. Quick bottle cool in the refrigerator

12. Quick bottle cool in the freezer

II. Radio

III. Voice messages

IV. Other settings

V. Tips

Settings

Control panel

142519

ON/OFF button

First plug the mains power lead into the wall mains outlet.

Screen illuminates, displays gorenje logo for a moment, and then

changes to master menu.

The appliance is switched on/off by keeping the symbol

pressed for at least 3 seconds (separately for the fridge and for

the freezer).

Setting the temperature

To set the refrigerator or freezer temperature press the relevant

temperature setting button for each appliance.

Temperature is changed by pressing the

arrows .

After 5 seconds the setting is automatically saved.

Help is available by pressing the symbol.

Help

Press the symbol to enter help.

Press the to move through the text.

Pressing the symbol returns you back to the master

menu in all settings.

Child lock

Integrated child lock protects the appliance against accidental

alterations of temperature or even turning the appliance off.

Switch the child lock ON/OFF by pressing the symbo for more

than 2 seconds. Framed symbol indicates the function is active.

Warnings

There are four basic alarm functions

• refrigerator open door alarm;

• refrigerator temperature too high;

• freezer temperature too high;

• »quick bottle cool in the freezer« alarm;

Sound warning is switched of by pressing the symbol .

I. Basic controls

142519

You may select between several programs. After a setting is

selected the display brieﬂy indicates that the selected setting

is saved, and then returns to master menu, where the selected

function is framed. Equally, when the selected function is

switched off, the display brieﬂy indicates that the function has

been deleted, then returns to master menu, where the selected

function symbol is not framed any more (deleted setting).

ECO - saving program

By pressing the symbol. The refrigerator temperature is

automatically set to +9°C (appliances with the ZERO’N’FRESH

drawer to +8°C) and the freezer temperature to -18°C. The

function used for longer absences from home. The setting is

switched ON/OFF by pressing the symbol .

To return to the master menu, press .

Vacation program

The program is activated by pressing the symbol. The

refrigerator temperature is automatically set to +9°C (appliances

with the ZERO’N’FRESH drawer to +8°C) and the freezer

temperature to -18°C. The function used for longer absences

from home. Do not forget to remove quickly perishable food from

the refrigerator prior leaving. Switch the function of when you

return home. The setting is switched ON/OFF by pressing the

symbol .

To return to the master menu, press .

Super frost function

The function is activated by pressing the symbol, and it is

used for freezing large quantities of food inserted in the freezer

at once. If it is not stopped before, the function is switched off

automatically after 50 hours of operation. Maximum displayed

temperature on the screen is -24°C. In case of power failure the

process is repeated.

The setting is switched ON/OFF by pressing the symbol .

To return to the master menu, press .

Super cool function

The function is activated by pressing the symbol. It is used for

fast cooling of large quantities of food inserted in the refrigerator.

The function is switched off automatically after 6 hours of

operation, and the refrigerator temperature returns to the preset

value. The setting is switched ON/OFF by pressing the

symbol .

To return to the master menu, press .

Basic programs

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Gorenje Kühlschrank Handbücher

Gorenje

Gorenje NRK7191JW Bedienungsanleitung

Gorenje

Gorenje K 256 CLA Bedienungsanleitung

Gorenje

Gorenje NRS9182CXB Bedienungsanleitung

Gorenje

Gorenje NRKI4181E1UK Technisches Handbuch

Gorenje

Gorenje RFI4151AW Bedienungsanleitung

Gorenje

Gorenje R6191FX Bedienungsanleitung

Gorenje

Gorenje HPI1566 Technisches Handbuch

Gorenje

Gorenje RIU 6158 W Bedienungsanleitung

Gorenje

Gorenje RK 6193 LRD Bedienungsanleitung

Gorenje

Gorenje NRK6192SYBK Technisches Handbuch

Gorenje

Gorenje RK62FSY2W Bedienungs- und Wartungshandbuch

Gorenje

Gorenje RBIU6091AW-SA Technisches Handbuch

Gorenje

Gorenje RK6161AW Bedienungsanleitung

Gorenje

Gorenje NRK619EAXL4WD Bedienungsanleitung

Gorenje

Gorenje NRS9182MB Technisches Handbuch

Gorenje

Gorenje R4142ANX Technisches Handbuch

Gorenje

Gorenje RB 4138 W Bedienungsanleitung

Gorenje

Gorenje Simplicity Series Technisches Handbuch

Gorenje

Gorenje RB 6288 OGR Bedienungsanleitung

Gorenje

Gorenje NRS9182VB Technisches Handbuch

Gorenje

Gorenje BCD 522 Technisches Handbuch

Gorenje

Gorenje NRS918BCBG Bedienungsanleitung

Gorenje

Gorenje RK-ORA-S Bedienungsanleitung

Gorenje

Gorenje NRS8181KX Technisches Handbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
