Mounting Instructions 5

Integrated Refrigerating and Freezing

Appliances EN

Mounting instructions for refrigerating and freezing appliances are for qualified

technicians only. Appliance should be mounted and installed in compliance with these

instructions, current standards and regulations. Mounting instructions were prepared

for various types/models of appliances, therefore they may describe some

procedures that do not apply to your appliance.

Mounting Dimensions and Required Air

Circulation.......................................................................5

Changing the Direction of Opening the Door...............6

Mounting the Appliance.................................................7

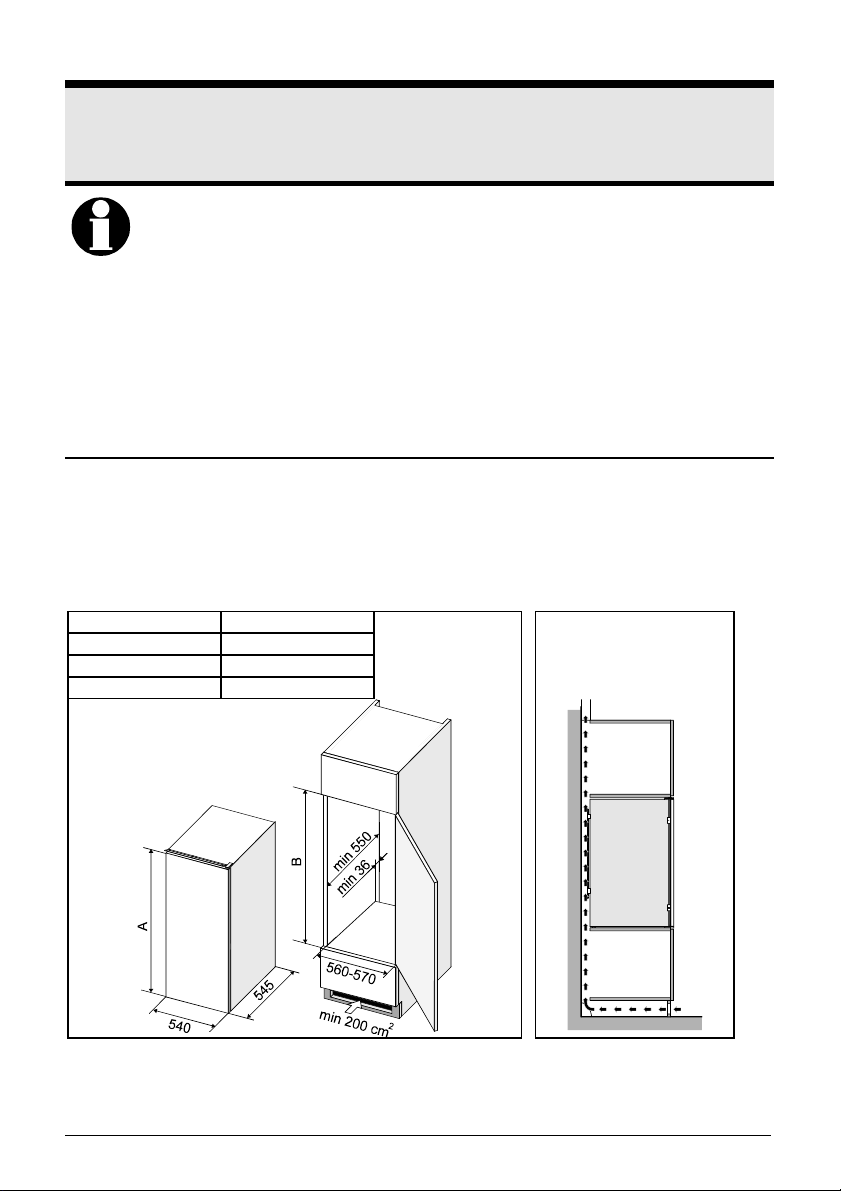

Mounting Dimensions and Required Air Circulation

The rear wall of the appliance is getting warm during the operation of the appliance (and water is

evaporating from the drain pan on the compressor). You must therefore provide for adequate air

circulation on the rear of the appliance.

• At the base of the kitchen unit intended for building in the integrated appliance, there should be

at least 200 cm˛free space, for adequate air circulation.

• On the upper part of the appliance the air is coming out, so try not to cover the opening for the

outflow air.

A (mm) B (mm)

875 875-880

1025 1025-1030

1225 1225-1230

Mounting Instructions6

Changing the Direction of Opening the Door

If you find the direction of opening the door on your appliance inconvenient, you can change it.

Holes on the opposite side have already been prepared in the factory and are now plugged.

• Remove the cover of the upper hinge, unscrew the hinge and take off the door (the door is not

fixed on the lower hinge).

• Unscrew the upper rail, replace it to the opposite side of the appliance and fix it.

• Remove the washer from the lower hinge and unscrew (rotate it in clockwise) the fastener on the

lower hinge.

• Replace the fastener and the washer in reverse order into the opening of the lower hinge on the

opposite side of the appliance.

• Take off all door corners and interchange them (instead of the corner with a hole insert the one

without the hole and vice versa).

• Put the door of the appliance on the lower hinge.

• Fix the upper hinge and cover it.

• Replace the slide guides to the opposite side of the door.

• Plug the remaining holes with decorative caps.

• Check the gasket, it shouldn't be creased and it should seal well. In case it does not fit perfectly,

pull it out and rotate for 180°.

In certain models it is not possible to replace the door gasket.

Should the seal not adhere to the casing of the appliance perfectly, it will have to be heated from

a suitable distance (by means of hair drier, for example) and lightly stretched to the required

height.

Changing the Direction of Opening the Door on the Freezing Compartment

• Unscrew the blocking element and the hinge of the freezing compartment and take off the door.

• Plug the holes with plastic caps provided.

• Shift safety spring to the lower side of the door.

• Turn the door for 180° and replace it on the opposite side of the freezing compartment. Fix the

hinge and the blocking element of the door (position of holes already provided).

1Cover for the upper hinge

2Upper hinge

3Upper rail

4Slide guide

5Lower hinge washer

6Lower hinge fastener

7Lower hinge

8 Corner without a hole

9Corner with a hole

10 Freezing compartment

11 Blocking element

12 Door hinge

Mounting Instructions 7

Mounting the Appliance

• Push the appliance for some 38 mm into the kitchen unit and allow at least 4 mm free space on

both sides between the appliance and the side walls of the kitchen unit (Fig. 1).

• Widely open the door and put it together with the kitchen unit door. The procedure is as follows.

− Fix the slide guides (attached in a plastic bag along with the screws ST 4,2 x 9,5) to the edge of

the door. Cover the open holes with the attached cap.

− Put together the appliance door and the door of the kitchen unit (Fig. 2).

− Insert the slides into the guides and fix them on the kitchen unit door some 15 mm from the

edge, using the A 4 x 12 screws (Fig. 3).

− Remove the slide guides and separate the appliance door from the door of the kitchen unit.

− Fix the slides and be careful not to move them while fixing (Fig. 4).

− Fix the slide guides to the original position.

− Close the door and check the gasket (it should not be creased). The door should open and close

smoothly.

NOTE:

Appliance with the height of 575 mm have only one slide and one slide guide.

• Fix the appliance into the kitchen unit. On the upper side, fix the three screws A 4 x 12 through

the rail and on the lower side with two screws A 4 x 16, through the lower hinges. Drill holes, ø 3

x 5 (Fig. 5).

• Seal the gap on the opposite side of the hinge with the enclosed seal (Fig. 6).

WARNING

Before mounting the appliance into the kitchen unit, disconnect the power supply

and set the thermostat knob to STOP position or switch off the ON/OFF switch.

Fig. 1 Fig. 2 Fig. 3

Fig. 4 Fig. 5 Fig. 6
