goSilver Basic V05.2 Bedienungsanleitung
goSilver®
goSilver Basic V05.2
instruction manual
Lake Vision UG (limited liability)
Seestraße 9
D-86919 Utting a. Ammersee
Germany
www.gosilver.solutions
start button
start of the
electrolysis
40 mg/L
20 mg/L
10 mg/L
5 mg/L
select button
selection of ppm
input connector
for 48VDC power
rotary switch
for selection of 4
amounts of water
original size
polarity
change LED
goSilver
®
TRUEppm
goSilver‘s TRUEppm technology
calculates dynamically the individual duration for the
production of the colloidal silver dispersion, depending on
temperature, quantity and quality of the distilled water.
Thus the production time can vary widely. When nished
the goSilver automatically switches to standby.
goSilver©products are designed for the production of col-
loidal silver with cold water (room temperature). With cold
water you get a clear, mostly ionic solution. With perma-
nent heated 90°C water a more yellowish, mostly colloidal
solution.
The silver content is given by us in mg / liter (milligrams per
liter). The inscription shows the TRUEppm for production
with cold water and the supplied silver electrodes „Regu-
lar“. In a production with permanently 90 ° C water tempe-
rature doubles this value.
mg/liter = parts per million (ppm)
250ml = 250 milliliters of water ≈ 1 cup
400ml = 400 milliliters of water ≈1,6 cups
600ml = 600 milliliters of water ≈ 2,5 cups
1l = 1 liter of water ≈ 4 cups

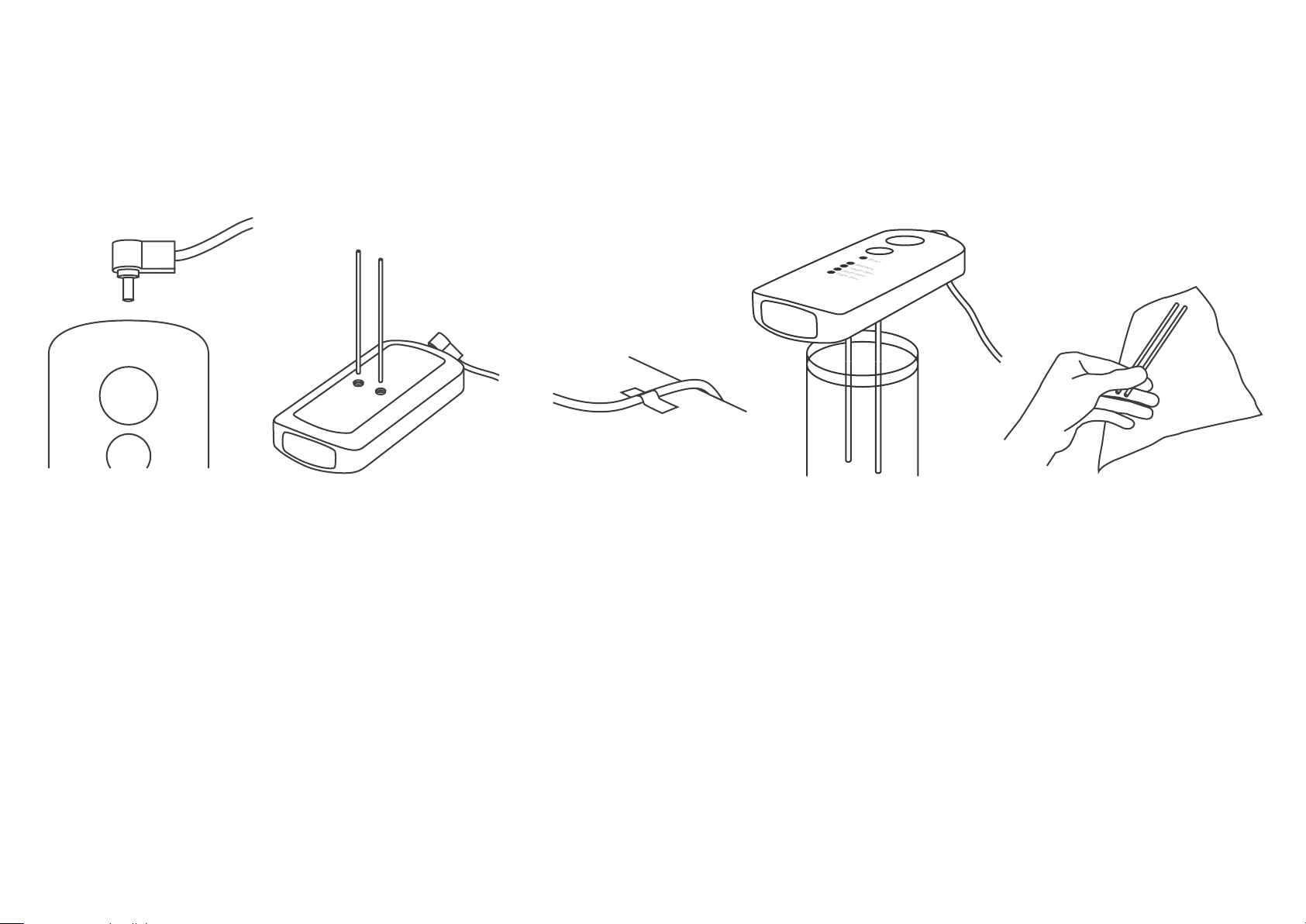

1
Fill distilled water into a glass jar (please do not
use tap water, can be harmful to health!).
2
Connect the power supply to the goSilver device.
Insert the plug as far as it will go into the socket.
3
Insert the silver electrodes as far as they will
go into the sockets on the bottom of the unit.
4
Select the desired water quantity using the rotary
switch (the rotary switch must engage noticeably
horizontally or vertically, the respective number (0-3)
must be visible in the section), and the desired ppm
with the SELECT button. The corresponding ppm LED
(light-emitting diode) lights up.
5
Finally, place the unit with the electrodes ahead on
the glass vessel. The electrodes dip into the water.
As a precaution, secure the cable of the power sup-
ply unit with tape on the table and make sure that
the device can not fall into the container.
6
Press the START button. The electrolysis starts. The
corresponding ppm LED ashes rapidly. After a whi-
le, the polarity LED will show weak and then increa-
singly brighter the cyclic alternation (approximately
every 15 seconds) of the current direction.
7
When the desired concentration is reached, the
device switches off automatically. A 3 second beep
sounds, the corresponding ppm LED ashes signi-
cantly slower, signaling the end of the electrolysis
process.
8
The last set concentration remains stored in the
device even when the device has been switched off.
If you want to produce a silver solution with the same
concentration again, only press the START button.
9
After use, wipe the silver electrodes with
a dry cloth. Protect the produced silver
solution from direct sunlight.
SELECT
INDIVIDUAL
100ppm/250ml
50ppm/250ml
25ppm/250ml
Silv
goSilver®
