Graco 8689HOU Bedienungsanleitung

Car Seat/Booster Seat

Owner’s Manual

READ THIS MANUAL.

Do not install or use this car seat until you read and

understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS

CAR SEAT INCREASES THE RISK OF

SERIOUS INJURY OR DEATH INA

SUDDEN STOP OR CRASH.

1.0 Warnings to Parents and Other Users . . . . . .3

2.0 Registration Information . . . . . . . . . . . . . . . . .4

2.1 Register Your Car Seat . . . . . . . . . . . . . . . .4

2.2 Recall Information . . . . . . . . . . . . . . . . . . . .4

2.3 If You Need Help . . . . . . . . . . . . . . . . . . . .4

3.0 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

4.0 Important Information . . . . . . . . . . . . . . . . .7-10

4.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . .7

4.2 Height and Weight Limitations . . . . . . . . . . .9

4.2.1 WITH Built-In Harness . . . . . . . . . . .10

4.2.2 WITHOUT Built-In Harness . . . . . . .10

5.0 Car Seat Location . . . . . . . . . . . . . . . . . . .11-17

5.1 Vehicle Seat Requirements . . . . . . . . . . . .11

5.2 Vehicle Seat Belt Requirements . . . . . . . .12

5.2.1 UNSAFE Vehicle Belt Systems . . . . .12

5.2.2 SAFE Vehicle Belt Systems . . . . . . .14

6.0 Using Car Seat With Built-In Harness . . .18-27

6.1 Positioning the Harness Straps . . . . . . . . .18

6.2 Securing the Car Seat in Your Vehicle . . . .22

6.2.1 With a Vehicle Lap or

Lap/Shoulder Belt . . . . . . . . . . . . . . .22

6.2.2WithUAS (UniversalAnchorageSystem) .24

6.3 Securing Your Child in the Car Seat . . . . .26

7.0 Using Car Seat Without Built-In Harness . . .28-30

7.1 Harness Removal . . . . . . . . . . . . . . . . . . .29

7.2 Securing Child and Booster

Seat in Vehicle . . . . . . . . . . . . . . . . . . . . .30

8.0 Additional Information . . . . . . . . . . . . . . .31-34

8.1 Using the Tether . . . . . . . . . . . . . . . . . . . .31

8.2 Storing UAS (UniversalAnchorage System) .32

8.3 Airplane Use . . . . . . . . . . . . . . . . . . . . . . .32

8.4 Accessories (on certain models) . . . . . . . .33

8.5 Using Recline Foot (on certain models) . . .34

9.0 Care and Maintenance . . . . . . . . . . . . . . .35-38

Table of Contents

Failure to properly use this car seat increases the risk of

serious injury or death in a sharp turn, sudden stop or

crash. Your child’s safety depends on you installing and

using this car seat correctly.

Even if using this car seat seems easy to figure out on

your own, it is very important to READ THE OWNER’S

MANUAL and the vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing the correct mode of use for the car

seat depending on your child’s size.

2. Inserting the harness straps (if needed) in the

proper slots for your child.

3. Selecting a suitable location for the car seat in

your vehicle.

4. Properly routing the vehicle seat belt or properly

using UAS.

5. Properly securing the car seat in the vehicle

using a seat belt designed to restrain both the car

seat and your child or by using UAS. Many seat

belts are NOT safe to use with this car seat, even

though they can easily be threaded through or

around the car seat!

6. Properly securing your child in the car seat.

1.0 Warnings to Parents

and Other Users

Model Number:

Manufactured in:

Purchase Date:

2.0 Registration Information

2.1 Register Your Car Seat

2.3 If You Need Help

Please fill in the above information. The model number

can be found on a label underneath your car seat. Fill

out the prepaid registration postcard attached to the

seat cover and mail it today.

Child restraints could be recalled for safety reasons.

You must register this restraint to be reached in a recall.

Send your name, address and model number to:

Elfe Juvenile Products.

4580 Hickmore

Montreal, Quebec

H4T 1K2

or call 1-800-667-8184 or

514-344-3533 in Montreal or

www.elfe.net

Please contact our Customer Service Department with

any questions you may have concerning parts, use, or

maintenance. When you contact us, please have your

product’s model number ready so that we may help

you efficiently. This number can be found on a

sticker on the underside of your car seat.

1-800-667-8184 Montreal: 514-344-3533

• Call the Customer Service in Canada at

1-800-667-8184 or in Montreal at 1-514-344-3533

• www.elfe.net

2.2 Recall Information

Harness slot

Harness clip

Harness strap

Crotch strap

Harness

buckle

3.0 Features

Accessories (on certain models)

Shoulder belt

positioner

Harness

adjustment strap

Harness

adjustment

button

Harness

adjustment

button plate

Harness

buckle

tongue

**Vehicles are now (or can be) equipped with tether

anchor points behind some seats.Atether anchors

the top of the car seat to the body of the vehicle.

When used properly with the vehicle seat belt,

a tether helps reduce injury in a sudden stop

or crash.Always use the tether.

Locking clip

storage*

Tether strap**

Owner’s manual

storage compartment

Expiration date

Tether clip —

*The locking clip is stored on the back of

the car seat. You will need to use it with

certain types of vehicle seat belts.

Metal junction

plate

Junction plate

storage

UAS***

***Canada Motor Vehicle Safety Standards have

defined a new system for installing car seats in

vehicles. The system is called UAS (Universal

Anchorage System).UAS may ONLY be used IN PLACE

of vehicle belt if vehicle is equipped with UAS anchor

points. Please refer to vehicle owners manual for UAS

locations in vehicles.

Adjustment

belt UAS & Tether

Storage bars

UAS

Connector

•DO NOT INSTALL OR USE THIS CAR SEAT

UNTIL YOU READ AND UNDERSTAND THE

INSTRUCTIONS IN THIS MANUALAND IN

YOUR VEHICLE OWNER’S MANUAL. DO

NOT let others install or use the car seat unless

they understand how to use it.

•FAILURE TO PROPERLY USE THIS CAR SEAT

INCREASES THE RISK OF SERIOUS INJURY OR

DEATH IN A SHARP TURN, SUDDEN STOP OR

CRASH. Your child can be injured in a vehicle even

if you are not in a crash. Sudden braking and sharp

turns can injure your child if the car seat is not

properly installed or if your child is not properly

secured in the car seat.

• According to accident statistics, CHILDREN ARE

SAFER WHEN PROPERLY RESTRAINED IN

REAR VEHICLE SEATING POSITIONS, RATHER

THAN FRONT SEATING POSITIONS. For a vehicle

with a front passenger air bag, refer to your vehicle

owner’s manual as well as these instructions for car

seat installation.

•NEVER LEAVE YOUR CHILD UNATTENDED.

•NEVER LEAVE A CAR SEAT UNSECURED IN

YOUR VEHICLE.An unsecured car seat can be

thrown around and may injure occupants in a sharp

turn, sudden stop or crash. Remove it or make sure

that it is securely belted in the vehicle. If not using

UAS, make sure UAS connectors are properly stored

on back of seat.

•REPLACE THE CAR SEAT AFTER AN ACCIDENT

OF ANY KIND. An accident can cause damage to

the car seat that you cannot see.

4.0 Important Information

4.1 Warnings

•STOP USING CAR SEAT AND THROW IT AWAY

after the date molded into the back of the car seat.

•DO NOT MODIFYYOUR CAR SEAT or use any

accessories or parts supplied by other manufacturers.

•NEVER USE CAR SEAT IF IT HAS DAMAGED OR

MISSING PARTS. DO NOT use a cut, frayed or

damaged car seat harness, UAS belt or vehicle seat

belt.

•THE CAR SEAT CAN BECOME VERY HOT IF

LEFT IN THE SUN. Contact with these parts can

burn your child’s skin.Always touch the surface of

any metal or plastic parts before putting your child

in the car seat.

•WITH HARNESS SYSTEM: This child restraint

conforms to Canada Motor Vehicle Safety Standard

213 and is certified for use in motor vehicles

and aircraft.

WITHOUT HARNESS SYSTEM: This child restraint

(booster seat) conforms to Canada Motor Vehicle

Safety Standard 213.2 and is certified for use in

motor vehicles. Booster seat is NOT certified for use

in aircraft.

•NEVER GIVE THIS CAR SEAT to someone else

without also giving them this manual.

•NEVER USE A SECOND-HAND CAR SEAT or a car

seat whose history you do not know.

FAILURE TO USE CAR SEAT IN A MANNER

APPROPRIATE FOR YOUR CHILD’S SIZE MAY

INCREASE THE RISK OF SERIOUS INJURY OR

DEATH. Instructions for the use of this car seat

and your vehicle’s seat belt differ greatly depending

on the size of your child. Be sure you are using the car

seat in the correct mode and with the correct features

for your child.

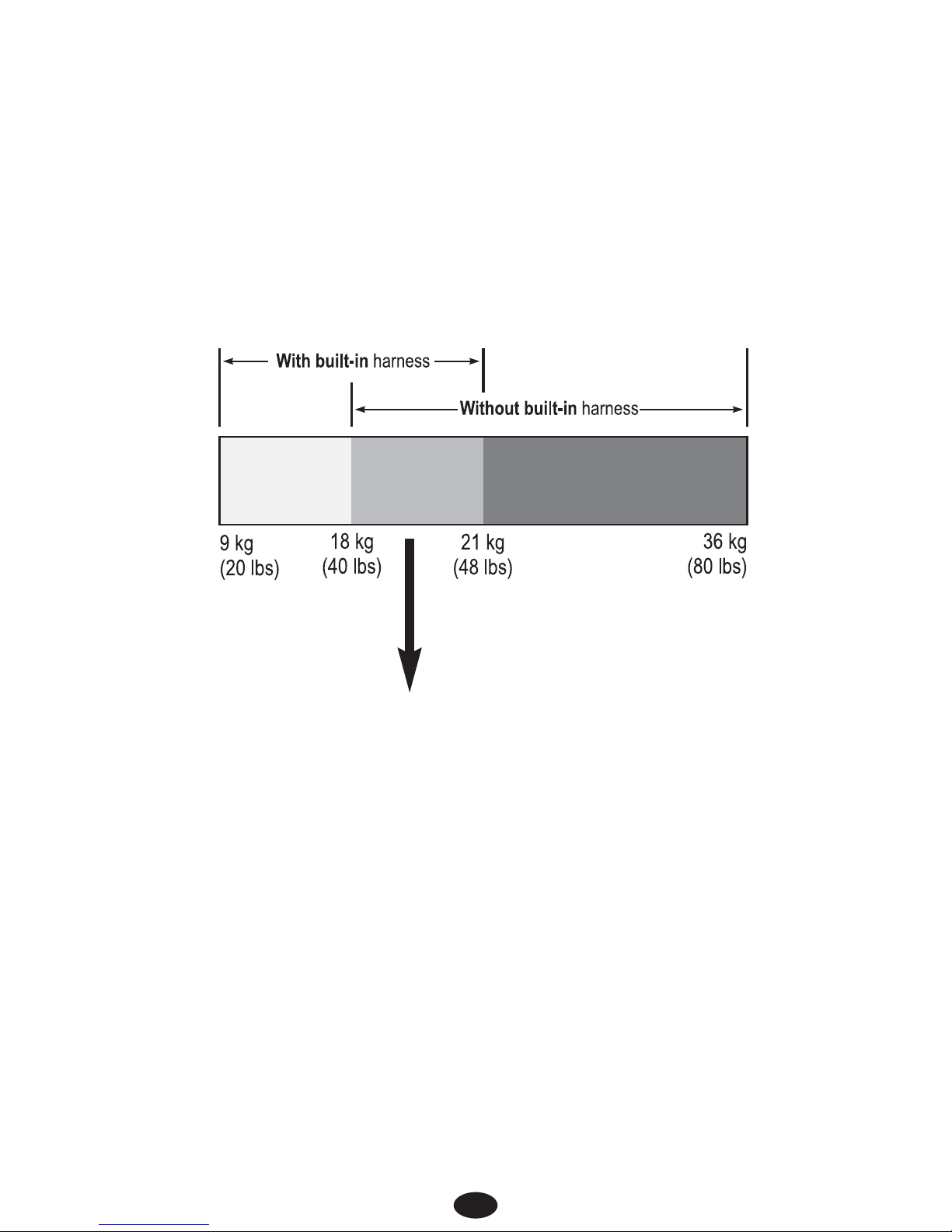

4.2 Height and Weight Limitations

4.2.1 WITH Built in Harness

Your child MUST meet all requirements:

• WEIGHT: 9 to 21 kg (20 to 48 lbs)

• HEIGHT: 69 to 109 cm (27 to 43 inches)

• At least one year old and can sit upright unassisted

• Shoulders are BELOW top harness slots. If

shoulders are above top harness slots, child is

too large for built-in harness.

4.2.2 WITHOUT Built in Harness

Your child MUST meet all requirements:

• WEIGHT: 18 to 36 kg (40 to 80 lbs)

• HEIGHT: 89 to 138 cm (35 to 54 inches)

• Child’s ears are BELOW top of booster seat. If tops

of ears are above top of seat, child is too large for

booster seat.

If child is between 18 and 21 kg (40 and 48 lbs) and

shoulders are below the upper harness slots, we

highly recommend use of the built-in harness for as

long as it is suitable and comfortable up to 21 kg

(48 lbs).
