- This manual contains kit installation instructions only -

Motor Kit: 257570,16F290, 16F393

Pressure Relief Procedure

Important Safety Instructions

For detailed sprayer information and warnings, see

Operation manual 313381 included with sprayer.

To help prevent injection injuries, follow this procedure

when you stop spraying and before you service or clean

the sprayer, remove parts, or repair leaks.

1. Turn power switch OFF. Unplug sprayer.

2. Turn Spray/Prime valve to PRIME to relieve pressure.

Turn pressure control knob left (counterclockwise) to

minimize pressure.

3. Trigger gun.

4. Put trigger safety in safety ON position.

NOTE: Leave Spray/Prime valve in PRIME

position until you are ready to spray again.

If you suspect that the spray tip or hose is completely

clogged or that pressure has not been fully relieved after

following the steps above, VERY SLOWLY loosen the tip

guard retaining nut or hose end coupling to relieve pressure

gradually. Then loosen it completely. Clear the tip or hose

obstruction.

313586B

Instructions

Motor Kit for Tradeworks 150™

and Tradeworks 170™Sprayers

ti10220a

ti11868a

ENG

2313586B

Motor Kit 257570, 16F290

Disassembly

1. Unplug power cord (N) and Relieve Pressure (see

page 1 or Operation manual 313381).

2. Remove 4 side shroud screws (E) (T-20 Torx).

3. Remove 4 front cover screws (B) (T-30 Torx).

4. Tradeworks 170 Only: Remove underside shroud

mounting screw (D).

5. Remove right shroud (G).

6. Remove left shroud (K).

7. Disconnect motor leads from control board (T).

8. Remove fan cover (X) by gently using a straight

blade screwdriver.

9. Remove 2 motor screws (mm) (T-20 Torx).

10. Remove motor (Q).

ti15775a

(Tradeworks 150 and 170 Series A shown)

313586B 3

Assembly

1. With motor thermal switch facing up, assemble new

motor (Q) onto pump housing (ph). Rotate fan

slightly to engage teeth. Install 2 motor screws

(mm). Torque to 20 to 25 in-lb (2.3 to 2.8 N•m).

2. Reconnect motor leads to control board (T).

3. Replace fan cover (X). Make sure clips (cp) align

with notches on motor (nt) and snap securely into

place.

NOTE: Carefully feed one lead wire through

lower-left corner opening on fan cover (X). The other

lead wire will exit between fan cover and the motor

lamination.

4. Install power cord (N) into recess on left shroud (K).

5. Reassemble both shrouds (G and K).

6. Install 4 front side screws (E) (T-20 Torx). Torque to

20 to 25 in-lb (2.3 to 2.8 N•m).

7. Install 4 front cover screws (B) (T-30 Torx). Torque to

26 to 32 in-lb (2.9 to 3.6 N•m).

8. Tradeworks 170 Only: Install underside shroud

mounting screw (D). Torque to 25 to 35 in-lb (2.8 to

3.9 N•m).

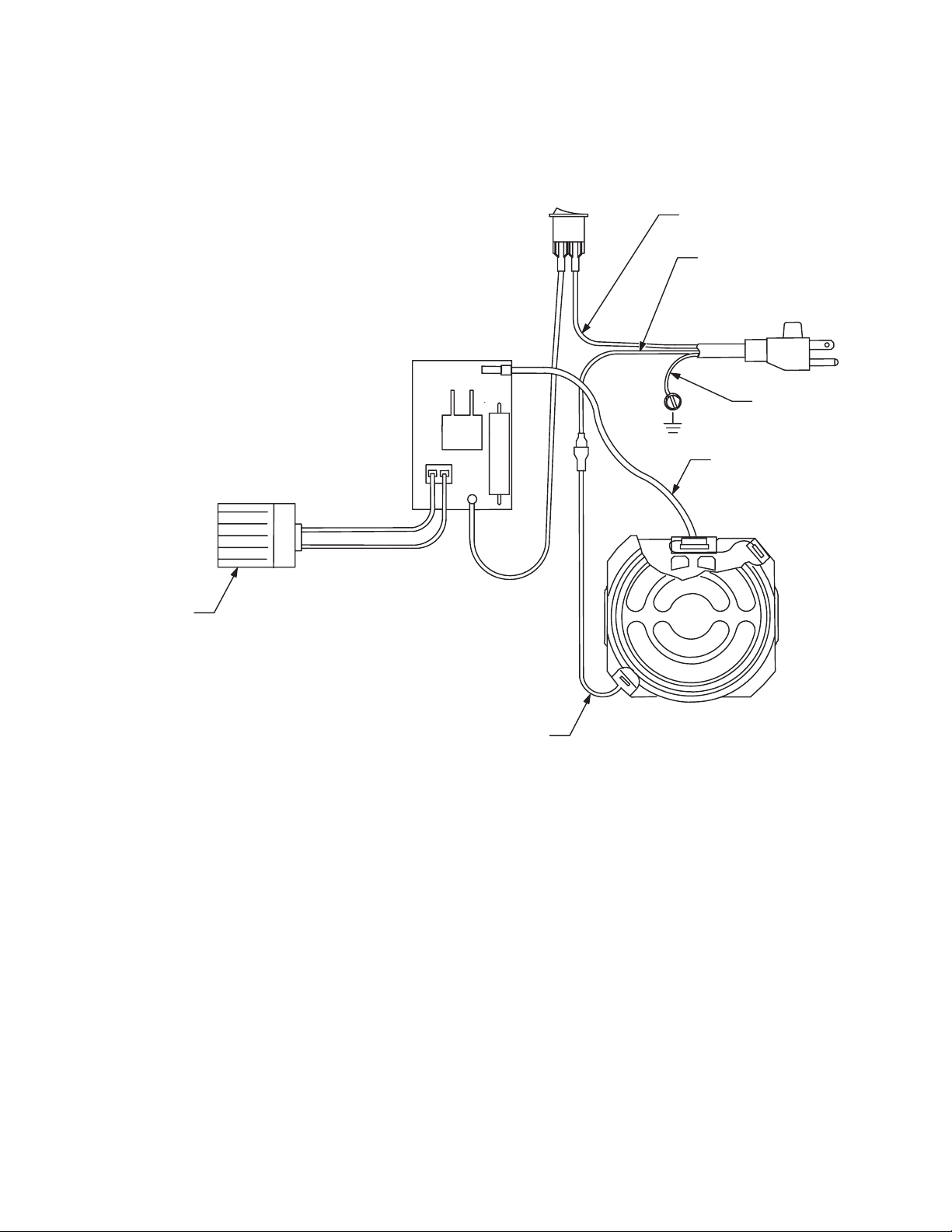

Wiring Diagram for Tradeworks 150 and 170, Series A:

WIRING DIAGRAM

WHITE

BOARD WIRE

AUTO PRIME

POWERCORD

BLACK WIRE

POWERCORD

WHITE WIRE

10A FUSE

POWERCORD

GREEN WIRE

CHASSIS

GROUND

ON/OFF

SWITCH

PRESSURE

SWITCH

ti15763a

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 313586

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

www.graco.com

Revised 09/2010

Wiring Diagram for Tradeworks 150 and 170, Series B:

GREEN

ON/OFF

SWITCH

WHITE

BLACK

PRESSURE SWITCH

BLACK

MOTOR

ti14050a
