Grand River Kiva Technisches Handbuch
Information Guide
www.GrandRiverSupply.com
Copyright © 2006 All Rights Reserved
1421 Camino Del Pueblo
Bernalillo, NM 87004
i
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com
TABLE OF CONTENTS
OVERVIEW......................................1
1. Firebox Assembly .........................................1
2. Chimney system ..........................................1
3. Air intAke system .........................................2
4. GAs Assembly (optionAl) ....................................3
5. FACe FrAme .............................................3
6. Finish .................................................3
KIVA FIREPLACE COMPONENTS. . . . . . . . . . . . . . . . . . . . . . 4
1. Firebox Assembly Components ................................4
2. Chimney system Components .................................5
3. Air intAke system Components ................................5
4. GAs system Components (optionAl).............................6
5. FACe FrAme Components ....................................6
6. Finish Components ........................................6
7. optionAl ACCessories ......................................7
INSTALLATION CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . 8
1. loCAtion ...............................................8
2. Chimney ChAse ..........................................9
3. Air intAke system ........................................10
INSTALLATION..................................11
1. Air intAke system ........................................11
2. Floor prepArAtion .......................................11
3. Firebox instAllAtion .....................................12
4. GAs line (optionAl).......................................15
5. Chimney system instAllAtion ................................16
6. FACe FrAme instAllAtion ...................................18
7. Finish ................................................19
ii
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com
The Kiva Fireplace Kit has been exTensively TesTed. asaparT of This TesTing an official
“installation instructions and operations” manual has been wriTTen. This manual should
be used during acTual insTallaTion. The inTenTion of This “Kiva Fireplace Kit inFormation
Guide” is To help develop an overall undersTanding of whaT The Kiva Fireplace Kit is, and
whaT is required To insTall iT.
please keep in mind ThaT This fireplace should be insTalled only by aconsTrucTion
indusTry licensed conTracTor, or acerTified insTaller. local codes should be checked and
any permiTs or inspecTions should be obTained before insTallaTion.
Important note
To be used as a supplement to original manufactures manual only. NOT intended
to replace original manufactory installation/owners manual. Refer to original
owner’s manual for specic clearances, operating instructions and additional
safety information.
1
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com
OVERVIEW
the SIx major Component SeCtIonS of the KIva fIreplaCe KIt are:
Firebox Assembly
Chimney System
Air Intake System
Gas Assembly (optional)
Face Frame
Finish

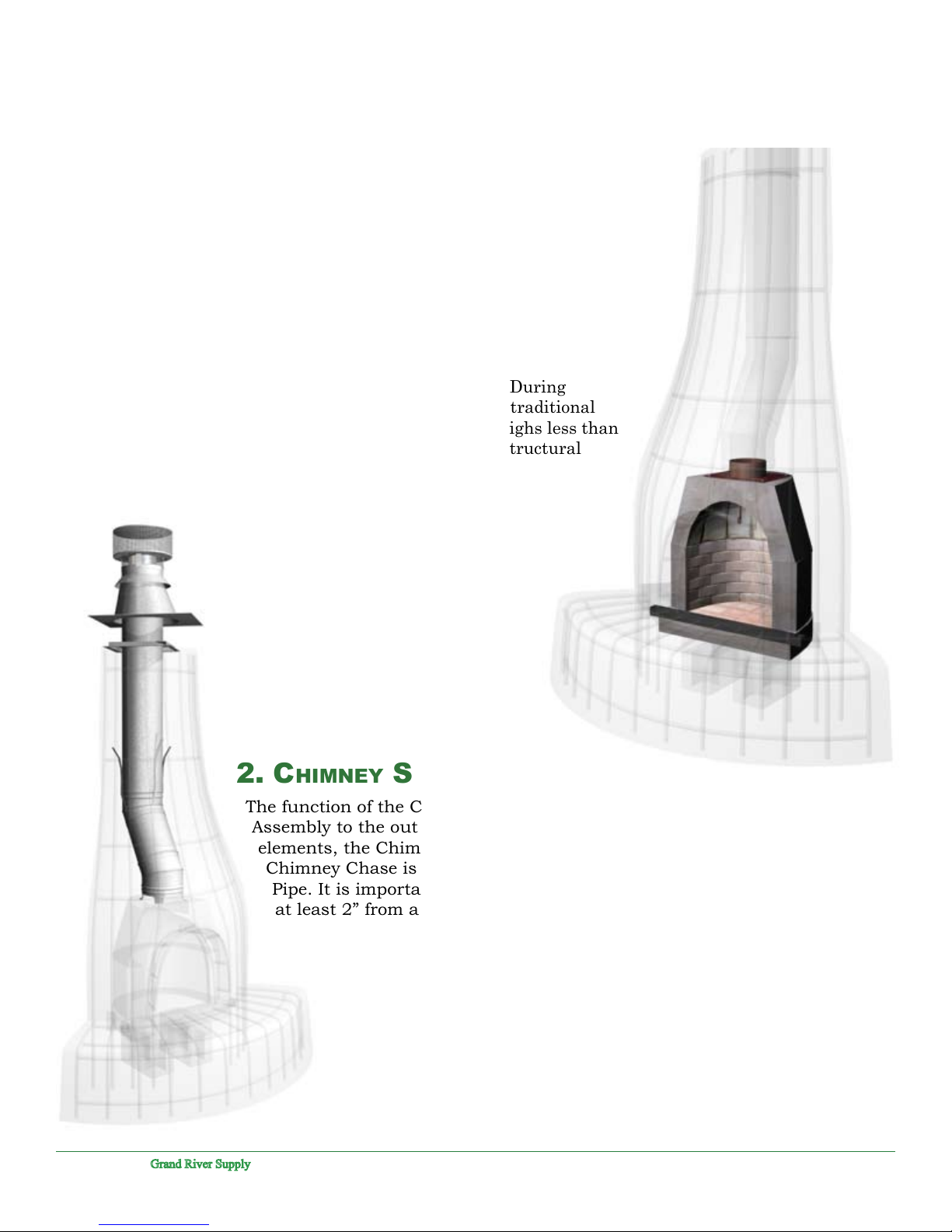

1. fIrebox aSSembly
The Firebox Assembly consists of three Firebox Sections. During
installation, these Firebox Sections are stacked to form a traditional
looking masonry rebox. The entire Firebox Assembly weighs less than
600 pounds and two people can lift each section. Special structural
support is not required because of its minimal weight.
2. ChImney SyStem
The function of the Chimney System is to evacuate smoke from the Firebox
Assembly to the outside. The Chimney System consists of two main
elements, the Chimney Chase and the Double Wall Chimney Pipe. The
Chimney Chase is the passage that conceals the Double Wall Chimney
Pipe. It is important that the Double Wall Chimney Pipe maintain a space
at least 2” from any combustible material.
1.
2.
3.
4.
5.
6.
2
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com

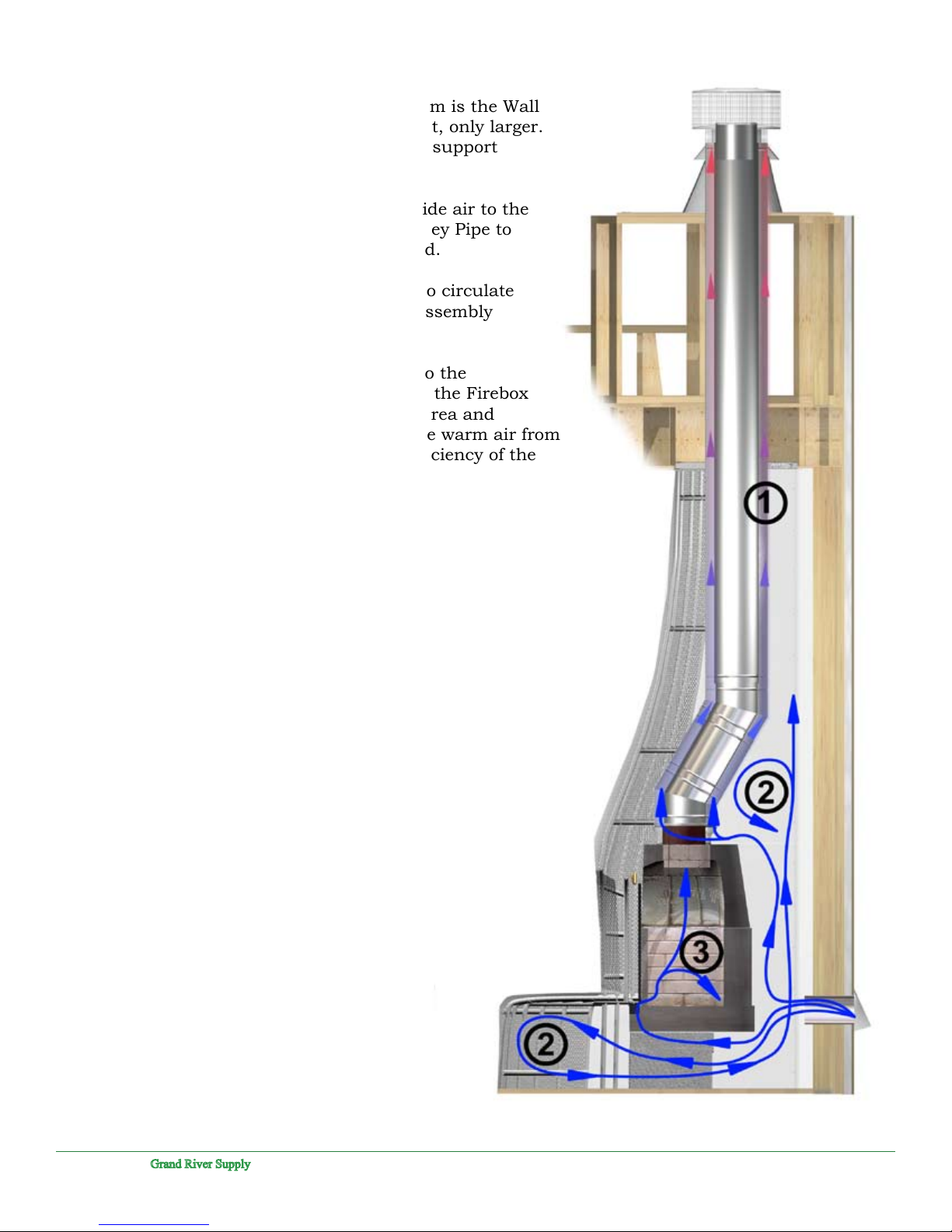

3. aIr IntaKe SyStem
The major component of the Air Intake System is the Wall
Vent. It looks much like a common dryer vent, only larger.
The Air Intake System delivers outside air to support
three important functions.
The Air Intake System delivers cool outside air to the
outer chamber of the Double Wall Chimney Pipe to
cool the outer wall and reduce re hazard.
The Air Intake System provides cool air to circulate
and cool the space around the Firebox Assembly
behind the Face Frame.
The Wall Vent also supplies outside air to the
Combustion Air Tube, which is built into the Firebox
Base. The outside air enters the rebox area and
supports combustion instead of using the warm air from
the room, which greatly increases the efciency of the
replace.
1.
2.
3.
3
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com

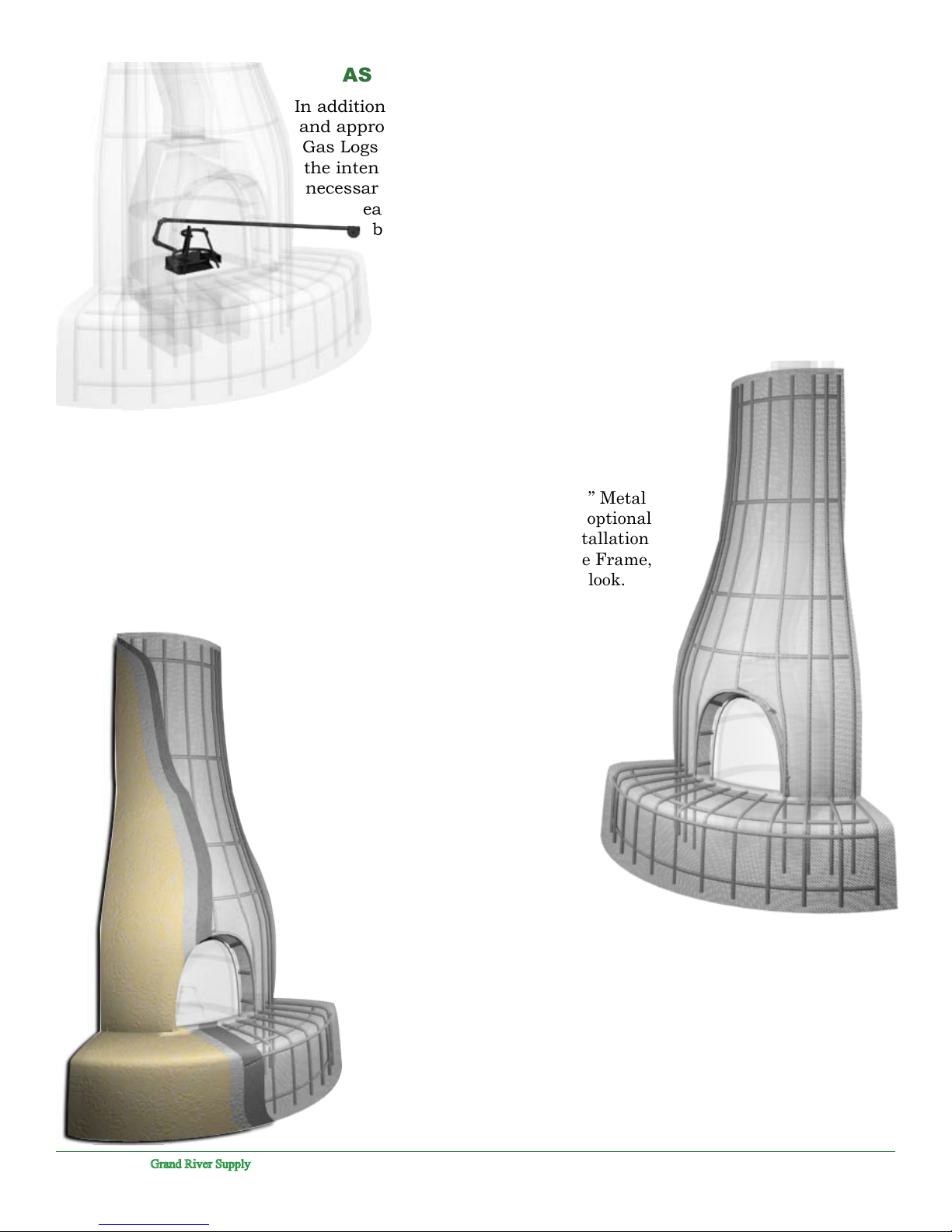

4. GaS aSSembly (optIonal)
In addition to wood log burning, the Kiva Fireplace Kit has been tested
and approved for use with an optional natural gas or propane vented
Gas Logs Set or a Log Lighter available from Grand River Supply. If
the intended installation includes one of these gas devices, it will be
necessary to have a gas line brought into the rebox. This gas line can
easily be installed after the Firebox Assembly is in place but
before the Face Frame is xed into place.
5. faCe frame
The 10’ tall Face Frame is pre-fabricated of ½” tubular steel with ¼” Metal
Diamond Mesh attached. You can customize your installation with optional
Nichos and Bancos available from Grand River Supply. During installation
the Face Frame assembly will be attached to the Firebox . The Face Frame,
available in four styles, is what gives the Kiva Fireplace its unique look.
6. fInISh
A three-coat plaster process is the most popular nish applied to the
Fireplace.
4
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com
KIVA FIREPLACE COMPONENTS
All necessary components you will need to install your Kiva Fireplace Kit are shown below.

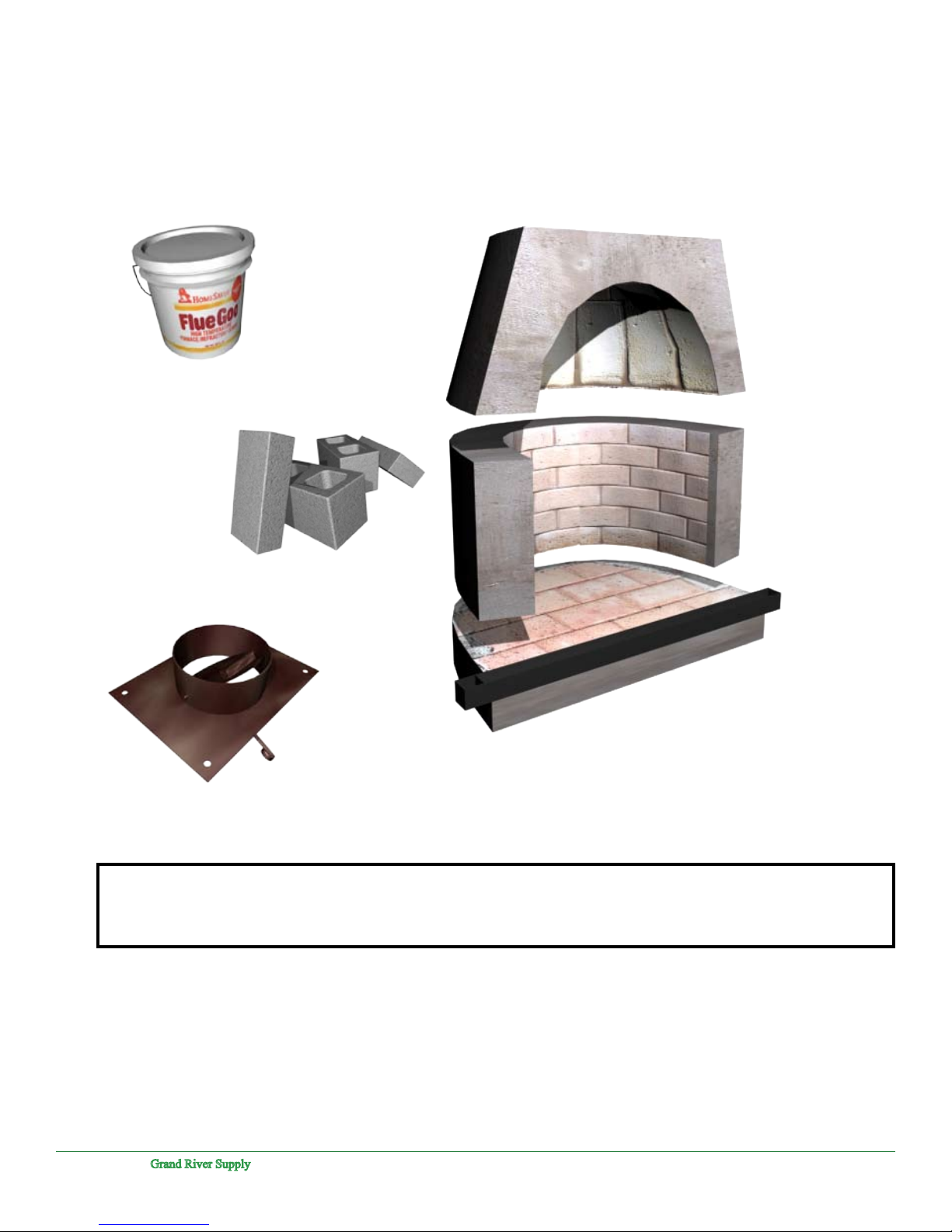

1. fIrebox aSSembly ComponentS
Damper
Firebox Top
Firebox Middle
Firebox Base
Concrete Blocks
Flue Goo
Damper. The Damper is made of steel and mounts to the top of the assembled Firebox Sections. To open
or close the Damper one simply reaches up into the rebox and pulls a lever. When using a Gas Log Set the
replace Damper must be permanently removed or locked in the open position. For the installation of the Gas
Log Set follow the installation manual provided by the manufacturer.
5
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com

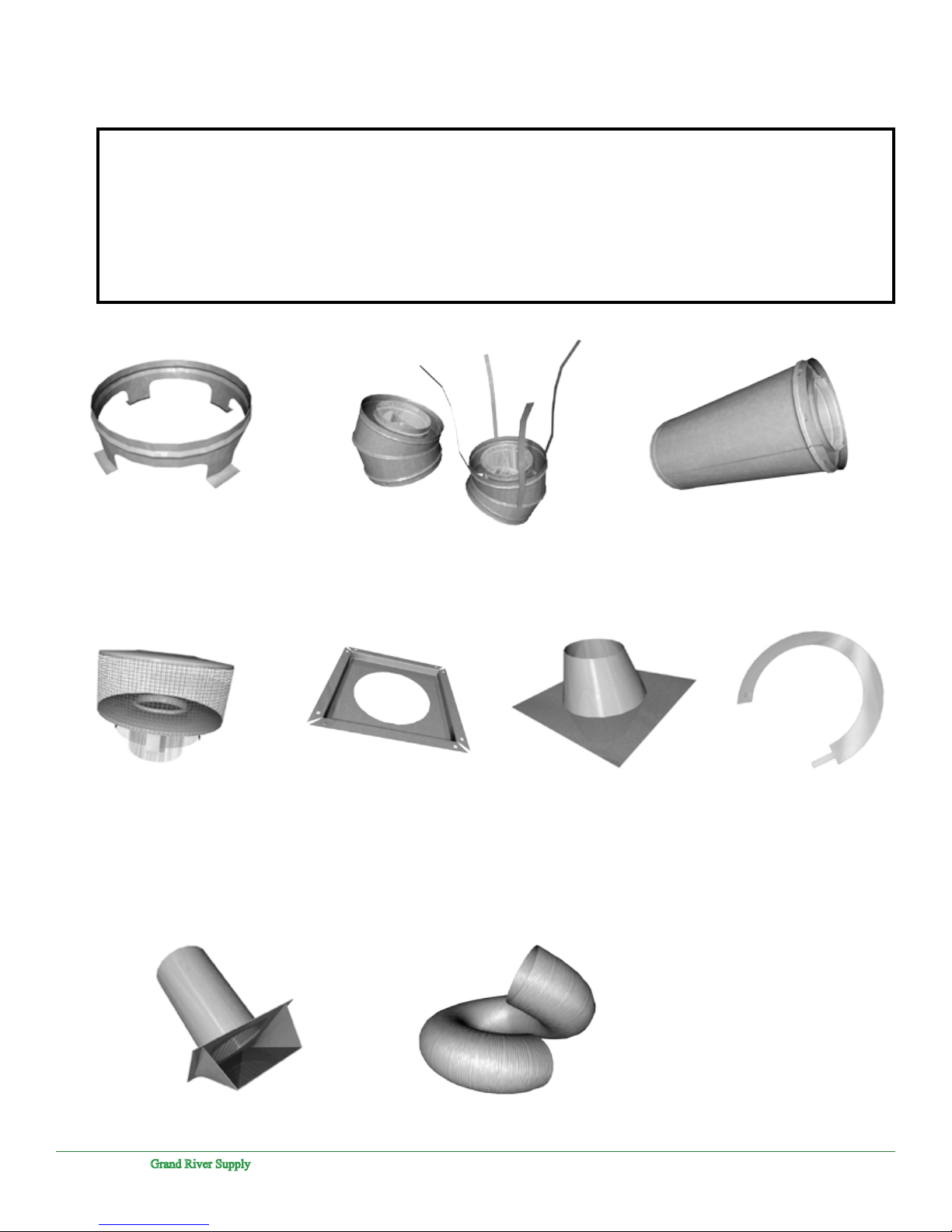

FMI Round Top Storm CollarRoof FlashingFirestop Spacer
FMI Chimney Starter Collar FMI 30 Degree Elbow FMI Chimney Double Wall Pipe
2. ChImney SyStem ComponentS
Important: reaD thIS!
The Chimney Starter Collar is the rst section of Double Wall Chimney Pipe and mounts directly onto the top
of the Firebox Assembly. Each manufacturer of Double Wall Chimney Pipe has their own design and parts from
one manufacturer will not work with parts from another. There are three Chimney Starter Collars to t Double
Wall Chimney Pipe from three different manufacturers. The manufacturers are, FMI, Superior, and Heatilator
Series 300. A Chimney Starter Collar to match the manufacturer of Double Wall Chimney Pipe that will be
used for the installation must be specied when ordering a Kiva Fireplace Kit. The default manufacturer is
FMI.
3. aIr IntaKe SyStem ComponentS
Wall Vent Flex Aluminum Duct
6
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com

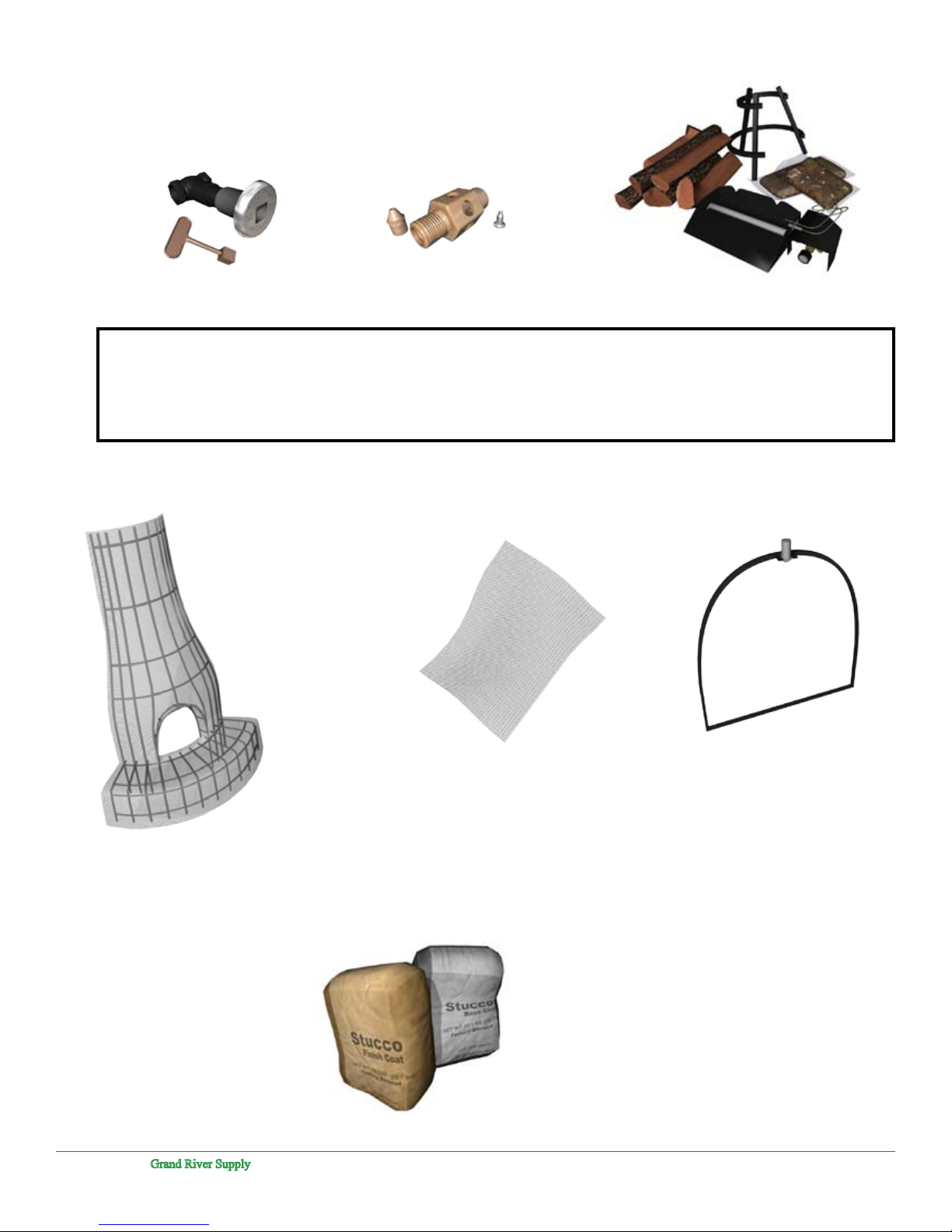

4. GaS SyStem ComponentS (optIonal)
Gas Wall Valve Gas Log KitPropane Adapter Kit
Gas Log Kit: As well as wood burning, the Kiva Fireplace Kit has been approved for use with a vented Gas
Log Kit. The Gas Log Kit should incorporate an automatic shutoff device and comply with the Standard
for Decorative Gas Appliances for Installation in Vented Fireplaces, ANSI Z21.60 and must be installed in
accordance with the National Fuel Gas Code. The Gas Log Kit sold by Grand River Supply is pre-approved. The
replace has not been tested with an un-vented gas log set. To reduce risk of re or injury, do not install an
un-vented gas log set into replace.
5. faCe frame ComponentS
Face Frame
Door FrameMetal Diamond Mesh
6. fInISh ComponentS
Stucco Mix
7
Copyright © 2006 Grand River Supply • 1421 Camino Del Pueblo • Bernalillo, NM 87004 • Phone 505-867-4110
GrandRiverSupply.com

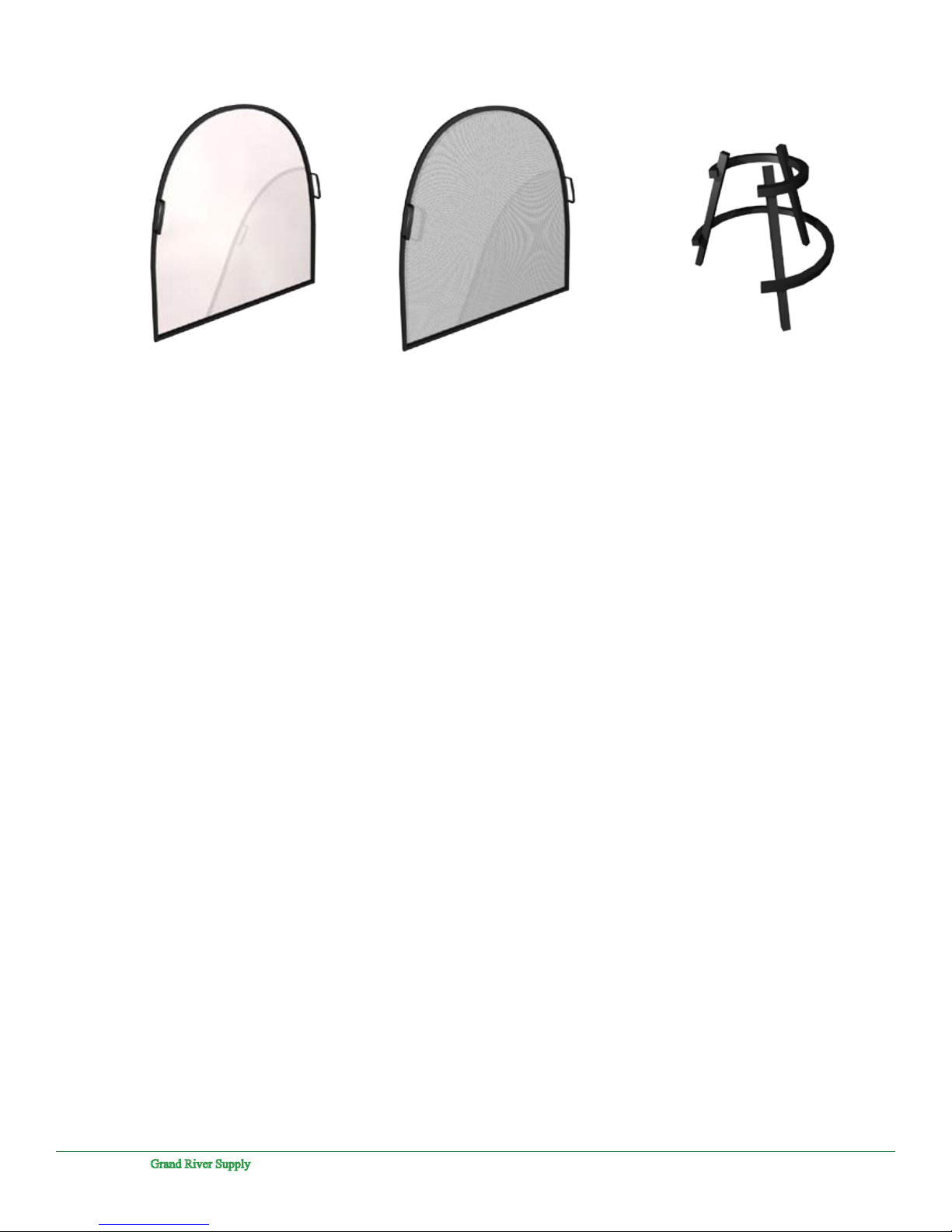

7. optIonal aCCeSSorIeS
Glass Door
(NOT FOR USE WITH
WOOD BURNING FIREPLACE)
Screen Grate
