GREENHOU S E S

GRANDIO

GREENHOUSE USER MANUAL

Model GRA-ELI88

8x8 GRANDIO ELITE

GREENHOU S E S

GRANDIO

Before you begin take time to complete this check list.

Take inventory of all parts using the parts list at the back of this manual.

Be cautious where you place the polycarbonate panels as they will burn grass

or plants if left on top of them in direct sunlight. Note that clear ﬁlm side of

panels should always face the sun and opal ﬁlm side faces inside greenhouse.

Plan out when and where you are going to place the greenhouse, we recom-

mend that you place it in an area that will receive direct sunlight and will be

protected from the wind as much as possible

It will take at least (2) people to put the greenhouse together.

Before your build, make sure you are allowed to build it! Consult all building

codes, as well as City or Municipality ordinances and HOA’s, as you may need

a permit or documentation before you build.

Contact your insurance company to make sure your Grandio Greenhouse will

be covered on your policy.

Call your local utilities companies before digging.

Do not attempt to begin construction on a windy day.

Your greenhouse should be built on a ﬂat level surface allowing for drainage.

Read this entire manual to get familiar with all pieces and parts prior to

beginning assembly. Follow the steps outlined in the order presented!

Save this owner’s manual for future

reference and if you need our help.

CONTACT OUR CUSTOMER SERVICE

DEPARTMENT at:

1-866-928-3150

Hours: 8:30a.m.-5:00p.m. Monday through

Friday (Mountain Standard Time)

Backyard Living Source

9543 W. Emerald St., Suite 101

Boise, ID 83704

www.grandiogreenhouses.com

IMPORTANT! PLEASE READ BEFORE BEGINNING ASSEMBLY

Dear Valued Customer,

We would like to congratulate you on your new

Grandio Greenhouse purchase. We are conﬁdent

that you have made the right decision in choos-

ing Grandio. Our greenhouses are made with

high quality aluminium and polycarbonate and

will last for many garden seasons to come.

Please take the time to carefully read this

instruction manual for an easier and more

enjoyable assembly experience.

Cheers!

Grandio Greenhouses

IMPORTANT! SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR

PROPERTY DAMAGE AND WILL VOID WARRANTY.

To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and

inside all packing material for parts and/or additional instruction materials. Before beginning assembly, read the instruc-

tions and identify all parts using the hardware identiﬁer and parts list on pages 35-40. Complete assembly and

proper usage are essential to reduce the risk of accident or injury when using your Grandio Greenhouse.

CAUTION: Do not leave polycarbonate panels laying on grass or leave in the sun or extreme heat, keep in a cool

dry place until they are to be installed!! (May cause burning to plants or grass if left directly on top of them, also may

damage panels due to the protective lm adhering to panels.)

• Remove approximately 2 inches of lm from all polycarbonate sheet edges before installing. Remove all protective lm immedi-

ately after the construction is completed. Clear ﬁlm side of panels should always face the sun and opal ﬁlm side faces inside.

• Due to shipping, the grooves of some of the aluminum proles may be too small to insert into the polycarbonate sheet, you may

carefully use a screwdriver to pry the framework open so the polycarbonate sheet can be inserted smoothly.

• Do not use or store hot objects such as grills, blow torches, welding equipment, etc. in or near your greenhouse.

• Do not allow children or pets to play in greenhouse or in the set up area until assembly is complete.

• If using a ladder during assembly, use extreme caution.

• A clean level surface is essential to maintaining the solid integrity of the structure, Install the base correctly as described in

manual. Please anchor the greenhouse down to a rm and level base.

TOOLS YOU WILL NEED FOR ASSEMBLY

• Tape Measure • Step Ladder • Masking Tape

• Level • Work Gloves • Safety Glasses

• Carpenter Square • Flathead Screwdriver • 10mm Wrench

• At Least 2 Adults • No. 1, 2 and 3 Phillips Screwdrivers

GRANDIO

TIP When you see this icon

pay special attention to

the helpful tips we have provided that will

make installation more ecient.

PREPARE A FOUNDATION FOR YOUR

GRANDIO GREENHOUSE

Before assembling your new greenhouse a proper

foundation must be prepared. A number of anchor-

ing options are acceptable, based on wind and

ground conditions in your area.

It is extremely important to have the area prepared

and leveled for installation of your greenhouse prior

to starting the assembly of your Grandio Greenhouse.

Decide at this time the nal orientation of your

Greenhouse. We recommend that you place your

greenhouse in a location where it will receive the

most direct sunlight and will be best protected from

wind and storm conditions.

Go to www.grandiogreenhouses.com for founda-

tion ideas and tour our online learning center for tips

and tricks for putting your greenhouse together.

Transparent Film

Opal White Film

Polycarbonate

Panels

Sun

Remove approximately 2 inches of lm on both sides of

each panel prior to installation. Remove all lm immedi-

ately after assembly is complete. The UV-Protected side

is covered with transparent lm and must face toward

the sun. The side covered in opal lm will always face

the interior of the greenhouse.

IMPORTANT: POLYCARBONATE PANELS

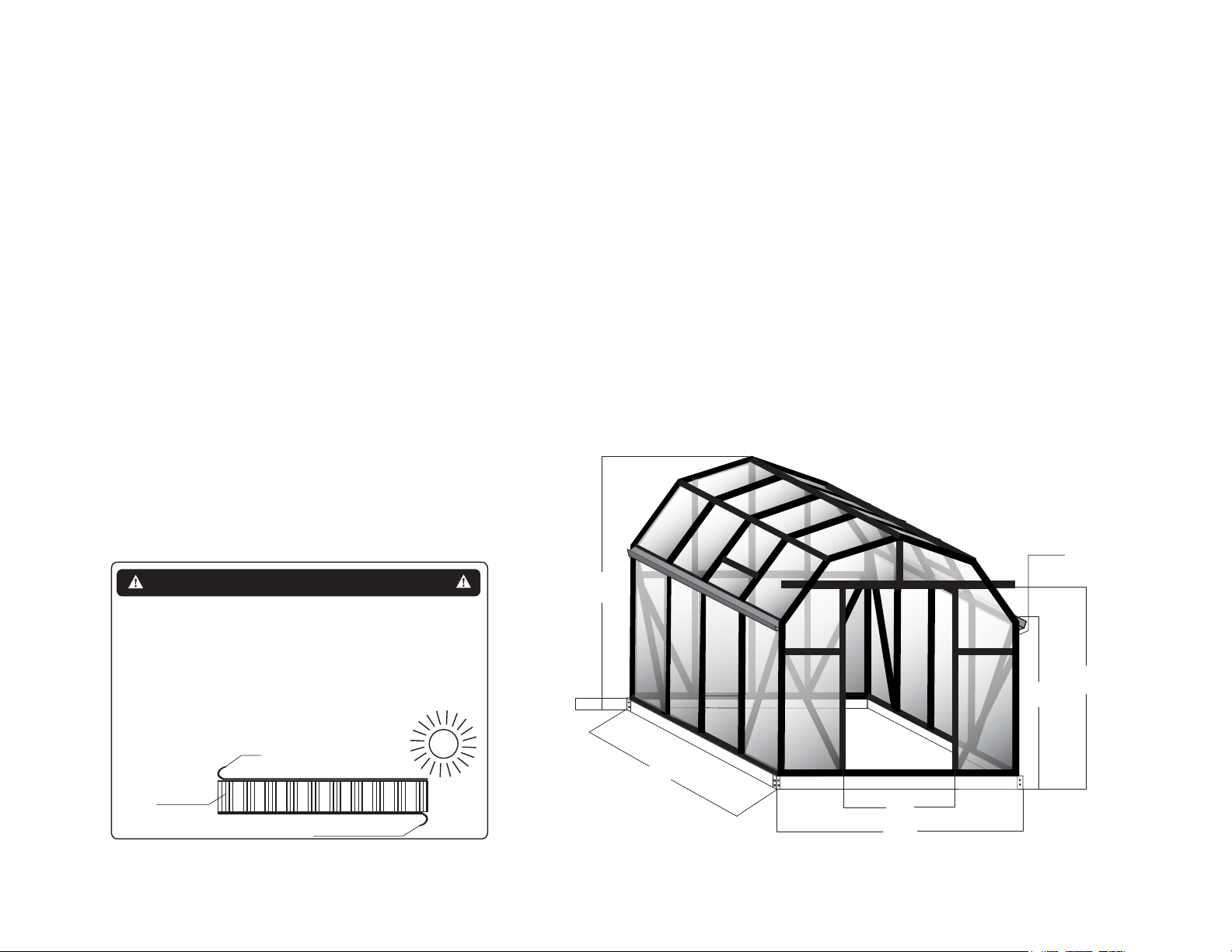

8X8 GRANDIO ELITE BARN STYLE

GREENHOUSE DIMENSIONS

ROOF PEAK HEIGHT

”

GUTTERS

61”

EAVE HEIGHT

DOOR HEIGHT

98”

44”

8X8

LEFT SIDE

98”

74”

96”

BASE 31/4”

BACK

FRONT

620

LEFT SIDE RIGHT SIDE

603C

L08D

603D

601B

620 604-R

601A-FL 601A-FR

601B

619

L08D

603C

603E

602C

602D 602D

601B

601B 601B

601B

L08B-X

601A-B

L08B

603C603C

601A-B

L08B-X

622 622

604-L

602A

602B

609 609 609 609

607

L21

610610

630 630

610

630

601A-B

601A-FL 601A-FR

L08A-X L08A-X

L08C-X

609 609

610 630 609 609

610

630

L08A

622-L 622-R

603C 603C

L08C

L08C-X

603C/616

618

603C/616

618

L08C-X

L08C

623B

623B 623B

606

606 Y7

Y11

Y9 Y10 Y10 Y9

Y11

Y3-1 Y3-1

Y2-2Y2-2

Y6 Y6

Y6 Y6Y1 Y1

Y1 Y1Y1 Y1

Y4-1 Y4-2

Y5-1 Y5-2

ASSEMBLY INSTRUCTION STEPS

STEP ONE: BASE ASSEMBLY

STEP TWO: FRONT ASSEMBLY

STEP THREE: BACK ASSEMBLY

STEP FOUR: MIDDLE ASSEMBLY

STEP FIVE: DOOR ASSEMBLY

GREENHOU S E S

GRANDIO©

Outdoor

Ground

Assembly

W06 must be buried in ground.

W06 * Must be

cut ush with frame.

Use decking screws

or concrete anchors

to attach base.

(Fasteners not included).

BASE KIT ASSEMBLY INSTRUCTIONS

Base

S03/M01

W06

Base

S03/M01

Base

Deck or

Patio

Assembly

W06 * Must be inserted

into the ground, and secured

with concrete.

Base

S03/M01S03/M01

DECK OR PATIO

INSTALLATION

W06

GRANDIO

TIP Make sure base is squared

and level before setting

anchor into concrete. Use a measuring tape

to ensure all corners are the same. Use level

on all four sides.

**BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY

W06 must be cut for patio or deck installation

Drill holes in bottom of base to allow for proper fastener to pass

through prior to moving forward with assembly. You determine

and aquire proper fastener prior to installation.

STEP ONE

Use: Quikrete fast setting

concrete to anchor base.

Pour in Quikrete and water

no mixing required.

(Not Included).

Base

S03/M01

W06

Base

S03/M01

W06 Must Be Modiﬁed

Use a Hacksaw or Tinsnip to

cut down the length of W06,

then install cut side down to

level surface.

CUT

Before you begin take time to complete this check list.

Take inventory of all parts using the parts list at the back of this manual.

Be cautious where you place the polycarbonate panels as they will burn grass

or plants if left on top of them in direct sunlight. Note that clear ﬁlm side of

panels should always face the sun and opal ﬁlm side faces inside greenhouse.

Plan out when and where you are going to place the greenhouse, we recom-

mend that you place it in an area that will receive direct sunlight and will be

protected from the wind as much as possible

It will take at least (2) people to put the greenhouse together.

Before your build, make sure you are allowed to build it! Consult all building

codes, as well as City or Municipality ordinances and HOA’s, as you may need

a permit or documentation before you build.

Contact your insurance company to make sure your Grandio Greenhouse will

be covered on your policy.

Call your local utilities companies before digging.

Do not attempt to begin construction on a windy day.

Your greenhouse should be built on a ﬂat level surface allowing for drainage.

Read this entire manual to get familiar with all pieces and parts prior to

beginning assembly. Follow the steps outlined in the order presented!

Save this owner’s manual for future

reference and if you need our help.

CONTACT OUR CUSTOMER SERVICE

DEPARTMENT at:

1-866-928-3150

Hours: 8:30a.m.-5:00p.m. Monday through

Friday (Mountain Standard Time)

Backyard Living Source

9543 W. Emerald St., Suite 101

Boise, ID 83704

www.grandiogreenhouses.com

FRONT FRAME ASSEMBLY INSTRUCTIONS

This picture shows the inside view of front section fully assembled.

GRANDIO

TIP Lay at on ground to

assemble the front frame of

your greenhouse. If possible try to nd a

shady area protected from the wind. Panels

can burn grass and plants if in direct light.

STEP TWO

GRANDIO

TIP We recommend watching

our how to assembly videos

with tricks and tips for easier assembly and

installation of your Grandio Greenhouse at:

www.grandiogreenhouses.com

603C

L08D

603D

601B

604-L

601A-FR 601A-FL

601B

619

L08D

603C

603E

604-R

Y3-1

Y3-2

Y1 Y1

Y2-2 Y2-1

L08A-X L08A-X

FRONT FRAME ASSEMBLY

STEP TWO

2.1 Prethread all S05 screws into the WG01

and WG02’s for ease of installation.

2.2 Use WG01 bracket to attach the (2)

601B’s together with the 603E, secure

parts with the S05 screws provided see .

The WG01 will slide into the groove of the

601B’s, and slide into the groove of the

603E .

2.3 Install WG02’s into (2) 601B’s then

tighten S05 screws when extrusions are

completely tight see . Note: the fat end of

the WG02 will always be on the bottom side.

GRANDIO

TIP PRETHREAD SCREWS TIP:

Locate all WG01, WG02,

and S05 screws, pre thread these to make

installation easier. Note that the fat end on

the WG02 will always face downward.

Inside View

601B

601B 601B

601B

603E

WG01

WG02 WG02

WG01

601B

S05

WG02

601B

603E

FRONT FRAME ASSEMBLY

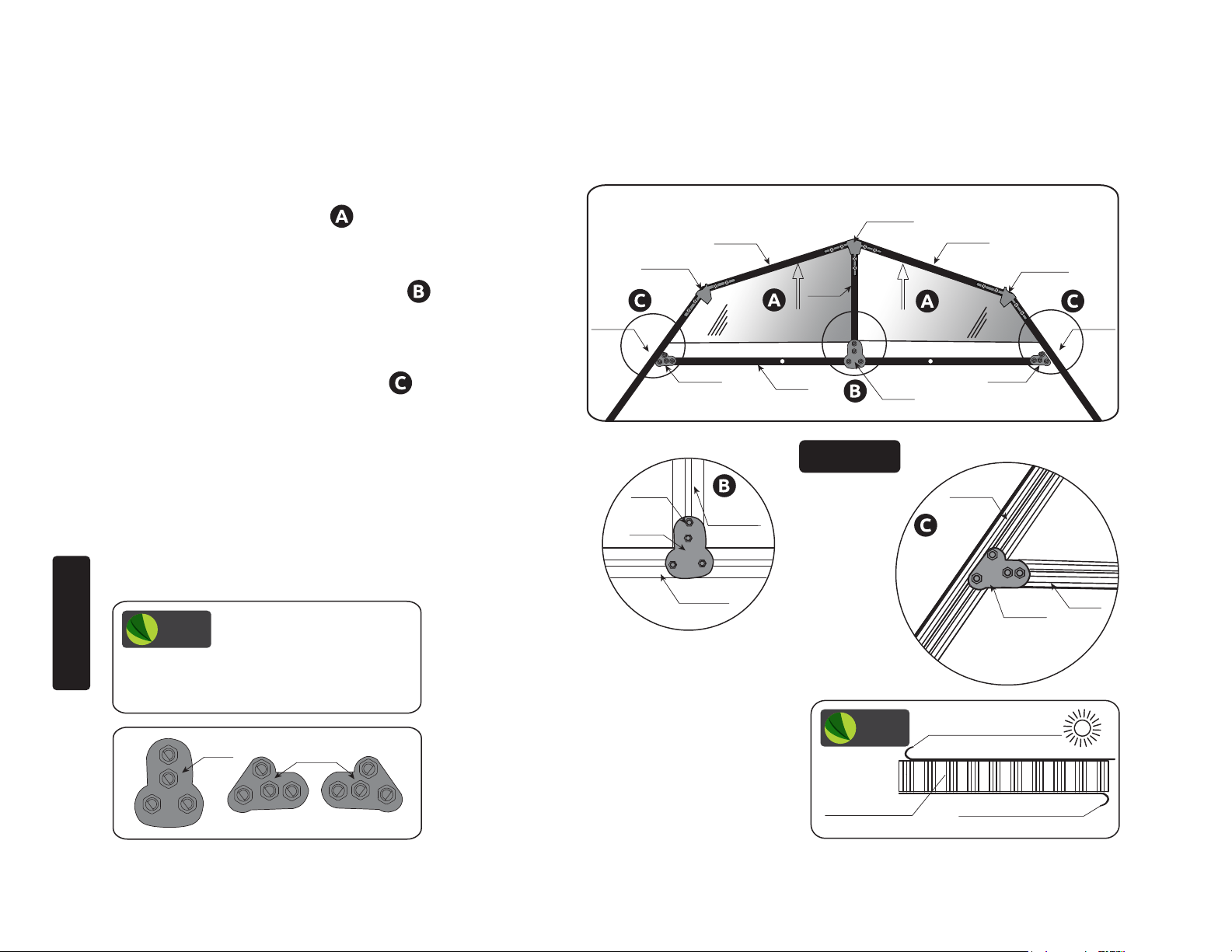

2.4 Insert polycarbonate panels Y3-2 and

Y3-1 into place as shown in .

2.5: Attach 603E and 603D with W04

and S04/ML01 fasteners as shown in .

2.6 Attach the 603D to the 601B’s

using the W04-1’s with the S04/ML01

fasteners on both sides as shown in .

Y3-1

Y3-2

601B

601B 601B

601B

603E

WG01

WG02

603D W04

W04-1 W04-1

S04

ML01

W04 603E

603D

STEP TWO

W04-1 603D

601B

GRANDIO

TIP Transparent Film

Outside Greenhouse

Opal White Film

Inside Greenhouse

Polycarbonate

Panel

Sun

GRANDIO

TIP BOLT INSTALLATION TIP:

Locate ML01/S04 nuts and

screws, pre thread into the W04 and

W04-1’s and place in the groove of the

extrusion to make installation easier.

W04 W04-1

Inside View

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Grandio Gewächshaus-Bausatz Handbücher

Grandio

Grandio Ascent 8x8 KIT Bedienungsanleitung

Grandio

Grandio GRA-ASC-VENT Bedienungsanleitung

Grandio

Grandio ELITE Bedienungsanleitung

Grandio

Grandio ASCENT GRA-812-GR Bedienungsanleitung

Grandio

Grandio GRA-LVR Bedienungsanleitung

Grandio

Grandio GRA-88BR-GR Bedienungsanleitung

Grandio

Grandio ELITE 8x12 Bedienungsanleitung

Grandio

Grandio Summit Series Bedienungsanleitung

Grandio

Grandio GRANDIO ELITE 8x12 2015 Bedienungsanleitung

Grandio

Grandio GRA-812BR-GR Bedienungsanleitung

Grandio

Grandio GRA-ELEM-VEN Bedienungsanleitung

Grandio

Grandio 2015 Bedienungsanleitung

Grandio

Grandio BA-A1 Bedienungsanleitung

Grandio

Grandio GP-EZ1 Bedienungsanleitung

Grandio

Grandio GRA-ASC-812 Bedienungsanleitung

Grandio

Grandio Grandio Element 6x8 with Base Kit Bedienungsanleitung

Grandio

Grandio 2015 EARTH & GRASS L-BOLT ANCHORING KIT Bedienungsanleitung

Grandio

Grandio GRA-ASC-88 Bedienungsanleitung

Beliebte Gewächshaus-Bausatz Handbücher anderer Marken

ACD PRESTIGE

ACD PRESTIGE MR3 H Bedienungsanleitung

Vitavia

Vitavia VA0040-TRP Bedienungsanleitung

VegTrug

VegTrug Nursery Bedienungsanleitung

Riverstone Networks

Riverstone Networks Monticello 041315V Bedienungsanleitung

STC

STC Easy Grow 6x12 Greenhouse Bedienungsanleitung

CLIMA POD

CLIMA POD Spirit V7 Series Bedienungsanleitung

Vitavia

Vitavia GAIA JUMBO Bedienungsanleitung

Palram

Palram Harmony 6'x4' Bedienungsanleitung

ClearSpan

ClearSpan Storage Master 104598 Bedienungsanleitung

Sproutwell

Sproutwell GRANGE - 5 Bedienungsanleitung

ACD

ACD Piccolo 03 Bedienungsanleitung

Growhouse

Growhouse Lean To 6 x 8 Bedienungsanleitung

Riverstone Networks

Riverstone Networks Grower's 181010V Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

Robinsons

Robinsons 5ft Wide LEAN-TO Bedienungsanleitung

Botanica

Botanica E Bedienungsanleitung

PNI

PNI SP6000 Bedienungsanleitung

Hortus

Hortus 211-203 Programmierhandbuch
