Grandstream Networks, Inc.
IPVT10
Administration Guide
IPVT10 – Administration Guide
WELCOME
Thanks for purchasing Grandstream Network IPVT10 full-HD conferencing system.
This document introduces the IPVT10 installation process and usage instructions, including environment setup, start meetings
and operations, scheduling meetings, etc.
For more information about IPVT10 and IPVideoTalk service, please visit the product page at: http://www.ipvideotalk.com
This manual applies to IPVT10 equipment administrators.
PRODUCT OVERVIEW
IPVT10 is an On-Premise Video Conferencing Server designed for enterprises seeking a powerful and secure video
conferencing solution. It offers one easy-to-use platform that combines all aspects of enterprise video conferencing
applications, including room and web-based options and conferencing management. IPVT10 provides a centralized solution
to manage an entire business’s conferencing needs through one single server and interface. This On-Premise Video
Conferencing Server is ideal for internal conferencing solutions among small and medium-sized enterprises, especially those
with multiple locations, for example, communication between headquarters and multiple branch offices. It is also ideal for
organizations that need to communicate with remote employees and those who perform remote training and/or education
through video conferencing.
Feature Highlights
The following tables contain the major features of the IPVT10:
Caution
Any change that is not authorized by Grandstream Networks Inc., or any operation that is not following this IPVT10 user guide
will void the manufacturer’s warranty of IPVT10.
IPVT10
●Supports up to 300 participants and 50
meetings of two parties/10 meetings of
more than three parties simultaneous
conference sessions.
●Audio, video, charts & reports recording
capabilities with 500GB local storage.
●1080p H.264 for real-time video and
screen sharing.
●Up to 120 video feeds and 300
participants per single conference
session.
●Live broadcast using Facebook/YouTube
Live features.
●Advanced meeting control, flexible
scheduling, customizable registration,
invitation, follow-ups & reports.
●Advanced anti-jitter algorithm to sustain
smooth audio & video against up to 30%
packet loss.

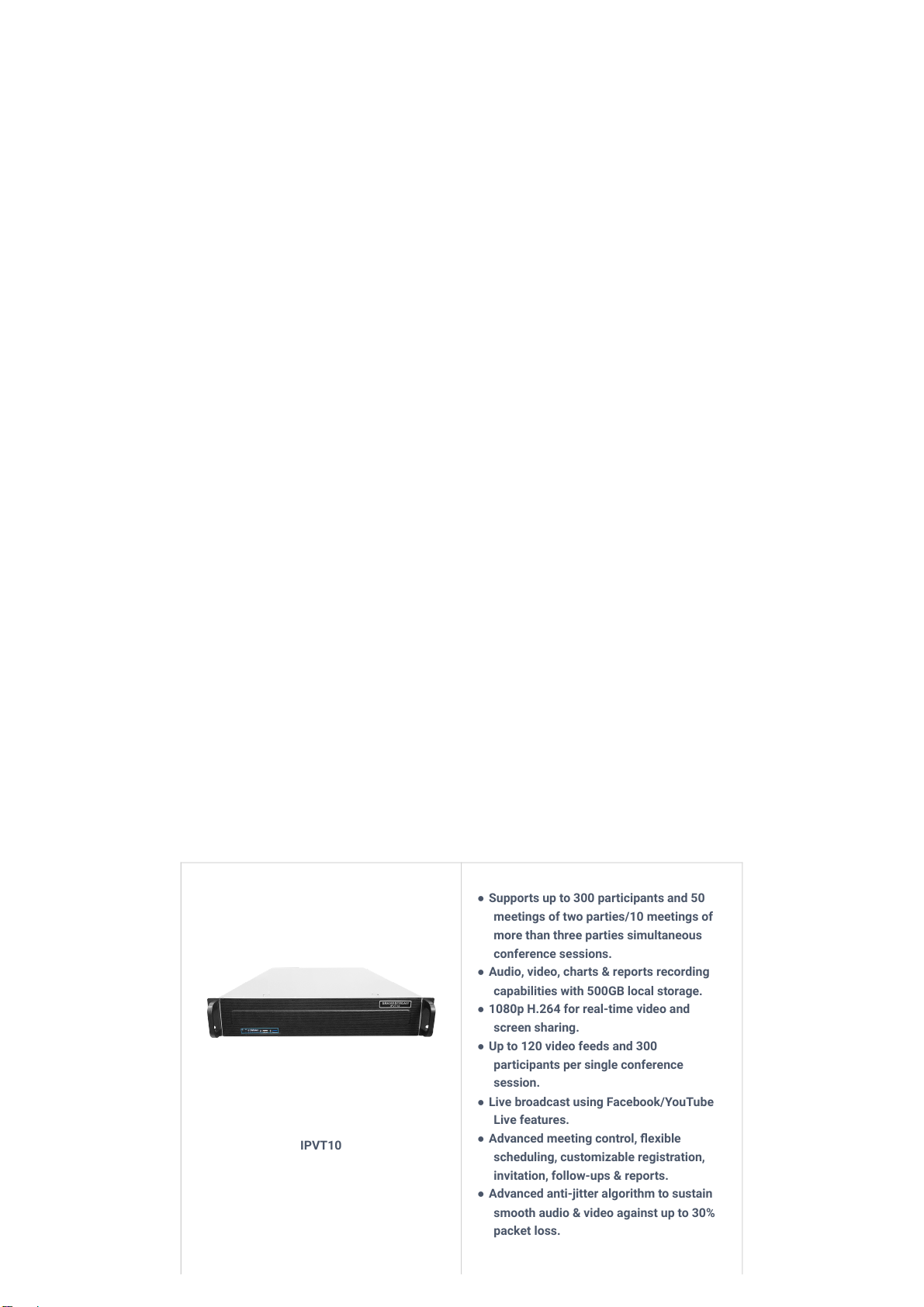

Table 1: IPVT10 Features in a Glance
IPVT10 Technical Specifications
The following table resumes all the technical specifications including the protocols/standards supported, server module,
audio/video features, MCU functional features, meeting, and device management for IPVT10.
Application
Functions
Built-in Video MCU, SIP Registrar Server, H.323 Gateway, NAT Traversal Server, Enterprise Collaboration
Server, Contacts Manager, Recording/Storage Server, WebRTC Server.
Conference
Capacity
Up to 120-way 1080p H.264 video/audio MCU.
Up to 300 participants (aggregate) with 2-way audio and 1-way 1080p H.264 video streaming.
Up to 10 meetings of more than three parties or 50 meetings of two parties without WebRTC client.
Video
Support H.264 BP/MP/HP with up to 1080p resolution and 6Mbps bit rate per stream.
Audio
Support Opus, G.722, G.711a/u, up to 48KHz wide-band audio mixing.
Network
Jitter
Resilience
Advanced anti-jitter algorithms to sustain high-quality
audio/video against up to 30% packet loss. Smart adaptation to dynamically adjust bandwidth between
64Kbps and 6Mbps based on the
network condition.
Security Support HTTPS and WSS/DTLS-SRTP encryption for WebRTC, and TLS/SRTP encryption for SIP
Video Display
Support 2×2/3×3/4×4/5×5/6×6/7×7 Tile Video Layout, or 1 Primary + N Secondary (up to 7 secondary)
Video Layout.
1 meeting supports up to 3 meeting layouts
and also supports assigning
the viewing permission for other participants.
Active
Speaker
Highlight
Automated active speaker detection and highlight.
Meeting
Management
Support Immediate or Scheduled Meetings/Webinars, multiple hosts/panelists, audio/video ON/OFF
control.
Desktop/application sharing, group or private chat, Q&A, meeting banners/captions, sending pictures and
files, forced attendee Mute/Camera-Off/Exit by the host.
Customizable content for meeting invitation/registration/reminder/post-meeting reports and follow-up.
Live
Streaming Support live streaming with Facebook and Youtube, and other live streaming platforms via RTMP push.
●Access from PC/Mac, mobile devices,
video conferencing systems, video
phones, PSTN trunk, or SIP PBX.
●HTTPS and WSS/DTLSSRTP encryption
for WebRTC, TLS/SRTP encryption for
SIP.
Supported
Devices
Grandstream GVC series video conference systems, GXV series video phones, PC/Mac using WebRTC
browsers, Android/iOS-based mobile devices using Grandstream IPVideoTalk mobile APP.
Audio calling from PSTN SIP trunk or SIP-based
IPPBX, 3rd party SIP-based
video conference systems and video phones.
Meeting
Records
Support up to 500GB local storage of audio/video/chats recording, meeting reports, etc.
Support remote mounting NFS extended disk.
Deployment
Scalability
Scalable architecture to support multi-server configuration with load-balancing and redundancy for large
deployments.
Multi-
language English, German, French, Spanish, Chinese, Japanese, Arabic, etc.
Power Supply Redundant 550W power supplies.
Network
Interfaces 2x Gigabit network ports, 1x RJ45 IPMI network port.
Auxiliary
Interfaces 3x USB 3.0 ports, 3x USB 2.0 ports, and 1x VGA port.
Physical
Dimension 430mm (W) x 650mm (L) x 88mm (H), 2U rack design suitable for 19-inch cabinet and guide rail.
Temperature
& Humidity Operations 0°C to 45°C, Humidity 10% ~ 90% non-condensing.
Compliance FCC, CE, RCM.
Table 2: IPVT10 Technical Specifications
INSTALLING IPVT10
Equipment Package Content

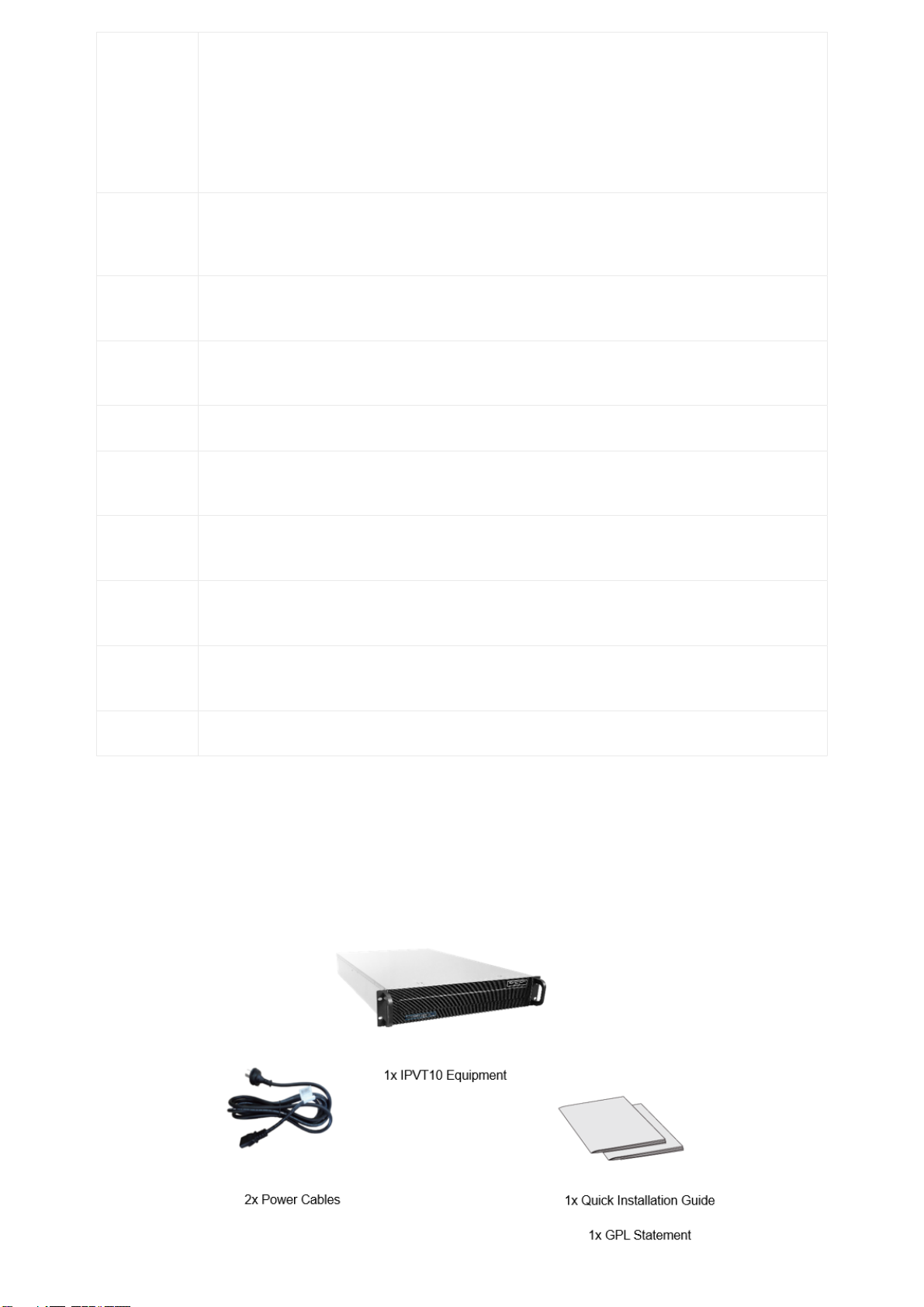

Figure 1: IPVT10 Package Content
Installation Process
Users need to follow the steps described in the table below to correctly complete the installation of the IPVT10:
Inde
xSteps Instructions
1Equipment Inspection Open the package, check the equipment and accessories, and inspect the hardware
structure of the IPVT10.
2
Install to Cabinet
(Optional) Install IPVT10 to the cabinet
3Connect to Network Connect to the network with the Ethernet cable.
4
Connect to the power
supply Connect to the power supply with the power adapter.
5Power On Inspect the running status of the equipment.
Table 3: IPVT10 Installation Process
Equipment Inspection
Users need to open the package and check the equipment and parts to ensure the integrity and availability of the equipment.
Equipment Appearance
IPVT Front Panel
Figure 2: IPVT10 Front Panel
N
O. Name Description
1Equipment
Switch
When the equipment is not running, press the switch to turn on the equipment, and when the
equipment is running normally, long-press the switch (5 seconds) will turn off the equipment.
2 Reboot Switch When the equipment is running normally, pressing this switch will reboot the equipment.
3 Power Indicator
When the equipment is ON and connected to the power supply: the light is solid green.
When the equipment is OFF and the power supply is not connected with the equipment:
the light is off.
4Hard Disk
Indicator
When the hard disk is running normally: the light is off.
When the hard disk is reading and writing: the light is solid blue.
5
Network
Connection
Indicator
When the network connection is normal: the light is flashing yellow.
When the network connection is abnormal, or the network is not connected with the
equipment: the light is off.
6
Ethernet
Interface 1
Indicator
When the network connection is normal: the light is flashing yellow.
When the network connection is abnormal, or the network is not connected with the
equipment: the light is off.
7
Ethernet
Interface 2
Indicator
When the network connection is normal: the light is flashing yellow.
When the network connection is abnormal, or the network is not connected with the
equipment: the light is off.
8Failure
Indicator
Normal condition: the light is always off.
When the equipment is faulted: the light is flashing red.
9 USB Interface 1 USB 2.0. Users could connect with a mouse or keyboard.
10 USB Interface 2 USB 3.0. Users could connect with a mouse or keyboard.
Table 4: IPVT10 Front Panel Description
IPVT Back Panel

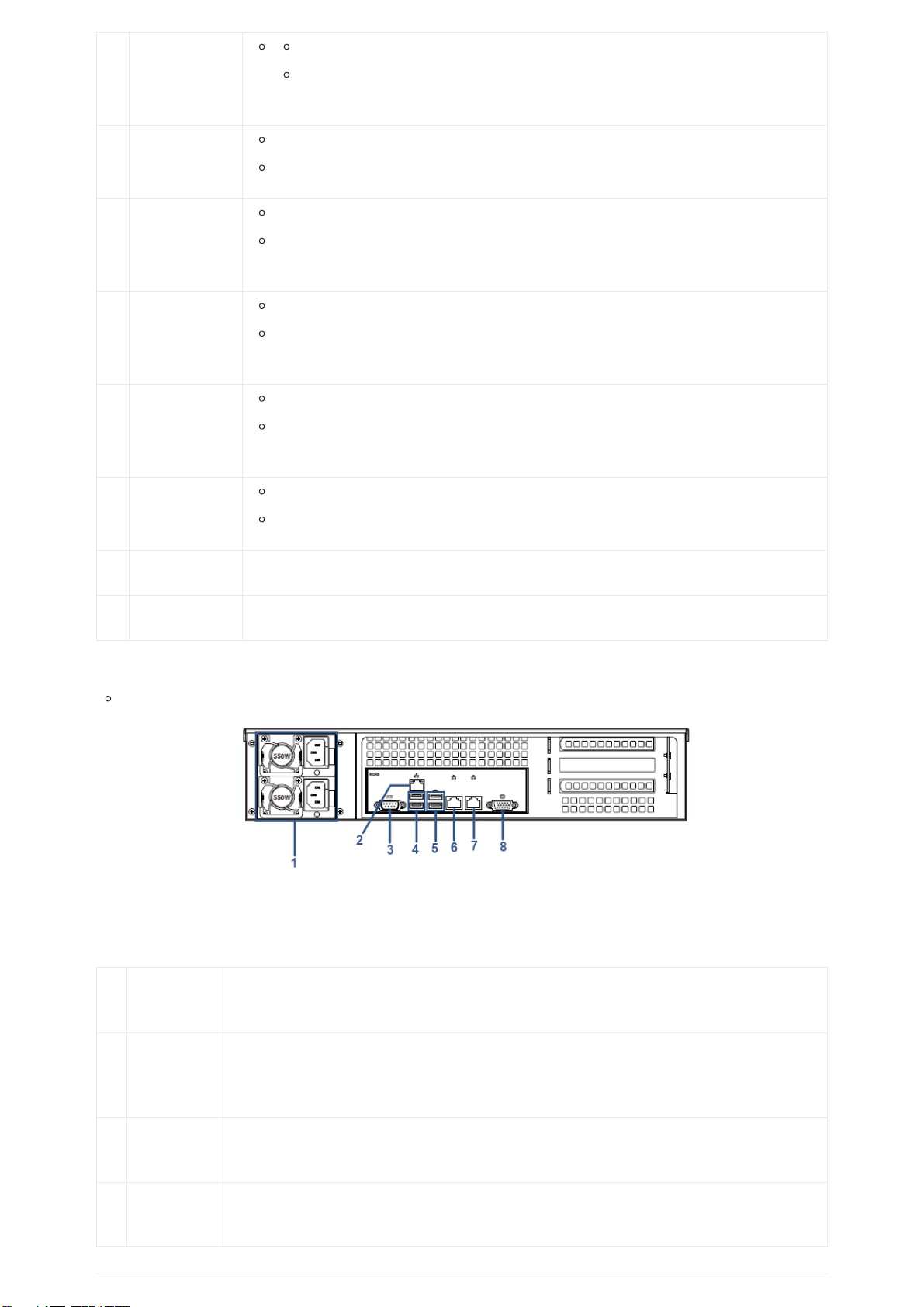

Figure 3: IPVT10 Back Panel
N
O. Name Description
1
Power
Supply
Interfaces
Two Power Supply Interfaces are available on the IPVT10, the users need to connect the power cables
to the two interfaces to keep powering the device and to avoid shutting it down in case one of the
power supply is defective.
2IPMI
Interface Intelligent Platform Management Interface.
3COM
Interface RS-232 serial communication interface
4
USB
Interfaces 3
and 4
USB 2.0. Users could connect with a mouse or keyboard.
5
USB
Interfaces 5
and 6
USB 3.0. Users could connect with a mouse or keyboard.
6
1000M
Ethernet
Interface 1
Connect to the network LAN port, connect with a PC to access the configuration page of the server
7
1000M
Ethernet
Interface 2
Connect to the network LAN port
8VGA
Interface Connect to a VGA equipment
Table 5: IPVT10 Back Panel Description
Equipment Specifications
Name Description
Power Supply 550W. (Redundancy PSU)
Applicable Cabinet 2U Rackmount Design, and it supports 19” cabinets and rails.
Equipment Size
Base Equipment Size:
Height 88mm * Width 430mm * Depth 650mm.
USB Interfaces 3x USB 3.0 (2 rear, 2 via header).
3x USB 2.0 (2 rear, 2 via header).
LAN Interfaces
2x RJ45 Gigabit Ethernet LAN ports.
1x RJ45 Dedicated IPMI LAN port.
Display Interfaces 1 x VGA port.
Operating Temperature 0°C to 45°C
Table 6: IPVT10 Equipment Specifications
Mounting IPVT10 Equipment to Cabinet
Users can install the IPVT10 in a 19-inch cabinet that conforms to the IEC (International Electro-Technical Commission) 60297
standards.
1. The IPVT10 server is heavy and we suggest carrying it with two people at least.
2. If the cabinet has been installed, then suggest a space of at least “2U” (1U=44.45mm) to be reserved.
3. Users can select the regular rail for installation or optional installation.
Example:
Rail structure: It is composed of inner rail, outer rail, and rail holder. The inner rail and the outer rail are connected, and they
cannot be split. They are mounted on the cabinet through the rail holder; the inner rail is installed on the server equipment
(Rails and Rail Holders are not included within the package contents).
Steps:
1. Remove the rail holder and the rails by loosening the 4 screws first, and then removing the front and back rail holders.
2. Install the inner rail to the server case. Pull the inner rail out of the rail until it cannot be pulled.
3. Fix the inner rail with 2 screws to the server case. Fit the smooth surface of the inner rail to the side of the server case and
match the screw holes on the inner rail with the screw holes on the server case. Hold the inner rail tightly against the
server case and tighten with the screws.
4. Repeat steps 1 to 3 to install the other inner rail on the other side of the server case.
5. Install the rail holder to the cabinet. Make sure the installation position of the front rail holder on the cabinet, align the
two fixing holes between the rail holder and the cabinet corner and tighten the screws. Then, according to the depth of
the cabinet (the depth of the cabinet is 650mm), adjust the back-rail holder properly, align the two fixing holes between
the back-rail holder and the cabinet corner at the back of the cabinet, tighten the screws. (Note: Please make sure that the
front and back rail holders are horizontal).
6. Repeat the above steps to install the other front and back rail holders in the cabinet. (Note: Please make sure that the left
and right-side rails are horizontal).
7. Lift the server up and close to the cabinet so that the back of the server faces the front of the cabinet. Insert the inner rails
on the two sides of the server into the front and back rail holders on the cabinet, align the fixing holes and tighten the
screws.
8. When the installation is completed, push the server into the cabinet.
Connecting IPVT10 Server
Connecting Network Cables
To ensure to run IPVT10 Server properly, users need to connect the server to a Gigabit switch.
Please connect IPVT10 Server according to the following procedures:
1. Connect the RJ45 Ethernet cable with the Ethernet Interface 1.
2. Connect the RJ45 Ethernet cable with the Gigabit switch.
3. Repeat steps “1” and “2” to connect with Ethernet interface 2.
Note
Please do not use 100M or 10M switches.
If only one network is used, only one network interface needs to be connected to the switch (Internal Network – Setup
Ethernet Interface 1, External Network – Setup Ethernet Interface 2).

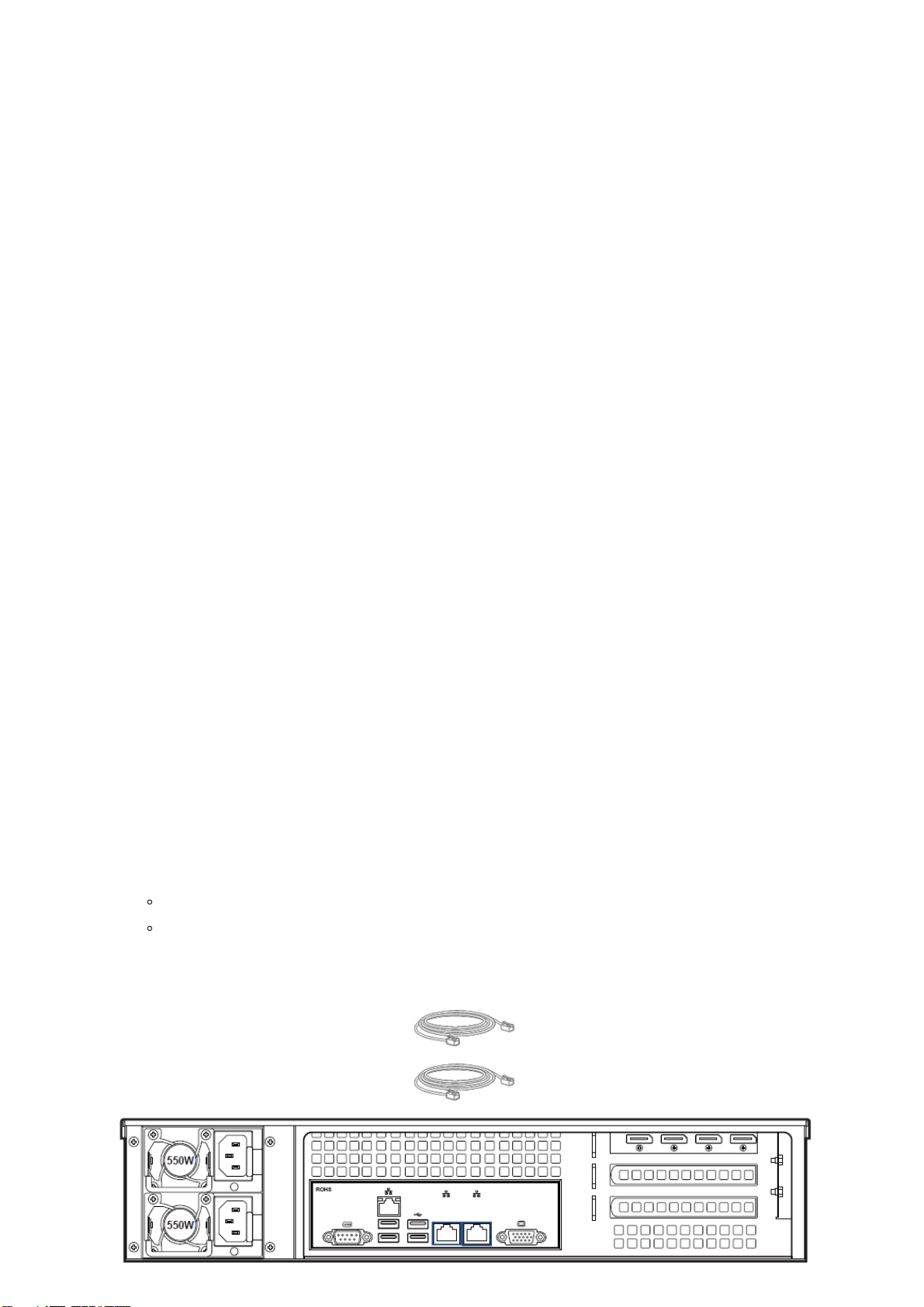

Figure 4: Connecting Ethernet Cables to Ethernet Interfaces
Connecting Power Supply cables
IPVT10 only supports AC power supply, users can connect the two power supply cables following the steps below:
1. Connect the standard power supply cable with the equipment.
2. Plug the power supply into the AC power supply.
3. Repeat steps “1” and “2” to connect the second power supply cable.
Powering on IPVT10
Before powering on the equipment, users need to ensure that the equipment meets the following conditions:
If the equipment is installed in a cabinet, please ensure that the screws are fixed, and the equipment has enough space
for heat dissipation.
The connections of the cables on the equipment are normal.
The input power and current are within the working range of the equipment.
The distance between the power cable and the Ethernet cable outside the cabinet must be greater than 30 mm.
Once the previous conditions are checked, the users can power up the IPVT10 Server. To make the equipment run properly,
users need to press the equipment switch in the front panel of the server to power on the equipment. The indicator will turn
to solid green.

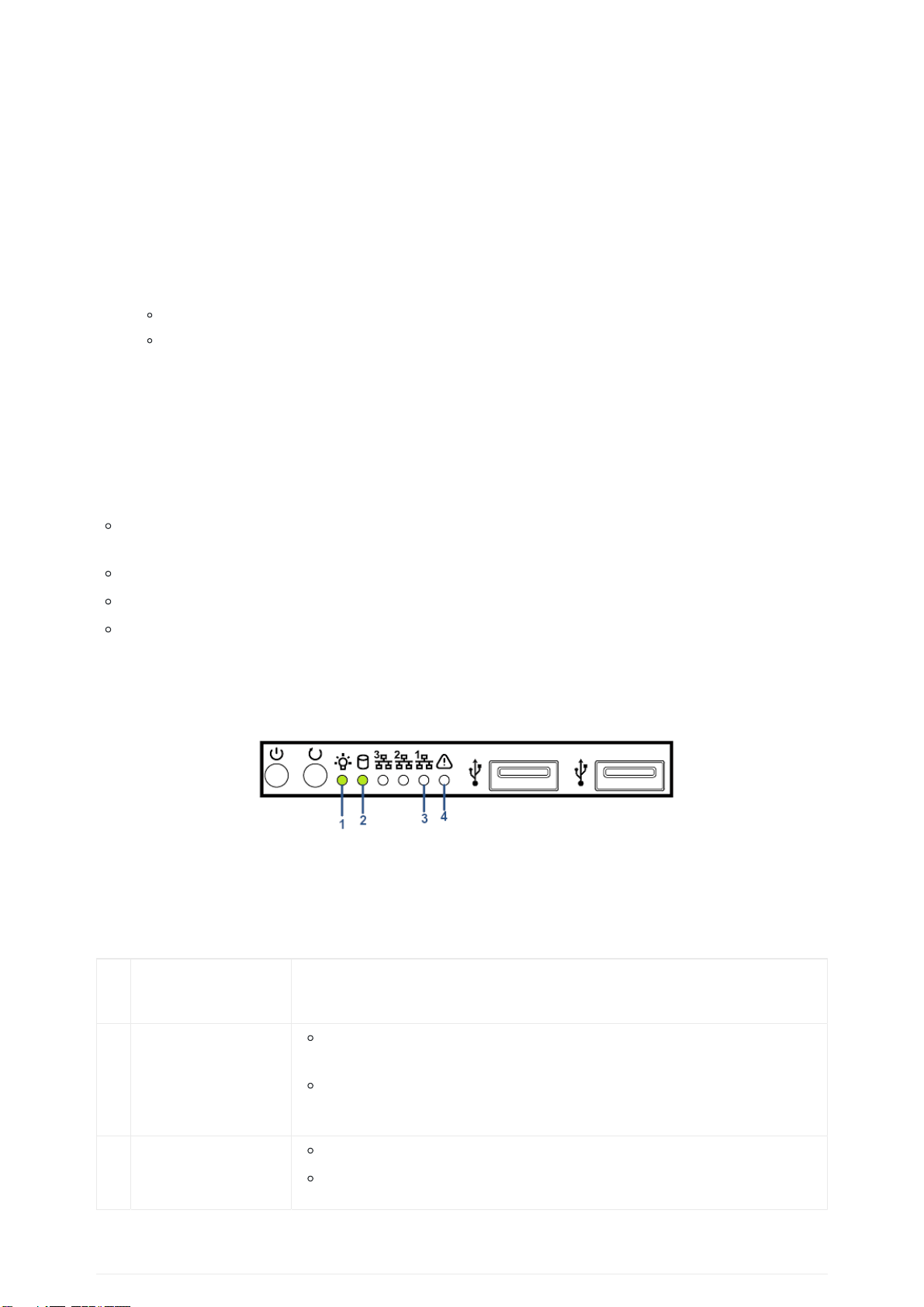

Figure 5: IPVT10 powered on
After the equipment is turned on, please check the following indicators to make sure the equipment is working properly.
NO
.Name Description
1 Power Indicator
When the equipment is ON and connected to the power supply: the light is solid
green
When the equipment is OFF and the power supply is not connected with the
equipment: the light is off
2 Hard Disk Indicator
When the hard disk is running normally: the light is off.
When the hard disk is reading and writing: the light is solid blue.
Note
Please use the standard three-phase power outlet.
Please make sure that the output voltage is within the range of the power module (90~264VAC, 8.5~2.7A, 50/60Hz). If it is
not within the working range, correct it and do not power on the equipment.
3Network Connection
Indicator
When the network connection is normal: the light is flashing yellow
When the network connection is abnormal, or the network is not connected with the
equipment: the light is off
4 Failure Indicator
Normal condition: the light is always off
When the equipment is faulted: the light is flashing red.
Table 7: Checking the indicators after powering up IPVT10
CONFIGURING IPVT10
Descriptions of Meeting Capacity
Table 8: IPVT10 Server Meetings Performance
Current
Meeting
Number
Max
Video
Feeds
Max
Partici
pants
Descriptions
1 120
300
(Dual
NICs)
200
(Single
NIC)
If the participant only uses a
single NIC to join the conference only supports 200 participants in the conference which
is limited by the bandwidth. If the participants use dual NICs at the same time, the
participants could use different IP addresses to join
the meeting, and the participant amount is up to 300.
Supported H.264
The meeting allows users to enable all specified meeting layouts.
2 120 200
Supported H.264
Both 2 current meetings could enable all specified meeting layouts.
4 120 160
With more conferences at the same time for the server loading, the maximum
number of participants in the conference will be less.
Supported H.264
The 4 meetings could enable up to 6 specified meeting layouts.
6 120 140
With more conferences at the same time for the server loading, the maximum
number of participants in the conference will be less.
Supported H.264
The 6 meetings could enable up to 4 specified meeting layouts.
8 120 130
With more conferences at the same time for the server loading, the maximum
number of participants in the conference will be less.
Supported H.264
The 8 meetings could enable up to 2 specified meeting layouts.
Notice
If you encounter any problem about the equipment, please contact with Grandstream support engineer.
Andere Handbücher für IPVT10
3
Inhaltsverzeichnis
Andere Grandstream Networks Konferenzsystem Handbücher
Grandstream Networks
Grandstream Networks GXV34 0 Series Bedienungsanleitung
Grandstream Networks
Grandstream Networks GAC2500 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3202 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3210 RMT Bedienungsanleitung
Grandstream Networks
Grandstream Networks GXP2200EXT Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3220 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks UCM630 A Series Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3220 Bedienungsanleitung
Grandstream Networks
Grandstream Networks RingCentral GRP260X Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Montage- und Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200RMT Bedienungsanleitung
Grandstream Networks
Grandstream Networks GVC3200 Gebrauchsanweisung
Beliebte Konferenzsystem Handbücher anderer Marken
Kramer
Kramer VIA GO Bedienungsanleitung
AVT
AVT MAGIC AC1 Go Bedienungsanleitung
ProSoft Technology
ProSoft Technology AN-X4-AB-DHRIO Bedienungsanleitung
Sony
Sony PCS-I150 Bedienungsanleitung
Middle Atlantic Products
Middle Atlantic Products VTC Series Bedienungsanleitung
Prentke Romich Company
Prentke Romich Company Vanguard Plus Leitfaden
