For Warranty and RMA information, please visit www.grandstream.com

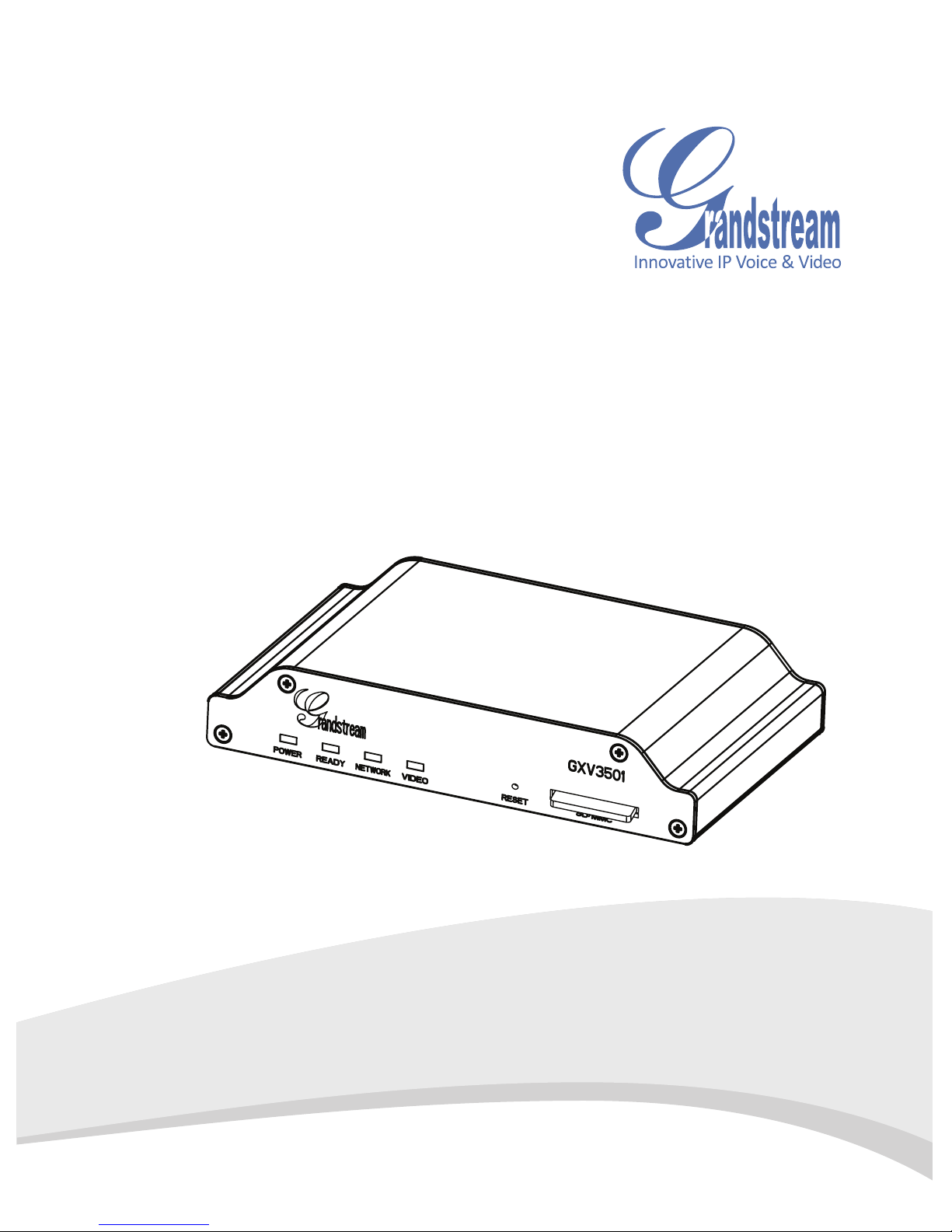

GXV 3501
IP VIDEO SERVER
QuickStart
Guide
PRECAUTIONS
PACKAGE CONTENTS
Power Adapter
QUICKSTART GUIDE
GXV 3501
12V
• Do not attempt to open, disassemble, or modify the
device
• Do not use a third party power adapter
• Do not expose this device to temperatures outside
range of -10 C to +55 C
• Do not expose the GXV 3501 to environments
outside of the following humidity range: 10-90% RH
(non-condensing)
EN
Green Wire Cramper
1
o o
CONNECTING THE GXV 3501

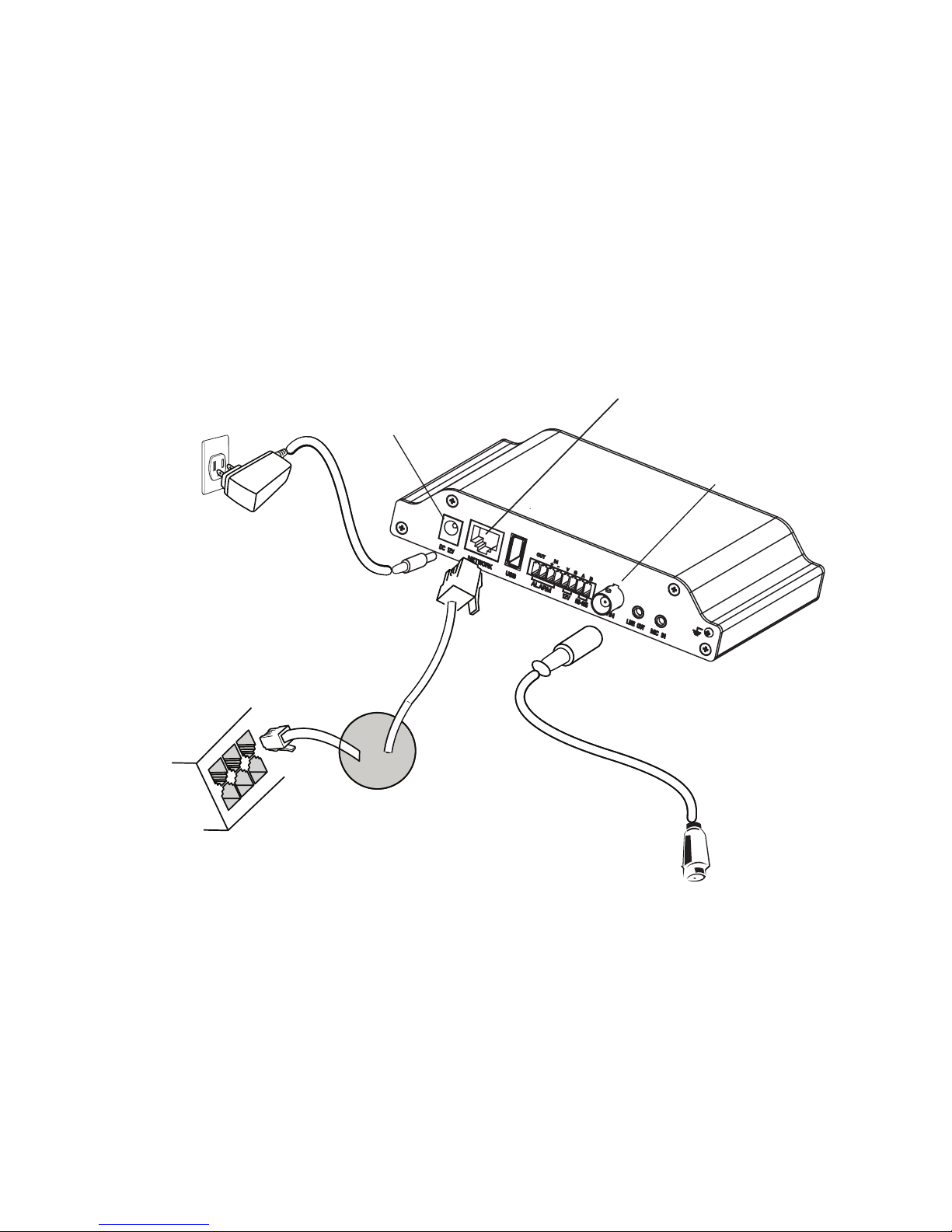

Refer to the illustration below when following the
instructions on the next page.
12V
Video
Option A: Power
Adapter To AC Outlet
Option B: RJ45 Ethernet cable to
Power over Ethernet(PoE) switch
To an Analog
camera
NOTE: Choose Option A if using the power supply. Or choose
Option B if using a Power over Ethernet (PoE) switch.
Power Port
Network Port
Video
Input
2
Option A
Step 1: Insert the power adapter into the 12V DC port on
the GXV 3501. Plug the other end of the adapter
into an AC power outlet.
Step 2: Plug an RJ45 Ethernet cable into the network
port. Plug the other into a hub, switch or router.
Step 3: Connect the video-out BNC cable of an analog
camera to the video port on the GXV 3501.
Option B
Step 1: Plug an RJ45 Ethernet cable into the network
port. Plug the other end into a Power over
Ethernet (PoE) switch.
Step 2: Connect the video-out BNC cable of your
camera to the video input port of the GXV 3501.
If the GXV 3501 is properly connected, the POWER,
READY and NETWORK indicator lights will ash green.
3
GXV 3501 CONFIGURATION
Step 1: Connect your PC and the GXV 3501 to the
same
network.

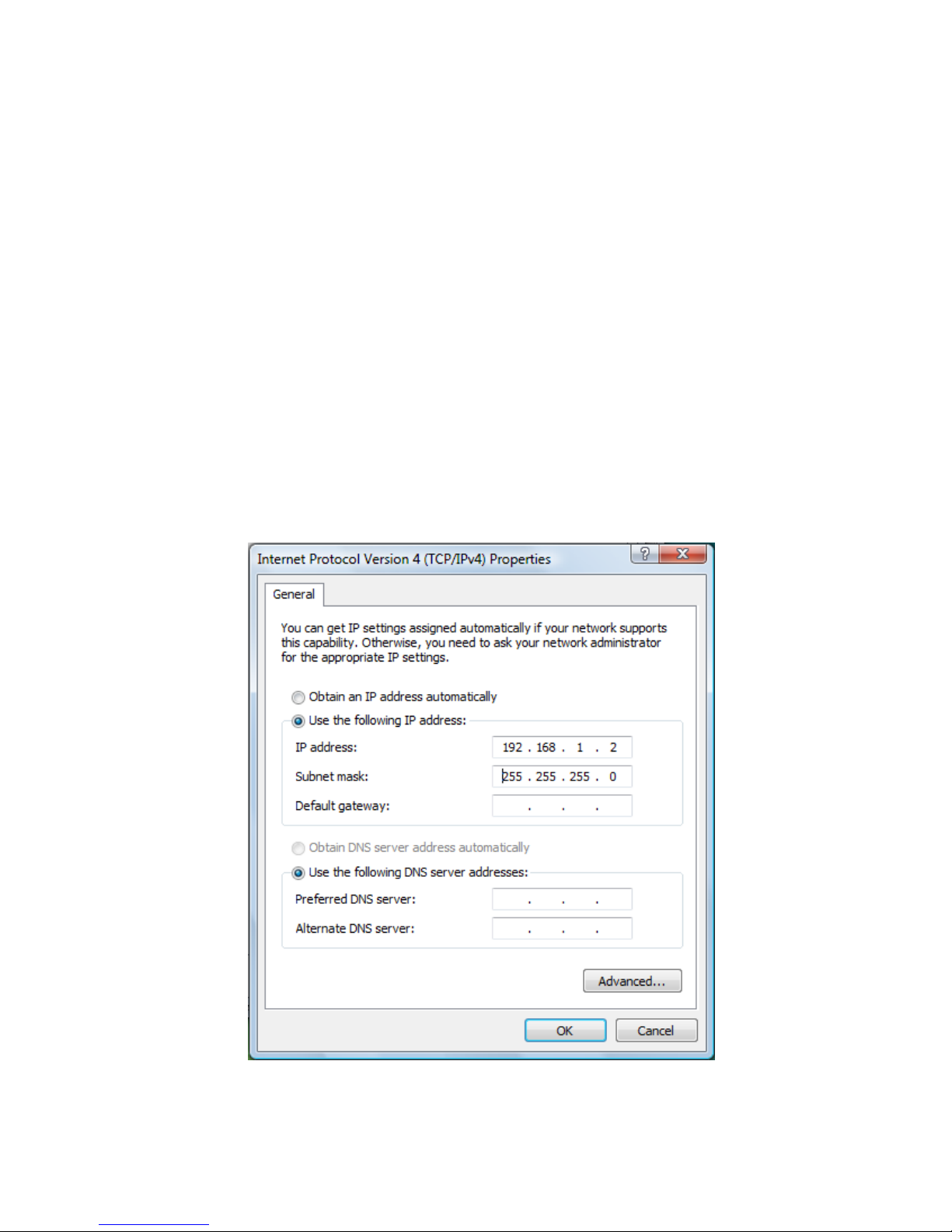

Step 2: Set the IP address of your PC to 192.168.1.X. Set
the default subnet mask of your PC to
Conguring the GXV 3501 using Microsoft
Internet Explorer
4
Step 3: Open Microsoft Internet Explorer on your PC.
Type 192.168.1.168 in the address bar.

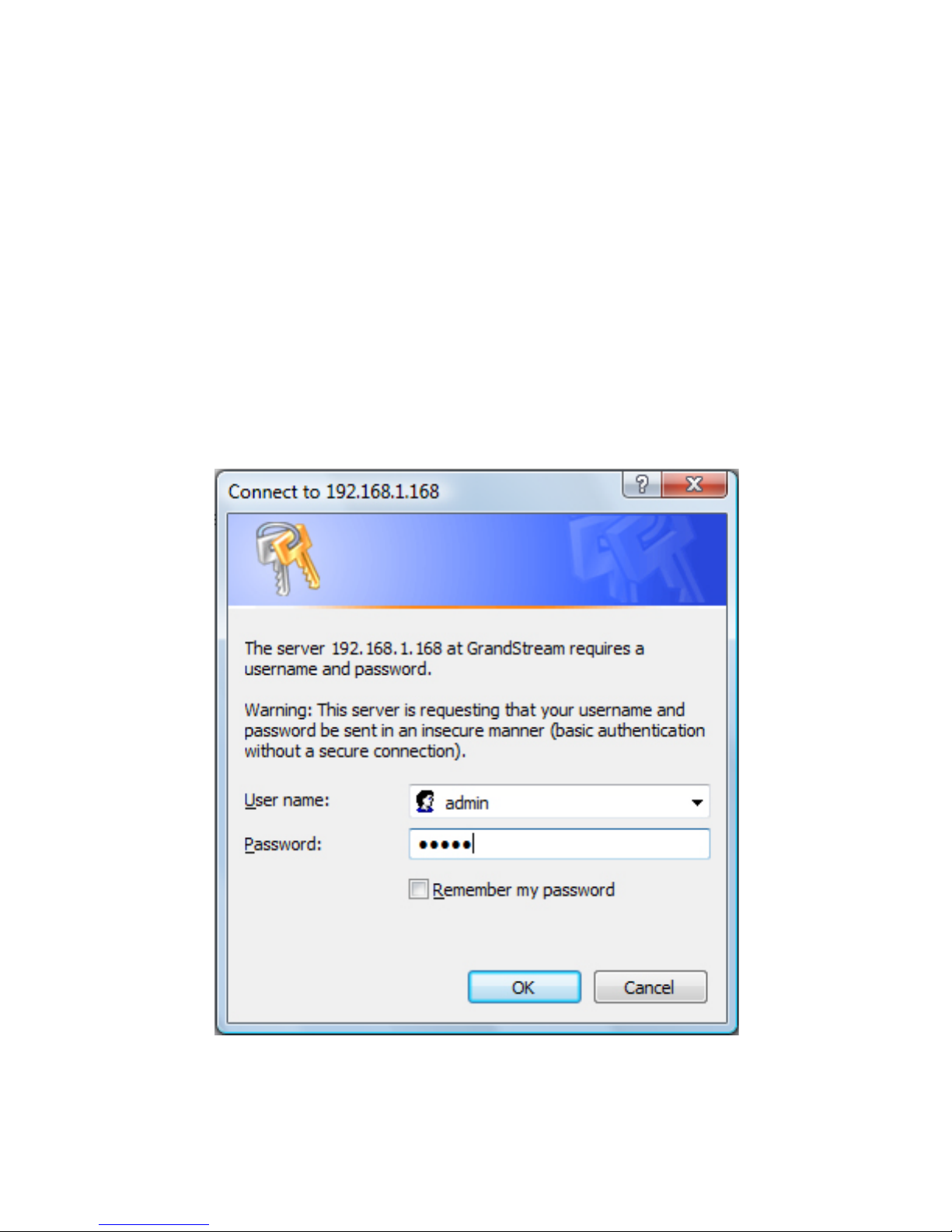

Step 4: A pop-up window will appear with prompts for
a user name and password. The default
administrator user name and password are both
set to “admin” at the default factory
conguration.
5 6

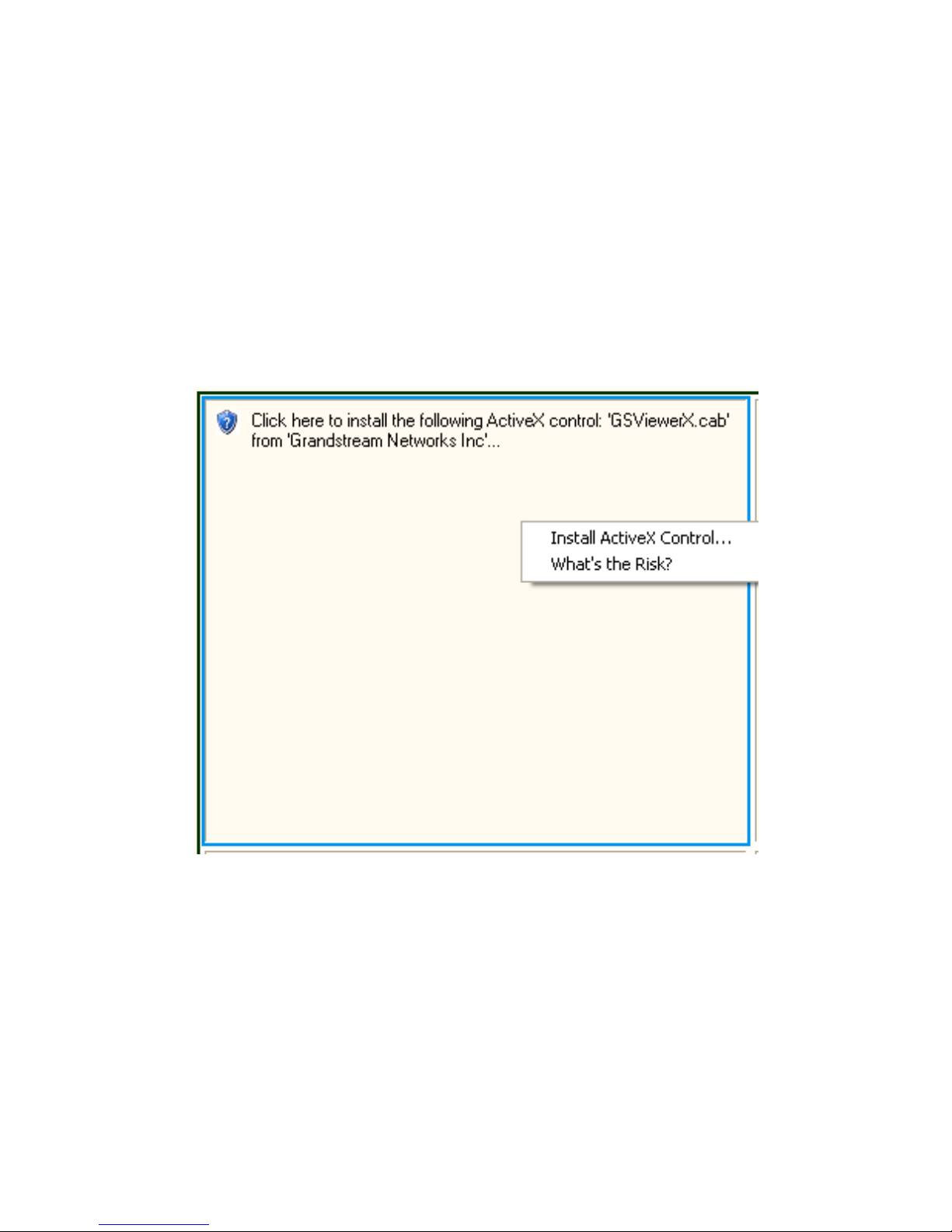

Step 5: Once you log into the GXV 3501’s web inter-
face
Internet Explorer will indicate that “This website
wants to install to following add-on: ‘GSViewer.
cab’ from Grandstream Networks, Inc.”.
Install this add-on by following the instructions.

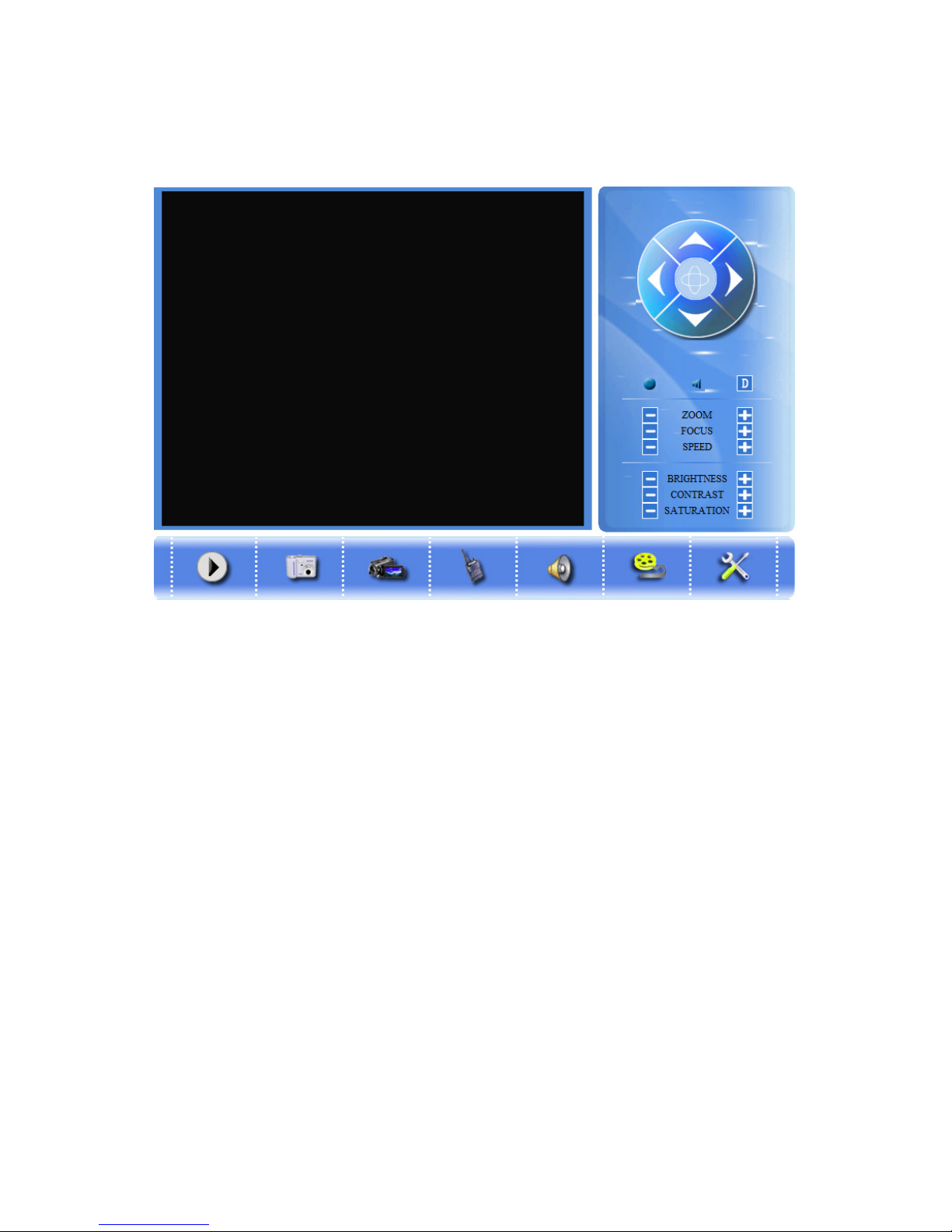

Step 6: Once the installation of GSViewX.cab completes
you will see the web page shown in the screen-
shot on the next page. Click the play button to
view the video feed.
5 6
Please download the user manual and FAQ for more
detailed conguration instructions:
http://www.grandstream.com/support/gxv_series_sur-
veillance/gxv350x/documents/gxv350x_usermanual_
english.pdf
Step 7: Click through the menu on the left hand side of
the web UI for more advanced conguration
parameters.
7 8
GXV 3501 SAMPLE CONNECTION
DIAGRAM
8
7 8
Precauciones

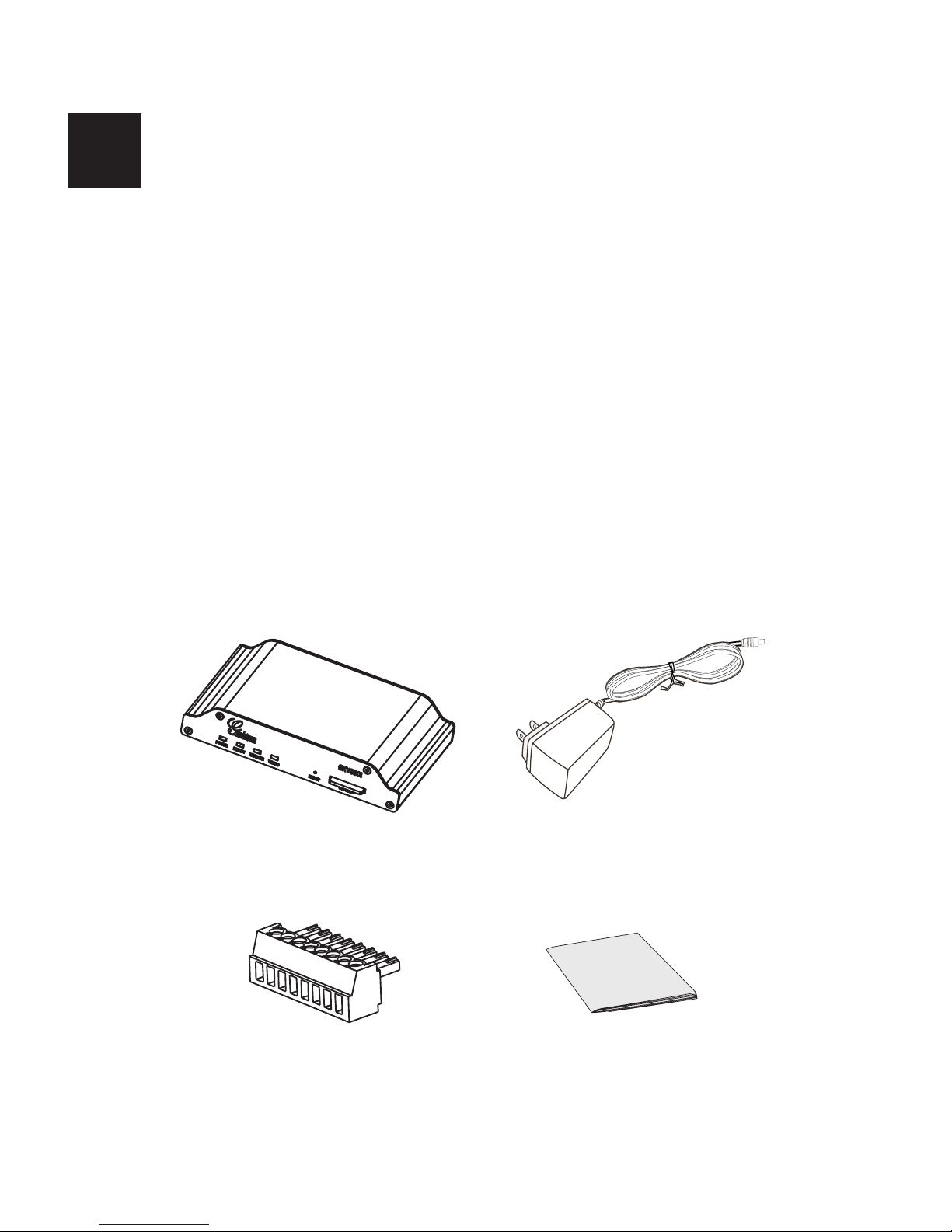

Contenido
Adaptador de corriente
Guía de
Instalación Rápida
GXV 3501
12V
• No intente abrir, desarmar o modicar la unidad
• No use un adaptador de corriente de otra marca
• No exponga esta unidad a temperaturas fuera de este
rango: -10 C a +55 C
• No exponga esta unidad a condiciones húmedas fuera
del rango de 10 a 90 % RH (no condensadas)
Conector verde del cable
ES
9 10
o o
