From Bicom Systems Wiki

Contents

1 Introduction

■

2 Requirements

■

2.1 Identifying Phone Model

■

2.2 Phone Firmware

■

2.3 DHCP Server

■

2.4 PBXware Version

■

3 Installation

■

3.1 Power Adapter

■

3.2 Power over Ethernet (PoE)

■

3.3 Find the Phone's IP Address

■

3.4 Reset to Factory Settings

■

4 Registering Phone

■

4.1 Manual Configuration

■

4.2 Auto Provisioning

■

5 DNS SRV

■

Introduction

This User Guide is written as a general guide on how to set up the Grandstream phone model

GXP-2135 to work with PBXware 5.3.6.

Requirements

Identifying Phone Model

To start and successfully complete registration of your Grandstream phone you need to know

which phone model to set up.

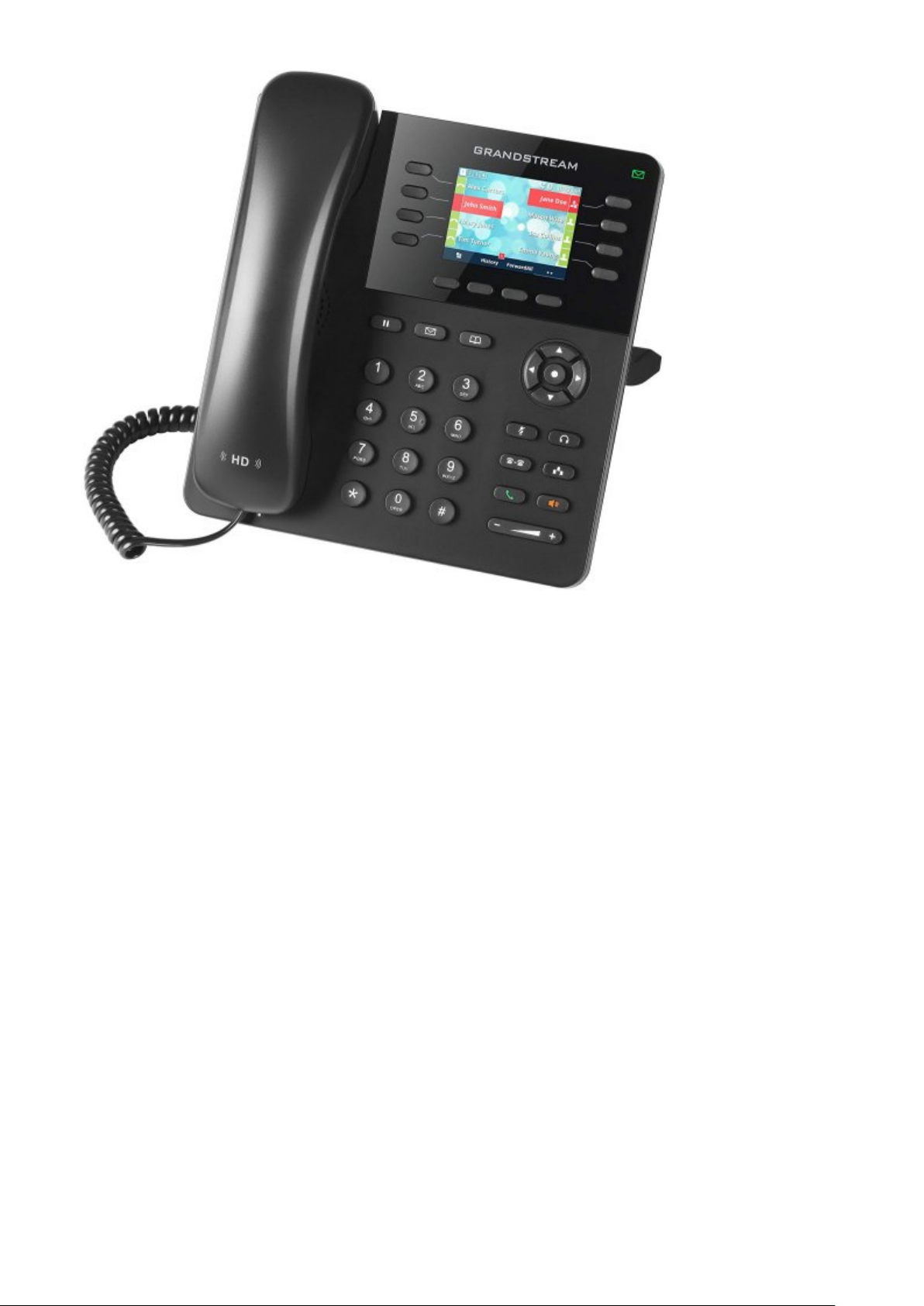

On the back of each Grandstream phone, there is model information that you should check.

Although various phone models can have exactly the same requirements and installation

procedures, phone models can also have significantly different requirements and installation

procedures, so that is why it is important to know the model you own which results in you

setting up the device successfully.

Phone Firmware

Make sure that your phone is loaded with an appropriate firmware version, 1.0.9.108.

■

To find out the firmware version of your Grandstream phone model, open a new browser

■

window and enter your phone IP address in order to access the phone's web administration

interface login screen. Example: http://192.168.1.22.

■

note that the factory default login details are as follows: username is admin and passsword is

admin.

Click the System Info link in the left hand navigation menu. The firmware version is shown

■

under the Software Version-Prog.

DHCP Server

Fully configured and operational DHCP server.

PBXware Version

PBXware version 5.3.6

In order to find out the PBXware version:

■

Navigate to Settings: About.

■

On the top of About page, you may see a code similar to this one PBXware Edition: Business,

Release: 5.3.6 (041373f), Running: 1.4.24-gc-75ee203 where Release denotes the current

version of your PBXware.

Installation

This section describes how to install and connect the phone to the electrical power and data

network as well as how to apply factory settings.

The following topics are covered:

Power Adapter

■

Power over Ethernet (PoE)

■

Factory Settings

■

Power Adapter

Connect the Network and Power

Connect the DC plug on the power adapter to the DC port on the phone and connect the other

■

end of the power adapter into an electrical power outlet.

Connect the Ethernet cable between the Internet port on the phone and the network port on a

■

router or switch to access LAN.

NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.

Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.

Power over Ethernet (PoE)

Connect the Network (only)

By using a regular Ethernet cable, your phone can be powered from a Power over Ethernet

(PoE) compliant router or switch.

Connect the Ethernet cable between the Internet port on the phone and an available port on

■

the in-line power router or switch.

NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.

Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.

Find the Phone's IP Address

Find out your Grandstream phone IP Address.

Press the Middle navigation key.

■

Go to Status->Network Status and the IP address will be displayed on the display.

■

Reset to Factory Settings

Reset to factory settings

This step is not required for out-of-the-box phones, however, if the phone has been already used

then it is a must.

Press the Middle navigation key.

■

Go to System and navigate to Factory Reset and press the Select button.

■

Confirm your action by pressing the Yes button.

■

Registering Phone

This section describes how to register the phone using Manual configuration or Auto

provisioning.

The following topics are covered:

Manual Configuration

■

Auto Provisioning

■

Manual Configuration

This section describes how to set UAD settings, create the PBXware Extension, and register the

phone.

The following topics are covered:

UAD settings

■

Creating Extension

■

Registering Phone

■

UAD Settings

UAD settings

Open a new browser window and enter the IP address in order to access the PBXware web

■

administration login screen. Example: http://192.168.1.10.

■

UAD Settings

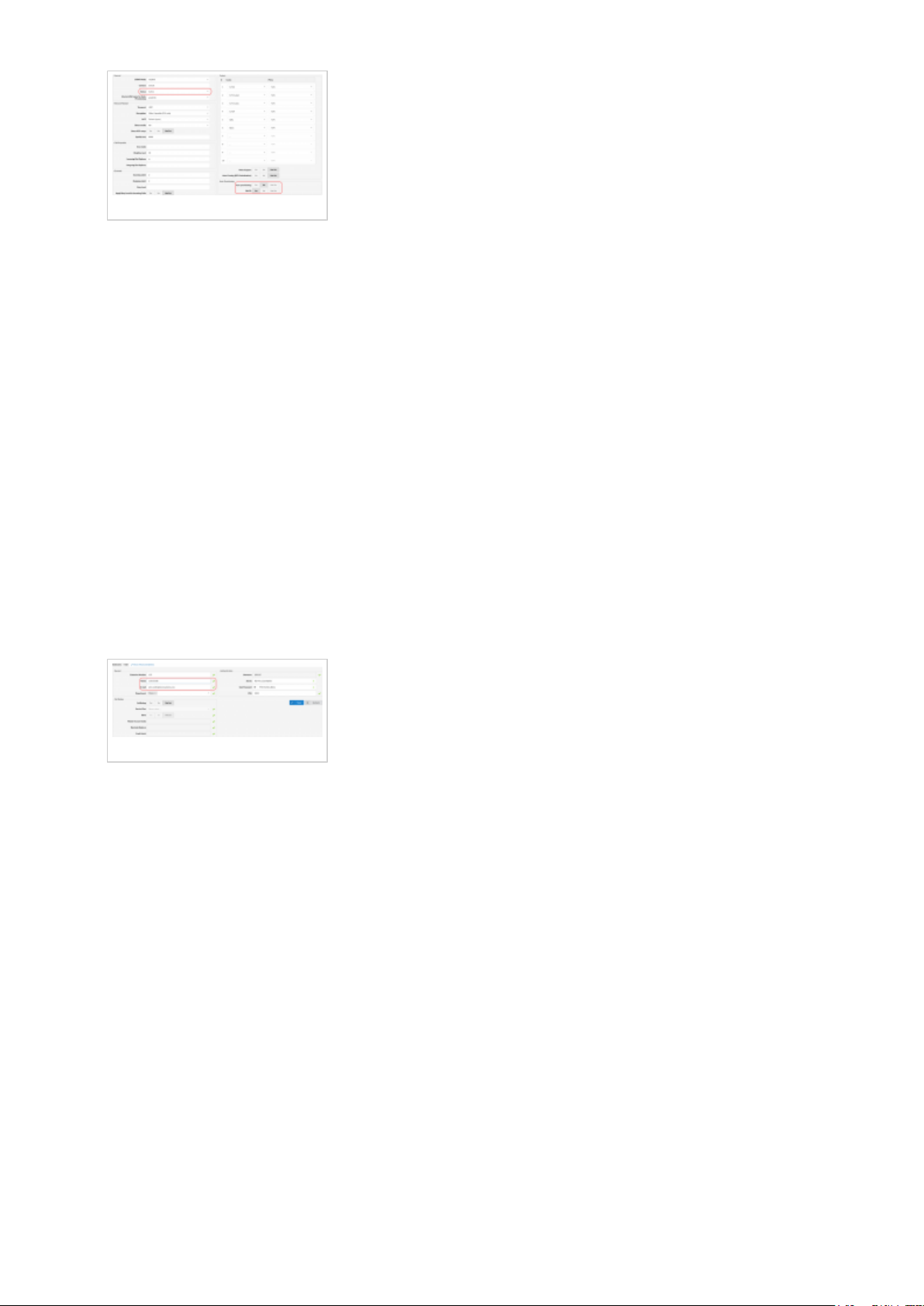

Navigate to Settings: UAD.

■

Make sure that the Grandstream UAD is enabled. To check the UAD status, click the Edit icon

■

corresponding to your Grandstream phone.

Make sure that Status is set to Active, Auto provisioning is set to No, and DHCP is set to

■

Yes.

Click the Save button to save changes.

■

Creating Extension

Add the Extension

Navigate to Extensions. Click the Add Extension button.

■

The standard options window will be shown below.

■

Select the Grandstream phone model from the UAD select box.

■

Select Location: Local or Remote.

■

Local is for all Extensions registered on the LAN and Remote is for all Extensions

registered from remote networks, WAN, Internet etc.

Click the Next step button.

■

Extension Values

Enter values into the required field text boxes.

REQUIRED FIELDS:

Name

■

Enter a name for the Extension being created. Example: John Smith.

E-mail

■

Enter the e-mail address associated with this Extension. This e-mail address will receive

all system notification messages. Example: [email protected]

Click the Save button.

■

Registering Phone

This section describes how to register Grandstream phones using Hostname or IP Address, or

DNS SRV.

The following topics are covered:

Hostname or IP Address

■

Registering Your Device

Line configuration from the devices's web interface

To access the web interface of your Grandstream phone, first you must know its IP address on

your network.

To find the IP address of your device, please do the following:

Press the Home button.

■

Go to Status and press the Select button.

■

Go to Network status and press the Select button.

■

IP address is displayed under IPv4: e.g. 192.168.8.198

■

NOTE: Depending on your Grandstream device and its firmware, web interface settings may

vary.

Once you have entered the IP address, a log in menu will pop up. The username is admin and

■

the password is admin.

After you log in, under Accounts tab, you should select Account 1 -> General Settings.

■

Enter your Extension name into the Account Name field.

■

Enter your server address into the SIP Server field.

■

Enter Extension Username into the Authenticate ID field.

■

Enter Extension Secret into the Authenticate Password field.

■

Press the Save and Apply button to preserve the changes. Your phone should register after

■

couple of seconds, if not, please reboot your phone.

If everything is done as described above, you should have successfully registered your phone

■

to PBXware.

Dial *123 to verify registration.

Auto Provisioning

This section describes how to set UAD settings, create the PBXware Extension, and register the

phone using DHCP or Static IP address.

The following topics are covered:

UAD Settings

■

Creating Extension

■

Registering Phone

■

UAD Settings

UAD settings

Open a new browser window and enter the IP address in order to access the PBXware web

■

administration login screen. Example: http://192.168.1.10.

■

UAD Settings

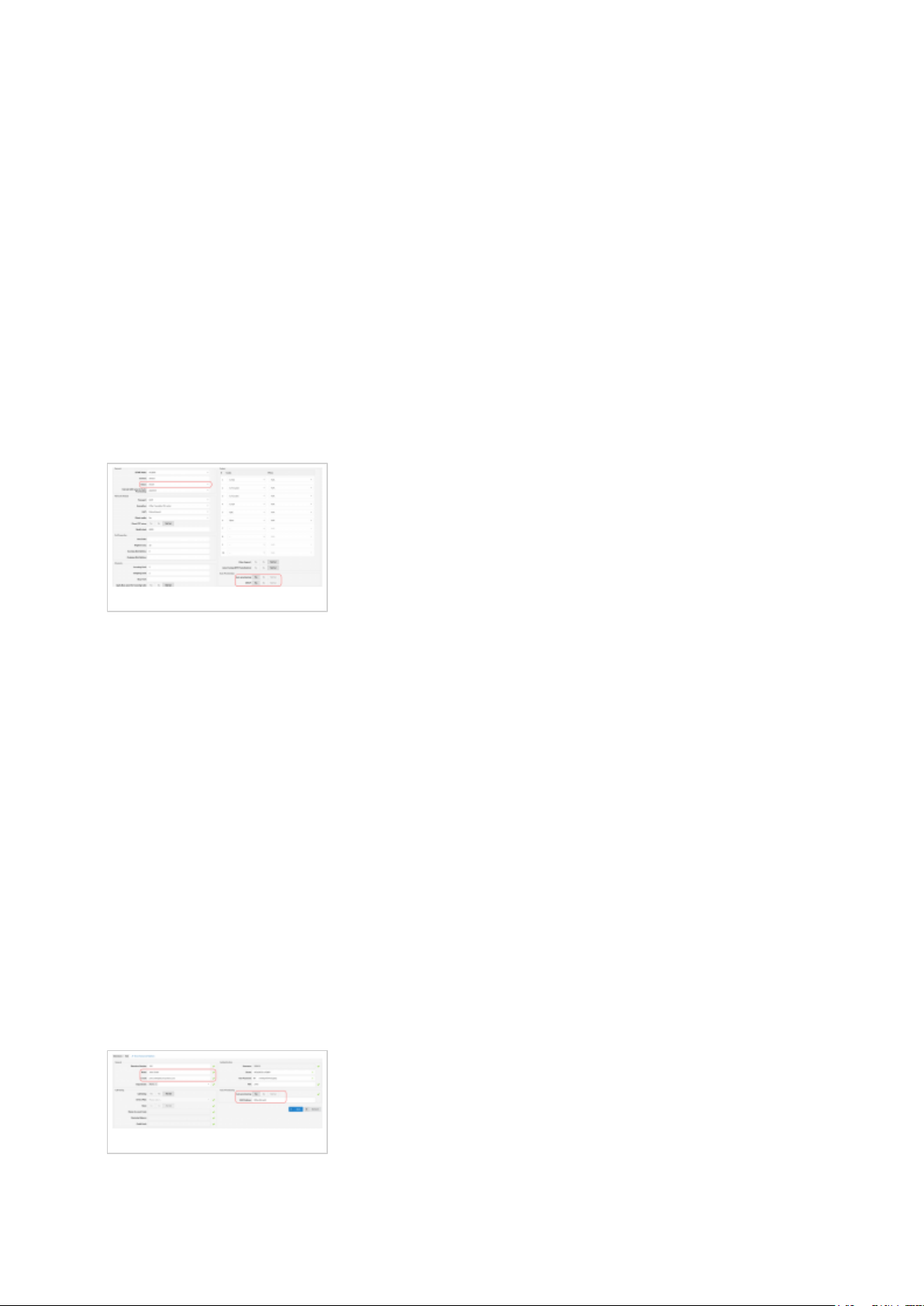

Navigate to Settings: UAD.

■

Make sure that the Grandstream UAD is enabled. To check the UAD status, click the Edit icon

■

corresponding to your Grandstream phone.

Make sure that Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to

■

Yes.

Click the Save button to save changes.

■

Creating Extension

Add the Extension

Navigate to Extensions. Click the Add Extension button.

■

The standard options window will be shown below.

■

Select the Grandstream phone model from the UAD select box.

■

Select Location: Local or Remote.

■

Local is for all Extensions registered on the LAN and Remote is for all Extensions

registered from remote networks, WAN, Internet etc.

Click the Next step button.

■

Extension Values

Enter values into the required field text boxes.

REQUIRED FIELDS:

Name

■

Enter a name for the Extension being created. Example: John Smith.

E-mail

■

Enter the e-mail address associated with this Extension. This e-mail address will receive

all system notification messages. Example: [email protected]

Auto Provisioning

■

Set to Yes.

MAC Address

■

Enter the Grandstream phone's MAC address. Example: 0004F2FF1536. The MAC

address can be found at the back of the phone.

Registering Phone

This section describes how to register Grandstream phones using DHCP, TFTP, HTTP &

HTTPS or DNS SRV.

The following topics are covered:

DHCP

■

TFTP or HTTP & HTTPS

■

DNS SRV

■

DHCP

Configure DHCP

Make sure that your DHCP router is configured to use option 66 to automatically instruct

■

phones with the URL for Auto provisioning. For more information, please refer to your router

documentation or contact your network administrator.

Phone's first boot or user initiated reboot

The Auto provisioning process will start during the phone's first boot or after the reboot

■

process has been initiated by the user. The DHCP server will instruct the phone from where to

pick up an appropriate configuration file. If everything is done as described above, you should

have successfully registered your phone to PBXware.

Dial *123 to verify registration.

TFTP or HTTP & HTTPS

Open a new browser window and enter your phone IP address, e.g. http://192.168.1.22.

■

Enter username and password and press the Confirm button. NOTE: The factory default

■

Click Maintenance at the top navigation menu.

■

Click the Upgrade and Provisioning link in the left hand navigation menu.

■

Scroll down to the Config section.

■

Choose what server type you intend to use in the Config Upgrade via field: HTTP, HTTPS,

■

and Trivial FTP. NOTE: Our recommendation is to use HTTP.

If the Server Type is HTTP or HTTPS, enter Hostname or IP Address followed

then by /prov.

Example of a Hostname using HTTP: abc.bicomsystems.com/prov

Example of a Hostname using HTTPS: abc.bicomsystems.com/prov

Example of an IP Address using HTTP: 192.168.1.10/prov

Example of an IP Address using HTTPS: 192.168.1.10/prov

Enter Auto Provisioning username and password into the Config HTTP/HTTPS User Name

■

and Config HTTP/HTTPS Password fields.

Click the Save and Apply button.

■

Click the Reboot button on the top navigation menu.

■

You will have to wait a couple of seconds for the configuration to be updated. NOTE: Do not

■

power off your phone.

The Auto provisioning process will start during the phone's reboot process, the phone will pick

■

up an appropriate configuration file from PBXware. If everything is done as described above,

you should have successfully registered your phone to PBXware.

Dial *123 to verify registration.

DNS SRV

This section describes how to use a DNS SRV record which specifies the location of PBXware.

NOTE: Your DNS Server needs to be configured correctly for this to work. Bicom Systems can

provide service to set up this for you.

Check if the DNS SRV is enabled in your PBXware

Contact your PBXware administrator to find out if the DNS SRV is enabled in your PBXware,

■

or if you have access to the PBXware. You can also check this on your own.

Open a new browser window and enter the IP address in order to access the PBXware web

■

administration login screen. Example: http://192.168.1.10.

■

Navigate to Settings: Servers. Click the server corresponding with the Edit button.

■

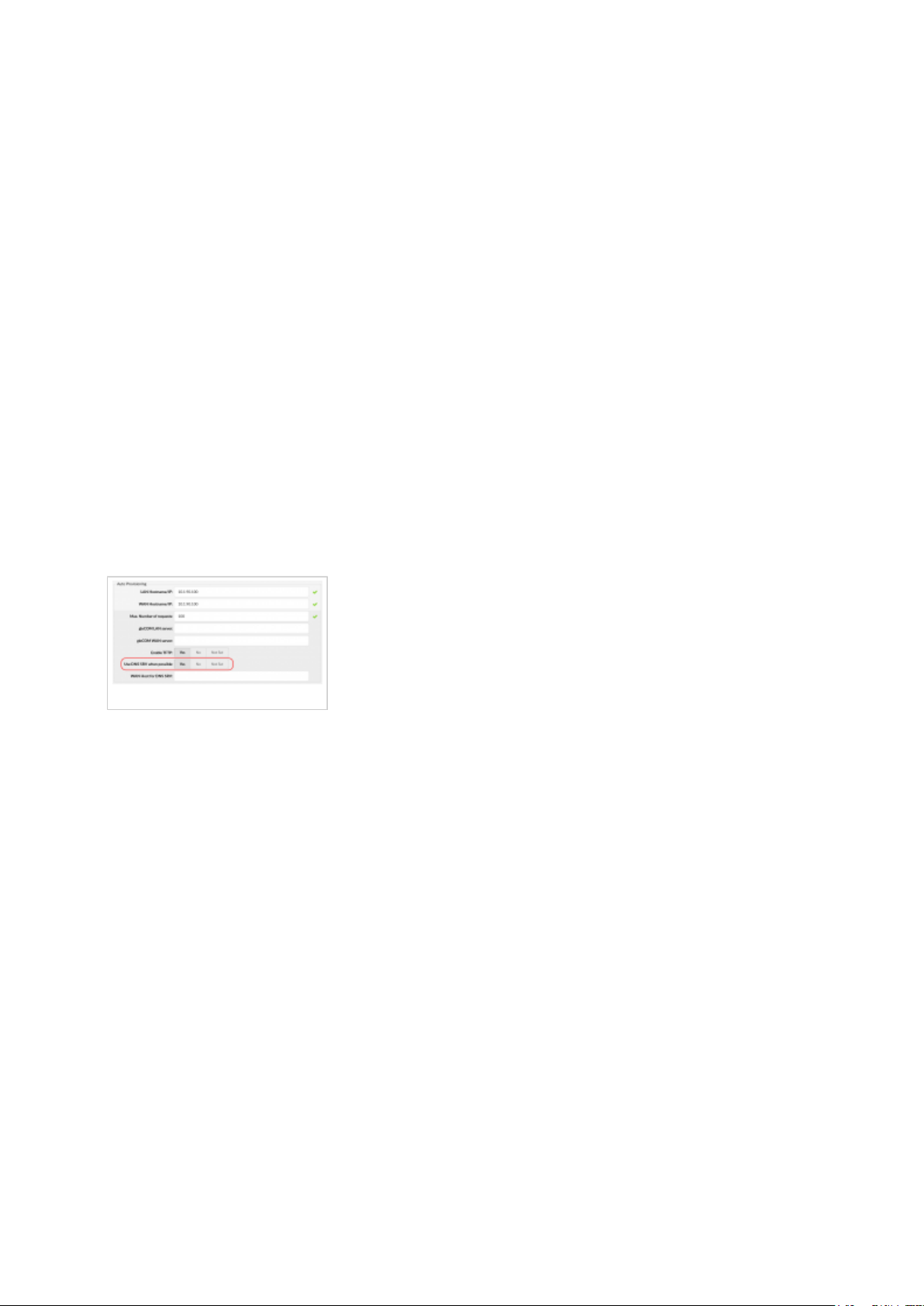

In Auto Provisioning group, make sure that Use DNS SRV when possible: is set to Yes. If

■

it is set to No or N/A, set to Yes and click the Save button.

NOTE: You must re-save all your Extensions configured for Auto Provisioning.

Make sure that DNS server is configured to automatically route registration request to

■

PBXware which is actually under another domain name. Example: abc.bicomsystems.com.

Andere Handbücher für GXP2135

Inhaltsverzeichnis

Andere Grandstream Networks Telefon Handbücher

Grandstream Networks

Grandstream Networks WP820 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV3240 Bedienungsanleitung

Grandstream Networks

Grandstream Networks Budgetone BT101 Bedienungsanleitung

Grandstream Networks

Grandstream Networks UCM6 series Bedienungsanleitung

Grandstream Networks

Grandstream Networks Grandstream GXP-2000 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV3370 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV3470 Bedienungsanleitung

Grandstream Networks

Grandstream Networks HT802 Bedienungsanleitung

Grandstream Networks

Grandstream Networks WP820 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXP2110 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV-3000 Bedienungsanleitung

Grandstream Networks

Grandstream Networks 3370 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXP2130v2 Bedienungsanleitung

Grandstream Networks

Grandstream Networks BudgeTone 200 Bedienungsanleitung

Grandstream Networks

Grandstream Networks Grandstream GXP-2010 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GHP620/W Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXP2120 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXP2200 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV3380 Handbuch

Grandstream Networks

Grandstream Networks Budge tone 100 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV 3140 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV3480 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GXV3275 Bedienungsanleitung

Grandstream Networks

Grandstream Networks GHP6 Series Bedienungsanleitung

Beliebte Telefon Handbücher anderer Marken

GE 2-9480 Bedienungsanleitung

Geemarc

Geemarc PHOTOPHONE 155 Bedienungsanleitung

D-Link

D-Link DWR-720/PW Bedienungsanleitung

Interquartz

Interquartz Gemini IQ333 Bedienungsanleitung

SSS Siedle

SSS Siedle HT 840-0 Bedienungsanleitung

Motorola

Motorola TITANIUM Bedienungsanleitung

Panasonic

Panasonic ICX Bedienungsanleitung

LG H870DS Bedienungsanleitung

Samsung

Samsung GT-I9500 Bedienungsanleitung

AT&T

AT&T Trimline 205 Bedienungsanleitung

Selta

Selta zenyth 600 Bedienungsanleitung

Doro

Doro AFTI 20 Bedienungsanleitung

UNIQCELL

UNIQCELL A1 Bedienungsanleitung

Panasonic

Panasonic KX Series Bedienungsanleitung

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Bedienungsanleitung

BT Decor 425 Bedienungsanleitung

NEC

NEC SV8500 Bedienungsanleitung

Teledex

Teledex PEARL Bedienungsanleitung
