Telescopic rod projector lift installation manual

Model:GPCD50 Series

Thank you for purchasing this product. Please read the manual carefully before use.

Please read the collection after reading for future reference.

Green label adjustment hole-the door shuttered

Yellow label adjustment hole-the door shuttered

as it closed（clockwise）

Figure 9

FAQ

The cause of the trouble The solutionTrouble

Line problem Contact factory or distributor

Motor heating protection

Layer board

Close the door shake

Open the door shake

Wait for motor cooling

The elevator is fully

installed but not

working properly

Remote control

doesn't respond

Positioning confusion

Bad reception/The signal block Restart the lift power supply

Positive and negative electrode of generator battery is

installed backward or the battery power is insufficient

The design of this product can be used without failure for many years, many problems are caused by simple things.

If something goes wrong, check out our simple fix list.If the problem continues, please contact the authorized dealer

or call the after-sales service number: 020-84899499-509

Check whether the battery is installed backward according to the

instruction. If the fault is not removed, please replace the battery

Refer to picture 9 for a slight clockwise half turn

Refer to the yellow mark in picture 9 and turn it clockwise slightly for half a turn

Connect the power cord according to the instruction

The power cord is not properly connected

The adjustment screw becomes loose during transportation

Left and right corresponding door panel adjustment indication diagram:

Do not take apart the lift by yourself,

Please call a specialist to help you on

this when Fix and regulating job in needed

1.Please ensure the installation ceiling be secure enough to avoid falls, The loading capacity

must be 4 times of the projector lift and the projector.

2.Please tighten all the screws and check whether it become loose regularly, to ensure safety use.

3.Please do some regular maintenance.

A.When dirty mark there, please gave the lift a polish with a soft duster.

B.When dust there, please remove with soft brush.

4.Kindly suggest a specialist to manage this device, then ensure security and smooth use.

5.Please ensure the lift up and down via Remote control, no pulling with hands.

6.Always retract the lift to the ceiling after use.

7.Ensure the power outlet is connecting with grounding wire.

8.There is no need to add the lubricant to the motor. Do not regulate the motor by yourself, the motor

is already in the right position before delivery, Please call a specialist to help you on this when it is

in needed.

When the lift is fully lowered, the bottom

of the lift should be no less than 1.8 meters

away from the ground to avoid being touched

by children。

Please always retract the lift to the ceiling

after use, prevent the dust entering.

Please install the lift in the place with

stronger loading capacity, otherwise

accident may happen and falling risk

there.

Lower limitation

Upper limitation

Caution

Please do read the caution, incorrect

operation will cause accident and product

damage.

112

Components

GPCD50 Series Projector Lift

1.Control panel

2.Electric ceiling door

3.Ceiling bezel

4.Telescopic Arms

5.Projector mounting Bracket

Accessories

A C 0 9 7 remote 1pcs Certification 1pcs Warranty Card 1pcs

Manual 1pc s 4x25 Cross head screw 4pcs 5x25Cross head screw 4pcs

Hexagonal Adjuster 1pcs

6x25Cross head screw 4pcs

Safety rope 4pcs

Φ20x10washer 4pcs

Projector mounting Bracket

Telescopic Arms

Electric ceiling

door

Ceiling bezel

Control panel

Picture 8

Remote control learning mode

Stop

Down

Press up and stop together

1.Picture 8, when projector lift is under loading status, long press stop on the control panel within 5 seconds

after switched on. When number display screen flicker, this product is under learning mode.

2.Press up and stop on the remote control until the projector lift slight move upwards and downwards.

3.Test if the remote could control the product properly, if not, try to pair again.

GPAD58 Series projector lift remote control pairing notice:

This product has learning and pairing function. Please enable learning function when first use

remote to control the projector lift.

(This product has been paired and learned before EXW)

CONTROLLER G1

CAT6 CAT6 Dry contact RS-485

IN-220V

50Hz 80W

INPUT

HDMI2.0

stop Down Reset memory

Remote control backRemove the screw

and cover

Traction wire electronic

positioning setting button

Battery

1.Working temperature: -20℃ to +70℃

2. Battery: 2 pcs of RC2032 button battery

3.Requires replacement battery when given

signal weak

When remote control signal weak, please replace

it as following:

1.Remove screw and cover on the back of remote

2.Install battery in correct direction of positive and

negative pole according to picture.

3.Reinstall cover and screw

Remote control Notes

Battery installation:

Front View

640mm 640mm

Side View 8mm

安装孔φ10mm

310mm

680mm

620mm

Over View

GPCD50 Series：

Size：640x640xH mm

Max Load：15kg

Ceiling Hole Opening Size：655x655 mm

Screw Rod Installation Size：310x620 mm

Ceiling door Dimension ：680x680 mm

Rated Voltage：220V 50Hz

Rated Power：120W

Suitable for projector size：

W440XD480XH240 mm（Including wiring and lens）

The noise：≤55dB

Control mode:

Weak current dry contact/Rs-485/Wireless RF

Required ceiling height：H+50mm

Specification

Detail in Parameter List

GPCD50 detail specification

Modle

GPCD5004

GPCD5009

640x640x590 440x480x240310x620 655x655

655x655640x640x860 440x480x240310x620

Overall size Quantity of

Telescopic

Arms

(W*D*H)mm

Mounting Hole

(W*D)mm

Ceiling opening

size (W*D)mm

Suggestion Projector

Size Range (W*D*H)mm

Front View

Rs485 Port Setting:

Bit Rate: 2400

Data bit: 8 bit

Odd check: N/A

Stopping position: 1

Hexadecimal control code:

UP：ff,ee,ee,ee,dd

STOP：ff,ee,ee,ee,cc

DOWN：ff,ee,ee,ee,ee

Some center console need setting address:ff,ee,ee,ee,aa

USB Serial Port (COM3) 属性

常规端口设置驱动程序详细信息事件

2400

无

位 /秒 (B):

数据位(D):

奇偶校验(P):

高级（）

…还原默认值(R)

无

停止位(S):

流控制(F):

取消

确定

常规端口设置驱动程序详细信息事件

Baud Rate: 2400

Data Bits: 8

Parity: 无

Stop Bits: 1

Flow Control:

Baud Rate:

位 /秒 (B) :

数据位(D) :

奇偶校验(P) :

停止位(S) :

高级（）

…还原默认值(R)

取消

确定

无

流控制(F) :

Remote controller

Notice:

1.When connecting via RS232 or RS485, if any control fails, please switch two controlling cable.

2.Connecting Loop Resistance Tester should not be over 20Ω

3.Prohibit parallel line with strong interference source

STOP

DOWN

Control button instruction

1.Press UP to lift

2.Press STOP to stop

3.Press DOWN to lower

(Installation drawing)

Warning: The top plate must be kept parallel when installing, otherwise it will cause damage to the lift.

Concreted-Ceiling

Ceiling layer

Ceiling decoration frame

Installation

Installation instructions

This projector lift needs to be recessed into the ceiling，and this instruction takes the grille-ceiling

as the example. Please install the projector lift according to different application. The projector lift

needs to be recessed at the best viewing angle in order to improve the image. Take out all the parts

from the packaging and follow the installation instructions as below.

For the convenience and safety, please read this instruction manual carefully and choose a

installation according to your requirement.

Remote Localizer

When it is necessary to set the lower limit, open the electric double door. When the laminate reaches the ceiling,

press the pause button to use the keyhole on the back of the remote controlWhen the needle is inserted into the

blue light, the hanger will enter the preset state and reach the position required by the customer. Press the stop

button and insert the needle into the back of the remote control againWhen the small hole light is off and the

hanger moves slightly up and down once, the setting is completed.

Insert a needle into

the hole

This sink plate will be automatically lowered down

when the light is on.

light on enters preset

state

Central Control Instruction : requires a professional installation or contact us.

orange and white、

orange、

green and white、

blue、

blue and white、

green、

brown and white 、

brown

1 3 4 65 7 8

down stop up

Central Control box

RS-485 plug:7f o r + / 8for-

5 A 3 B

RJ45 wiring instruction

Central control RJ45 plug

NO.1 --GND

NO.2--DOWN

NO.3--STOP

NO.4--UP

others maintain

wiring instruction

485-RJ45 plug

wiring instruction

NO.7——join485A

NO.8——join485B

others maintain

Rj45 plug

Installation steps

1.determine the direction of the projector and the installation position, according to the size

of the opening in the ceiling layer.

Concrete base

Ceiling decorative layer

(Ceiling opening size diagram)

2.Punch the concrete base and install the Tapping screws.

Tapping screws

620mm

310mm

655mm

Angle adjustment

Electrical, product instructions

Control panel description

Up: Electric hanger rises

Stop: electric hanger stops

Down: electric hanger drop

Communication port: Category 6 network port

Dry contact: dry contact interface RS485: RS485 interface

Power input: power input interface

Fuse: F6. 3A 250V

Reset: long press the reset button to adjust the height

Memory: electric hanger memory position height

HDMI 2.0: 19+1 2.0 HD interface

Digital display: electric hanger current screw telescopic height

Rotate left and right ±3°

1.Rotate left and right

Use a hex wrench to loosen the two screws on the front end.

As shown by the arrow in Figure 1, the universal joint can be

adjusted to the left and right by ±3°.

2.vertical up and down adjustment

As shown in Figure 2, use the hex wrench to loosen the two

screws on the left and right. The universal joint can be adjusted

vertically upward by 1° and vertically downward by 8°.。

3.The installation foot adjustment

Use a hex wrench to loosen the screws on the mounting feet.

As shown in Figure 3, adjust the screws to the desired length

and retighten the screws.

figure 1

1° vertically upwards and 8° vertically downwards

Adjust the length of the mounting feet

figure 2

figure 3

CONTROLLER G1

CAT6 CAT6 Dry contact RS-485

IN-220V 50Hz

INPUT

HDMI 2.0

stop Down Reset memory

6 8mm.

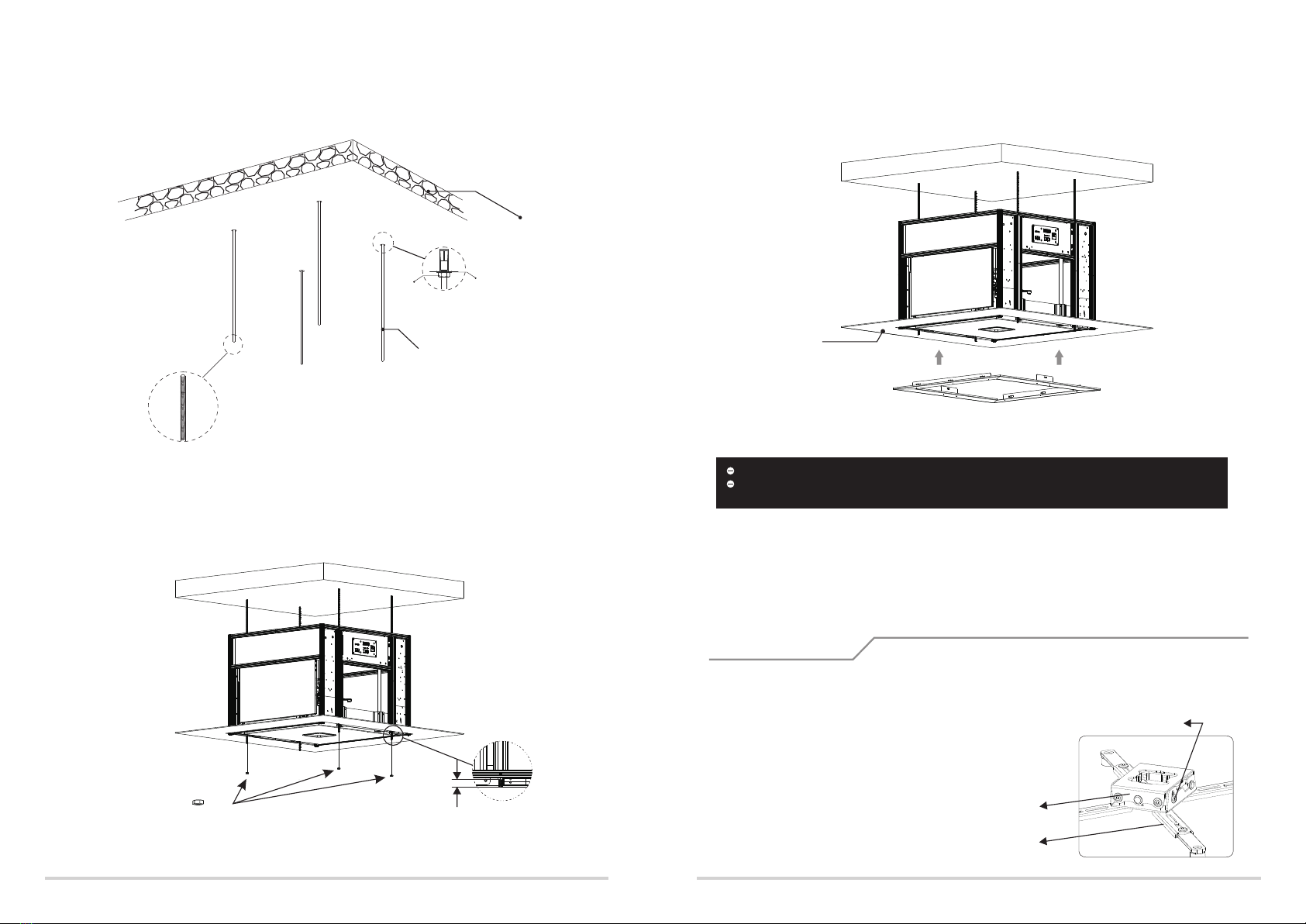

3.After checking that the tapping screw is fixed, install the screw rod and fix it. (In order to

make the screw rod easier to pass through the lifter, we recommend that the end of the

screw rod be tapered, and the length between each two lead rods can differ by 10-20mm.

Concrete base

screw nut Cushion

screw rod

recommended to sharpen the end of the screw into

a taper that makes it easier to pass through the

screw hole of the lift

4.Lift the lifter to the height of the installation position by using the lifting equipment, and

pass the screw rod through the four holes of the lifter. Adjust the height of the lifter with the

screw nut so that it is flush with the height of the ceiling layer. Remove the excess screw rod.

screw nut

5.Install the decorative frame so that the decorative frame fits on the ceiling layer and the

installation is completed.

make the decorative frame fits on the ceiling layer

Grille ceiling

For the convenience of installation, the side plates of the cage can be removed first. After the installation is

completed, the installer can stand in the cage and reinstall the side panels. At this time, the side panels must

be turned over and installed.

If it is necessary to adjust the limit height due to the installation environment or the limitations of the site, it

must be adjusted by a special technician or call after-sales.

1. Lower the bamboo joint of the lift to the height suitable for the installer to install the projector, and remove

the mounting feet on the bamboo joint.

2. After the mounting feet are fixed on the projector, re-attach the projector and the mounting feet to the angle

adjuster and tighten the screws.

(Note: Be sure to confirm that the screws are securely locked, be

careful to prevent the projector from accidentally falling!)

Angle adjuster

Tighten the screws

projector mounting Bracket

Projector installation

Please note that you must touch the upper limit switch to stop the projector lift from rising!

The level above the electric lift must be adjusted to the level, Tilting can cause the electric hanger to

malfunction.

Inhaltsverzeichnis

Andere Grandview Projektorzubehör Handbücher

Grandview

Grandview GPAD50 Series Bedienungsanleitung

Grandview

Grandview GPCM-B Bedienungsanleitung

Grandview

Grandview GPCM-C Bedienungsanleitung

Grandview

Grandview LS-Zxx Bedienungsanleitung

Grandview

Grandview GPCN- E200 Bedienungsanleitung

Grandview

Grandview GPCN-E200 Bedienungsanleitung

Grandview

Grandview Smart Screen Bedienungsanleitung

Grandview

Grandview Smart combo 106H Bedienungsanleitung

Grandview

Grandview Prestige PP R1 Series Bedienungsanleitung

Grandview

Grandview GPAD42 Series Bedienungsanleitung

Grandview

Grandview GPAD58 Series Bedienungsanleitung

Grandview

Grandview GPCM-J Series Bedienungsanleitung

Grandview

Grandview PT-Uxx Bedienungsanleitung

Grandview

Grandview LS-MA III Series Bedienungsanleitung

Grandview

Grandview U-WORK Bedienungsanleitung

Grandview

Grandview CB-UY60 Bedienungsanleitung

Grandview

Grandview PE-L R3 Series Bedienungsanleitung

Grandview

Grandview Prestige PP R1 Series Bedienungsanleitung

Grandview

Grandview Cyber Series Bedienungsanleitung

Grandview

Grandview GPCM-F Bedienungsanleitung

Grandview

Grandview GPAD64 Series Bedienungsanleitung

Grandview

Grandview GPCM-E3540 Bedienungsanleitung

Grandview

Grandview GPAC76Series Bedienungsanleitung

Grandview

Grandview CN-MI series Bedienungsanleitung

Beliebte Projektorzubehör Handbücher anderer Marken

Optoma

Optoma BX-AL133B Bedienungsanleitung

PEERLESS

PEERLESS PE 1120 Leitfaden

Osram

Osram SIRIUS HRI Series Handbuch

Presentation Switchers

Presentation Switchers PS111 Bedienungsanleitung

Kramer

Kramer VIA GO Bedienungsanleitung

Yamaha

Yamaha PJL-112 Stücklistenhandbuch

Swedstyle

Swedstyle CL23AA02ZA25E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 236CB Betriebsanleitung

Epson

Epson BrightLink 475Wi Bedienungsanleitung

Acer

Acer WP100 Bedienungsanleitung

i3 i3board Bedienungsanleitung

CHIEF

CHIEF HB-43E Bedienungsanleitung

Biamp

Biamp Modena Hub Service-Handbuch

NEC

NEC MP10RX Bedienungsanleitung

Panamorph

Panamorph DCR-S3 Bedienungsanleitung

Exact solutions

Exact solutions FRAME-EVO-P10 Bedienungsanleitung

CHIEF

CHIEF VCM103S Bedienungsanleitung

InFocus

InFocus LP70+ Leitfaden
