GRASS VALLEY EYECATCHER EC270 Bedienungsanleitung

Service Manual

3922 496 32011 Version V1.0

www.grassvalley.com May 2013

EYECATCHER EC270

2.7-Inch Color LCD Ocular Viewﬁnder

1-3Eyecatcher 2.7” LCD VF Service Manual V1.0

Declaration of Conformity

We, Grass Valley Nederland B.V., Kapittelweg 10, 4827 HG

Breda, The Netherlands, declare under our sole responsi

bility that this product is in compliance with the following

standards:

- EN60065 : Safety

- EN55103-1: EMC (Emission)

- EN55103-2: EMC (Immunity)

following the provisions of:

a. the Low Voltage directive 2006/95/EC

b. the EMC directive 2004/108/EC

FCC Class A Statement

This product generates, uses, and can radiate radio fre-

quency energy and if not installed and used in accordance

with the instructions, may cause interference to radio com-

munications.

It has been tested and found to comply with the limits for

a class A digital device pursuant to part 15 of the FCC rules,

which are designed to provide reasonable protection

against such interference when operated in a commercial

environment.

Operation of this product in a residential area is likely to

cause interference in which case the user at his own ex-

pense will be required to take whatever measures may be

required to correct the interference.

document and giving it to others, and the use or communica

tion of the contents thereof, are forbidden without express

authority. Offenders are liable to the payment of damages.

All rights are reserved in the event of the grant of a pat

ent or the registration of a utility model or design. Liable to

technical alterations in the course of further development.

Trademarks

Grass Valley is a trademark of Grass Valley, Inc.

All other tradenames referenced are service marks, trade

marks, or registered trademarks of their respective compa-

nies.

Website

Visit the Grass Valley public website to download the latest

user’s guide updates and additional information about your

broadcast product:

www.grassvalley.com

1-4 Eyecatcher 2.7” LCD VF Service Manual V1.0

DOCUMENT INDENTIFIER EYECATCHER_LCD_VF_Servicemanual

DATE 01-May-2013

KEYWORDS Service Manual Documentation EC270

COMPANY Grass Valley Nederland B.V.

DOCUMENT HISTORY

Release Date Reason of change Status Distribution

0.1 November 2012 Initial Version Initial Internal

1.0 May 2013 Published version Released Worldwide

1-5Eyecatcher 2.7” LCD VF Service Manual V1.0

Table of contents

Chapter 1

1.1 Front page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Decleration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

FCC Class A Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Document Indentiﬁer and History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1.3 Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

1.4 End of Life product recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Cautions and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Special tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Chapter 2 Exploded views

2.1 Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Chapter 3 Parts Replacement Section

3.1 How to use this replacement section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2 Dismanteling Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.3 Replacements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

Microphone Clamp Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

Viewﬁnder Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Bottom Housing Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Flying Lead Cable Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

User IO Board 2.7” VF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Main Board 2.7”VF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Tally Cover Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

2.7” VF LCD Housing Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

VF LCD Housing Flatcable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11

Mirror Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

1-6 Eyecatcher 2.7” LCD VF Service Manual V1.0

Chapter 4 Service Spare Parts

4.1 Eyecatcher Main Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 Top Housing Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

4.3 Bottom Housing Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.4 2.7” VF LCD Housing Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.5 Mirror House 2.7” VF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.6 2.7” VF Eyepiece Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4.7 Microphone Clamp Assy 2.7” VF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Chapter 5 Block Diagrams

5.1 Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.2 Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.3 Control and Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Chapter 6 Diagnostics

6.1 Led Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

6.2 Status Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

6.3 Operation Log Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Chapter 7 Maintenance

7.1 Package Download. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

1-7Eyecatcher 2.7” LCD VF Service Manual V1.0

End-of-life product recycling

Grass Valley’s innovation and excellence in product design also extends to

the programs we’ve established to manage the recycling of our products.

Grass Valley has developed a comprehensive end-of-life product take back

program for recycle or disposal of end-of-life products. Our program meets

the requirements of the European Union’s WEEE Directive and in the United

States from the Environmental Protection Agency, individual state or local

agencies.

Grass Valley’s end-of-life product take back program assures proper disposal

by use of Best Available Technology. This program accepts any Grass Valley

branded equipment. Upon request, a Certiﬁcate of Recycling or a Certiﬁcate

of Destruction, depending on the ultimate disposition of the product, can be

sent to the requester.

Grass Valley will be responsible for all costs associated with recycling and

disposal, including freight, however you are responsible for the removal of

the equipment from your facility and packing the equipment ready for pickup.

Information concerning the program can be found at:

www.grassvalley.com/about/environmental-policy

1-8 Eyecatcher 2.7” LCD VF Service Manual V1.0

Safety Summary

This information is intended as a guide for trained and qualiﬁed personnel who are

aware of the dangers involved in handling potentially hazardous electrical / electronic

equipment. It is not intended to contain a complete list of all safety precautions which

should be observed by personnel in using this or other electronic equipment.

The installation, maintenance and service of this equipment involves risks both to

personnel and equipment and must be preformed only by qualiﬁed personnel exercising

due care.

Personnel engaged in the installation, operation, maintenance or servicing of this equip

ment are urged to become familiar with First Aid theory and practises.

During installation and operation of this equipment, local building safety and ﬁre

protection standards must be observed.

Whenever it is likely that safe operation is impaired, the apparatus must be made

inoperative and secured against any unintended operation. The appropriate servicing

authority must then be informed. For example, safety is likely to be impaired if the

apparatus fails to preform intended function or shows visible damage.

Cautions and Warnings

When preforming service, be sure to read and comply with the warning and caution

notices appearing in the manuals. Warnings indicate danger that requires correct

procedures or practices to prevent death or injury to personnel. Cautions indicate

procedures or practices that should be followed to prevent damage or destruction to

equipment to property.

WARNING

THE CURRENT AND VOLTAGES PRESENT IN THIS EQUIPMENT ARE DANGEROUS. ALL

PERSONNEL MUST AT ALL TIMES FOLLOW THE SAFETY REGULATIONS.

ALWAYS DISCONNECT POWER BEFORE REMOVING COVERS OR PANELS.

NEVER MAKE INTERNAL ADJUSTMENTS, PERFORM MAINTENANCE OR SERVICE WHEN

ALONE OR WHEN FATIGUED.

IN CASE OF AN EMERGENCY ENSURE THAT THE POWER IS DISCONNECTED.

USE ONLY FUSES OF THE TYPE AND RATING SPECIFIED.

CAUTION

To prevent risk of overheating, ventilate the product correctly.

1-9Eyecatcher 2.7” LCD VF Service Manual V1.0

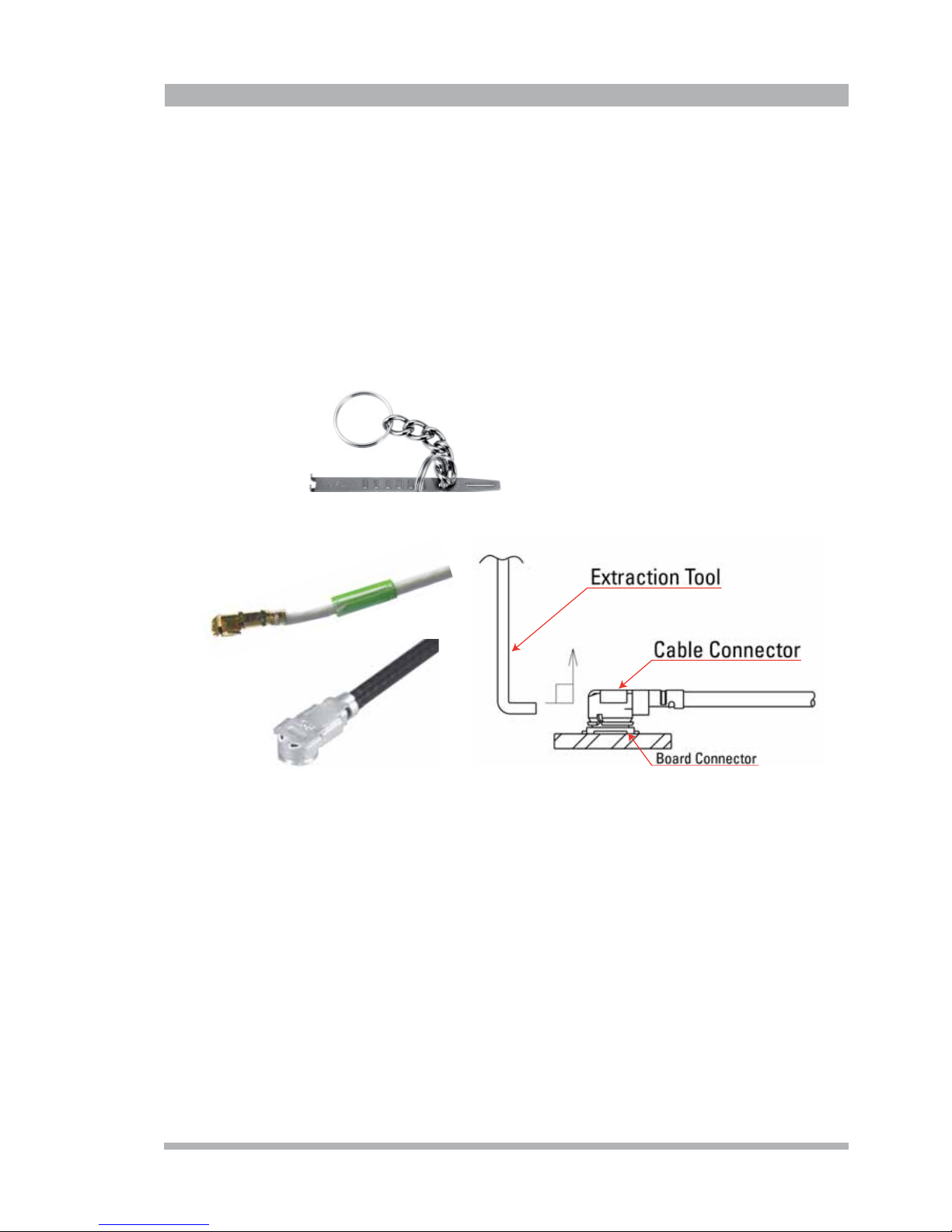

Special tools

Extraction Tool

Part number 1688076

Supplier: Farnell

To disconnect the connector, insert the end portion of the tool under the connector

ﬂanges an pull off vertically, in the direction of the connector mating axis.

To mate the connector, the mating axes of both connectors must be aligned and the

connectors can be mated. The “click” will conﬁrm fully mated connection.

Do not attempt to insert on an extreme angle.

1-10 Eyecatcher 2.7” LCD VF Service Manual V1.0

Aardvark Tool

Supplier: www.totalphase.com/products/aardvark_i2cspi

Download Tool Flat Panel Viewﬁnder

3922 407 58341 Download Tool FP VF

2-1

Eyecatcher 2.7” LCD VF Service Manual V1.0

Exploded Views:

Chapter 2

2.1 Front View

-----Rotary Knobs-----

Contrast BrightnessMenu/Peak

Switches:

Mode

Tally

SW C (Assignable)

Flying Lead

Eyepiece

Microphone Clamp

Tally Back

Rotary Knob

Switch Knob
